Understanding Custom High Density Rogers PCB Circuits Board

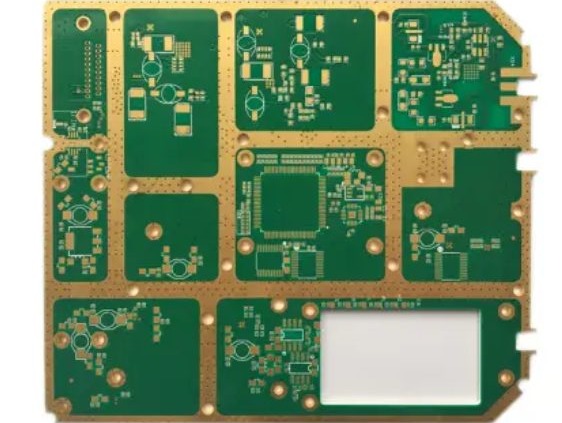

custom high density rogers pcb circuits board

Rogers PCB is a high-performance printed circuit board specifically designed for high-frequency applications, known for its superior electrical properties and low dielectric loss. This makes it an ideal choice for fields such as telecommunications, radar, and satellite technology, where effective transmission of high-frequency signals is crucial for maintaining signal integrity and system reliability. As modern electronic devices demand smaller sizes and higher performance, the significance of custom high density rogers pcb circuits board becomes increasingly apparent. Custom high-density designs not only reduce the footprint of the circuit boards but also enhance overall performance to meet the growing complexity of electronic applications. By optimizing layouts and selecting appropriate materials, manufacturers can produce lighter, smaller, and more powerful circuit boards to address various high-frequency application challenges. Therefore, understanding Rogers PCB and its role in custom high-density designs is essential for advancing electronic technology.

What is custom high density rogers pcb circuits board?

A custom high-density Rogers PCB (printed circuit board) is a specialized PCB designed with Rogers materials that support high-density interconnects (HDI) and complex circuit layouts. These types of PCBs are tailored for applications that require high-frequency performance, low signal loss, and precise impedance control, making them ideal for RF (radio frequency) and microwave applications.

Key Characteristics of Custom High-Density Rogers PCBs:

  1. High-Density Interconnect (HDI): These PCBs use HDI technology, which involves smaller vias, finer trace widths, and tighter spacing between components. This allows more components and connections to be packed onto the board, supporting complex designs without compromising performance.
  2. Rogers Material: Rogers Corporation produces specialized laminate materials with low dielectric loss, stable dielectric constants, and excellent thermal properties. Common types include RO4350B and RO4003C, which are known for their high-frequency capabilities and suitability for signal integrity.
  3. Signal Integrity: With precise control over impedance, custom high-density Rogers PCBs minimize signal loss and interference, essential for high-speed, high-frequency applications.
  4. Applications: These boards are widely used in industries that rely on high-frequency signals, such as telecommunications, aerospace, military radar systems, and medical imaging equipment.
  5. Customization: Custom high-density Rogers PCBs can be tailored to meet specific design requirements, including layer count, material thickness, copper weight, and specialized stackups. This allows for optimized performance based on the specific needs of each application.

Custom high-density Rogers PCBs provide a robust solution for high-performance, high-frequency applications by combining advanced Rogers materials with HDI technology to create compact, reliable circuit boards that maintain signal integrity in demanding environments.

Advantages of Custom High-Density Rogers PCBs

Custom high-density Rogers PCBs offer several significant advantages, making them ideal for advanced electronic applications.

Enhanced Signal Integrity and Reduced Losses

One of the primary benefits of using Rogers materials is their ability to maintain signal integrity at high frequencies. The low dielectric loss characteristic of Rogers PCBs minimizes signal degradation, ensuring that data transmission remains clear and reliable. This is particularly crucial in applications such as telecommunications and high-speed data transfer, where even minor losses can lead to significant performance issues.

Improved Thermal Management Capabilities

Rogers PCBs are designed with excellent thermal conductivity, which enhances their ability to dissipate heat effectively. In high-density circuits, where multiple components generate heat, efficient thermal management is essential to prevent overheating and ensure the longevity of electronic devices. Custom high-density Rogers PCBs can help maintain optimal operating temperatures, thereby increasing reliability and performance in demanding environments.

Smaller Footprint and Lightweight Design Benefits

As electronic devices become more compact, the need for smaller and lighter components intensifies. Custom high-density Rogers PCBs can be designed with a reduced footprint, allowing for more efficient use of space within devices. This lightweight design is particularly beneficial in applications such as mobile devices, drones, and automotive electronics, where every gram and millimeter counts. By integrating high-density designs, manufacturers can create powerful, compact solutions that meet the demands of modern technology while enhancing overall performance.

The advantages of custom high-density Rogers PCBs make them a crucial choice for industries looking to push the boundaries of electronic performance and design.

ALCANTAPCB Rogers Stackup

ALCANTAPCB offers a range of stackup options specifically designed for Rogers PCBs, catering to various high-frequency applications. The choice of stackup configuration is crucial, as it directly influences the performance, reliability, and manufacturability of the PCB.

Overview of ALCANTA’s Stackup Options for Rogers PCBs

ALCANTA provides multiple stackup configurations for Rogers materials, including popular choices like RO4350B and RO4003C. These stackups can be customized to meet the unique requirements of each project, including the number of layers, material thickness, and the arrangement of dielectric and conductive layers. Common configurations include 4-layer, 6-layer, and even more complex designs, allowing engineers to select the ideal stackup based on their specific performance criteria.

Discussion on Typical Configurations and Their Impact on Performance

  • 4-Layer Stackup: This configuration typically includes two layers of Rogers material sandwiched between inner and outer copper layers. It is a popular choice for applications requiring moderate complexity and performance. The balanced layer arrangement helps maintain impedance control and reduces signal loss.
  • 6-Layer Stackup: A 6-layer stackup provides additional routing layers, which is beneficial for more complex circuit designs. This configuration allows for better signal routing and shielding, leading to improved performance in high-frequency applications. It is ideal for designs requiring tight spacing and minimal interference.
  • Higher Layer Count Stackups: For applications with extremely high-frequency requirements, ALCANTA can create stackups with 8 or more layers. These configurations allow for advanced designs that integrate multiple functionalities within a compact form factor. Higher layer counts also enhance thermal management and signal integrity by providing additional ground and power layers.

The stackup options available at ALCANTA for Rogers PCBs are versatile and tailored to enhance performance across various applications. By selecting the appropriate configuration, engineers can optimize their designs for signal integrity, thermal performance, and overall functionality, ensuring that the final product meets the demands of today’s high-frequency electronics.

High Frequency PCB Design Considerations

Designing PCBs for high-frequency applications involves specific principles and considerations that differ from standard designs. These considerations are crucial for ensuring optimal performance, signal integrity, and reliability.

Design Principles Specific to High-Frequency Applications

High-frequency PCB design requires careful attention to several key principles:

  1. Short Traces: High-frequency signals can experience significant losses over longer trace lengths. Therefore, it is essential to keep traces as short as possible to minimize signal degradation and maintain performance.
  2. Controlled Impedance: Impedance control is vital for high-frequency designs. The impedance of traces must be matched to the components and connectors to avoid signal reflections, which can lead to data loss and increased noise levels.
  3. Use of Ground Planes: Incorporating solid ground planes helps improve signal integrity by providing a return path for signals. This reduces electromagnetic interference (EMI) and enhances overall circuit performance.

Importance of Impedance Control and Layer Stacking

Impedance control is a fundamental aspect of high-frequency PCB design. Designers must calculate the characteristic impedance of traces based on the materials used, trace width, and distance to the reference plane.

  1. Layer Stacking: The arrangement of layers in the stackup affects impedance. For example, placing a power or ground plane close to signal layers can stabilize impedance and reduce noise. Designers must carefully plan the layer configuration to ensure optimal performance.
  2. Microstrip and Stripline Configurations: Choosing between microstrip (surface-mounted traces) and stripline (internal traces sandwiched between layers) affects impedance characteristics. Microstrip lines are easier to manufacture, while stripline configurations provide better shielding and reduced interference.

Guidelines for Layout to Minimize Signal Loss and Crosstalk

To further enhance high-frequency PCB designs, follow these layout guidelines:

  1. Minimize Via Usage: Each via adds inductance and can degrade signal integrity. When possible, reduce the number of vias in the signal path, particularly for high-frequency traces.
  2. Maintain Distance Between Traces: To minimize crosstalk, maintain sufficient spacing between adjacent traces. This is especially important for high-speed signals that can couple unwanted noise into neighboring traces.
  3. Use Differential Pair Routing: For high-speed signals, consider routing differential pairs together. This not only balances the impedance but also helps to cancel out EMI, improving signal integrity.
  4. Proper Termination: Implementing proper termination techniques at the ends of high-frequency traces can prevent signal reflections and ensure signal fidelity.

High-frequency PCB design requires a comprehensive understanding of specific principles, careful impedance control, and strategic layout guidelines. By following these considerations, designers can create effective and reliable PCBs that meet the demands of high-frequency applications.

Minimum PCB Size and Standard Thickness

When designing custom Rogers PCBs, particularly for high-frequency applications, understanding the minimum size limitations and standard thicknesses is essential. These factors significantly impact the PCB’s performance, manufacturability, and suitability for various applications.

Exploration of Minimum Size Limitations for Custom Rogers PCBs

The minimum size of a custom Rogers PCB is influenced by several factors, including the complexity of the circuit design and the specifications of the components used. While there is no one-size-fits-all answer, the minimum dimensions are generally dictated by:

  1. Trace Width and Spacing: High-frequency designs often require narrow traces and tight spacing to accommodate complex routing. However, this can lead to challenges in manufacturability and increased risk of signal integrity issues. Typically, a minimum trace width of 4 mils (0.1 mm) is recommended, but more advanced processes may allow for widths as small as 2 mils (0.05 mm).
  2. Component Size: The size of surface-mounted components also affects the PCB dimensions. Smaller components may permit a reduction in board size, but careful layout is necessary to ensure proper soldering and electrical performance.
  3. Manufacturing Capabilities: Different manufacturers may have specific limitations regarding the smallest size they can produce. It’s important to consult with the chosen PCB manufacturer to understand their capabilities and any potential implications on design.

Discussion of Standard Thicknesses, Particularly for 4-Layer Designs

Standard PCB thicknesses vary, but for Rogers PCBs, common thicknesses include:

  1. 1.6 mm (0.062 inches): This is the most frequently used thickness for many PCB applications, including 4-layer designs. It provides a good balance of strength and performance, making it suitable for a wide range of high-frequency applications.
  2. 0.8 mm (0.031 inches) or Thinner: For compact designs, thinner boards can be utilized. However, this may impact the thermal management and rigidity of the PCB. Thinner designs are often used in mobile devices and other applications where space is a premium.
  3. Specialized Thicknesses: For certain applications, manufacturers may offer specialized thicknesses tailored to specific requirements. It’s crucial to communicate design needs with manufacturers to determine the most appropriate thickness.

Factors Influencing Size and Thickness Choices in High-Density Applications

In high-density applications, several factors come into play when choosing the size and thickness of Rogers PCBs:

  1. Thermal Considerations: As component density increases, managing heat becomes more critical. Thicker boards can provide better thermal dissipation, while thinner boards may struggle in high-heat environments.
  2. Signal Integrity: High-density designs necessitate careful planning of trace dimensions and board thickness to minimize signal loss and crosstalk. Designers must consider how thickness affects dielectric properties and impedance.
  3. Cost and Production Efficiency: Smaller and thinner PCBs can reduce material costs but may increase the complexity of assembly and manufacturing processes. Balancing these factors is essential for achieving cost-effective designs without sacrificing performance.

Understanding the minimum size limitations and standard thicknesses for custom Rogers PCBs is vital for designing effective high-frequency circuits. By considering these factors, designers can optimize their boards for performance, manufacturability, and application requirements.

20 Layer PCB Stackup

In advanced electronics, the use of 20-layer PCB stackups has become increasingly common, particularly for high-density and high-frequency applications. These multi-layer configurations offer significant benefits but also present unique challenges that designers must navigate.

Explanation of the Benefits and Challenges of Using a 20-Layer Stackup

Benefits

  1. Increased Circuit Density: A 20-layer stackup allows for a much higher density of circuits compared to traditional 2-layer or 4-layer designs. This is particularly beneficial for complex applications that require numerous connections and functionalities in a compact footprint.
  2. Enhanced Signal Integrity: With multiple layers, designers can optimize the routing of high-speed signals and power distribution. By strategically placing ground and power planes, they can reduce electromagnetic interference (EMI) and crosstalk, leading to improved signal integrity.
  3. Better Thermal Management: The added layers can improve thermal performance by distributing heat more effectively across the board. This is crucial in high-power applications where components generate significant heat, ensuring longevity and reliability.
  4. Design Flexibility: A 20-layer stackup allows for a more versatile design approach. It provides more options for routing, layer functions (like shielding), and accommodating different types of components, including RF circuits and high-speed digital signals.

Challenges

  1. Increased Complexity: Designing a 20-layer PCB is inherently more complex than simpler configurations. It requires advanced software tools and a deep understanding of multilayer stackup techniques to ensure proper signal routing and layer interaction.
  2. Manufacturing Challenges: Producing a 20-layer PCB can be more challenging and costly than traditional boards. Tighter tolerances, precise alignment of layers, and potential for defects increase with complexity. Selecting a manufacturer with experience in high-layer-count boards is essential.
  3. Cost Considerations: While the benefits of a 20-layer PCB can justify the costs in certain applications, the initial investment can be substantial. The more layers involved, the higher the manufacturing costs, which can impact the overall budget for the project.

Typical Applications and Industries That Require Such Configurations

  1. Telecommunications: The telecommunications industry frequently utilizes 20-layer PCBs for base stations and communication equipment. The high density and superior signal integrity support the demanding performance requirements of modern wireless communication systems.
  2. Consumer Electronics: In devices like smartphones and tablets, where space is limited but functionality must be maximized, 20-layer PCBs are ideal for integrating various technologies, including RF, digital, and analog circuits.
  3. Automotive Electronics: As vehicles become increasingly equipped with advanced driver-assistance systems (ADAS) and infotainment technologies, the demand for high-performance, multi-layer PCBs continues to rise in the automotive sector.
  4. Aerospace and Defense: Applications in aerospace and defense require robust and reliable electronic systems capable of operating under extreme conditions. The use of 20-layer PCBs allows for sophisticated designs that can meet stringent regulatory and performance standards.
  5. Medical Devices: High-density 20-layer stackups are often used in medical devices, where precision and reliability are paramount. These PCBs can accommodate complex circuitry needed for diagnostic and therapeutic equipment.

While a 20-layer PCB stackup offers numerous advantages in terms of density, performance, and design flexibility, it also presents unique challenges. Understanding these factors is crucial for effectively leveraging 20-layer designs in modern electronics.

ALCANTA Design Services

ALCANTA is a prominent provider of PCB manufacturing and assembly services, renowned for its comprehensive design solutions tailored for custom Rogers PCBs. Their expertise in high-density and high-frequency applications makes them a preferred choice for engineers and designers looking to optimize their electronic projects.

Overview of ALCANTA’s Design Services for Custom Rogers PCBs

ALCANTA offers a wide range of design services specifically tailored for custom Rogers PCBs. Their design team is equipped with advanced software tools and extensive experience in working with Rogers materials, allowing them to create efficient and effective PCB layouts. Key features of their design services include:

  • Custom Layout Design: ALCANTA’s team works closely with clients to develop tailored PCB layouts that meet specific project requirements. They consider factors such as signal integrity, thermal management, and mechanical constraints to ensure optimal performance.
  • Design for Manufacturability (DFM): ALCANTA emphasizes DFM principles in their design process, ensuring that custom Rogers PCBs can be efficiently manufactured without compromising quality. This approach minimizes potential production issues and streamlines the manufacturing process.
  • Impedance Control: Given the high-frequency nature of many Rogers PCB applications, ALCANTA provides specialized design support for impedance control. This ensures that the PCB can effectively handle high-speed signals with minimal losses.
  • Simulation and Testing: To enhance the reliability of custom designs, ALCANTA employs simulation tools to predict the performance of the PCBs under various operating conditions. This proactive approach helps identify potential issues before production, saving time and costs.
  • Prototype Services: ALCANTA also offers rapid prototyping services, allowing clients to test and validate their custom designs before moving into full production. This capability is particularly valuable for developers who require quick iterations to fine-tune their designs.

Highlight the Advantages of Collaborating with ALCANTA for Custom Designs

Collaborating with ALCANTA for custom Rogers PCB designs offers several significant advantages:

  • Expertise in Rogers Materials: ALCANTA has extensive knowledge of Rogers materials and their unique properties, enabling them to design PCBs that fully leverage the benefits of these high-performance materials.
  • Cost Efficiency: ALCANTA’s streamlined design and manufacturing processes help reduce overall costs for custom PCB projects. Their competitive pricing model allows clients to achieve high-quality results without exceeding their budgets.
  • Quick Turnaround Times: With a focus on efficiency, ALCANTA is known for its fast turnaround times, allowing clients to receive their custom designs and prototypes promptly. This speed is crucial for businesses aiming to stay competitive in rapidly evolving markets.
  • Comprehensive Support: ALCANTA provides dedicated support throughout the design process, ensuring clear communication and collaboration with clients. Their customer service team is readily available to address any questions or concerns.
  • Quality Assurance: ALCANTA implements stringent quality control measures throughout the design and manufacturing processes. Clients can trust that their custom Rogers PCBs will meet industry standards and specifications, ensuring reliability and performance.

ALCANTA’s design services for custom Rogers PCBs provide a valuable resource for engineers and developers looking to create high-performance, reliable electronic solutions. With their expertise, cost efficiency, and commitment to quality, partnering with ALCANTA is an excellent choice for any project involving custom high-density Rogers PCBs.
