Understanding the Benefits of Polyimide Flexible PCB Technology

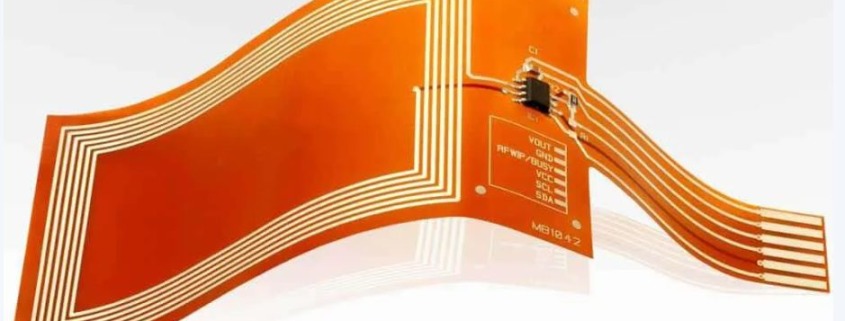

A flexible printed circuit board (FPC) is a type of PCB designed to bend, twist, or fold to fit complex electronic assemblies. Unlike rigid PCBs, flexible PCBs offer mechanical adaptability, reduced weight, and space efficiency—making them ideal for compact or dynamic applications. Among various materials used, polyimide flexible PCB stands out as the industry standard for high-performance flex designs. Polyimide, known for its excellent thermal stability, chemical resistance, and mechanical strength, enables reliable operation in demanding environments like aerospace, medical devices, and wearable electronics. This article provides a comprehensive look at polyimide flexible PCB, covering its material properties, how it compares to traditional FR4 boards, key manufacturers in the market, and typical application scenarios. Whether you’re an engineer, designer, or buyer, understanding the advantages of polyimide flexible PCB is essential to making informed decisions in modern electronic product development.

What is Polyimide Flexible PCB Material?

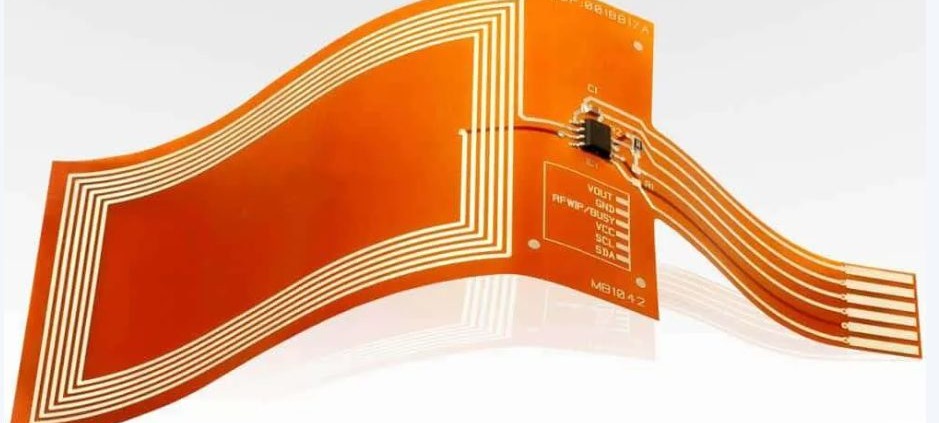

Polyimide flexible PCB is built using polyimide (PI), a high-performance polymer known for its exceptional thermal and mechanical properties. Polyimide has a long history in the electronics industry due to its ability to withstand extreme temperatures, chemical exposure, and repeated flexing without losing integrity. These qualities make it an ideal substrate for flexible circuits, especially in environments where traditional rigid boards would fail.

One of the most recognized commercial forms of polyimide is Kapton, developed by DuPont. Kapton films are widely used in manufacturing flexible PCBs due to their durability and consistent electrical performance.

The standard construction typically includes three layers: a base layer of polyimide film, an adhesive layer (optional depending on the lamination process), and a conductive copper foil. This stack-up ensures flexibility while maintaining strong electrical conductivity and thermal resilience, making it suitable for compact and high-density electronic applications.

Key Material Properties of Polyimide Flexible PCB

The polyimide flexible PCB is widely chosen for its superior material characteristics, especially when compared to traditional PCB substrates like FR4 and PTFE. Its combination of heat resistance, durability, and chemical stability makes it ideal for demanding environments such as aerospace, automotive, and high-reliability medical devices. Below is a property comparison to help you understand how this flexible PCB material stands out:

High-Temperature Stability: One of the most important advantages of this material is its exceptional thermal endurance. It can maintain structural integrity and electrical performance even at temperatures exceeding 250°C, unlike FR4 which tends to degrade under such conditions.

Mechanical Endurance: Its mechanical flexibility allows it to endure repeated bending and dynamic movements without cracking or delaminating. This makes it ideal for foldable devices, wearable technology, and moving mechanical parts.

Dielectric Strength: This material offers consistent electrical insulation even under high voltage and frequency. While PTFE may outperform in pure dielectric terms, it provides a much better balance between insulation and mechanical performance.

Chemical and Moisture Resistance: It is resistant to solvents, oils, and other harsh chemicals, making it suitable for chemically aggressive environments. It also resists moisture absorption, maintaining performance stability over long operational cycles.

Polyimide flexible PCB provides a reliable and versatile solution when both electrical performance and mechanical durability are required.

Polyimide Flexible PCB vs FR4: Which Should You Choose?

When selecting a PCB material for your project, the decision often comes down to polyimide flexible PCB versus traditional FR4. Each material has its strengths, but they serve very different design needs depending on flexibility, temperature resistance, and application complexity.

Structural Comparison: Flex vs Rigid

Flexible PCBs made from polyimide are designed to bend and conform to 3D spaces without breaking, making them ideal for compact and dynamic electronic assemblies. In contrast, FR4 is a rigid fiberglass-epoxy laminate that offers strength and stability but lacks any flexibility. If your design requires movement, folding, or limited space, flexible circuits using polyimide are the better choice.

Cost Implications

FR4 is significantly cheaper than polyimide flexible PCB and is widely used in cost-sensitive consumer electronics. However, the higher cost of polyimide materials is justified in critical applications where durability, thermal performance, and miniaturization are essential.

Manufacturing Complexity

FR4 is easier and cheaper to fabricate due to its rigid nature and established processing workflows. Polyimide flexible PCB manufacturing requires specialized processes such as laser cutting, precision lamination, and protective coverlay application. These add to production time and cost but are necessary for high-reliability, flexible designs.

Use Case Distinctions

Use FR4 for standard, stationary electronic applications such as desktop PCs, LED boards, and industrial controls. Choose flexible polyimide-based circuits for high-temperature, mobile, or space-constrained designs like aerospace systems, medical implants, foldable devices, and wearable tech.

Flexible circuits with polyimide are ideal when your design demands flexibility, heat resistance, or reduced form factor—while FR4 remains a solid choice for static, cost-driven applications.

Manufacturing Process of Polyimide Flexible PCB

The production of a polyimide flexible PCB involves a series of precise and carefully controlled processes to ensure high performance, durability, and reliability. Compared to rigid boards, manufacturing flexible PCBs made from polyimide requires greater attention to material handling and process accuracy due to their flexible and heat-sensitive nature.

Substrate Preparation

The process begins with preparing the polyimide substrate. A high-quality polyimide film, often combined with an adhesive layer, is selected based on thickness and application needs. This substrate serves as the foundation, providing thermal stability and mechanical flexibility.

Laser or Mechanical Drilling

Microvias and through-holes are created using either CO₂ or UV laser drilling, or precision mechanical drills. Laser drilling is preferred for polyimide flexible PCB due to the thin, delicate layers and the need for high positional accuracy without damaging the material.

Copper Cladding and Etching

A layer of copper foil is laminated onto the polyimide film. Using photolithography and chemical etching, circuit patterns are defined. The copper layer on a polyimide flexible PCB must be etched with extra care to avoid undercutting and ensure clean traces, especially for fine-pitch designs.

Application of Solder Mask and Coverlay

Instead of traditional solder mask used in rigid PCBs, polyimide flexible PCB fabrication often uses a polyimide coverlay — a protective layer that insulates the circuit and enhances mechanical strength. Openings are made for pads and vias, typically by laser cutting, ensuring component access and protection.

Lamination Process

Multiple layers of flexible circuits can be bonded using controlled heat and pressure to form a multilayer flexible PCB made from polyimide. The lamination process must avoid introducing air bubbles or stress that could affect bending performance.

Electrical and Mechanical Testing

Finished flexible boards undergo rigorous electrical testing (such as continuity and isolation checks) and mechanical testing (bending, flex cycling) to ensure functionality and durability. High-reliability applications may also require thermal shock and humidity testing.

Each step in the manufacturing process is critical to achieving the performance standards expected from a polyimide flexible PCB, particularly in mission-critical and high-reliability applications.

Typical Applications of Polyimide Flexible PCB

Thanks to its combination of flexibility, thermal endurance, and mechanical strength, the polyimide flexible PCB is widely used across industries where traditional rigid boards fall short. Its ability to conform to tight spaces and survive harsh conditions makes it the ideal choice for both high-performance and space-constrained electronics.

Consumer Electronics Applications of Polyimide Flexible PCB

In foldable smartphones, smartwatches, wireless earbuds, and other wearable devices, this flexible circuit technology provides the adaptability and lightweight design needed to support thin profiles and constant motion. These PCBs help manufacturers achieve slimmer, more ergonomic form factors without sacrificing performance.

Aerospace and Defense Electronics Using Polyimide Flexible PCB

In aircraft systems, satellites, and military-grade equipment, this material is favored for its resistance to high temperatures, vibration, and chemical exposure. It is used in navigation systems, missile guidance circuits, and avionics where reliability is mission-critical.

Medical Devices Powered by Polyimide Flexible PCB Technology

Medical technologies such as implantable biosensors, diagnostic tools, and wearable health monitors rely heavily on polyimide flexible PCB. Its biocompatibility and ability to function in compact, flexible formats allow seamless integration into the human body or onto skin surfaces.

Automotive Electronics Applications of Polyimide Flexible PCB

Within modern vehicles, especially electric and hybrid models, polyimide flexible PCB is commonly found in engine control units, transmission zones, battery management systems, and infotainment displays. Its high heat tolerance and vibration resistance support long-term reliability under the hood.

Industrial Robotics and Automation

In factory automation systems and robotic arms, flexible PCBs made from polyimide enable motion control circuits to bend and flex repeatedly without failure. They support sensors, actuators, and vision systems that must operate continuously under demanding conditions.

Across all these applications, this technology fosters innovation by offering performance, durability, and space efficiency unmatched by traditional rigid materials.

Leading Polyimide Flexible PCB Manufacturers

When sourcing high-quality polyimide flexible PCB solutions, selecting the right manufacturing partner is crucial. Leading manufacturers not only offer advanced fabrication capabilities but also provide engineering support to help optimize your flex circuit design for reliability and cost-effectiveness. Below are some of the top global suppliers specializing in the production of flexible PCBs using polyimide materials:

1. Sierra Circuits / ProtoExpress

Based in the USA, Sierra Circuits is known for rapid prototyping and small-batch production of advanced PCBs, including polyimide flexible PCB designs. Their in-house engineering support and online quoting tools make them ideal for high-reliability applications.

2. Rocket PCB

Rocket PCB offers custom and multilayer polyimide flexible PCB manufacturing with capabilities for aerospace, medical, and military-grade circuits. They specialize in complex layouts and high-density interconnects.

3. MCL PCB

MCL PCB focuses on high-performance materials, including polyimide. Their blog provides valuable comparisons between FR4 and polyimide flexible PCB, showcasing their expertise in material selection.

4. Viasion

Viasion offers one-stop PCB assembly services, including the manufacturing of polyimide flexible PCB. They are known for their attention to quality and tailored engineering services for flex designs.

5. Hemeixin PCB

Specializing in high-density and flexible circuits, Hemeixin provides fast turnaround and reliable production for industrial and medical sectors.

6. PCBONLINE

PCBONLINE offers full-service manufacturing from prototyping to mass production. Their capabilities include rigid-flex combinations, multilayers, and advanced testing.

7. HiLElectronic

HiLElectronic is a professional flex PCB manufacturer in China, delivering custom polyimide flexible PCB solutions with competitive pricing and ISO-certified quality control.

8. BestFPC

BestFPC provides specialized polyimide flexible PCB services, including coverlay design, impedance control, and fine-pitch routing for miniaturized electronics.

9. Bicheng PCB

Bicheng PCB is known for their expertise in 1–8 layer and single-sided PI circuits. They cater to global customers with customized solutions and fast delivery.

Choosing any of these manufacturers ensures that your polyimide flexible PCB project is supported by experts who understand the complexity and precision required for successful flex circuit fabrication.

Polyimide Flexible PCB vs PTFE PCBs: A Supplementary Comparison

While polyimide flexible PCB materials are widely used in applications demanding mechanical flexibility and high thermal resilience, PTFE-based PCBs (commonly known by the trade name Teflon) dominate in the realm of RF and high-frequency electronics. Understanding the distinctions between these two materials is key to selecting the right substrate for your design.

PTFE: Ideal for RF/High-Frequency Applications

PTFE PCBs are engineered for excellent signal integrity at high frequencies. Their extremely low dielectric constant (typically between 2.0 and 2.6) and minimal dielectric loss make them the material of choice for RF modules, antennas, radar systems, and microwave circuits. However, PTFE is mechanically soft, making it prone to dimensional changes and more challenging to process in flexible formats.

Polyimide: Superior for Thermal and Mechanical Demands

In contrast, the polyimide flexible PCB offers outstanding thermal stability (up to 400°C) and mechanical durability. Its ability to endure repeated flexing without cracking or delaminating makes it a perfect match for bendable, foldable, or dynamically moving electronics. Additionally, polyimide is easier to laminate and can support complex multilayer constructions with coverlays and stiffeners.

Selection Guidance Based on Application

• Choose PTFE if your priority is high-frequency signal performance, such as in RF front-end designs, satellite communication modules, or 5G antenna systems.

• Choose this material when your application requires excellent heat resistance, robust mechanical flexibility, or long-term durability in dynamic environments—such as in aerospace harnesses, medical implants, or foldable consumer electronics.

While both materials offer unique advantages, the polyimide option provides a more balanced solution for flexible, thermally demanding, and mechanically active applications, whereas PTFE is best suited for precision RF performance. Selecting between them should always align with your device’s specific operational requirements.

Sourcing and Design Considerations for Polyimide Flexible PCB

Designing and sourcing a reliable polyimide flexible PCB requires careful attention to several critical factors to ensure the final product meets performance, durability, and regulatory standards. Understanding these considerations early can save time and costs during production and deployment.

Certifications to Look For

When sourcing flexible PCBs made from polyimide, ensure your manufacturer complies with industry certifications such as RoHS (Restriction of Hazardous Substances) to guarantee environmentally friendly materials and processes. Additionally, UL94V-0 certification indicates flame retardancy, a key safety requirement for many electronics, particularly in consumer and industrial applications.

Copper Thickness Selection

Copper thickness directly affects current-carrying capacity, flexibility, and heat dissipation. Thinner copper layers (e.g., 0.5 oz/ft²) improve bending performance but may limit electrical capacity, while thicker copper (1 oz/ft² or more) supports higher currents but reduces flexibility. The right balance depends on your circuit’s electrical and mechanical demands.

Bending Radius and Flex-Life Expectations

The minimum bending radius is a crucial design parameter for polyimide flexible PCB. Designs must accommodate the tightest bend the PCB will experience during use without causing conductor cracks or delamination. Specifying expected flex-life cycles helps manufacturers recommend suitable materials and processes to meet durability requirements.

Single-Sided vs Double-Sided vs Multilayer FPCs

Your design complexity dictates whether to use single-sided, double-sided, or multilayer flexible circuits. Single-sided boards are simpler and cost-effective but limited in routing density. Double-sided and multilayer flex PCBs allow for complex circuitry and reduced size but increase fabrication complexity and cost.

Balancing Cost, Reliability, and Performance

While these flexible circuits offer excellent performance, cost management is essential. Optimize your design by balancing copper thickness, layer count, and protective coverlays. Prioritize reliability and compliance in critical applications, but also consider simplified designs for cost-sensitive products to achieve the best value.

By thoroughly addressing these factors during design and sourcing, engineers can maximize the benefits of polyimide flexible PCB technology while minimizing risks and expenses.
