How thickness of FR4 substrate affects PCB performance

The thickness of FR4 substrate plays a critical role in printed circuit board (PCB) design, directly influencing the overall performance and reliability of electronic devices. FR4, a widely used material, is valued for its excellent insulation, flame resistance, and mechanical strength, making it the go-to choice for most PCB applications. Its thickness is not just a structural component; it also affects the electrical properties, such as signal integrity and impedance control, especially in high-frequency circuits.

Choosing the right thickness of FR4 substrate is essential, as it impacts thermal management, mechanical durability, and the ability to handle power demands. Thinner substrates are ideal for compact, lightweight designs with minimal space, while thicker substrates offer better mechanical support and heat dissipation for high-power applications. Understanding the balance between the thickness and the performance requirements of the PCB ensures the success of electronic designs in various industries.

Common Thickness of FR4 Substrate

The thickness of FR4 substrate typically ranges from 0.2mm to 3.2mm, offering flexibility for various PCB applications. This broad range allows designers to select the appropriate thickness based on the specific requirements of their projects.

For thin boards, such as those with a thickness of 0.2mm to 0.8mm, they are often used in high-density applications where space is a critical factor. These thinner substrates are ideal for compact electronic devices like smartphones, wearables, and other miniaturized gadgets where weight and size are essential. Their reduced thickness helps accommodate intricate routing and high component density without compromising functionality.

On the other hand, thicker boards, typically ranging from 1.6mm to 3.2mm, are commonly utilized in high-power or industrial applications. These thicker substrates offer enhanced mechanical strength and thermal management, making them suitable for power supplies, automotive systems, and other environments requiring robust durability. The thickness of FR4 substrate in these cases helps to dissipate heat more efficiently and handle greater electrical loads, ensuring long-term reliability.

Standard Substrate Thickness

The thickness of FR4 substrate is often standardized in the PCB industry, with 1.6mm being the most commonly used thickness for a wide range of applications. This standard thickness offers a balanced combination of mechanical strength, electrical performance, and cost-effectiveness, making it suitable for most general-purpose printed circuit boards. The 1.6mm thickness is ideal for consumer electronics, telecommunications, and automotive systems, where it provides sufficient rigidity and supports typical design requirements.

However, non-standard thicknesses, such as 0.8mm, 1.0mm, or even thicker options like 2.0mm or 3.2mm, are chosen depending on specific project needs. Thinner substrates offer advantages in high-density designs where space and flexibility are crucial, like in mobile devices and compact electronics. Their reduced weight and smaller form factor allow for more compact PCB layouts.

In contrast, thicker substrates provide greater mechanical stability and enhanced heat dissipation, making them more suitable for high-power or industrial applications. While the thickness of FR4 substrate varies based on these factors, selecting between standard and non-standard options depends on balancing performance requirements with design constraints.

Thickness of a 2-Layer FR4 PCB

The thickness of FR4 substrate for a typical 2-layer PCB usually ranges from 1.2mm to 1.6mm, with 1.6mm being the most common choice. In a 2-layer PCB, this thickness provides enough structural support for the copper layers while ensuring sufficient space for routing and component placement. The 1.6mm thickness strikes a balance between mechanical stability and ease of handling, making it ideal for various general applications like consumer electronics, industrial control systems, and small devices.

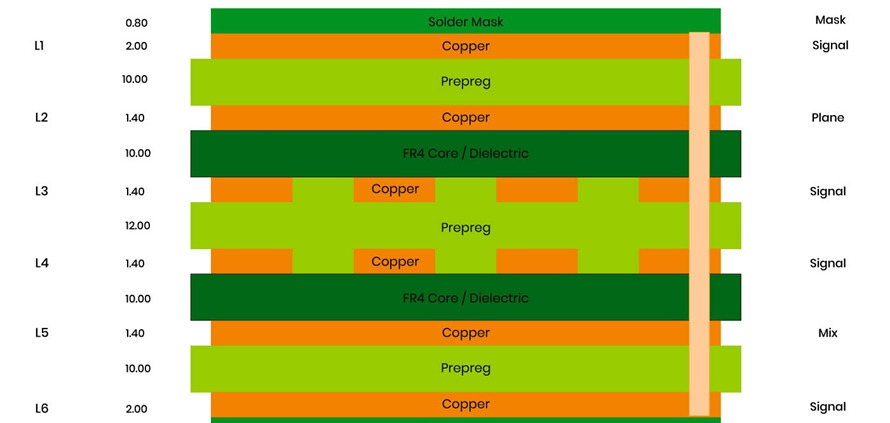

As the number of layers increases, the overall thickness of FR4 substrate tends to grow. For example, a 4-layer board may have a thickness of around 1.6mm to 2.0mm, while a 6-layer board might range from 1.8mm to 2.4mm, depending on the specific design requirements. Multilayer boards typically incorporate additional dielectric layers between the copper layers, which contribute to the increased thickness.

This increase in thickness in multilayer designs affects several factors, including signal integrity, heat dissipation, and the mechanical strength of the PCB. Thicker boards provide better thermal performance and can handle more power, but they can also pose challenges in terms of drilling, soldering, and overall assembly. Balancing the thickness of FR4 substrate with the complexity of the PCB design is crucial to maintaining optimal performance across all layers.

FR4 Substrate Dielectric Constant

The thickness of FR4 substrate plays a significant role in determining the dielectric constant (Dk), which directly affects signal integrity and transmission speed in PCB designs. The dielectric constant of FR4 typically ranges from 4.2 to 4.8, depending on the substrate’s thickness, frequency, and manufacturing variations. This constant influences how electrical signals propagate through the board and determines the impedance, signal loss, and overall performance of high-speed circuits.

In high-frequency applications, the dielectric constant becomes a critical factor because it impacts the speed at which signals travel across the PCB. A higher Dk means slower signal transmission, as the electrical field experiences greater resistance within the substrate material. Conversely, a lower Dk allows signals to travel faster with minimal distortion, which is crucial for maintaining signal integrity in high-speed digital and RF circuits.

For different thickness of FR4 substrate, the dielectric constant remains relatively consistent, though subtle variations can occur. For instance, a 0.8mm thick FR4 substrate typically has a dielectric constant close to 4.5, while a 1.6mm thick FR4 substrate may exhibit a Dk of around 4.3 to 4.5. Thicker substrates, like those exceeding 3.0mm, may display slight fluctuations, though the impact on signal performance remains critical across all thicknesses.

Optimizing the thickness of FR4 substrate and understanding its dielectric constant is vital for applications requiring precise impedance control and minimized signal loss, particularly in high-frequency designs like communication systems and advanced computing.

Key Factors Affecting FR4 Thickness Selection

Selecting the appropriate thickness of FR4 substrate involves considering multiple factors that can significantly impact the overall performance and cost of the PCB. Key considerations include design requirements, cost constraints, thermal management needs, and specific electrical performance criteria.

1. Design Requirements: The design’s complexity and component density are major drivers when selecting FR4 thickness. For high-density, compact designs, thinner FR4 substrates (0.2mm – 0.8mm) are preferred, allowing for tighter routing and miniaturization. Conversely, designs requiring greater mechanical strength, durability, and heat dissipation, such as industrial electronics or power supplies, may benefit from thicker substrates (1.6mm – 3.2mm).
2. Cost: The cost of manufacturing PCBs increases with thickness due to the added material and the more complex fabrication process, particularly in multilayer boards. Thinner boards may offer cost savings for mass production, but they may lack durability in high-stress environments.
3. Thermal Management: Thicker FR4 substrates offer better thermal performance. In high-power applications, such as automotive or aerospace electronics, a thicker board aids in dissipating heat more efficiently, preventing overheating and improving long-term reliability.
4. Impedance Control for High-Frequency Designs: The thickness of FR4 substrate is a critical factor in maintaining impedance control, especially in high-frequency designs like RF circuits and high-speed digital systems. Precise control over trace width, spacing, and substrate thickness ensures signal integrity by minimizing reflection, crosstalk, and signal degradation. Thicker boards allow better isolation between layers, which can reduce noise and improve performance in high-frequency environments.

Selecting the right thickness of FR4 substrate requires balancing these factors to meet both performance and budgetary goals, ensuring optimal functionality for the intended application.

FR4 Material Properties & Density

The thickness of FR4 substrate is closely related to its material density, which affects both the physical and electrical performance of the PCB. FR4 is a composite material made from woven fiberglass and epoxy resin, with a typical density of around 1.85 g/cm³. The density remains consistent across various thicknesses, but as the thickness increases, the mechanical properties such as strength and rigidity also improve, making thicker FR4 substrates more durable and capable of supporting larger or heavier components.

Relationship Between Density and Thickness:

The density of the FR4 material itself does not change with thickness, but thicker substrates provide greater structural support and thermal management. For example, in high-power or industrial applications, where heat dissipation and durability are critical, thicker substrates (e.g., 2.0mm to 3.2mm) ensure better performance due to the higher volume of material that can absorb and dissipate heat more effectively.

Physical Properties:

• Density: ~1.85 g/cm³
• Glass Transition Temperature (Tg): 130°C to 180°C, depending on the grade of FR4
• Thermal Conductivity: 0.3 W/m·K, which is relatively low, making it suitable for low- to medium-power applications
• Moisture Absorption: 0.10% to 0.20%, ensuring good performance in humid environments
• Flammability Rating: UL94-V0, meaning it self-extinguishes when exposed to flame

Electrical Properties:

• Dielectric Constant (Dk): Typically 4.2 to 4.8, influencing signal integrity and high-frequency performance
• Dissipation Factor (Df): ~0.02 at 1MHz, indicating low energy loss in the dielectric material
• Volume Resistivity: 10^6 to 10^9 MΩ·cm, contributing to its excellent insulating properties

Understanding the physical and electrical properties of FR4 and how its density relates to thickness of FR4 substrate is crucial for making informed design decisions. Thicker boards provide better mechanical strength and thermal performance, while thinner boards are optimal for compact, lightweight applications. Balancing these properties ensures that the PCB meets both the physical demands and the electrical requirements of the design.

Technical Specifications and FR4 Substrate Datasheets

When selecting the thickness of FR4 substrate, understanding how to interpret technical specifications from datasheets is essential. Datasheets provide critical information about material properties, allowing designers to choose the most appropriate FR4 thickness for their specific PCB application. Here’s a breakdown of how to read and select the right FR4 thickness from a datasheet:

How to Read FR4 Datasheets:

1. Material Composition: Most datasheets specify the fiberglass weave type and epoxy resin used. The combination affects the thermal and electrical properties, so it’s important to align these with your design requirements.
2. Thickness Options: Datasheets typically list available thicknesses, ranging from as thin as 0.2mm to as thick as 3.2mm or more. Designers should match the thickness with the mechanical strength, thermal management, and space constraints of their project. Thinner boards (e.g., 0.8mm) are suited for compact designs, while thicker boards (e.g., 1.6mm or 2.0mm) are necessary for high-power or mechanically demanding applications.
3. Glass Transition Temperature (Tg): The Tg value is crucial for determining the material’s ability to withstand high temperatures during soldering or operating conditions. Depending on the application, choosing a high-Tg material (e.g., Tg 170°C) may be important, particularly for multilayer boards where heat dissipation is a concern.
4. Dielectric Constant and Dissipation Factor: The dielectric constant (Dk) and dissipation factor (Df) impact signal integrity and energy loss, respectively. These values are especially critical for high-frequency or RF designs. Thicker substrates may offer better isolation between signal layers, reducing crosstalk and improving performance.
5. Thermal Conductivity and Coefficient of Thermal Expansion (CTE): These parameters help designers assess the material’s ability to handle thermal loads. Thicker substrates provide improved thermal management but may require more precise control during manufacturing to prevent warping.

Recommendations for Popular FR4 Manufacturers:

1. Isola Group: Known for high-performance FR4 materials like IS410, which offers a Tg of 170°C and low dielectric loss, making it ideal for high-speed applications.
2. Rogers Corporation: Although better known for RF materials, Rogers also offers high-quality FR4 substrates with tight Dk tolerances, suitable for designs where signal integrity is critical.
3. Shengyi Technology: A leading Asian supplier offering a wide range of FR4 materials, including low-cost standard Tg FR4 and high-Tg versions for multilayer boards and thermal-critical designs.
4. Nanya PCB Materials: Provides cost-effective FR4 materials with good thermal and mechanical performance, commonly used in consumer electronics and general-purpose PCBs.

By carefully reviewing these specifications in datasheets and choosing trusted manufacturers, PCB designers can ensure they select the right thickness of FR4 substrate that meets their project’s technical and operational requirements.
