Making Informed Choices with the PCB Material Comparison Chart

In modern electronic devices, printed circuit boards (PCBs) serve as the essential components that connect and support electronic components. Selecting the right PCB material is crucial for ensuring the performance, reliability, and cost-effectiveness of the circuit board. Different materials possess varying dielectric constants, coefficients of thermal expansion, and conductivity, all of which directly impact signal transmission and heat dissipation capabilities. To assist design engineers and manufacturers in making informed choices, this article will provide a comprehensive PCB material comparison chart, detailing the key properties and applications of various common materials. By comparing the strengths and weaknesses of different PCB materials, readers will gain a deeper understanding of each material’s suitability, allowing them to optimize their design decisions.

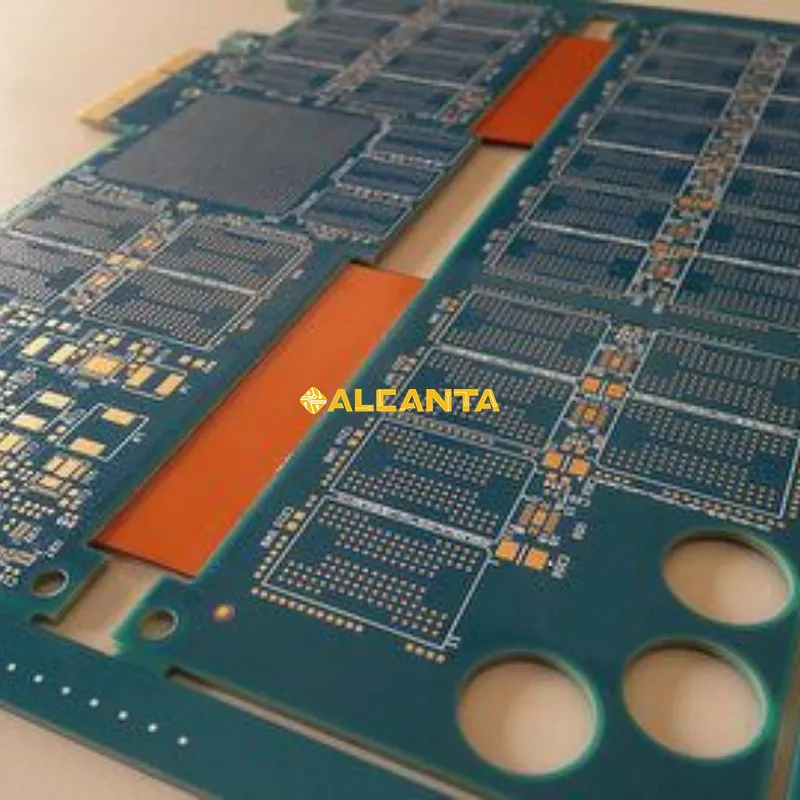

Understanding PCB Materials: A PCB Material Comparison Chart

PCB materials are essential components that define the performance and functionality of printed circuit boards. They provide the necessary substrate to support electronic components and facilitate electrical connections. The right material choice ensures optimal signal integrity, thermal management, and overall reliability of the electronic device.

There are several types of PCB materials, each suited for specific applications. FR4 is the most commonly used material, known for its excellent electrical insulation properties and mechanical strength, making it ideal for a wide range of consumer electronics. Rogers materials, on the other hand, are designed for high-frequency applications, offering superior dielectric properties and stability, which are crucial in RF and microwave circuits. Metal core PCBs utilize a metal substrate, usually aluminum, to provide better heat dissipation, making them suitable for LED lighting and power electronics.

By examining these different types, along with others, the following PCB material comparison chart will illustrate their respective properties and applications, aiding in informed decision-making for your PCB design needs.

Key Properties of PCB Materials

Dielectric constant (Dk) and dissipation factor (Df)

When selecting PCB materials, understanding their key properties is essential for ensuring optimal performance in various applications. Two crucial properties are the dielectric constant (Dk) and the dissipation factor (Df). The dielectric constant measures a material’s ability to store electrical energy in an electric field, influencing signal speed and integrity. A lower Dk is often preferable for high-speed applications, as it reduces signal loss. The dissipation factor, on the other hand, indicates how much energy is lost as heat during signal transmission. A lower Df is critical for maintaining efficiency in high-frequency circuits, minimizing power loss.

Coefficient of thermal expansion (CTE)

Another important property is the coefficient of thermal expansion (CTE), which measures how much a material expands or contracts with temperature changes. A matched CTE between the PCB material and the components is vital to prevent mechanical stress and failures during thermal cycling. This compatibility helps maintain the integrity of solder joints and overall board performance.

Comparison between RTF and HTE

It’s important to compare RTF (Rigid Thermoset Foam) and HTE (High-Temperature Epoxy). RTF is often lighter and offers better thermal insulation, making it suitable for certain lightweight applications. In contrast, HTE is designed for high-temperature environments, providing enhanced thermal stability and resistance to delamination. Understanding these differences will further enhance the insights gained from the PCB material comparison chart, guiding engineers in selecting the best materials for their specific requirements.

Common PCB Materials and Their Applications

FR4 vs 370HR

When comparing common PCB materials, FR4 and 370HR are often highlighted for their distinct properties and applications. FR4 is the most widely used PCB material, composed of woven fiberglass and epoxy resin. It offers excellent electrical insulation, good mechanical strength, and a balanced cost-to-performance ratio, making it ideal for a range of applications from consumer electronics to automotive systems. However, FR4 has limitations in high-frequency environments due to its higher dielectric loss and thermal expansion characteristics, which can affect signal integrity and reliability.

370HR is a specialized material designed for higher performance in demanding conditions. It has a lower dielectric constant and dissipation factor compared to FR4, which allows for better signal integrity in high-speed and high-frequency applications. Additionally, 370HR exhibits enhanced thermal stability, moisture resistance, and a wider operating temperature range. This makes it particularly suitable for telecommunications, aerospace, and advanced medical devices, where precision and reliability are paramount.

Overview of advanced materials for high-speed applications

For high-speed applications, advanced materials like Rogers and Taconic offer superior performance characteristics. These materials are engineered for low dielectric loss, high thermal conductivity, and stability at high frequencies. For example, Rogers 4350 provides exceptional dielectric properties, making it an ideal choice for RF and microwave applications. Similarly, Taconic materials are known for their lightweight and low-loss performance, which is crucial in dense circuit designs where efficiency and signal integrity are critical.

Understanding the differences between FR4 and 370HR, as well as exploring advanced materials, enables engineers to make informed decisions based on their specific application needs, as reflected in the PCB material comparison chart. This comprehensive approach ensures optimal performance and reliability in modern electronic designs.

Manufacturer Insights

Overview of PCB manufacturers in the USA

In the USA, several PCB manufacturers stand out for their expertise, capabilities, and range of materials offered. Among them, Advanced Circuits is a prominent player known for its rapid turnaround times and high-quality production standards. Established in 1989, Advanced Circuits specializes in quick-turn prototyping and small to medium-volume production, catering to a variety of industries including aerospace, telecommunications, and consumer electronics.

Advanced Circuits offers a comprehensive range of materials, including standard options like FR4, as well as advanced materials such as Rogers and other high-speed laminates. Their ability to provide multiple material choices allows engineers to select the most suitable substrates for their specific applications, whether they require standard boards or specialized high-frequency designs.

Comparison of production capabilities and material offerings

When comparing production capabilities, Advanced Circuits is equipped with state-of-the-art technology that supports a wide array of manufacturing processes, including multilayer boards, HDI (High-Density Interconnect) PCBs, and metal core PCBs. Their advanced manufacturing techniques enable them to produce intricate designs with fine line widths and high layer counts, ensuring that they can meet the demands of complex electronic assemblies.

Advanced Circuits offers robust online tools for customers to upload their designs, receive instant quotes, and track production status, enhancing the overall customer experience. Their commitment to quality is further reinforced by certifications such as ISO 9001 and IPC standards, ensuring that all products meet stringent quality requirements.

Advanced Circuits exemplifies the capabilities of leading PCB manufacturers in the USA, providing a strong combination of rapid prototyping, a diverse range of materials, and advanced production technologies. This positions them as a preferred choice for engineers looking to optimize their PCB designs, as highlighted in the PCB material comparison chart, enabling informed decisions that align with performance and application requirements.

Choosing the Right PCB Material

Selecting the appropriate PCB material is a critical decision that can significantly impact the performance and reliability of electronic devices. Several key factors should be considered when making this choice:

Factors to Consider

1. Application: The intended application of the PCB plays a pivotal role in material selection. For example, consumer electronics may prioritize cost and availability, making FR4 a suitable choice. Conversely, applications requiring high-frequency performance, such as RF communications, will benefit from specialized materials like Rogers or Taconic, which offer lower dielectric loss and better signal integrity.
2. Performance Requirements: Evaluate the specific performance needs of the application. Key performance metrics include dielectric constant (Dk), dissipation factor (Df), thermal conductivity, and thermal expansion. High-speed and high-frequency applications necessitate materials with low Dk and Df to minimize signal degradation. Additionally, if the PCB will operate in extreme temperatures, materials with high thermal stability should be prioritized.
3. Cost Considerations: Budget constraints are an important factor in material selection. While advanced materials may provide superior performance, they often come at a higher cost. It’s essential to balance the need for high-performance materials with budget limitations. Understanding the total cost of ownership, including manufacturing and assembly costs, can help guide this decision.

Practical Tips for Decision-Making

• Conduct a Needs Assessment: Start by clearly defining the requirements of your project. Consider factors such as operating environment, electrical specifications, and mechanical demands. This will help narrow down material options that meet your specific needs.
• Utilize a PCB Material Comparison Chart: Referencing a comprehensive PCB material comparison chart can provide valuable insights into the properties of different materials, helping you visualize strengths and weaknesses in relation to your project requirements.
• Consult with Manufacturers: Engage with PCB manufacturers early in the design process. They can provide insights into material capabilities and recommend suitable options based on their experience and expertise. Manufacturers like Advanced Circuits often have resources and tools to assist in material selection.
• Prototype and Test: If feasible, consider prototyping with a few different materials to evaluate their performance in real-world conditions. Testing can provide invaluable data on how materials behave in your specific application, allowing for more informed decisions.
• Stay Updated on Technological Advancements: PCB technology is continually evolving, with new materials and manufacturing techniques emerging regularly. Staying informed about advancements in PCB materials can help you make better choices and leverage the latest innovations in your designs.

By carefully considering these factors and following practical decision-making tips, you can select the right PCB material that balances performance, application needs, and cost, ultimately leading to successful and reliable electronic designs.

Material Comparison Chart

A well-structured material comparison chart is an invaluable resource for engineers and designers seeking to evaluate different PCB materials based on key properties. This chart typically includes crucial metrics such as dielectric constant (Dk), dissipation factor (Df), and coefficient of thermal expansion (CTE) for various commonly used materials.

Visual Chart

Material	Dielectric Constant (Dk)	Dissipation Factor (Df)	Coefficient of Thermal Expansion (CTE)
FR4	4.0 – 4.5	0.02 – 0.03	14 – 16 ppm/°C
370HR	3.5 – 3.9	0.015 – 0.025	13 – 15 ppm/°C
Rogers 4350	3.48	0.0037	13 ppm/°C
Taconic TLY-5	3.55	0.0025	15 ppm/°C
Metal Core	Varies (dependent on metal)	Varies (dependent on dielectric layer)	Varies

Commentary on Strengths and Weaknesses

• FR4:
  • Strengths: Cost-effective, widely available, and suitable for a broad range of applications.
  • Weaknesses: Higher Dk and Df compared to advanced materials, which can affect performance in high-frequency applications.
• 370HR:
  • Strengths: Offers better performance in high-speed applications with lower Dk and Df, along with good thermal stability.
  • Weaknesses: Higher cost than standard FR4, which may not be justifiable for all applications.
• Rogers 4350:
  • Strengths: Excellent for RF and microwave applications due to low Dk and Df, providing superior signal integrity and thermal performance.
  • Weaknesses: Generally more expensive and less widely available than FR4.
• Taconic TLY-5:
  • Strengths: Very low Df, making it ideal for high-frequency applications. It also has good thermal stability.
  • Weaknesses: Higher cost and may require more specialized manufacturing processes.
• Metal Core:
  • Strengths: Provides excellent heat dissipation, making it ideal for high-power applications like LEDs.
  • Weaknesses: The properties vary significantly depending on the dielectric layer used, and it can be more complex to manufacture.

By utilizing this material comparison chart and understanding the strengths and weaknesses of each option, designers can make informed decisions tailored to their specific application requirements. This comprehensive approach enhances the likelihood of achieving optimal performance and reliability in PCB designs.
