Key Features of HDI Rigid-Flex PCB for High-Density Designs

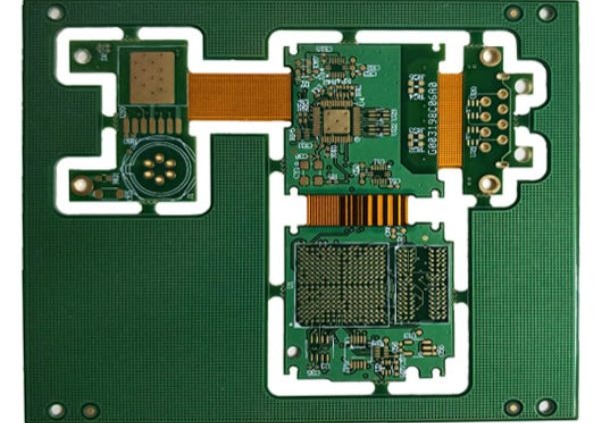

HDI Rigid-Flex PCB is a cutting-edge technology that combines the benefits of High-Density Interconnect (HDI) and Rigid-Flex PCB designs. HDI (High-Density Interconnect) refers to a PCB design technique that enables the creation of high-density, fine-pitch interconnections. This technology enhances the capacity for smaller, more intricate designs with greater functionality. On the other hand, Rigid-Flex PCB is a hybrid design that integrates both rigid and flexible substrates into one circuit board. This unique structure allows for the combination of the durability of rigid boards with the flexibility of flexible boards, enabling more complex and compact designs.

When HDI Rigid-Flex PCB is used, the result is a high-performance, compact solution that is ideal for applications where space and reliability are crucial, such as in consumer electronics, medical devices, and aerospace technologies. By merging HDI’s dense interconnection capabilities with the adaptable nature of Rigid-Flex boards, this technology delivers unparalleled design flexibility and performance efficiency.

Table of Contents

Structure of HDI Rigid-Flex PCB

HDI Rigid-Flex PCB integrates two advanced technologies: HDI (High-Density Interconnect) and Rigid-Flex PCB. This combination results in a highly efficient, compact, and reliable solution for high-performance applications. To fully understand the structure of HDI Rigid-Flex PCB, we need to explore the components of HDI technology and Rigid-Flex PCB design.

Overview of HDI Technology

HDI technology is a PCB manufacturing technique that focuses on creating high-density interconnections in a very small space. HDI PCBs enable designers to pack more components onto a single board, allowing for greater functionality in compact electronic devices. Key features of HDI PCBs include miniaturization, fine-pitch interconnections, and precise routing of signals. By using smaller vias and advanced layer stacking techniques, HDI technology allows manufacturers to create densely packed circuits with reduced board size.

Key Characteristics of HDI PCB

The primary benefits of HDI PCBs are their miniaturization, fine interconnections, and efficient signal routing. As devices become smaller and more powerful, the demand for compact yet high-performing circuit boards increases. HDI technology meets this need by using microvias, blind and buried vias, and stacked vias, which help achieve higher component density and reduce the overall size of the PCB. These advanced techniques also improve signal integrity, reduce electrical noise, and enhance overall board performance, making HDI PCBs ideal for cutting-edge applications in industries like consumer electronics, aerospace, and medical devices.

Microvias: Small holes that connect layers of a PCB, enabling higher-density interconnections and minimizing signal degradation.
Blind and Buried Vias: Vias that either connect only outer layers (blind) or internal layers (buried), allowing for more efficient use of board space.
Stacked Vias: A technique where vias are stacked vertically to reduce the number of layers needed, further increasing the PCB’s performance and miniaturization.

Structure and Working Principle of Rigid-Flex PCB

The Rigid-Flex PCB design integrates both rigid and flexible substrates into one unified circuit board. The rigid sections provide structural support for components and connectors, while the flexible portions allow the board to bend and fit into tight spaces. This dual structure allows Rigid-Flex PCBs to adapt to different environments, offering both durability and flexibility where needed.

In HDI Rigid-Flex PCB, the rigid layers are typically made of standard PCB materials like fiberglass or epoxy resin, which provide strength and stability. The flexible sections, on the other hand, use materials like polyimide, which allow the board to bend and flex without compromising the electrical connections.

How Rigid and Flexible Layers Work Together in HDI Rigid-Flex PCB

The key advantage of HDI Rigid-Flex PCB is how it combines the rigidity of traditional PCBs with the flexibility of flexible PCBs, optimizing both mechanical performance and electrical efficiency. The rigid layers provide robust support for components that need to remain in a fixed position, such as connectors, chips, and other critical components. The flexible layers, meanwhile, allow the PCB to fit into smaller, curved, or irregular spaces without losing electrical functionality.

This combination of rigid and flexible sections also contributes to more efficient signal routing. Flexibility allows the signals to travel more easily between different layers, while the rigidity ensures that critical connections are stable and protected.

Benefits of Soft-Hard Integration for Compact Designs

The integration of rigid and flexible sections in HDI Rigid-Flex PCB offers numerous benefits, especially when it comes to creating compact, high-performance devices. By using both rigid and flexible layers, designers can optimize space and improve the overall performance of the circuit board. This hybrid design enables smaller, lighter, and more reliable products, which is essential in industries where size and performance are critical.

The combination of soft (flexible) and hard (rigid) materials allows for HDI Rigid-Flex PCBs to be used in complex applications, where traditional rigid PCBs might not suffice. The flexibility allows the board to bend and conform to unusual spaces, while the rigid areas provide a stable and secure platform for sensitive components. This results in a highly compact, high-performance solution that is ideal for modern electronics, from smartphones to medical devices and beyond.

HDI Rigid-Flex PCB technology leverages the advantages of both high-density interconnections and flexible substrates, enabling designers to create high-performance, space-efficient, and reliable circuit boards for a wide range of advanced applications.

Manufacturing Process of HDI Rigid-Flex PCB

The manufacturing process of HDI Rigid-Flex PCB is a complex, multi-step procedure that combines advanced technologies to create highly functional, compact circuit boards. This process involves both the high-density interconnect (HDI) techniques and the integration of rigid and flexible layers, which are key features of HDI Rigid-Flex PCBs. Below, we explore the individual steps involved in the fabrication of HDI Rigid-Flex PCB and the unique methods used to produce these advanced boards.

HDI Manufacturing Process

The first step in creating a HDI Rigid-Flex PCB is the HDI manufacturing process, which focuses on creating high-density interconnections with precise routing. HDI PCBs allow for smaller and more densely packed circuit patterns, which are essential for modern electronics that require more functionality in less space. The process involves several critical stages, each contributing to the precision and density of the final product.

Design and Layout
The first stage of HDI PCB fabrication involves designing the circuit layout using CAD software. At this stage, designers create the detailed blueprints, incorporating microvias, fine-pitch interconnections, and layer stacking to optimize the PCB’s functionality and performance.
Laser Drilling for Microvias
Microvias are created using laser drilling, which allows for the creation of extremely small holes that connect different layers of the PCB. The laser provides high precision, enabling the creation of vias with diameters as small as 50 microns. This technique is fundamental in creating the dense interconnections required in HDI Rigid-Flex PCBs.
Plating and Etching
After drilling, the PCB is plated with copper to form the conductive paths between layers. Etching removes excess copper, leaving behind the desired circuit pattern. The plating process ensures that each layer is electrically connected, while the etching process defines the circuit traces and interconnections.
Through-Via and Blind/Buried Via Creation
HDI Rigid-Flex PCB fabrication often involves through-vias, blind vias, or buried vias to connect different layers of the PCB. Blind and buried vias, which do not pass through the entire PCB, are created to conserve space and allow for more compact designs. These vias are essential for ensuring high-density interconnects and efficient signal routing.
Surface Finishing
After the vias are formed, the PCB is finished with a surface treatment, such as HASL (Hot Air Solder Leveling) or ENIG (Electroless Nickel Immersion Gold), which ensures the quality of the PCB’s electrical performance and prepares it for soldering.

Rigid-Flex PCB Fabrication

The Rigid-Flex PCB fabrication process combines both rigid and flexible materials, allowing for a versatile design that incorporates the benefits of both types of PCBs. This dual-layer approach enables the design to adapt to various mechanical requirements while maintaining high electrical performance.

Material Selection for Flexible and Rigid Layers
One of the critical decisions in HDI Rigid-Flex PCB fabrication is selecting the materials for both the rigid and flexible layers. For the rigid portions, traditional PCB materials like fiberglass and epoxy resin are used. These materials provide the structural stability needed for the board’s components. For the flexible portions, polyimide is commonly used, as it offers excellent flexibility and heat resistance. The flexible layers are typically thinner than the rigid layers to allow for bending without compromising the electrical integrity of the board.
Layer-Staking Technology: Integrating Rigid and Flexible Parts Together
The process of integrating the rigid and flexible parts of a HDI Rigid-Flex PCB involves layer-stacking technology. This process involves bonding multiple layers of rigid and flexible substrates to form a single unified board. The flexible sections are carefully positioned between rigid layers, ensuring that the layers are aligned correctly to preserve the board’s functionality. In some cases, the flexible layers are sandwiched between multiple rigid layers, providing enhanced durability and improved performance.
Hot and Cold Pressing Methods Used in Manufacturing
Hot and cold pressing are essential methods used in the fabrication of HDI Rigid-Flex PCB. Hot pressing involves applying heat and pressure to bond the layers together, ensuring that the rigid and flexible parts are securely attached. This step is critical for achieving proper adhesion between the flexible polyimide layers and the rigid epoxy-based layers. Cold pressing, on the other hand, is used during the curing process, where pressure is applied at room temperature to ensure that the layers are firmly bonded without damaging the delicate circuits.

The combination of hot and cold pressing ensures that the HDI Rigid-Flex PCB maintains its flexibility while providing the mechanical support needed for complex, high-density designs.

The manufacturing process of HDI Rigid-Flex PCB requires a combination of high-precision techniques and advanced technologies to produce a high-performance, reliable circuit board. From the creation of microvias using laser drilling to the integration of rigid and flexible layers through hot and cold pressing, each step is critical to achieving the final product. This complex process enables the development of HDI Rigid-Flex PCBs that meet the demands of modern electronics, from compact designs to high-density interconnections, providing solutions for a wide range of industries.

Applications of HDI Rigid-Flex PCB

HDI Rigid-Flex PCB technology offers a wide range of applications across various industries, thanks to its unique combination of high-density interconnections and flexible substrates. This allows HDI Rigid-Flex PCBs to provide compact, efficient, and reliable solutions for demanding environments. Below are some of the key industries where HDI Rigid-Flex PCB is making a significant impact.

Consumer Electronics

HDI Rigid-Flex PCB is revolutionizing the consumer electronics industry by enabling smaller, more efficient, and high-performance devices. As the demand for compact electronics increases, especially for smartphones, wearables, and other portable gadgets, HDI Rigid-Flex PCB plays a crucial role in making these devices smaller while maintaining high functionality.

Examples: Smartphones, Wearable Devices
In smartphones and wearable devices, space is at a premium. HDI Rigid-Flex PCBs allow manufacturers to create miniaturized designs by packing more components into smaller spaces. With HDI Rigid-Flex PCBs, high-density interconnections can be achieved, enabling complex circuitry in a compact footprint. The flexible nature of these PCBs also allows for innovative designs, where the circuit board can bend to fit the form factor of the device. For example, in smartwatches or fitness trackers, HDI Rigid-Flex PCBs can seamlessly integrate rigid components and flexible circuits, ensuring performance without compromising on size or weight.
Enabling Miniaturized Designs with High Circuit Density for Compact Devices
The combination of high-density interconnections and flexible substrates in HDI Rigid-Flex PCBs allows engineers to create circuits with finer pitch, smaller vias, and compact layers. This results in smaller devices with more advanced features, offering consumers enhanced performance in a tiny form factor. Whether it’s a thin, high-resolution display or an advanced power management system, HDI Rigid-Flex PCBs enable these features to be packed into devices that are thinner and lighter.

HDI Rigid-Flex PCB in the Automotive Industry

In the automotive sector, HDI Rigid-Flex PCB is transforming how in-vehicle electronics and autonomous driving systems function. As vehicles become smarter, with more advanced infotainment systems, sensors, and autonomous technologies, HDI Rigid-Flex PCBs are essential in meeting the complex demands of automotive electronics.

Applications in Autonomous Driving, In-Vehicle Electronics, and Sensors
HDI Rigid-Flex PCBs are used in critical systems like cameras, radar, lidar, and other sensors that are integral to autonomous driving. These sensors require high-density interconnects to process data quickly and reliably. The flexible nature of HDI Rigid-Flex PCBs allows the sensors to be integrated into complex automotive systems without taking up excessive space. For instance, HDI Rigid-Flex PCBs can be used in dashboard displays, infotainment systems, and electronic control units (ECUs), providing the necessary reliability and flexibility for high-performance operation.
Enhancing Reliability and Flexibility in Automotive Systems
Automotive applications require electronics that can operate reliably in harsh environments, including high temperatures, vibrations, and electromagnetic interference. HDI Rigid-Flex PCBs meet these requirements by combining the robust rigidity needed for critical components with the adaptability of flexible substrates. The ability to design circuits that can bend around the intricate contours of automotive parts while maintaining high electrical performance makes HDI Rigid-Flex PCBs invaluable for modern vehicle electronics.

HDI Rigid-Flex PCB in Medical Devices

In the medical field, precision, reliability, and miniaturization are crucial factors. HDI Rigid-Flex PCB provides an excellent solution for high-performance medical devices, enabling the integration of more advanced features into smaller and more reliable devices.

Usage in High-Precision Medical Equipment Like Monitoring Devices and Diagnostic Tools
Medical devices such as portable heart monitors, diagnostic imaging tools, and insulin pumps require HDI Rigid-Flex PCBs to ensure that the devices are compact, reliable, and capable of precise measurements. HDI Rigid-Flex PCBs enable the miniaturization of the circuits, making it possible to incorporate multiple features in a small device without compromising on performance. The flexibility of the PCB also allows for better ergonomics and ease of use in devices that are worn or carried by patients.
Supporting Micro-Miniaturization and Meeting High-Performance Needs
HDI Rigid-Flex PCBs are critical in medical devices that require micro-miniaturization. Whether it’s for implantable devices, diagnostic tools, or wearable health trackers, HDI Rigid-Flex PCBs allow for the integration of smaller, more powerful components into the device. The high-density interconnections offered by HDI technology ensure that these devices can handle complex functions without occupying a large physical footprint. This is particularly important for ensuring that medical equipment is both effective and comfortable for patients.

Aerospace and Military

The aerospace and military industries demand the highest level of reliability, performance, and resistance to harsh environments. HDI Rigid-Flex PCB plays a critical role in meeting these exacting standards, offering solutions that combine high-density interconnections and flexibility for complex systems.

Critical for High-Reliability Applications in Harsh Environments
Aerospace and military applications require circuit boards that can withstand extreme conditions, such as high altitudes, extreme temperatures, and vibrations. HDI Rigid-Flex PCBs are ideal for these applications because they can be engineered to perform reliably in harsh environments. The flexibility in design allows these PCBs to be used in space-constrained applications, such as avionics, navigation systems, and communication equipment.
Combining High-Density Interconnects and Flexible Routing for Aerospace Applications
In aerospace applications, space and weight are always limited. HDI Rigid-Flex PCBs combine high-density interconnections with flexible routing to optimize space usage and minimize the weight of critical components. These PCBs are used in complex systems, including satellite communications, radar, and missile guidance systems, where both high-performance and miniaturization are necessary. The flexible nature of HDI Rigid-Flex PCBs allows for more compact and adaptable designs, ensuring they can meet the stringent demands of aerospace and military applications.

HDI Rigid-Flex PCB technology is transforming industries across the board by enabling miniaturization, improving performance, and enhancing reliability in diverse applications. From consumer electronics to aerospace, medical devices, and automotive systems, HDI Rigid-Flex PCBs offer a unique combination of flexibility, durability, and high-density interconnections that meet the needs of modern, high-performance devices. As industries continue to demand more compact and efficient solutions, HDI Rigid-Flex PCB will remain a key enabler of innovation.

Advantages of HDI Rigid-Flex PCB

HDI Rigid-Flex PCB technology offers numerous advantages that make it the go-to solution for modern, high-performance electronics. These advantages range from enhanced mechanical strength to superior electrical performance, all contributing to the increasing demand for HDI Rigid-Flex PCBs across various industries. Let’s explore these key benefits in more detail.

High-Density Design

One of the most significant advantages of HDI Rigid-Flex PCB is its ability to support high-density designs, which is essential for miniaturizing modern electronics without sacrificing performance.

Smaller Size, Higher Integration Level
With HDI Rigid-Flex PCBs, the integration of more components into smaller spaces becomes possible. Through advanced techniques like microvias, blind and buried vias, and stacked vias, HDI Rigid-Flex PCBs can accommodate a high number of connections within a limited area. This higher integration level results in smaller devices that still retain full functionality. By utilizing fine-pitch interconnections and compact layers, HDI Rigid-Flex PCBs make it feasible to pack more power, features, and performance into devices like smartphones, wearables, and automotive electronics.
Benefits of Fine Circuitry and Dense Wiring
The precision offered by HDI Rigid-Flex PCB allows for fine circuitry and dense wiring that can deliver exceptional electrical performance in a compact form. With fine-pitch traces and minimal spacing, HDI Rigid-Flex PCBs enable the routing of more complex circuits that would not be possible with traditional PCBs. This is particularly important in applications like medical devices and aerospace, where the circuit needs to be densely packed and reliable.

Increased Mechanical Strength and Flexibility

One of the standout features of HDI Rigid-Flex PCB is its combination of rigidity and flexibility, which enhances both the mechanical strength and adaptability of the board.

Rigid Parts Provide Structural Integrity, While Flexible Parts Offer Adaptability
HDI Rigid-Flex PCBs combine the best of both worlds. The rigid parts provide structural integrity and durability, ensuring that sensitive components are securely mounted. These rigid sections are used for areas where high structural support is required, such as connectors and chips. On the other hand, the flexible portions of the PCB allow it to adapt to tight spaces or complex designs. This flexibility enables the PCB to bend, fold, or wrap around objects, which is essential in space-constrained environments, such as in wearable devices or compact automotive sensors.
Precision Layout in Complex Spaces
The ability of HDI Rigid-Flex PCBs to combine rigid and flexible elements allows for precision layouts in difficult spaces. This adaptability means that designers can place components in spaces that would typically be challenging to reach with traditional rigid PCBs. For instance, HDI Rigid-Flex PCBs can be used in small, intricate assemblies where space is limited, such as in robotics, consumer electronics, and medical devices, optimizing both the use of space and the PCB’s overall functionality.

Reduced Size and Weight

As the demand for smaller and lighter electronic devices increases, HDI Rigid-Flex PCB is quickly becoming a critical solution for achieving these goals. These boards help significantly reduce the overall size and weight of a device, which is crucial in applications where portability is a key factor.

Smaller Components Optimize Board Thickness and Reduce Overall Weight
By using advanced manufacturing techniques, HDI Rigid-Flex PCBs can incorporate smaller components with fewer layers. These smaller components help to optimize the thickness of the board, making it thinner and lighter while maintaining its electrical integrity. The result is a more compact and efficient product. For portable devices like smartphones, laptops, and tablets, HDI Rigid-Flex PCBs contribute to a sleek design without sacrificing performance.
Ideal for Portable and Compact Devices
HDI Rigid-Flex PCBs are ideal for devices where size and weight are critical factors, such as wearables, medical equipment, and handheld gadgets. Their ability to combine rigid and flexible sections allows them to fit into compact designs while keeping the weight minimal. The reduced thickness and lightweight nature of HDI Rigid-Flex PCBs are perfect for industries like consumer electronics and aerospace, where portability and performance must go hand-in-hand.

Improved Electrical Performance

The high precision and innovative design techniques used in HDI Rigid-Flex PCBs also provide superior electrical performance, which is crucial for many high-tech applications.

High-Precision Interconnections and Signal Routing
HDI Rigid-Flex PCBs offer excellent electrical performance due to their high-precision interconnections and routing capabilities. Fine-pitch traces, microvias, and stacked vias allow for efficient signal transmission with minimal loss. These features ensure that data is processed quickly and accurately, which is especially important in applications like medical equipment, aerospace systems, and high-speed communication devices. The precise routing of signals also minimizes the chance of interference, which can degrade system performance.
Reducing Signal Interference, Ensuring System Stability
One of the primary challenges in high-density circuit designs is signal interference, which can lead to data loss or malfunctioning systems. HDI Rigid-Flex PCBs reduce signal interference by using tightly controlled design techniques that optimize the distance between signal paths and minimize the impact of electromagnetic interference (EMI). This results in a more stable and reliable system, ensuring that critical functions, such as those in medical monitoring devices or aerospace navigation systems, perform flawlessly under demanding conditions.

The advantages of HDI Rigid-Flex PCB technology make it an indispensable solution for industries that require compact, high-performance, and reliable circuit boards. From enabling high-density designs and offering increased mechanical strength to reducing size and improving electrical performance, HDI Rigid-Flex PCBs offer a range of benefits that are essential for modern electronics. Their unique ability to integrate rigid and flexible components allows for more complex, efficient, and miniaturized designs, driving innovation in sectors such as consumer electronics, automotive, medical devices, and aerospace. HDI Rigid-Flex PCBs are paving the way for the future of high-performance electronics.

Challenges of HDI Rigid-Flex PCB

While HDI Rigid-Flex PCB technology offers numerous advantages, it also presents several challenges in both design and manufacturing. These challenges stem from the complexity of creating high-density circuits, the need for precise processing of different materials, and the costs associated with production. Additionally, ensuring reliability and durability, especially under harsh operating conditions, is critical. Let’s dive deeper into the main challenges faced when working with HDI Rigid-Flex PCB technology.

Manufacturing Complexity

The manufacturing of HDI Rigid-Flex PCB requires advanced technology and specialized processes that can be difficult to execute.

Challenges in Designing and Fabricating High-Density Circuits
One of the key challenges in HDI Rigid-Flex PCB is designing high-density interconnections. The tight space constraints in these boards demand precise circuit routing and the use of fine-pitch traces, which can be difficult to achieve. The smaller vias, microvias, and stacked vias commonly used in HDI Rigid-Flex PCBs require exceptional accuracy in the design process to ensure that the interconnections meet the required electrical performance standards. Designers must also ensure that the density of components does not interfere with signal integrity, which can be a delicate balancing act in high-performance applications.
Different Processing Requirements for Rigid and Flexible Materials
HDI Rigid-Flex PCB involves the integration of both rigid and flexible substrates, each of which has unique processing needs. Rigid layers require standard PCB manufacturing techniques such as etching, plating, and lamination, while flexible materials demand different treatment to preserve their flexibility and durability. The challenge lies in seamlessly combining these two types of materials while maintaining the integrity of the design. The lamination process, in particular, must ensure that the rigid and flexible materials bond properly without introducing defects or compromising the electrical performance.

Cost Considerations

Manufacturing HDI Rigid-Flex PCB can be more expensive than traditional PCBs due to the complexity and precision required in their fabrication.

Higher Production Costs Due to the Complex Processes and High Precision Needed
The process of manufacturing HDI Rigid-Flex PCB involves multiple layers, advanced etching techniques, and the use of high-quality materials. The intricate design and fabrication process, including the need for microvia drilling and fine-pitch routing, adds to the overall cost of production. Additionally, HDI Rigid-Flex PCBs require specialized equipment and highly skilled technicians, further driving up the cost. Manufacturers must also invest in advanced inspection and testing systems to ensure that each board meets the stringent quality requirements, contributing to higher overall production costs.
Material Costs and Limited Availability
The materials used in HDI Rigid-Flex PCB, particularly those for flexible substrates, are often more expensive than standard PCB materials. Flexible materials, such as polyimide or polyester, are specially designed to withstand bending and flexing, which can drive up the cost of the final product. Moreover, the limited availability of some of these high-performance materials can also contribute to higher costs, especially in regions where the supply chain for flexible materials is constrained.

Reliability and Durability

Ensuring the long-term reliability and durability of HDI Rigid-Flex PCB is crucial, particularly when these PCBs are used in mission-critical applications such as medical devices, aerospace, and automotive systems.

Impact of High-Frequency Operation and Environmental Factors on Material Performance
HDI Rigid-Flex PCBs are often used in environments where high-frequency signals are common, such as in telecommunications or high-speed data transfer applications. In these cases, maintaining signal integrity and minimizing interference is crucial. However, the flexible portions of HDI Rigid-Flex PCBs can sometimes introduce signal loss or distortion due to their inherent properties. Additionally, the materials used in the PCB may degrade or experience performance fluctuations when exposed to harsh environmental conditions such as extreme temperatures, humidity, or vibrations, especially in automotive and aerospace applications.
Ensuring Long-Term Stability and Durability of the PCB
The durability of HDI Rigid-Flex PCB is another concern, particularly when these boards are subjected to mechanical stresses. The flexible regions of the PCB, while providing adaptability, can be prone to wear and tear, which can affect the long-term stability of the device. Additionally, repeated flexing or bending could lead to cracks or delamination of the flexible layers, potentially compromising the reliability of the PCB. Manufacturers must carefully test and evaluate HDI Rigid-Flex PCBs to ensure they meet stringent durability standards, ensuring that they can withstand environmental and mechanical stresses over time.

While HDI Rigid-Flex PCB offers many benefits, including high-density design, flexibility, and improved electrical performance, it also comes with its own set of challenges. These challenges, including manufacturing complexity, high production costs, and concerns about reliability and durability, must be addressed to ensure the successful deployment of HDI Rigid-Flex PCBs in demanding applications. As technology continues to advance, the methods used to design, manufacture, and test HDI Rigid-Flex PCBs will evolve, helping to overcome these challenges and further unlock the potential of these advanced circuit boards.

Future Trends of HDI Rigid-Flex PCB

As HDI Rigid-Flex PCB technology continues to evolve, it is poised to play a crucial role in the future of high-performance electronics. Advancements in design, manufacturing, and materials will allow HDI Rigid-Flex PCBs to meet the increasing demand for miniaturization, high density, and enhanced functionality. Let’s explore some of the future trends that are likely to shape the trajectory of HDI Rigid-Flex PCBs.

Higher Density Integration

With the rapid progression of technology, one of the key trends for HDI Rigid-Flex PCB is the move toward even higher density integration. As electronic devices become smaller and more powerful, there is an increasing demand for HDI Rigid-Flex PCBs to accommodate higher levels of miniaturization and functionality without compromising on performance.

Support for Even Smaller Designs
The future of HDI Rigid-Flex PCB will be marked by a continuous reduction in size, allowing even more components to fit into smaller spaces. Advanced techniques such as microvias, fine-pitch components, and ultra-thin substrates will be employed to further shrink the size of the PCB while maintaining or improving the signal integrity. With HDI Rigid-Flex PCBs, it will be possible to design ultra-compact devices that are not only smaller but also more efficient, supporting the growing need for high-performance electronics in applications such as wearables, medical implants, and IoT devices.
Increased Component Density
The ongoing demand for more powerful devices will require HDI Rigid-Flex PCBs to incorporate an even higher density of interconnections. Through innovations like stacked vias, ultra-fine wiring, and advanced lamination processes, HDI Rigid-Flex PCBs will be able to support complex circuits in increasingly constrained spaces. This increased density will be crucial in industries such as telecommunications, consumer electronics, and automotive systems, where performance and miniaturization go hand in hand.

Automation and Smart Manufacturing

The manufacturing processes for HDI Rigid-Flex PCBs are becoming more automated, driven by advances in artificial intelligence (AI) and smart manufacturing technologies. These innovations promise to streamline production, improve accuracy, and reduce costs.

AI and Automated Testing
The use of AI in HDI Rigid-Flex PCB manufacturing will significantly enhance production capabilities. AI-powered systems can optimize design layouts, identify potential defects early, and conduct automated inspections. This shift toward automation will lead to higher yields, reduced error rates, and faster production times. Furthermore, automated testing systems will enable manufacturers to more quickly and accurately assess the performance of HDI Rigid-Flex PCBs, ensuring that each board meets stringent quality standards before it reaches the market.
Reduced Costs and Improved Efficiency
Automation will not only improve the accuracy and quality of HDI Rigid-Flex PCBs but also help reduce production costs. By minimizing manual labor and optimizing material usage, manufacturers will be able to produce HDI Rigid-Flex PCBs at lower costs, making them more affordable for a wider range of applications. The increased efficiency in the production process will also help meet the growing demand for HDI Rigid-Flex PCBs as they become more integrated into mass-market products.

Expansion into New Industries

As electronic devices continue to shrink, diversify, and evolve, the applications of HDI Rigid-Flex PCBs will continue to expand across more industries, opening new opportunities for innovation.

Expansion in Consumer Electronics
The consumer electronics sector, including smartphones, wearables, and smart home devices, will continue to drive the demand for HDI Rigid-Flex PCBs. As devices become more compact and multifunctional, the need for high-density, flexible, and durable PCBs will increase. Future devices may incorporate even more advanced features, such as augmented reality (AR) and virtual reality (VR), which will require HDI Rigid-Flex PCBs that can support these complex applications while maintaining a sleek and portable form factor.
Growth in Automotive and Aerospace
The automotive and aerospace industries are also expected to see increased adoption of HDI Rigid-Flex PCBs as these sectors increasingly rely on advanced electronics for systems like autonomous driving, advanced sensors, and in-vehicle communication networks. The flexibility and reliability of HDI Rigid-Flex PCBs make them ideal for harsh environments, where they must endure vibrations, high temperatures, and other challenging conditions. As automotive electronics become more complex, particularly with the rise of electric vehicles (EVs) and autonomous technology, HDI Rigid-Flex PCBs will be essential in supporting these innovations.
Medical Devices and Healthcare
As medical devices continue to evolve, particularly in the realm of diagnostics, monitoring, and wearable healthcare solutions, HDI Rigid-Flex PCBs will play a significant role. The ability to create compact, high-performance devices that can be worn on the body or implanted into patients’ systems makes HDI Rigid-Flex PCBs ideal for the medical industry. Future innovations in telemedicine, real-time health monitoring, and personalized medicine will rely on HDI Rigid-Flex PCBs to provide the reliability and performance needed for these life-critical applications.
Emerging Applications in IoT and 5G
With the rapid growth of the Internet of Things (IoT) and the rollout of 5G networks, HDI Rigid-Flex PCBs will be instrumental in supporting the next generation of connected devices. These technologies demand high-density interconnects and the ability to integrate multiple sensors, communication modules, and power sources into a single, compact form factor. HDI Rigid-Flex PCBs will be critical in powering the complex electronics required for IoT sensors, smart cities, industrial automation, and more.

The future of HDI Rigid-Flex PCB technology is incredibly promising, with advancements in density integration, automation, and new industry applications on the horizon. As the demand for smaller, more powerful, and more reliable electronics grows, HDI Rigid-Flex PCBs will continue to evolve to meet these needs. With automation driving down costs and the expansion of HDI Rigid-Flex PCBs into new sectors such as automotive, aerospace, healthcare, and beyond, these circuit boards will play a pivotal role in shaping the future of electronics, offering a versatile, high-performance solution for next-generation devices.
