The Crucial Function of Chip Substrate

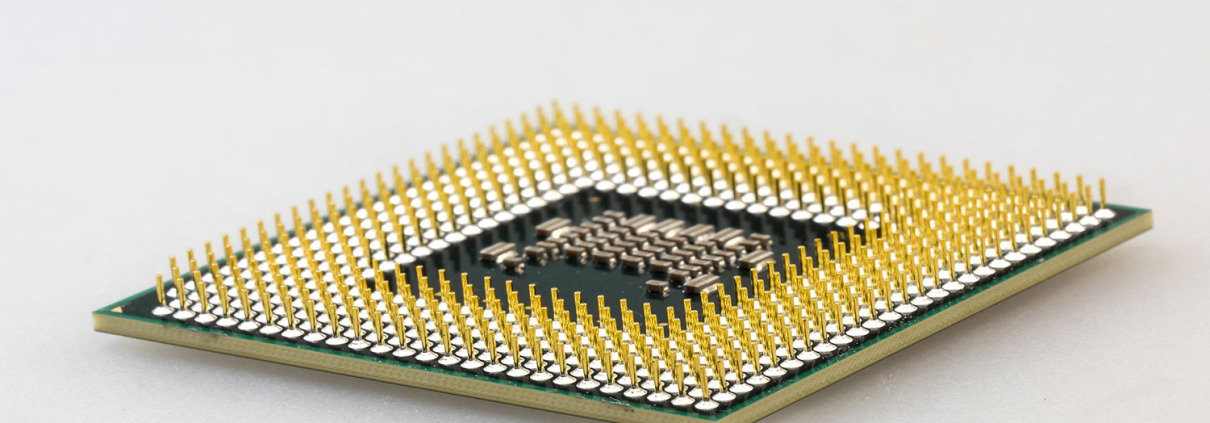

chip substrate

Chip substrates are a critical component in the semiconductor and electronics industry, serving as the foundation upon which integrated circuits (ICs) are built. These substrates provide the necessary support and connectivity for electronic components, ensuring reliable performance and efficient heat dissipation. In the rapidly evolving world of technology, the importance of high-quality chip substrates cannot be overstated—they are essential for the functionality and longevity of electronic devices ranging from smartphones to automotive systems.

In this blog post, we will delve into the world of chip substrates, exploring their definition, the various materials used in their construction, and the manufacturing processes involved. We will also examine the differences between package substrates and printed circuit boards (PCBs), the specific requirements for flip chip substrates, and the crucial role that IC substrates play in device performance. Additionally, we will discuss the diverse applications of chip substrates and look ahead to future trends and innovations in this vital field.

What is a Chip Substrate?

A chip substrate, also known as an integrated circuit (IC) substrate, is a foundational material that supports and connects the various components of an integrated circuit. It acts as the intermediary layer between the silicon die and the printed circuit board (PCB), playing a crucial role in ensuring the functionality and reliability of electronic devices.

Definition of a Chip Substrate

A chip substrate is typically composed of a rigid or flexible material that provides a stable platform for mounting semiconductor devices. It includes various conductive paths, insulation layers, and sometimes thermal management features, enabling efficient electrical connections and signal transmission between the die and the external circuitry. The substrate also offers mechanical support, protecting the delicate silicon die from physical stress and environmental factors.

Position and Function of Chip Substrates in Integrated Circuits

In an integrated circuit, the chip substrate is positioned directly beneath the silicon die, which contains the actual electronic circuits and transistors. The primary functions of the chip substrate include:

  1. Mechanical Support: The substrate provides a stable base for the silicon die, ensuring it remains securely attached and aligned. This mechanical stability is crucial for maintaining the integrity of the connections and preventing damage due to physical stress or vibrations.
  2. Electrical Connectivity: The substrate contains a network of conductive traces and vias that establish electrical connections between the die and the external circuitry. These pathways are essential for transmitting signals and power, enabling the integrated circuit to perform its intended functions.
  3. Thermal Management: During operation, integrated circuits generate heat that must be dissipated to maintain optimal performance and prevent overheating. The substrate often incorporates materials and design features that facilitate heat dissipation, ensuring the IC operates within safe temperature ranges.
  4. Signal Integrity: The substrate’s design and materials help minimize electrical noise and signal loss, which is crucial for maintaining the accuracy and speed of data transmission. High-frequency applications, in particular, benefit from substrates that offer excellent signal integrity.

By fulfilling these functions, chip substrates play a pivotal role in the overall performance, reliability, and longevity of integrated circuits. They are indispensable in various applications, including consumer electronics, automotive systems, communication devices, and industrial control systems, highlighting their significance in the broader semiconductor and electronics industry.

Materials for Chip Substrates

The choice of material for chip substrates is critical, as it directly influences the performance, reliability, and thermal management of integrated circuits. Various materials are used based on their electrical, thermal, and mechanical properties. Here, we will discuss some of the most common materials: silicon, gallium nitride, and silicon carbide.

Common Materials Used for Chip Substrates

  1. Silicon (Si)
    • Overview: Silicon is the most widely used material for chip substrates due to its excellent electrical properties, abundance, and well-established manufacturing processes.
    • Advantages:
      • Electrical Properties: Silicon has suitable electrical properties that allow for efficient signal transmission and integration of complex circuits.
      • Cost-Effectiveness: Silicon is relatively inexpensive and widely available, making it a cost-effective choice for mass production.
      • Mature Technology: The silicon-based semiconductor industry is highly developed, with a robust infrastructure for fabrication, processing, and integration.
    • Disadvantages:
      • Thermal Conductivity: Silicon has moderate thermal conductivity, which can be a limitation for high-power applications that generate significant heat.
      • Mechanical Strength: While adequate for many applications, silicon is brittle and can be susceptible to cracking under mechanical stress.
    • Applications:
      • Consumer Electronics: Silicon substrates are extensively used in smartphones, tablets, and computers.
      • Automotive Systems: Used in various electronic control units (ECUs) and sensors.
      • Industrial Control: Silicon ICs are crucial in automation and control systems.
  2. Gallium Nitride (GaN)
    • Overview: Gallium nitride is a wide bandgap semiconductor material known for its superior performance in high-frequency and high-power applications.
    • Advantages:
      • High Electron Mobility: GaN offers high electron mobility, leading to faster signal processing and higher efficiency.
      • Thermal Performance: GaN has excellent thermal conductivity, which helps dissipate heat more effectively, allowing for higher power density.
      • Power Efficiency: GaN devices operate at higher voltages and frequencies with greater efficiency compared to silicon.
    • Disadvantages:
      • Cost: GaN is more expensive to produce due to complex manufacturing processes and the cost of raw materials.
      • Manufacturing Challenges: The technology and infrastructure for GaN are not as mature as for silicon, leading to higher production costs and challenges in large-scale adoption.
    • Applications:
      • Power Electronics: Widely used in power converters, inverters, and amplifiers.
      • Communication Devices: Essential for RF components in 5G networks and satellite communications.
      • Aerospace and Defense: Used in radar systems and other high-frequency applications.
  3. Silicon Carbide (SiC)
    • Overview: Silicon carbide is another wide bandgap semiconductor material known for its exceptional thermal and electrical properties, making it ideal for high-power and high-temperature applications.
    • Advantages:
      • Thermal Conductivity: SiC has excellent thermal conductivity, significantly higher than silicon, making it suitable for high-temperature environments.
      • High Breakdown Voltage: SiC can handle higher voltages, which is beneficial for power electronics.
      • Durability: SiC is mechanically robust and can withstand harsh operating conditions.
    • Disadvantages:
      • Cost: Similar to GaN, SiC is expensive to produce due to the cost of raw materials and sophisticated manufacturing techniques.
      • Processing Complexity: The fabrication processes for SiC are more complex and less mature compared to silicon.
    • Applications:
      • Electric Vehicles: Used in power modules for electric vehicle inverters and chargers.
      • Renewable Energy: Essential in power conversion systems for solar inverters and wind turbines.
      • Industrial Applications: Applied in high-power industrial motors and drives.

Each material has its unique advantages and disadvantages, making it suitable for specific applications. The choice of substrate material is determined by the performance requirements, operating conditions, and cost considerations of the intended application. Understanding these materials and their properties helps in designing and manufacturing integrated circuits that meet the demands of modern electronic devices and systems.

Manufacturing Process of Chip Substrates

The manufacturing process of chip substrates is a complex and highly precise operation that transforms raw wafers into functional substrates ready for the integration of semiconductor devices. This process involves several critical steps, each with specific technical requirements to ensure the quality and performance of the final product. Below, we detail the key steps involved in this process and highlight some of the major chip substrate manufacturers.

From Wafer to Chip Substrate: Manufacturing Process

  1. Wafer Preparation
    • Material Selection: The process begins with the selection of the appropriate wafer material, typically silicon, gallium nitride, or silicon carbide, depending on the intended application.
    • Crystal Growth: High-purity single crystals are grown using methods such as the Czochralski process for silicon or the Hydride Vapor Phase Epitaxy (HVPE) for gallium nitride. For silicon carbide, the sublimation method is often used.
    • Wafer Slicing: The grown crystal is sliced into thin wafers using a diamond saw. These wafers are then polished to achieve a smooth surface suitable for further processing.
  2. Surface Cleaning and Conditioning
    • Cleaning: Wafers are cleaned using chemical solutions to remove any contaminants or residues from the slicing process.
    • Surface Conditioning: The wafer surface is conditioned to improve adhesion for subsequent layers and to ensure uniformity. This may involve processes such as chemical mechanical polishing (CMP).
  3. Deposition of Dielectric Layers
    • Insulating Layers: A dielectric layer, often silicon dioxide (SiO2) or silicon nitride (Si3N4), is deposited on the wafer to provide electrical insulation. Techniques such as thermal oxidation, chemical vapor deposition (CVD), or atomic layer deposition (ALD) are commonly used.
  4. Patterning and Etching
    • Photolithography: Photolithography is employed to transfer patterns onto the wafer. A photoresist layer is applied and exposed to ultraviolet (UV) light through a photomask, creating a patterned template.
    • Etching: The exposed areas of the dielectric layer are etched away using either wet chemical etching or dry plasma etching, forming the desired circuit patterns and structures.
  5. Metallization
    • Metal Layer Deposition: Metal layers, typically copper or aluminum, are deposited onto the patterned wafer to create conductive pathways. Methods such as sputtering or electroplating are used for this purpose.
    • Planarization: After metallization, a planarization step, usually chemical mechanical polishing (CMP), is performed to ensure a flat and even surface, which is crucial for multilayer substrates.
  6. Assembly and Testing
    • Dicing: The wafer is diced into individual chip substrates using a diamond saw or laser cutting.
    • Bonding and Packaging: The substrates are bonded to the silicon dies and encapsulated in protective packaging. Techniques like wire bonding or flip-chip bonding are used.
    • Testing: Each substrate undergoes rigorous testing to ensure electrical functionality, signal integrity, and thermal performance. Defective substrates are discarded, while those that pass are prepared for integration into electronic devices.

Key Steps and Technical Requirements

  • Precision and Cleanliness: The entire manufacturing process must be conducted in a cleanroom environment to prevent contamination. Precision in patterning and etching is critical for the functionality of the final product.
  • Quality Control: Stringent quality control measures are in place at each step to detect and correct any defects or irregularities.
  • Advanced Equipment: The process requires advanced equipment for crystal growth, wafer slicing, deposition, lithography, etching, and metallization, highlighting the importance of technological sophistication in substrate manufacturing.

Major Chip Substrate Manufacturers

Several leading companies specialize in the production of chip substrates, leveraging advanced technologies and extensive expertise to meet the demands of the semiconductor industry. Some of the major players include:

  • Taiwan Semiconductor Manufacturing Company (TSMC): TSMC is a global leader in semiconductor manufacturing, providing a wide range of substrates and integrated circuit solutions.
  • Samsung Electronics: Known for its innovation and quality, Samsung produces high-performance chip substrates for various applications, including consumer electronics and communication devices.
  • Intel Corporation: Intel manufactures advanced substrates and integrated circuits, focusing on cutting-edge technologies and high-performance computing.
  • Amkor Technology: Amkor is a leading provider of semiconductor packaging and test services, offering a variety of chip substrate solutions.
  • Shinko Electric Industries: Specializes in advanced packaging and substrate technologies, serving major semiconductor companies worldwide.

By understanding the manufacturing process and the key players in the industry, we gain insight into the intricate steps required to produce high-quality chip substrates essential for modern electronic devices.

Package Substrate vs. Printed Circuit Board (PCB)

In the realm of semiconductor and electronic design, both package substrates and printed circuit boards (PCBs) play crucial roles, yet they serve different functions and have distinct characteristics. Understanding these differences is essential for optimizing electronic design and manufacturing processes.

Definition and Function of Package Substrates

Package Substrates: Package substrates are specialized materials that serve as the foundation for semiconductor chips within an integrated circuit package. They provide mechanical support, electrical connections, and thermal management for the semiconductor die. The primary functions of package substrates include:

  • Mechanical Support: They securely hold the semiconductor die in place, protecting it from mechanical stress and environmental factors.
  • Electrical Connectivity: They facilitate electrical connections between the semiconductor die and the external circuitry. This is achieved through a network of conductive traces, vias, and solder balls or bumps.
  • Thermal Management: They help dissipate heat generated by the semiconductor die during operation, ensuring the device operates within safe temperature ranges.
  • Signal Integrity: They maintain the integrity of electrical signals, minimizing interference and signal loss.

Differences Between Package Substrates and PCBs

1. Structure and Composition:

  • Package Substrates: Typically composed of multiple layers of materials such as organic resins (e.g., epoxy or polyimide) reinforced with glass fibers, and may include metal layers (e.g., copper) for conductivity. They are designed to be small and thin to fit within the semiconductor package.
  • PCBs: Made of rigid materials such as fiberglass-reinforced epoxy laminate (FR-4) with copper traces etched on the surface. PCBs can be single-sided, double-sided, or multi-layered, depending on the complexity of the circuit design.

2. Manufacturing Processes:

  • Package Substrates: Manufactured using advanced techniques like photolithography, chemical vapor deposition (CVD), and electroplating. The process is highly precise to accommodate the fine pitch and small features required for semiconductor packaging.
  • PCBs: Fabricated using processes like drilling, etching, and lamination. While precision is important, the scale of features on PCBs is generally larger than on package substrates.

3. Size and Scale:

  • Package Substrates: Designed to be much smaller and thinner, as they must fit within the compact confines of an integrated circuit package.
  • PCBs: Typically larger, serving as the main platform for assembling and interconnecting multiple electronic components and modules.

4. Electrical Performance:

  • Package Substrates: Engineered for high electrical performance with low inductance and resistance, critical for high-speed and high-frequency applications.
  • PCBs: While also designed for good electrical performance, they handle a broader range of frequencies and applications, balancing cost and performance.

Application Differences Between the Two

Package Substrates:

  • Semiconductor Packaging: Used in the final assembly of semiconductor devices, where they serve as the interface between the semiconductor die and the PCB.
  • High-Performance Computing: Employed in advanced processors and graphics cards, where high electrical performance and efficient thermal management are critical.
  • Mobile Devices: Used in smartphones and tablets, where compact size and reliability are essential.

Printed Circuit Boards (PCBs):

  • Consumer Electronics: Serve as the backbone for assembling electronic components in devices like televisions, laptops, and home appliances.
  • Automotive Electronics: Used in various control units, sensors, and infotainment systems within vehicles.
  • Industrial and Medical Equipment: Provide the platform for complex circuitry in industrial automation systems, medical devices, and instrumentation.
  • Communication Devices: Integral to the design of routers, switches, and other networking equipment.

While both package substrates and PCBs are indispensable in the field of electronics, they serve different purposes and are tailored to meet specific requirements of size, performance, and application. Package substrates are critical for the packaging and interconnection of semiconductor dies, offering high performance and thermal management in a compact form. PCBs, on the other hand, provide the larger-scale platform needed for assembling and connecting various electronic components and modules across a wide range of applications. Understanding these differences helps in selecting the right materials and technologies for each stage of electronic device development and manufacturing.

Materials for Package Substrates

The selection of materials for package substrates is a critical factor in determining the performance, reliability, and cost-effectiveness of semiconductor devices. The materials used must provide excellent mechanical support, electrical performance, and thermal management. Here, we explore some of the common materials used for package substrates, including fiberglass reinforced epoxy (FR-4), bismaleimide-triazine resin (BT resin), and silicon, along with considerations for material selection.

Common Materials Used for Package Substrates

  1. Fiberglass Reinforced Epoxy (FR-4)
    • Overview: FR-4 is a composite material composed of woven fiberglass cloth with an epoxy resin binder. It is widely used in both printed circuit boards (PCBs) and package substrates due to its excellent balance of mechanical strength, electrical insulation, and cost-effectiveness.
    • Advantages:
      • Mechanical Strength: FR-4 offers high tensile strength and durability, making it suitable for applications requiring robust mechanical support.
      • Electrical Insulation: It provides excellent electrical insulation, essential for preventing short circuits and maintaining signal integrity.
      • Cost-Effective: FR-4 is relatively inexpensive and readily available, making it a popular choice for a wide range of applications.
    • Disadvantages:
      • Thermal Conductivity: FR-4 has relatively low thermal conductivity, which can be a limitation for high-power applications where efficient heat dissipation is crucial.
      • Moisture Absorption: It can absorb moisture, which may affect its electrical properties and long-term reliability in humid environments.
    • Applications:
      • Consumer Electronics: Used in a variety of consumer electronic devices such as smartphones, tablets, and laptops.
      • Automotive Electronics: Employed in electronic control units (ECUs) and other automotive systems.
  2. Bismaleimide-Triazine Resin (BT Resin)
    • Overview: BT resin is a high-performance thermosetting polymer known for its excellent thermal stability, low moisture absorption, and superior electrical properties. It is widely used in advanced semiconductor packaging applications.
    • Advantages:
      • Thermal Stability: BT resin can withstand high temperatures without degrading, making it suitable for applications requiring reliable performance under thermal stress.
      • Low Moisture Absorption: It has low moisture absorption, which helps maintain its electrical properties and reliability in humid conditions.
      • Electrical Performance: Offers excellent electrical insulation and low dielectric loss, which are critical for maintaining signal integrity in high-frequency applications.
    • Disadvantages:
      • Cost: BT resin is more expensive compared to FR-4, which can increase the overall cost of the substrate.
      • Processing Complexity: The manufacturing process for BT resin substrates is more complex, requiring precise control of processing conditions.
    • Applications:
      • High-Performance Computing: Used in substrates for processors and graphics cards where high thermal stability and electrical performance are essential.
      • Telecommunications: Employed in RF modules and other communication devices requiring high-frequency signal integrity.
  3. Silicon
    • Overview: Silicon is not only the primary material for semiconductor dies but is also used as a substrate material for advanced packaging applications, particularly in flip-chip and wafer-level packaging technologies.
    • Advantages:
      • Thermal Conductivity: Silicon offers excellent thermal conductivity, which is crucial for dissipating heat generated by high-power devices.
      • Compatibility: As the primary material for semiconductor devices, silicon substrates offer seamless integration with silicon dies, minimizing thermal expansion mismatches and improving reliability.
      • Electrical Properties: Silicon substrates can be engineered to provide excellent electrical performance, including high-frequency signal transmission.
    • Disadvantages:
      • Cost: Silicon substrates can be expensive to produce, especially when using high-purity silicon wafers and advanced processing techniques.
      • Brittleness: Silicon is brittle and can be prone to cracking under mechanical stress, requiring careful handling and robust packaging designs.
    • Applications:
      • Flip-Chip Packaging: Used in flip-chip technology where the die is mounted directly onto the substrate, allowing for efficient thermal management and high-density interconnects.
      • Advanced Semiconductor Packages: Employed in wafer-level packages and other advanced packaging technologies requiring high performance and reliability.

Considerations for Material Selection

When selecting materials for package substrates, several factors must be considered to ensure optimal performance and reliability for the intended application:

  1. Thermal Performance: The material’s ability to conduct and dissipate heat is crucial, especially for high-power and high-frequency applications. Materials with high thermal conductivity, such as silicon, are preferred for such applications.
  2. Electrical Properties: The material should provide excellent electrical insulation and low dielectric loss to maintain signal integrity, particularly in high-speed and high-frequency circuits.
  3. Mechanical Strength: The substrate must offer sufficient mechanical strength and durability to protect the semiconductor die and withstand physical stress during assembly and operation.
  4. Cost: The cost of the substrate material is a significant factor, particularly for high-volume production. Balancing performance requirements with cost-effectiveness is essential.
  5. Moisture Resistance: For applications in humid environments, materials with low moisture absorption, such as BT resin, are preferred to ensure long-term reliability.
  6. Compatibility: The material should be compatible with the semiconductor die and other packaging components to minimize thermal expansion mismatches and ensure robust interconnections.

By carefully considering these factors, manufacturers can select the most suitable materials for package substrates, optimizing the performance, reliability, and cost-effectiveness of their semiconductor devices.

Substrate Materials for Flip Chip

What is Flip Chip?

Flip chip is a method of semiconductor device packaging where the silicon die is mounted upside-down (flipped) directly onto the substrate or printed circuit board (PCB). Unlike traditional wire bonding methods, where the die is connected to the substrate via wires, flip chip technology uses solder bumps (or micro-bumps) deposited on the die’s surface. These bumps are then aligned with corresponding pads on the substrate, and the die is bonded to the substrate through a process known as reflow soldering. This approach provides several advantages, including improved electrical performance, better thermal management, and higher interconnect density, making it suitable for high-performance and high-frequency applications.

Specific Material Requirements for Flip Chip Substrates

The substrates used in flip chip packaging must meet stringent requirements to ensure optimal performance and reliability. The key material requirements include:

  1. High Thermal Conductivity: To efficiently dissipate heat generated by the semiconductor die, the substrate material must have high thermal conductivity. This is critical in preventing overheating and ensuring the longevity of the device.
  2. Low Thermal Expansion Coefficient (CTE): The substrate material’s thermal expansion coefficient should closely match that of the silicon die to minimize thermal stress during temperature fluctuations, which can lead to cracking or delamination.
  3. Excellent Electrical Properties: The substrate should offer high electrical conductivity for signal and power distribution, as well as good insulation properties to prevent electrical shorts and signal interference.
  4. Mechanical Stability: The substrate material must be mechanically robust to withstand the stresses of the flip chip bonding process and the operational environment.
  5. Chemical Resistance: Resistance to chemicals used in the manufacturing and operational environments is essential to ensure the substrate’s durability and reliability.

Common Materials Used for Flip Chip Substrates

Several materials are commonly used for flip chip substrates, each offering a unique set of properties tailored to specific applications:

  1. Organic Substrates (BT Resin and Polyimide)
    • Bismaleimide-Triazine Resin (BT Resin):
      • Overview: BT resin is a high-performance thermosetting polymer that provides excellent thermal stability and low moisture absorption.
      • Advantages: High thermal stability, low moisture absorption, good electrical insulation, and compatibility with high-frequency applications.
      • Disadvantages: Higher cost compared to standard epoxy resins, and complex processing requirements.
      • Applications: Widely used in high-performance computing, telecommunications, and advanced semiconductor packages.
    • Polyimide:
      • Overview: Polyimide is a flexible, high-temperature polymer known for its excellent thermal and mechanical properties.
      • Advantages: High thermal stability, flexibility, and good chemical resistance.
      • Disadvantages: Relatively high cost and processing complexity.
      • Applications: Used in applications requiring flexible substrates, such as flexible printed circuits and some advanced semiconductor packages.
  2. Ceramic Substrates (Alumina and Aluminum Nitride)
    • Alumina (Al2O3):
      • Overview: Alumina is a widely used ceramic material known for its excellent electrical insulation and good thermal conductivity.
      • Advantages: High mechanical strength, good thermal conductivity, and excellent electrical insulation.
      • Disadvantages: Higher cost and brittleness compared to organic substrates.
      • Applications: Used in applications requiring high reliability and performance, such as aerospace and military electronics.
    • Aluminum Nitride (AlN):
      • Overview: Aluminum nitride is a high-performance ceramic material with exceptional thermal conductivity and electrical insulation properties.
      • Advantages: Very high thermal conductivity, good electrical insulation, and low thermal expansion.
      • Disadvantages: High cost and processing complexity.
      • Applications: Ideal for high-power and high-frequency applications, such as power electronics and RF modules.
  3. Silicon Substrates
    • Overview: Silicon is commonly used as a substrate material in flip chip packaging, particularly for applications requiring high performance and precision.
    • Advantages: Excellent thermal conductivity, compatibility with silicon dies (matching CTE), and good electrical properties.
    • Disadvantages: Brittleness, which can lead to cracking under mechanical stress, and higher cost.
    • Applications: Used in advanced semiconductor packages, including processors, graphics chips, and high-frequency communication devices.
  4. Glass Substrates
    • Overview: Glass substrates are gaining popularity in flip chip packaging due to their excellent dimensional stability and electrical insulation properties.
    • Advantages: Low thermal expansion, good electrical insulation, and smooth surface finish.
    • Disadvantages: Fragility and higher cost compared to some organic materials.
    • Applications: Emerging applications in high-frequency and optoelectronic devices.

Considerations for Material Selection

When selecting materials for flip chip substrates, several factors must be considered to ensure the optimal performance and reliability of the semiconductor device:

  1. Thermal Management: The material’s ability to dissipate heat effectively is crucial, particularly for high-power applications. Materials like aluminum nitride and silicon are preferred for their superior thermal conductivity.
  2. Mechanical Properties: The substrate material must provide adequate mechanical support and stability to withstand the stresses of the flip chip bonding process and operational environment.
  3. Electrical Performance: The material should offer good electrical conductivity for signal and power distribution and excellent insulation properties to prevent electrical shorts and signal interference.
  4. Cost and Availability: The cost of the substrate material and its availability are important considerations, particularly for high-volume production. Balancing performance with cost-effectiveness is essential.
  5. Compatibility: The material should be compatible with the semiconductor die and other packaging components to ensure robust interconnections and minimal thermal stress.

By carefully selecting the appropriate substrate materials, manufacturers can optimize the performance, reliability, and cost-effectiveness of flip chip packages, ensuring they meet the demanding requirements of modern electronic devices.

Function of the IC Substrate

The IC substrate, also known as the integrated circuit substrate or package substrate, is a critical component in the construction of integrated circuits (ICs). It serves as the foundation upon which semiconductor devices are mounted and interconnected, playing a vital role in ensuring the functionality, reliability, and performance of the integrated circuit. Below, we delve into the intricacies of the IC substrate, exploring its role, structure, design considerations, and methods to enhance its performance.

Role of the IC Substrate in Integrated Circuits

The IC substrate serves several essential functions within an integrated circuit:

  1. Mechanical Support: The substrate provides a stable platform for mounting and securing the semiconductor die, ensuring it remains in place during operation and handling.
  2. Electrical Connectivity: It facilitates electrical connections between the semiconductor die and external circuitry, enabling the transmission of signals, power, and data.
  3. Heat Dissipation: The substrate helps dissipate heat generated by the semiconductor die during operation, preventing overheating and ensuring optimal performance.
  4. Signal Integrity: It plays a crucial role in maintaining the integrity of electrical signals, minimizing interference, noise, and signal distortion.
  5. Package Integration: The IC substrate serves as the interface between the semiconductor die and the package, providing a means for assembly, protection, and interconnection.

Structure and Design Considerations of IC Substrates

The structure and design of IC substrates are carefully engineered to meet the demanding requirements of modern integrated circuits:

  1. Multilayer Construction: IC substrates typically consist of multiple layers of materials, including dielectric layers, conductive traces, vias, and solder mask, arranged in a stack-up configuration. This multilayer structure allows for efficient routing of signals and power distribution.
  2. Fine Pitch and High Density: With the miniaturization of electronic devices, IC substrates must support increasingly smaller feature sizes, finer pitches, and higher interconnect densities to accommodate the integration of complex semiconductor devices.
  3. Materials Selection: The choice of materials for IC substrates is critical, with considerations for thermal conductivity, electrical properties, mechanical strength, and compatibility with manufacturing processes. Common substrate materials include organic resins (e.g., epoxy, polyimide), ceramics (e.g., alumina, aluminum nitride), and semiconductors (e.g., silicon).
  4. Advanced Manufacturing Techniques: IC substrates are manufactured using advanced techniques such as photolithography, thin-film deposition, laser drilling, and microfabrication processes to achieve high precision, tight tolerances, and uniformity across large-scale production.

Methods to Enhance IC Substrate Performance

To enhance the performance of IC substrates and meet the evolving demands of semiconductor technology, several methods and strategies are employed:

  1. Advanced Packaging Technologies: Innovations in packaging technologies, such as flip chip, wafer-level packaging (WLP), and fan-out wafer-level packaging (FO-WLP), enable higher interconnect density, improved thermal management, and reduced form factors.
  2. Embedded Passives and Active Components: Integration of passive components (e.g., resistors, capacitors) and active components (e.g., transistors, diodes) directly into the substrate allows for compact, high-performance designs with reduced parasitics and improved signal integrity.
  3. Thermal Management Solutions: Incorporation of thermal vias, thermal pads, heat spreaders, and integrated heat sinks into the substrate design enhances heat dissipation capabilities, enabling efficient thermal management for high-power devices.
  4. Advanced Materials and Manufacturing Processes: Utilization of novel materials (e.g., liquid crystal polymers, metal matrix composites) and advanced manufacturing techniques (e.g., additive manufacturing, laser direct structuring) enables the development of substrates with superior electrical, thermal, and mechanical properties.
  5. Design Optimization and Simulation: Computer-aided design (CAD) tools and simulation software allow for the optimization of substrate layouts, signal routing, and thermal profiles, ensuring optimal performance and reliability while minimizing design iterations and time to market.

By leveraging these methods and technologies, manufacturers can continuously improve the performance, reliability, and functionality of IC substrates, enabling the development of next-generation integrated circuits for a wide range of applications, from consumer electronics to automotive systems and beyond.

Application Areas of Chip Substrates

Chip substrates find wide-ranging applications across various industries, playing a crucial role in enabling the functionality and performance of electronic devices. Below, we explore in detail some of the key application areas of chip substrates:

1. Consumer Electronics

Chip substrates are extensively used in consumer electronic devices, contributing to their compactness, functionality, and reliability. Some common consumer electronics applications include:

  • Smartphones and Tablets: Chip substrates enable the integration of complex semiconductor devices, including processors, memory chips, and wireless communication modules, into compact and lightweight mobile devices.
  • Laptops and PCs: They form the foundation for the assembly of semiconductor components such as CPUs, GPUs, and memory modules in laptop and desktop computers, enabling high-speed computing and multimedia capabilities.
  • Wearable Devices: Chip substrates are essential in wearable technologies such as smartwatches, fitness trackers, and augmented reality glasses, where space constraints and power efficiency are critical considerations.

2. Communication Devices

Communication devices rely heavily on chip substrates to support high-speed data transmission, signal processing, and network connectivity. Some prominent applications include:

  • Networking Equipment: Chip substrates play a vital role in routers, switches, and network interface cards (NICs), providing the interconnectivity and signal routing required for efficient data transmission in wired and wireless networks.
  • Mobile Devices: In addition to smartphones and tablets, chip substrates are used in base stations, antennas, and RF front-end modules for cellular and wireless communication systems.
  • Satellite Communication: They are utilized in satellite communication systems for signal processing, modulation, and demodulation, enabling the transmission of data, voice, and video over long distances.

3. Automotive Electronics

Chip substrates play a critical role in the automotive industry, supporting the integration of advanced electronics for vehicle control, safety, and infotainment systems. Key applications include:

  • Engine Control Units (ECUs): Chip substrates are used in ECUs for engine management, fuel injection, and emissions control, enabling precise control of engine performance and efficiency.
  • Advanced Driver Assistance Systems (ADAS): They support the integration of sensors, cameras, and processing units for ADAS features such as adaptive cruise control, lane departure warning, and collision avoidance.
  • Infotainment Systems: Chip substrates enable the integration of multimedia interfaces, navigation systems, and connectivity features in vehicle infotainment systems, enhancing the driving experience for passengers.

4. Industrial Control

In industrial automation and control systems, chip substrates play a vital role in enabling the operation, monitoring, and optimization of manufacturing processes and equipment. Key applications include:

  • Programmable Logic Controllers (PLCs): Chip substrates are used in PLCs to control machinery, robots, and production lines, enabling precise automation and coordination of industrial processes.
  • Human-Machine Interfaces (HMIs): They support the integration of touch screens, displays, and control panels in HMIs for operator interaction and monitoring of industrial equipment and processes.
  • Sensors and Actuators: Chip substrates enable the integration of sensors (e.g., temperature, pressure, motion) and actuators (e.g., motors, valves) into industrial control systems for real-time monitoring and control of physical parameters.

Chip substrates are ubiquitous in various industries, from consumer electronics and communication devices to automotive electronics and industrial control systems. Their versatility, reliability, and performance make them indispensable components in the design and manufacturing of modern electronic devices and systems, enabling innovation and advancement across a wide range of applications.

Future Trends in Chip Substrates

As technology continues to evolve, the future of chip substrates holds exciting prospects driven by the development of new materials, advances in manufacturing technologies, and evolving market demands. Let’s explore these trends in detail:

1. Development of New Materials

  • Nanomaterials: The exploration of nanomaterials, such as graphene, carbon nanotubes, and nanocomposites, holds promise for chip substrates. These materials offer exceptional electrical, thermal, and mechanical properties, paving the way for smaller, faster, and more energy-efficient devices.
  • 2D Materials: Two-dimensional (2D) materials like molybdenum disulfide (MoS2) and hexagonal boron nitride (h-BN) are gaining attention for their unique electronic properties. Integration of these materials into chip substrates could enable novel device architectures and enhanced performance in areas such as flexible electronics and optoelectronics.
  • Biodegradable Substrates: With growing concerns about electronic waste and environmental sustainability, there’s increasing interest in biodegradable substrate materials derived from renewable sources. Biopolymers, cellulose-based materials, and bioresins offer potential solutions for eco-friendly chip substrates in disposable electronics and biomedical applications.

2. Advances in Manufacturing Technologies

  • 3D Printing/Additive Manufacturing: Additive manufacturing techniques, such as 3D printing, are revolutionizing the fabrication of chip substrates. These technologies enable rapid prototyping, complex geometries, and customization, accelerating the development cycle and reducing time-to-market for new semiconductor devices.
  • Microfabrication and Nanotechnology: Continued advancements in microfabrication and nanotechnology enable the fabrication of chip substrates with nanoscale features and precise control over material properties. Techniques like electron beam lithography and atomic layer deposition allow for the creation of high-density interconnects and advanced device architectures.
  • Smart Manufacturing and Industry 4.0: The integration of smart manufacturing principles and Industry 4.0 technologies, such as IoT sensors, AI-driven automation, and digital twin simulations, optimizes the production process for chip substrates. Real-time monitoring, predictive maintenance, and data-driven decision-making enhance efficiency, quality, and yield in substrate manufacturing.

3. Market Demands and Industry Prospects

  • 5G and Beyond: The rollout of 5G networks and the impending transition to 6G drive demand for chip substrates with higher data rates, lower latency, and improved signal integrity. Substrates optimized for millimeter-wave frequencies and advanced RF technologies are essential for next-generation wireless communication systems.
  • Internet of Things (IoT): The proliferation of IoT devices across various industries necessitates chip substrates tailored for low-power, miniaturized, and cost-effective applications. Substrates with integrated sensors, energy harvesting capabilities, and secure connectivity are critical for the success of IoT ecosystems.
  • Artificial Intelligence (AI) and Edge Computing: AI-driven applications and edge computing platforms require chip substrates capable of handling massive data processing and real-time analytics at the network edge. Substrates optimized for AI accelerators, neuromorphic computing, and heterogeneous integration enable efficient deployment of intelligent edge devices.

The future of chip substrates is shaped by the convergence of innovative materials, advanced manufacturing technologies, and evolving market demands. By embracing these trends, the semiconductor industry can drive continued innovation, enabling the development of next-generation electronic devices and systems with unprecedented performance, functionality, and sustainability.

FAQs About Chip Substrate

What is the substrate of a chip?

The substrate of a chip, also known as the chip substrate or package substrate, is the foundation upon which semiconductor chips are mounted and interconnected within an integrated circuit package. It provides mechanical support, electrical connections, and thermal management for the semiconductor die, facilitating its integration into electronic devices.

What is the function of the IC substrate?

The function of the IC substrate is multifaceted:
Mechanical Support: It provides a stable platform for mounting and securing the semiconductor die, protecting it from mechanical stress and environmental factors.
Electrical Connectivity: The substrate facilitates electrical connections between the semiconductor die and external circuitry, allowing for signal transmission, power distribution, and data processing.
Thermal Management: It helps dissipate heat generated by the semiconductor die during operation, preventing overheating and ensuring the device operates within safe temperature ranges.
Signal Integrity: The substrate plays a crucial role in maintaining the integrity of electrical signals, minimizing interference, noise, and signal distortion.

What is the substrate material for flip chip?

The substrate material for flip chip packaging varies depending on the specific requirements of the application. Common substrate materials include organic resins (e.g., epoxy, polyimide), ceramics (e.g., alumina, aluminum nitride), and semiconductors (e.g., silicon). Each material offers unique properties such as thermal conductivity, electrical insulation, and mechanical strength, tailored to meet the demands of flip chip technology.

What is substrate in packaging?

In packaging, the substrate refers to the material or structure upon which components or devices are mounted and interconnected to form an electronic package. It serves as the foundation for assembling, protecting, and interconnecting semiconductor dies, passive components, and other elements within the package. The substrate plays a critical role in ensuring the reliability, performance, and functionality of the packaged device.
