Key Benefits of Using Ceramic Substrates PCB in Power Electronics

A ceramic PCB is a type of printed circuit board that uses ceramic materials as its substrate, offering unique advantages in applications where high thermal conductivity, electrical insulation, and durability are required. Ceramic substrates in PCBs are essential in high-performance electronic devices, where traditional materials like FR4 may not provide sufficient heat dissipation or mechanical strength. The history of ceramic PCBs dates back to the mid-20th century, when advancements in material science made it possible to create more reliable and efficient PCBs for power electronics and military applications. Over the years, the evolution of ceramic PCBs has been driven by the need for materials that can withstand extreme temperatures, offer excellent thermal management, and maintain high electrical performance. As industries demand higher reliability and efficiency, the growing importance of ceramic PCBs in sectors like aerospace, automotive, and telecommunications is undeniable, making them a crucial component in modern electronics.

What is a Ceramic Substrate in PCB?

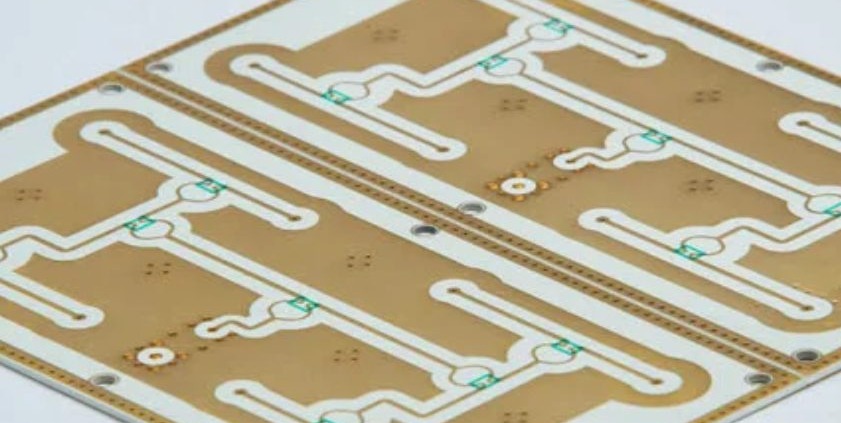

A ceramic substrate PCB is a type of printed circuit board that uses ceramic materials, such as alumina (Al2O3), aluminum nitride (AlN), or silicon nitride (Si3N4), as the base material for supporting and electrically connecting electronic components. These ceramic substrates in PCBs are widely used in applications requiring high thermal conductivity, electrical insulation, and the ability to withstand extreme temperatures. Ceramic substrates play a critical role in advanced electronic systems, where the need for efficient heat management and durability is paramount.

When compared to traditional PCB materials like FR4, ceramic substrates stand out due to their superior performance in high-power and high-frequency applications. FR4, made from fiberglass and epoxy resin, is a cost-effective material widely used in general-purpose electronics. However, it has lower thermal conductivity and can degrade under high-temperature conditions. In contrast, ceramic substrates in PCBs offer significantly higher thermal conductivity, allowing for better heat dissipation and making them ideal for power electronics and applications in harsh environments.

Key physical properties of ceramic substrates

• High Thermal Conductivity: Ceramic materials like aluminum nitride can conduct heat efficiently, preventing overheating in high-power devices.
• Electrical Insulation: Ceramic substrates offer excellent electrical insulation properties, making them perfect for sensitive electronic applications that require precise and reliable electrical performance.
• Temperature Resistance: Ceramics can withstand extreme temperatures without degradation, offering long-term reliability in environments where other materials may fail.

These unique properties make ceramic substrates essential in industries such as aerospace, automotive, telecommunications, and power electronics, where both performance and durability are crucial.

Types of Ceramic PCB Materials

Ceramic PCBs are made from a variety of ceramic materials, each with distinct properties that make them suitable for different applications. Below are some of the most common types of ceramic PCB materials:

Alumina (Al2O3) PCBs

Alumina, or aluminum oxide (Al2O3), is one of the most widely used materials for ceramic substrates in PCBs due to its balanced combination of properties.

• Properties:
  • High Insulation: Alumina offers excellent electrical insulation, making it ideal for preventing short circuits in electronic devices.
  • Decent Thermal Conductivity: While not as thermally conductive as other ceramics like aluminum nitride, alumina still provides adequate heat dissipation for many applications.
  • High-Temperature Resistance: Alumina can withstand temperatures up to 1000°C, making it suitable for high-temperature environments, which is crucial in power electronics and LED applications.
• Applications:
  • Power Electronics: Due to its thermal and electrical properties, alumina is commonly used in power modules, where efficient heat dissipation is crucial for performance and reliability.
  • LED Lighting: The material’s thermal resistance makes it an ideal substrate for LED lighting, where heat management is critical for longevity and efficiency.

Aluminum Nitride (AlN) PCBs

Aluminum Nitride (AlN) is a high-performance ceramic material known for its exceptional thermal conductivity and electrical insulation properties. It is typically used in applications where high heat dissipation and electrical isolation are required.

• Properties:
  • Extremely High Thermal Conductivity: AlN has one of the highest thermal conductivities of any ceramic, which makes it particularly well-suited for high-power electronics that generate significant heat.
  • Excellent Electrical Insulation: AlN is an excellent electrical insulator, making it ideal for high-frequency and high-voltage applications.
• Applications:
  • High-Power Electronics: AlN is commonly used in power electronics such as RF amplifiers, power modules, and laser diodes, where high thermal management is essential.
  • High-Frequency Electronics: Due to its low dielectric constant and excellent thermal properties, AlN is also used in high-frequency devices like microwave components and high-speed circuits.

Silicon Nitride (Si3N4) PCBs

Silicon Nitride (Si3N4) is another advanced ceramic material known for its exceptional mechanical strength and stability under extreme conditions. It is often used in environments where both high thermal conductivity and mechanical robustness are required.

• Properties:
  • High Mechanical Strength: Silicon Nitride is one of the strongest ceramic materials, offering excellent resistance to mechanical stress, shock, and vibration.
  • Excellent Thermal Stability: Si3N4 maintains its structural integrity and thermal conductivity over a wide temperature range, making it ideal for use in high-temperature environments.
• Applications:
  • Automotive Electronics: Si3N4 is used in automotive power control units, sensors, and other critical components that operate in harsh environments subject to both high temperatures and mechanical stress.
  • Aerospace & Defense: Due to its high mechanical strength and stability at extreme temperatures, Si3N4 is widely used in aerospace and defense electronics, including satellite systems, radar components, and avionics.
  • Industrial Applications: Silicon nitride is also used in industrial machinery that operates under extreme stress and temperature, where other materials may fail.

Each type of ceramic material used in PCBs—whether alumina, aluminum nitride, or silicon nitride—has unique properties that make it ideal for specific applications. Alumina is commonly used for general power electronics and LED lighting, aluminum nitride excels in high-power and high-frequency electronics due to its superior thermal conductivity, and silicon nitride is best suited for applications that require high mechanical strength and thermal stability, such as automotive and aerospace electronics. The choice of material depends largely on the specific requirements of the application, including thermal, electrical, and mechanical properties.

Comparison Between Ceramic PCBs and Other PCB Materials

When selecting a PCB material for a specific application, it is crucial to consider factors such as thermal performance, mechanical properties, and electrical insulation. Below is a detailed comparison between ceramic PCBs and other common PCB materials, such as FR4 and metal-based PCBs. This will help highlight why ceramic substrates are the preferred choice in certain high-performance electronic applications.

Ceramic PCBs vs. FR4 PCBs

FR4 is the most widely used PCB material, particularly in low to moderate-power applications. However, ceramic PCBs excel in areas where thermal management, mechanical strength, and electrical performance are critical.

• Thermal Performance:
  Ceramic PCBs significantly outperform FR4 in terms of heat dissipation. Materials like aluminum nitride (AlN) and alumina (Al2O3) have much higher thermal conductivity than FR4, which is primarily a fiberglass-reinforced epoxy resin. For instance, aluminum nitride can have thermal conductivity as high as 170 W/m·K, compared to FR4, which typically has thermal conductivity in the range of 0.3-0.5 W/m·K. This superior heat dissipation makes ceramic PCBs ideal for applications like power electronics, LED lighting, and high-power circuits where excessive heat can compromise performance and reliability.
• Mechanical Properties:
  In terms of mechanical strength, ceramic PCBs are far superior to FR4. Ceramic materials such as silicon nitride (Si3N4) and alumina (Al2O3) offer much higher rigidity and resistance to mechanical stress. Ceramic PCBs are highly resistant to cracking, warping, and distortion, even under high mechanical loads or thermal cycling, making them ideal for harsh environments like automotive electronics, aerospace, and industrial applications. On the other hand, FR4 is more prone to mechanical failure under extreme stress and thermal changes due to its relatively lower tensile strength and flexibility.
• Electrical Performance:
  Ceramic substrates in PCBs also provide far superior electrical insulation compared to FR4. The dielectric properties of ceramic materials such as alumina and aluminum nitride are exceptional, with very low dielectric loss and high breakdown voltage. This makes ceramic PCBs the material of choice for high-frequency, high-voltage, and RF (radio frequency) applications, where electrical isolation and signal integrity are crucial. In comparison, FR4 offers less effective electrical insulation, which can result in signal loss and interference in high-speed circuits.

Ceramic PCBs vs. Metal-Based PCBs

While metal-based PCBs such as aluminum PCBs and copper PCBs also provide efficient heat dissipation, ceramic PCBs are superior in certain high-performance applications, particularly where both thermal and electrical performance are critical.

• Heat Dissipation:
  Metal-based PCBs are commonly used in applications that require heat dissipation, especially where there is a need for cost-effective solutions. Materials like aluminum PCB and copper PCB are good at spreading heat due to their relatively high thermal conductivity (e.g., aluminum typically has a thermal conductivity of around 200 W/m·K). However, ceramic PCBs like aluminum nitride (AlN) have even better thermal conductivity, making them a superior choice for applications that generate significant heat, such as power electronics, RF devices, and high-frequency circuits. While metal PCBs are effective at conducting heat, ceramic substrates outperform them in scenarios where higher thermal management is required without compromising the structural integrity of the PCB.
• High-Power and High-Frequency Applications:
  Ceramic PCBs excel in high-power and high-frequency applications where metal-based PCBs may not offer the required level of performance. Ceramic substrates provide excellent electrical insulation and high mechanical strength, which are critical for high-frequency circuits, RF components, and power modules. While metal PCBs are well-suited for thermal management in medium-power devices and can be used for heat sinking in LED applications, ceramic PCBs are much better for applications like power supplies, high-frequency communication devices, and military-grade electronics. Metal-based PCBs may struggle to provide the same level of electrical insulation and mechanical rigidity, particularly in high-voltage or high-frequency environments.
• Cost Considerations:
  While metal-based PCBs offer cost advantages in terms of material and manufacturing complexity, ceramic PCBs are typically more expensive due to the advanced materials and processing required to manufacture them. However, for applications demanding high thermal conductivity, electrical insulation, and mechanical strength, the performance benefits of ceramic PCBs often justify the higher cost, especially in critical, high-performance industries.

Ceramic PCBs offer significant advantages over FR4 and metal-based PCBs when it comes to thermal performance, mechanical strength, and electrical insulation. Ceramic PCBs excel in environments requiring high heat dissipation, high mechanical rigidity, and excellent electrical isolation. While FR4 remains the go-to material for general-purpose electronics and metal-based PCBs are effective for cost-sensitive, medium-power applications, ceramic PCBs are the preferred choice for high-power, high-frequency, and high-reliability applications in sectors like aerospace, automotive, telecommunications, and power electronics.

Advantages of Ceramic PCBs

Ceramic PCBs are known for their outstanding performance in high-demand applications. The key advantages of ceramic substrates make them the ideal choice in industries where reliability, heat dissipation, and durability are paramount. Below are the primary benefits of ceramic PCBs:

High Thermal Conductivity

One of the standout advantages of ceramic PCBs is their high thermal conductivity, which plays a crucial role in managing heat in electronic devices. Ceramic materials such as aluminum nitride (AlN) and alumina (Al2O3) have thermal conductivities far superior to traditional materials like FR4. For example, aluminum nitride has a thermal conductivity of around 170 W/m·K, which is significantly higher than FR4, which typically has a thermal conductivity of just 0.3-0.5 W/m·K.

This superior heat dissipation makes ceramic PCBs the preferred choice for power electronics, LED lighting, laser diodes, and high-power circuits, where excessive heat can degrade performance and shorten the lifespan of the components. The ability to efficiently dissipate heat ensures that the electronic components remain within their optimal operating temperature range, reducing the risk of overheating, thermal stress, and component failure.

Temperature Resistance

Ceramic PCBs are highly resistant to temperature extremes, making them ideal for high-temperature applications. Unlike FR4, which can degrade and warp under high thermal stress, ceramic substrates can withstand temperatures up to 1000°C or more, depending on the material.

For instance, alumina (Al2O3) and aluminum nitride (AlN) are designed to perform in environments with continuous high temperatures, such as automotive electronics, aerospace, and industrial machinery. This temperature resistance allows ceramic PCBs to operate reliably in environments where other materials would fail, ensuring long-term stability and performance without compromising electrical or mechanical properties.

Excellent Electrical Insulation

Ceramic PCBs offer excellent electrical insulation, which is essential for ensuring the safe and efficient operation of electronic devices. Ceramic materials like alumina and silicon nitride have extremely low dielectric loss and high breakdown voltage, which prevent electrical shorts and improve the overall electrical performance of the circuit.

The ability of ceramic substrates to isolate electrical components from one another ensures that signals do not interfere, thus preserving signal integrity in high-frequency and high-voltage applications. This is especially crucial in devices such as power modules, radio frequency (RF) circuits, and high-voltage power supplies, where electrical isolation is critical for safe operation and optimal performance.

Mechanical Strength & Durability

Ceramic PCBs are known for their mechanical strength and durability, which makes them ideal for use in harsh environments. Silicon nitride (Si3N4) and alumina (Al2O3) are incredibly strong and resistant to physical stress, such as vibration, impact, and shock. They also have a high resistance to mechanical deformation, which ensures that the ceramic PCBs maintain their integrity even under extreme conditions.

This mechanical robustness is particularly beneficial for applications in industries like automotive, aerospace, and defense, where components are subjected to high levels of mechanical stress, temperature fluctuations, and vibrations. The durability of ceramic substrates ensures that the PCBs can continue to perform reliably over long periods, reducing the need for maintenance and minimizing the risk of failure.

Corrosion Resistance

Another significant advantage of ceramic PCBs is their corrosion resistance. Unlike metal-based PCBs, which can corrode or oxidize over time, ceramic materials are naturally resistant to corrosion and environmental degradation. This is especially important in applications where the PCB will be exposed to harsh chemicals, moisture, or high-humidity environments.

For example, alumina (Al2O3) and aluminum nitride (AlN) offer superior resistance to corrosion, making ceramic PCBs ideal for use in marine electronics, chemical processing, and other environments where metal corrosion would otherwise pose a significant problem. The corrosion resistance of ceramic substrates helps to extend the lifespan of electronic devices and ensures that they continue to operate effectively in challenging environments.

The advantages of ceramic PCBs—high thermal conductivity, temperature resistance, excellent electrical insulation, mechanical strength, and corrosion resistance—make them the material of choice for demanding applications in a wide range of industries. Whether used in power electronics, automotive systems, aerospace, or telecommunications, ceramic substrates offer superior performance and reliability. Their ability to withstand extreme conditions, manage heat effectively, and prevent electrical failures ensures that ceramic PCBs remain an essential component in the next generation of high-performance electronic devices.

Applications of Ceramic PCBs

Ceramic PCBs are used across a wide range of industries where reliability, heat management, and high performance are critical. Their unique properties—such as superior thermal conductivity, electrical insulation, and mechanical strength—make them the preferred choice for many high-performance electronic applications. Below are the primary sectors that rely on ceramic substrates in PCBs for their electronic systems:

Power Electronics

One of the most prominent applications of ceramic PCBs is in power electronics, where the efficient management of heat and electrical performance is critical. Ceramic substrates like aluminum nitride (AlN) and alumina (Al2O3) offer excellent thermal conductivity, making them ideal for use in power modules, LED lighting, and laser diodes.

• Power Modules: Ceramic PCBs are often used in power conversion modules, such as inverters, rectifiers, and DC-DC converters. These systems are designed to manage high current and voltage levels, where heat dissipation and electrical insulation are crucial for reliable operation. Ceramic materials help prevent overheating while providing the electrical isolation necessary for safe operation.
• LED Lighting: The high thermal conductivity of ceramic PCBs makes them an excellent choice for LED lighting applications, which generate significant heat during operation. Ceramic substrates help to dissipate the heat efficiently, extending the lifespan of LEDs and improving their overall performance.
• Laser Diodes: In laser diode applications, ceramic PCBs offer the necessary heat management and electrical insulation, ensuring optimal performance in high-power systems, such as those used in optical communication or industrial cutting tools.

Automotive Electronics

The automotive industry relies heavily on ceramic PCBs for vehicle power systems, sensors, and control units, where durability and high performance are critical due to the harsh conditions inside vehicles.

• Vehicle Power Systems: Ceramic substrates are commonly used in power control units (PCUs), battery management systems (BMS), and electric vehicle (EV) motor drives, where efficient heat dissipation and electrical insulation are essential. With the increasing demand for electric vehicles (EVs) and hybrid electric vehicles (HEVs), ceramic PCBs are playing a growing role in ensuring the performance and reliability of high-power electronics in these systems.
• Sensors and Control Units: Ceramic PCBs are used in vehicle sensors for monitoring various parameters such as temperature, pressure, and exhaust gas, where high-temperature resistance and mechanical strength are essential. These sensors are integrated into critical systems like engine control units (ECUs) and advanced driver-assistance systems (ADAS), which require precise and reliable operation under challenging environmental conditions.

Aerospace & Defense

In aerospace and defense applications, where reliability, durability, and high performance are non-negotiable, ceramic PCBs are essential for high-frequency and high-temperature systems.

• High-Frequency Systems: Ceramic PCBs are widely used in satellite communications, radar systems, and navigation equipment, where high-frequency signal integrity is critical. Ceramic substrates, especially those made from aluminum nitride or silicon nitride, offer low dielectric loss and excellent electrical insulation, ensuring minimal signal degradation and interference.
• High-Temperature Systems: Aerospace and defense systems, such as engine control units or missile guidance systems, operate in extreme temperature environments. Ceramic PCBs are capable of withstanding high temperatures (up to 1000°C or more), making them ideal for these applications. Their thermal stability, mechanical strength, and corrosion resistance also contribute to the longevity and reliability of these critical systems in harsh conditions.

Communication Industry

The communication industry, particularly in base stations and RF devices, requires ceramic PCBs for applications that demand both high-frequency performance and thermal management.

• Base Stations: Ceramic PCBs are used in the manufacture of base station power amplifiers and signal processors, where high thermal conductivity and excellent electrical performance are essential. The ability of ceramic substrates to dissipate heat effectively helps to ensure the reliable operation of these systems, which are critical for telecommunications infrastructure.
• RF Devices: Ceramic substrates are ideal for RF components, such as filters, amplifiers, and oscillators, due to their high dielectric strength, low loss, and the ability to operate efficiently at high frequencies. Ceramic PCBs ensure that RF signals pass through with minimal distortion, and their excellent electrical insulation properties reduce the risk of signal interference, making them a popular choice in 5G, satellite communications, and military communication devices.

Medical Devices

In the medical industry, ceramic PCBs are used for high-precision and high-temperature applications, where performance and reliability are critical to patient safety.

• Medical Equipment: Ceramic PCBs are increasingly used in medical imaging devices, such as MRI machines, CT scanners, and X-ray equipment, where high-frequency performance and heat dissipation are essential for accurate imaging and prolonged operational life. Ceramic materials, particularly those with high thermal conductivity like aluminum nitride, ensure that the equipment remains cool during operation, preventing thermal damage to sensitive components.
• Implantable Devices: Ceramic substrates are also used in implantable medical devices such as pacemakers and neurostimulators, where their biocompatibility, high mechanical strength, and resistance to corrosion are crucial for long-term reliability inside the human body. These devices often operate in challenging conditions where mechanical stress, temperature fluctuations, and corrosion could degrade other materials.

The use of ceramic PCBs across various industries demonstrates their versatility and critical role in enabling the performance of high-reliability, high-power, and high-frequency systems. From power electronics and automotive systems to aerospace, communication, and medical applications, ceramic substrates offer unparalleled advantages in heat dissipation, electrical insulation, mechanical strength, and durability. As technology continues to evolve and industries demand more from their electronic devices, the importance of ceramic PCBs will only continue to grow, cementing their place as a crucial component in the development of advanced electronics.

Design Considerations for Ceramic PCBs

Designing ceramic PCBs requires a deep understanding of the material’s properties and how they influence the performance and manufacturing process. Given the high demand for ceramic substrates in specialized applications, the design process must carefully address thermal management, size and shape limitations, mechanical processing, and cost factors to ensure optimal performance, reliability, and cost-efficiency. Below are the primary considerations when designing ceramic PCBs:

Thermal Management

One of the most critical aspects of designing ceramic PCBs is ensuring efficient heat dissipation. Ceramic materials, such as alumina (Al2O3) and aluminum nitride (AlN), offer excellent thermal conductivity, making them ideal for power electronics and other high-heat applications. To maximize thermal management in a ceramic PCB design, the following factors need to be considered:

• Thermal Via Design: The inclusion of thermal vias (small holes in the PCB with copper or other conductive materials) is essential for transferring heat from high-power components to heat sinks or other heat-dissipating layers. Proper via placement and size are important to ensure efficient heat flow throughout the PCB.
• Copper Layer Thickness: Increasing the thickness of the copper traces on the PCB can help improve heat dissipation by providing a larger surface area for heat transfer. This is especially important for high-power applications, where large currents flow through the PCB.
• Heat Sink Integration: In high-power applications, integrating a heat sink or thermal pad directly onto the ceramic substrate can enhance heat dissipation. Some designs may incorporate metal-based layers (such as copper or aluminum) directly in the ceramic substrate to act as heat spreaders.
• Component Placement: Proper placement of heat-generating components, such as power transistors or diodes, is essential. Placing these components near thermal vias or away from temperature-sensitive areas can ensure that the PCB operates within safe temperature limits.

Size and Shape

The design of ceramic substrates often faces certain size and shape limitations. Ceramic PCBs are typically fabricated as rigid, flat boards, but their size and shape must be carefully considered to fit the requirements of specific applications.

• Size Limitations: Ceramic materials are generally more brittle than traditional PCB materials like FR4, which means that the size of the ceramic PCB may be constrained by the material’s fragility. Larger ceramic PCBs may be more prone to cracking or warping during the manufacturing process, which makes size a significant consideration, especially for applications that require large-area PCBs.
• Shaping and Customization: Ceramic PCBs can be customized into various shapes and sizes depending on the application. However, the process of cutting, shaping, and forming ceramics requires precise machinery and careful handling to prevent damage. Special design features, such as edge reinforcements or rounded corners, may be needed to ensure that the ceramic PCB can withstand mechanical stresses.
• Thickness Variability: Ceramic substrates often come in varying thicknesses, which can influence their thermal and mechanical properties. Thicker ceramic layers may offer better insulation and durability, but they may also limit heat dissipation. Balancing the PCB’s thickness for optimal performance is crucial, particularly when thermal management is a priority.

Mechanical Processing

Mechanical processing of ceramic PCBs requires specialized techniques due to the hardness and brittleness of the material. The processing methods used must ensure precision while minimizing the risk of material damage during the production phase.

• Cutting: Cutting ceramic substrates requires diamond-tipped blades or laser cutting methods to ensure clean edges without causing cracks or chipping. Unlike traditional FR4 PCBs, which can be cut using standard tools, ceramic materials need specialized equipment for high precision.
• Drilling: Drilling holes in ceramic substrates, such as for vias or component mounting, requires high-speed, specialized diamond drill bits or laser drilling techniques. Careful control of drilling speed and pressure is needed to avoid damaging the ceramic or causing it to crack.
• Surface Treatment: Surface treatment of ceramic PCBs is also critical, especially for improving adhesion between the ceramic and other materials like copper. Plasma treatment, etching, or sputtering techniques may be used to clean and roughen the ceramic surface, creating a better bonding surface for metal layers. Electroless plating is commonly used to apply a conductive layer to ceramic surfaces, enabling the integration of copper traces for circuit connections.

Cost Factors

Ceramic PCBs are generally more expensive than traditional PCB materials like FR4 due to the specialized manufacturing processes, raw materials, and equipment required. Several factors influence the cost of ceramic substrates compared to traditional PCBs:

• Raw Material Cost: Ceramic materials, especially those like aluminum nitride (AlN) and silicon nitride (Si3N4), are more costly than the resin-based materials used in FR4. While FR4 is widely available and relatively inexpensive, ceramic materials require specialized mining, purification, and processing, driving up costs.
• Manufacturing Complexity: The fabrication of ceramic PCBs involves complex processes such as sintering, laser cutting, and precision drilling. These processes are more time-consuming and require more specialized equipment than traditional PCB fabrication, which adds to the overall cost.
• Scale of Production: Ceramic PCBs are often produced in smaller quantities compared to FR4 PCBs, which are mass-produced in high volumes. This lower production scale results in higher per-unit costs, as economies of scale are not as easily achieved. However, the cost can be justified in applications where the high performance and reliability of ceramic PCBs are required.
• Design and Customization: Ceramic PCBs are often customized to meet specific thermal, electrical, and mechanical requirements. This customization adds complexity to the design process, which can lead to higher engineering costs. However, these costs are necessary to ensure the PCB meets the exact specifications for mission-critical applications.

Designing ceramic PCBs requires addressing several challenges related to thermal management, size and shape, mechanical processing, and cost factors. Engineers must carefully consider the material’s properties to ensure optimal performance while overcoming design limitations. Whether ensuring efficient heat dissipation, choosing the right size for a given application, or considering the complexities of processing and cost, each aspect must be carefully planned. With proper design strategies and careful consideration of these factors, ceramic PCBs can provide outstanding performance and reliability in high-demand applications.

Manufacturing Process of Ceramic PCBs

The manufacturing process of ceramic PCBs involves several specialized steps, from material selection to final assembly. Given the unique properties of ceramic materials, the production process requires precise handling, advanced techniques, and a keen understanding of the material’s behavior. Below is a detailed breakdown of the steps involved in manufacturing ceramic substrates PCB and the challenges faced during the production process.

Material Selection and Procurement: Choosing the Right Ceramic Material for Your Application

The first and one of the most critical steps in manufacturing ceramic PCBs is selecting the appropriate ceramic material. The right choice depends on several factors, including the application’s performance requirements, thermal management needs, and mechanical characteristics.

• Types of Ceramic Materials: The most commonly used ceramic materials for PCBs are Alumina (Al2O3), Aluminum Nitride (AlN), and Silicon Nitride (Si3N4). Each material offers distinct advantages:
  • Alumina (Al2O3): Known for its high electrical insulation and moderate thermal conductivity, alumina is widely used in general-purpose electronic applications, such as power electronics and LED lighting.
  • Aluminum Nitride (AlN): Offers exceptionally high thermal conductivity and excellent electrical insulation, making it ideal for high-power and high-frequency applications, such as power modules, microwave devices, and laser diodes.
  • Silicon Nitride (Si3N4): Known for its high mechanical strength and superior thermal stability, silicon nitride is often used in demanding environments, such as aerospace, automotive electronics, and high-temperature applications.
• Material Procurement: After determining the ideal ceramic material, manufacturers source the raw ceramics from suppliers. The quality and purity of the material are critical, as impurities can negatively impact the performance of the final product. Suppliers must provide certificates of analysis (COA) to ensure the material meets the required specifications.

Manufacturing Steps: From Design to Production

The ceramic PCB manufacturing process involves several distinct steps, from initial design to the final assembly of the PCB.

• Design and Layout: The process starts with designing the ceramic PCB layout, similar to traditional PCB design. The design includes circuit traces, vias, pads, and other features. The layout is created using CAD software, which defines the precise placement of components, thermal vias, and copper layers.
• Substrate Preparation: Once the material is selected, the ceramic is typically in the form of thin ceramic blanks. These blanks are carefully cut to the desired size and shape, often using laser cutting or diamond saws. The ceramic substrates must be handled delicately, as ceramics are brittle and prone to cracking during the cutting process.
• Screen Printing or Photolithography: For ceramic PCBs, copper traces are added to the ceramic substrate using one of two primary methods:
  • Screen Printing: A thick layer of copper paste is screen-printed onto the ceramic substrate. The paste is then fired at a high temperature, allowing the copper to bond to the ceramic.
  • Photolithography: This technique involves applying a photosensitive layer to the ceramic, exposing it to light to create a pattern, and then using chemical etching to remove unwanted copper.
• Via Drilling and Plating: Vias (holes that allow electrical connections between layers) are drilled into the ceramic substrate using specialized diamond-tipped drills or laser drills. Once the vias are drilled, they are plated with copper or another conductive material to establish electrical connections between layers.
• Sintering: Sintering is a high-temperature process that involves heating the ceramic substrate to a point where the ceramic particles fuse together without melting. This process strengthens the material and ensures a solid, durable substrate.
• Soldering and Component Placement: After the ceramic PCB is prepared and copper traces are applied, components are placed onto the PCB. This can be done using automated pick-and-place machines for surface-mount devices (SMDs) or manually for through-hole components. Soldering can then be performed using wave soldering or reflow soldering, depending on the application.
• Testing and Quality Control: Once the ceramic PCB is fully assembled, it undergoes a series of tests to ensure it meets electrical and thermal performance standards. These tests typically include electrical testing (for continuity and insulation resistance), thermal cycling tests (to ensure the board can handle temperature variations), and mechanical testing (to check for cracking or warping).

Challenges & Solutions: Common Issues in Ceramic PCB Manufacturing

The manufacturing process for ceramic PCBs presents several challenges due to the inherent properties of ceramic materials. These challenges can be addressed with careful planning, advanced manufacturing techniques, and the right equipment.

• Brittleness and Cracking: One of the primary challenges when working with ceramic materials is their brittleness, which can lead to cracking during cutting, drilling, or handling. This can be mitigated by:
  • Using diamond-tipped tools and laser cutting to reduce the mechanical stress on the ceramic material.
  • Employing precision handling and rigid packaging to prevent damage during transportation and assembly.
• High Processing Temperature: Ceramic substrates require high-temperature processes, such as sintering and plating. These high temperatures can cause distortion or warping of the ceramic material. To address this issue:
  • Careful temperature control during sintering ensures that the ceramic substrate maintains its shape.
  • Using multi-layer ceramics with high-temperature resistance can help reduce the risk of warping during thermal cycling.
• Via Drilling and Plating: Drilling ceramic vias can be challenging because ceramics are difficult to drill without causing cracks or chips. Solutions include:
  • Using laser drilling with precise control of drilling parameters (such as speed, pressure, and focus) to avoid damaging the ceramic material.
  • Ensuring that via plating is done carefully to ensure good adhesion between the copper and ceramic surfaces.
• Cost and Time-Consuming Processes: The high costs and long lead times associated with manufacturing ceramic PCBs can be a barrier, especially for small production runs. To address this, manufacturers can:
  • Optimize the design to minimize the complexity of the ceramic PCB and reduce processing time.
  • Invest in automated processes for soldering, component placement, and testing to improve production efficiency.
• Surface Finish and Adhesion Issues: The adhesion between the ceramic material and the copper traces can sometimes be challenging due to the smooth nature of ceramic surfaces. Solutions include:
  • Plasma treatment or chemical etching to roughen the surface of the ceramic and improve adhesion.
  • Electroless copper plating to ensure a reliable bonding layer between the ceramic and copper materials.

The manufacturing process of ceramic PCBs requires a comprehensive understanding of the material’s properties, advanced techniques, and precision equipment. From selecting the appropriate ceramic material to addressing the challenges of brittleness, high processing temperatures, and via drilling, manufacturers must employ careful planning and specialized tools to achieve high-quality results. As the demand for ceramic substrates in PCBs continues to grow, manufacturers are continually improving the process to deliver more efficient, cost-effective, and reliable ceramic PCBs for high-performance applications across various industries.

Market Outlook and Future Trends for Ceramic PCBs

The market for ceramic PCBs is poised for substantial growth, driven by increasing demand for high-performance electronics in various industries. As technology continues to evolve, ceramic substrates PCBs are gaining popularity due to their superior thermal, mechanical, and electrical properties, making them ideal for applications that demand higher performance. The following explores the market demand, technological advancements, and environmental considerations that are shaping the future of ceramic PCBs.

Market Demand: Rising Demand for Ceramic PCBs in High-End Electronics

The demand for ceramic PCBs is on the rise as industries increasingly require higher performance, reliability, and miniaturization of electronic devices. Several factors are contributing to this surge in demand:

• Power Electronics: With the rapid expansion of electric vehicles (EVs), renewable energy systems, and industrial automation, there is an increasing need for ceramic PCBs that can handle high power, extreme temperatures, and provide excellent heat dissipation. Aluminum Nitride (AlN) and Silicon Nitride (Si3N4) ceramics, in particular, are being used in power modules and high-frequency devices, which require superior thermal conductivity and electrical insulation.
• Consumer Electronics: As smartphones, wearable devices, and 5G infrastructure evolve, there is an escalating need for miniaturized electronic components that can perform reliably in increasingly smaller packages. Ceramic PCBs are being used in high-frequency applications, such as RF devices, base stations, and LED lighting, where traditional PCB materials like FR4 may not suffice.
• Automotive and Aerospace: The automotive industry, particularly with the shift toward electric vehicles (EVs) and autonomous driving technologies, is driving demand for ceramic PCBs in power systems, sensors, and control units. Similarly, in aerospace, ceramic substrates are used for critical components exposed to extreme conditions, such as high temperatures and radiation.
• Medical Devices: High-precision medical devices, such as implants, surgical instruments, and diagnostic equipment, increasingly require ceramic PCBs due to their biocompatibility and ability to operate in harsh environments with high temperature and electrical requirements.

The growing need for high-performance materials in these industries is expected to continue driving the adoption of ceramic substrates PCBs, further expanding the market for these specialized PCBs.

Technological Advancements: Innovations in Ceramic PCB Materials and Manufacturing Processes

Technological innovation in both ceramic materials and manufacturing processes is significantly influencing the future of ceramic PCBs. Some of the key advancements include:

• Advanced Ceramic Materials: New ceramic materials are being developed to further enhance the performance characteristics of ceramic PCBs. For instance, Aluminum Nitride (AlN) and Silicon Nitride (Si3N4) continue to evolve with improved thermal conductivity, mechanical strength, and electrical insulation properties. Additionally, research is underway to create composite materials that combine the best qualities of ceramics and metals, such as metal matrix composites, which can offer enhanced thermal dissipation capabilities.
• 3D Ceramic Printing: One of the most promising advancements is the use of 3D printing (or additive manufacturing) for producing ceramic PCBs. This allows for more intricate designs, faster prototyping, and reduced manufacturing costs. 3D printing also enables the creation of complex geometries and multi-layered ceramic PCBs, providing greater flexibility in circuit design and component placement.
• Automated Manufacturing Processes: Automation in the ceramic PCB manufacturing process is improving production efficiency and reducing labor costs. Technologies such as laser drilling for vias and automated screen printing for copper traces are making the production process faster and more precise. These improvements are helping reduce lead times and make ceramic PCBs more cost-competitive for a wider range of applications.
• Integration with Other Materials: There is an increasing trend towards hybrid PCBs, which combine ceramic substrates with other materials such as metal-core PCBs and flexible circuits. This allows designers to optimize thermal conductivity and mechanical strength while leveraging the benefits of multiple materials. For example, combining ceramic PCBs with metal heat spreaders allows for even better heat dissipation in high-power devices.

Environmental Considerations: Sustainability and Eco-Friendliness of Ceramic Materials

As sustainability becomes a growing concern across industries, there is increasing attention to the environmental impact of materials used in electronics, including ceramic PCBs.

• Recyclability and Sustainability: Ceramic materials are inherently more environmentally friendly than traditional FR4 PCBs, which are made from non-biodegradable resins and fiberglass. Ceramic substrates, especially those made from Alumina or Silicon Nitride, are often more sustainable and can be reused or recycled with minimal environmental impact. Additionally, ceramic materials have a longer lifecycle and higher thermal stability, which reduces the frequency of replacements in electronic devices and thus supports a more sustainable use of resources.
• Reduced Toxicity: Many traditional PCB materials, such as FR4, contain toxic substances like brominated flame retardants (BFRs). On the other hand, ceramic PCBs do not require these harmful additives, making them a safer alternative for both manufacturing and disposal. This shift to non-toxic materials aligns with growing regulatory pressure for environmentally responsible products in electronics.
• Energy Efficiency: As ceramic PCBs are used in applications such as power electronics and energy systems, they contribute to overall energy efficiency. Their superior thermal conductivity helps dissipate heat more effectively, leading to lower energy consumption in high-power devices. This, in turn, supports the development of more energy-efficient electronics.
• Regulatory Pressure: Governments and organizations worldwide are tightening regulations around the environmental impact of electronic products. With increasing pressure for eco-friendly manufacturing processes and materials, ceramic PCBs are likely to see a rise in demand due to their environmentally advantageous properties compared to other materials.

The future of ceramic PCBs looks promising, driven by the increasing demand for high-performance electronics in industries such as power electronics, automotive, aerospace, and medical devices. Technological innovations, including advances in ceramic materials, manufacturing processes, and additive manufacturing, are pushing the capabilities of ceramic substrates even further, making them an increasingly attractive option for next-generation electronics. Additionally, the growing emphasis on sustainability and eco-friendliness is encouraging the use of ceramic PCBs as a more environmentally responsible choice for manufacturers and end-users alike. As these trends continue to evolve, ceramic PCBs will play an increasingly central role in shaping the future of high-performance electronics.
