How to Select the Best RF Substrates for Your Next Project

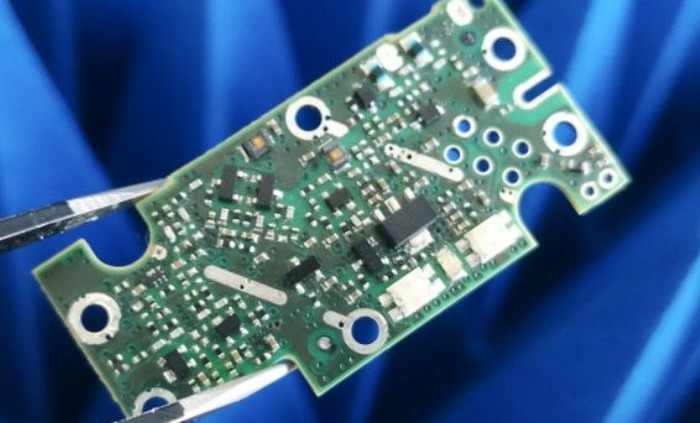

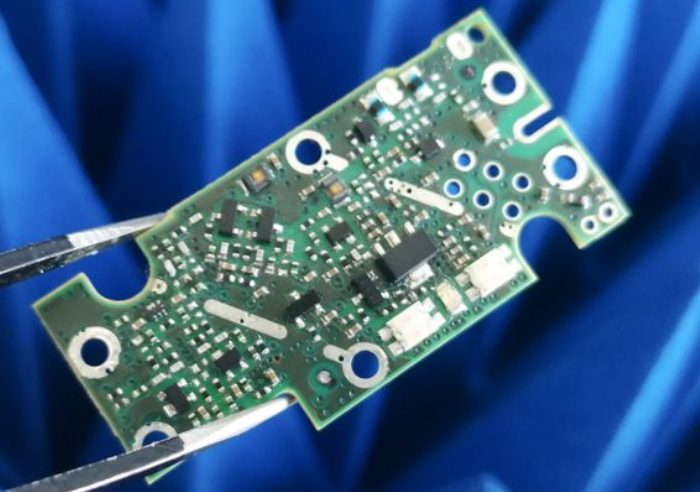

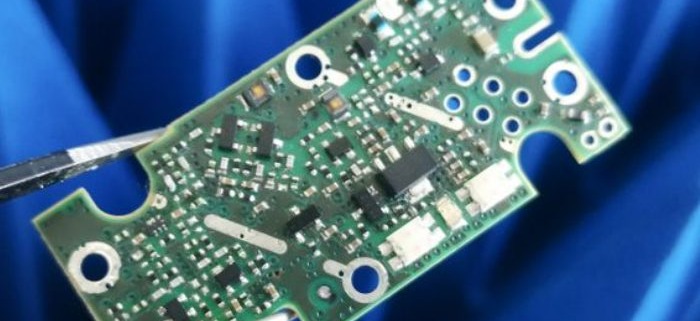

best rf substrates

Radio Frequency (RF) Printed Circuit Boards (PCBs) are fundamental to modern high-frequency applications across industries such as telecommunications, automotive radar, satellite communication, and the Internet of Things (IoT). These specialized PCBs operate in environments where signal integrity, low loss, and thermal stability are paramount. As frequencies increase, even slight variations in materials can drastically impact circuit performance. That’s why selecting the right substrate isn’t just important—it’s critical. The choice of substrate material directly influences signal propagation, impedance matching, and overall system reliability. With a growing number of materials on the market, engineers and designers often struggle to identify the most suitable option. This article aims to guide professionals through the complex landscape of RF material selection by offering a detailed comparison of the best rf substrates available today. Whether you’re developing next-gen 5G infrastructure or a compact IoT sensor, understanding your substrate options is essential for optimal RF performance.

Table of Contents

What is an RF PCB? Understanding Its Role in Designs Using the Best RF Substrates

An RF PCB (Radio Frequency Printed Circuit Board) is a specialized type of circuit board engineered to carry signals at high frequencies—typically above 100 MHz and often extending into the GHz range or even millimeter-wave (mmWave) territory. Unlike standard digital or low-frequency analog PCBs, RF PCBs are designed with tight tolerance control over parameters such as impedance, dielectric loss, and electromagnetic compatibility. These high-frequency circuits require a much more precise design approach, including the use of the best rf substrates to ensure signal integrity and minimize loss.

Key Differences from Standard PCBs

The primary difference between an RF PCB and a standard PCB lies in the performance requirements and materials used:

  • Material Selection: RF PCBs use specialized substrates (such as PTFE, LCP, or ceramics) that exhibit stable dielectric properties and low loss at high frequencies. In contrast, standard PCBs often use FR-4, which is not suitable for high-frequency applications due to its high dielectric loss.

  • Signal Integrity: RF designs demand tight impedance control (often within ±5%) to avoid signal reflections and distortion, which are less critical in low-frequency designs.

  • Layout Precision: RF PCBs must adhere to strict layout guidelines regarding trace width, spacing, and layer stack-up. Even minor inconsistencies can degrade signal performance.

Choosing the best rf substrates plays a central role in addressing these challenges. These materials enable the designer to meet RF performance criteria while maintaining manufacturability.

Typical Applications and Frequency Ranges

RF PCBs are used in a wide array of industries and devices that require the transmission and processing of high-frequency signals:

  • 5G base stations and handsets

  • Automotive radar and ADAS systems

  • Satellite communication equipment

  • IoT sensors and wireless modules (Wi-Fi, Bluetooth, Zigbee)

  • RFID systems

  • Aerospace and defense systems

The operational frequency range of these applications spans from hundreds of MHz (for legacy wireless systems) to tens of GHz (for 5G mmWave and radar), often necessitating the use of the best rf substrates to support performance and reliability under demanding conditions.

Basics of RF Trace Routing

At high frequencies, PCB trace routing becomes a critical part of the design process, with a direct impact on signal quality:

  • Controlled Impedance: Every RF transmission line—whether it’s a microstrip, stripline, or coplanar waveguide—must be carefully designed to match the system impedance, typically 50 ohms. This ensures minimal signal reflection and optimal power transfer.

  • Minimizing EMI and Crosstalk: RF traces must be isolated from noise sources and routed to reduce coupling between adjacent lines. Proper grounding and shielding strategies, such as continuous ground planes, are essential.

  • Via and Transition Management: Vias introduce inductance and discontinuities. Their use should be minimized or carefully modeled in RF signal paths.

  • Trace Geometry Consistency: Variations in trace width or spacing—even microscopic ones—can affect impedance. This is why both PCB fabrication tolerance and the use of best rf substrates with uniform dielectric properties are essential.

Key RF Substrate Performance Parameters for Selecting the Best RF Substrates

When designing high-frequency circuits, especially in the GHz and mmWave ranges, the electrical and physical properties of the substrate material directly influence signal behavior, performance, and long-term reliability. To ensure optimal functionality, RF engineers must evaluate several critical parameters before selecting the best rf substrates for their specific application. These parameters determine how well a material can support consistent signal propagation with minimal losses or distortions under various environmental and operational stresses.

Dielectric Constant (Dk)

The dielectric constant (Dk) measures how much electrical energy a substrate can store in an electric field. In RF PCBs, Dk is crucial because:

  • It determines the characteristic impedance of transmission lines.

  • A stable, predictable Dk ensures consistent signal propagation.

  • Variations in Dk across the board or over temperature can lead to mismatched impedance, causing reflections and degraded signal quality.

The best rf substrates offer a tightly controlled and low Dk, often in the range of 2.2 to 3.5, which allows for accurate impedance matching and predictable high-frequency performance.

Dissipation Factor (Df)

The dissipation factor (Df), also known as the loss tangent, reflects how much signal power is lost as heat within the substrate material. This factor is especially important at high frequencies, where:

  • Higher Df leads to greater insertion loss, reducing signal strength.

  • Df values below 0.005 are preferred for RF/microwave applications.

The best rf substrates are engineered with ultra-low Df values to minimize energy loss, making them ideal for sensitive applications like phased-array antennas, mmWave transceivers, and low-noise amplifiers.

Thermal Stability & Coefficient of Thermal Expansion (CTE)

RF systems often operate across wide temperature ranges, especially in aerospace, automotive, or outdoor telecom deployments. A material’s thermal stability and CTE affect:

  • The mechanical and electrical integrity of the PCB.

  • The alignment of vias and plated through-holes.

  • The stability of Dk and Df with temperature fluctuations.

The best rf substrates feature a low and isotropic CTE, which helps maintain alignment and dielectric properties across temperature swings, ensuring long-term system reliability.

Moisture Absorption

Moisture can degrade RF performance by increasing dielectric loss and affecting signal speed. Substrates with high water absorption:

  • Show increased Dk and Df under humid conditions.

  • May suffer from dielectric drift, impairing impedance matching.

  • Can also cause delamination or material degradation over time.

The best rf substrates typically offer very low moisture absorption rates (<0.1%), making them ideal for humid or outdoor environments, such as base station antennas and marine electronics.

Surface Roughness

At RF and mmWave frequencies, even the microscopic texture of copper traces and substrate interfaces plays a role in signal loss:

  • Rougher surfaces increase conductor loss due to higher resistance at skin depth.

  • This effect becomes more significant as frequency increases, particularly above 10 GHz.

The best rf substrates support smooth copper finishes or enable advanced processing techniques that reduce insertion loss caused by surface roughness, ensuring cleaner signal paths at ultra-high frequencies.

Mechanical Strength

Mechanical durability is essential for PCB manufacturing, component assembly, and end-use reliability—especially in harsh environments:

  • Substrates must resist warping, cracking, and mechanical stress during reflow or vibration.

  • Good mechanical strength is critical for reliable solder joints and long product lifecycles.

The best rf substrates combine excellent electrical performance with mechanical toughness, making them suitable for mission-critical applications like aerospace systems, military radios, and ruggedized communications gear.

Common RF Substrate Materials: How to Choose Among the Best RF Substrates

When designing RF circuits, especially in applications involving high frequencies, tight impedance control, and low signal loss, material selection becomes a foundational decision. Understanding the available options allows engineers to evaluate trade-offs in cost, performance, and manufacturability. In this section, we examine the most widely used materials that make up the best rf substrates, comparing their electrical, thermal, and mechanical characteristics for various use cases.

Selecting the best rf substrates isn’t about choosing the most expensive material—it’s about matching substrate performance to your application’s frequency, environment, and layout complexity. Let’s explore the leading material types below.

FR-4: Low-Cost, Limited RF Performance

FR-4 is the most common substrate used in standard PCBs due to its low cost and wide availability. However, for RF applications, it comes with significant limitations:

  • Dk: Typically ~4.2–4.8 (varies with frequency and batch)

  • Df: High (~0.02), leading to significant signal loss

  • Frequency Suitability: Below 1 GHz only

  • Thermal Performance: Moderate; CTE ~70 ppm/°C

Despite its limitations, FR-4 is still a viable choice for low-frequency RF applications such as sub-GHz IoT devices or consumer RF circuits with minimal performance demands. However, it’s rarely considered among the best rf substrates for anything above 1 GHz.

Ceramics (AlN, BeO): Superior for Power RF and Thermal Management

Ceramic substrates like Aluminum Nitride (AlN) and Beryllium Oxide (BeO) offer excellent thermal conductivity, which is critical in high-power RF circuits such as amplifiers, transmitters, and radar systems.

  • Dk: ~9.0 (AlN), ~6.5 (BeO)

  • Df: Very low (~0.0003–0.001)

  • Frequency Suitability: Excellent up to mmWave

  • Thermal Performance: Exceptional; conductivity >170 W/m·K (BeO)

These materials are mechanically stable and perform consistently under high temperatures, but their higher cost and processing complexity make them best suited for specialized or mission-critical applications. For thermal-heavy RF designs, they are easily considered among the best rf substrates.

PTFE-Based Laminates (e.g., Rogers RO3000, RT/duroid)

PTFE (Polytetrafluoroethylene) laminates—used in products like Rogers RO3000, RO4000, and RT/duroid—are widely regarded as the industry standard in RF and microwave PCB design:

  • Dk: 2.2–3.5 (very stable)

  • Df: Ultra-low (~0.0009–0.0025)

  • Frequency Suitability: Excellent from GHz to 77+ GHz

  • Thermal Performance: Good; moderate thermal conductivity

PTFE-based materials are ideal for microwave communication, 5G, and mmWave radar systems, where signal loss and phase stability are critical. These are consistently ranked among the best rf substrates due to their unparalleled electrical properties.

LCP (Liquid Crystal Polymer): Flexible and Low-Moisture

LCP is a thermoplastic substrate with low moisture absorption and strong frequency stability. Its inherent flexibility makes it well-suited for RF modules in compact, conformal, or wearable devices:

  • Dk: ~3.0–3.2

  • Df: ~0.002–0.004

  • Frequency Suitability: Excellent up to 110 GHz

  • Moisture Absorption: Extremely low (<0.04%)

LCP is often chosen for flexible antennas, multilayer mobile RF systems, and high-speed digital-RF hybrid devices. Thanks to its balanced performance in loss, form factor, and manufacturability, it is considered one of the best rf substrates for compact and portable RF applications.

ABF (Ajinomoto Build-up Film): High-Density, High-Speed Signal Support

ABF substrates are increasingly used in high-speed digital and RF hybrid systems, particularly in advanced IC packaging and high-density interconnect (HDI) designs:

  • Dk: ~3.2–3.7

  • Df: ~0.004–0.008

  • Frequency Suitability: Good up to 20–40 GHz

  • Thermal Performance: Good for multilayer structures

Although traditionally used in chip packaging (like flip-chip or SiP), ABF materials are becoming relevant in RF PCBs that integrate high-speed SerDes and RF transceivers. They are gaining recognition as best rf substrates for next-gen digital-RF co-designs.

RF Substrate Comparison Table

Substrate Type Dielectric Constant (Dk) Dissipation Factor (Df) Frequency Range Thermal Conductivity Cost Notes
FR-4 4.2–4.8 ~0.02 <1 GHz Low (~0.3 W/m·K) ★ Budget option, not for high-frequency use
Ceramic (AlN, BeO) 6.5–9.0 <0.001 GHz–mmWave ★★★★★ ★★★★☆ High power, excellent thermal & frequency performance
PTFE (e.g., Rogers) 2.2–3.5 <0.002 GHz–100+ GHz ★★☆☆☆ ★★★★☆ Industry standard for microwave & mmWave
LCP 3.0–3.2 ~0.003 GHz–110 GHz Moderate ★★★★☆ Great for flexible, compact modules
ABF 3.2–3.7 0.004–0.008 Up to ~40 GHz Moderate ★★★★☆ Ideal for HDI, RF-digital integration
