Key Factors in Choosing the Best PCB Substrate for Your Design

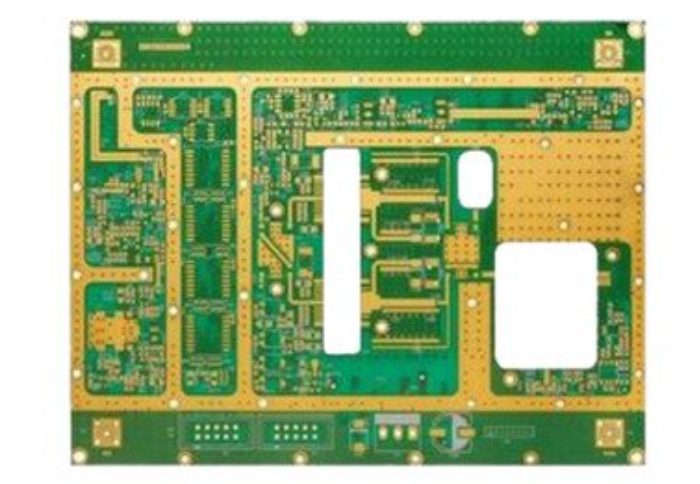

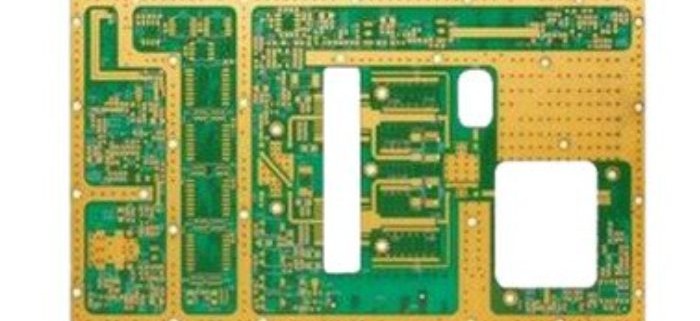

best pcb substrate

In printed circuit board (PCB) design, the substrate is the base material that supports all the electronic components and conductive traces. It plays a crucial role in providing mechanical strength, electrical insulation, and thermal stability. Choosing the best PCB substrate is essential for ensuring overall device performance, long-term reliability, and cost-effectiveness. The right substrate can improve signal integrity, reduce electromagnetic interference, and enhance thermal management—while the wrong one can lead to functional issues or early failure. This article will explore what makes the best PCB substrate, reviewing common substrate types such as FR4, high-frequency materials like Rogers, metal-core options, and ceramic bases. We will compare their properties, advantages, and ideal applications. In addition, we’ll offer clear selection tips to help engineers and designers make informed decisions based on performance needs, budget, and manufacturing requirements. Whether you’re building consumer electronics or high-speed RF systems, this guide will help you choose the best PCB substrate for your project.

Table of Contents

What Is a PCB Substrate? Understanding the Foundation of the Best PCB Substrate

When discussing the best pcb substrate for high-performance electronics, it’s important to first understand what a PCB substrate is and why it plays such a fundamental role in circuit board design and function.

Definition

A PCB substrate is the base insulating material used in the construction of a printed circuit board (PCB). It acts as the core layer upon which all other layers—conductive copper traces, solder masks, silkscreens—are built. The substrate’s primary role is to electrically isolate the conductive elements from each other while offering a stable platform for the mechanical support of components.

In simpler terms, think of the substrate as the backbone of the PCB. Whether you’re designing a single-layer board or a complex multi-layer system, the best pcb substrate ensures the board has the right combination of rigidity, heat resistance, and electrical insulation.

Structure

The typical structure of a PCB includes one or more layers of copper foil laminated to the substrate. In multilayer PCBs, alternating layers of copper and substrate (also known as core and prepreg) are stacked and bonded using heat and pressure. The choice of substrate affects not only the board’s mechanical behavior but also its electrical properties, especially in high-frequency or high-speed designs.

For example, in a standard FR-4 board, the structure includes:

  • A fiberglass-reinforced epoxy resin substrate

  • Copper foil laminated to one or both sides

  • Optional additional layers depending on the board’s complexity

The best pcb substrate structure minimizes signal loss, ensures consistent dielectric performance, and supports the integrity of soldered components even under thermal stress.

Function

The substrate in a PCB performs three critical functions:

  • Electrical Insulation: It separates conductive pathways (traces and vias) to prevent short circuits and signal interference. A high-quality substrate maintains consistent dielectric constant (Dk) and low dissipation factor (Df) over a wide frequency range—attributes essential for high-speed and RF applications.

  • Mechanical Strength: The substrate provides the physical rigidity needed to hold components in place and withstand mechanical handling during assembly and operation. The best pcb substrate should offer durability while maintaining the necessary flexibility in certain applications (such as flexible PCBs).

  • Thermal Stability: Substrates must dissipate heat effectively and resist warping or degradation under elevated temperatures. This is especially important in power electronics and LED applications where thermal cycling is common.

Understanding what a PCB substrate is—and what it does—is the first step toward selecting the best pcb substrate for any electronic design. The ideal substrate balances insulation, structural support, and thermal performance, setting the foundation for reliable, long-lasting, and efficient electronic devices.

Types of PCB Substrate Materials That Help You Choose the Best PCB Substrate

When selecting the best PCB substrate, it’s essential to understand the various types of materials available, their compositions, electrical and thermal characteristics, and their suitability for different applications. This section explores the most common substrate materials used in PCB manufacturing, from the widely adopted FR-4 to advanced options like ceramic and high-frequency laminates. By understanding each material’s strengths and limitations, you’ll be better equipped to identify the best PCB substrate for your specific design needs.

FR-4 (Most Common)

Composition: Woven fiberglass cloth reinforced with epoxy resin.

FR-4 is the industry-standard and the most widely used PCB substrate. It combines affordability with reliable electrical insulation and good mechanical strength, making it a go-to choice for a wide range of electronic applications.

Properties:

  • Cost-effective and readily available.

  • Dielectric constant typically around 4.5, stable across a broad frequency range.

  • Good mechanical durability and resistance to environmental stress.

  • Flame-retardant properties (classified under UL94 V-0).

Applications:

  • Consumer electronics (smartphones, TVs, laptops).

  • Industrial control systems.

  • General-purpose and multilayer PCBs.

While FR-4 is suitable for many standard applications, it may not be the best PCB substrate for high-frequency or high-speed signal transmission, where signal integrity is critical.

CEM-1 / CEM-3

Composition: Composite Epoxy Materials (CEM) made with cellulose paper (CEM-1) or woven glass fabric (CEM-3) impregnated with epoxy resin.

These substrates are more economical than FR-4 and are commonly used in low-cost, single-sided PCBs.

Properties:

  • Lower cost than FR-4.

  • Weaker mechanical properties and lower thermal performance.

  • CEM-1 supports only single-layer PCBs; CEM-3 can support double-sided designs.

Applications:

  • Simple, low-end consumer electronics.

  • Devices where performance requirements are minimal.

CEM materials are not typically considered the best PCB substrate, but they serve as a practical option for budget-constrained and low-complexity designs.

High-Speed / High-Frequency Materials

Examples: PTFE (Polytetrafluoroethylene), Rogers laminates (e.g., RO4003C, RO4350B), and Teflon-based materials.

For high-frequency and high-speed digital applications, the best PCB substrate must offer low dielectric loss and stable electrical properties across a wide frequency range. These specialized materials are engineered for optimal signal integrity.

Properties:

  • Low dielectric constant (Dk) and loss tangent (Df), ideal for RF/microwave designs.

  • Excellent dimensional stability and low signal attenuation.

  • Typically more expensive and require precision manufacturing processes.

Applications:

  • 5G and millimeter-wave communications.

  • RF front-ends, antennas, and satellite systems.

  • High-speed backplanes and data infrastructure.

For applications that demand signal clarity and minimal loss, these materials are often considered the best PCB substrate despite their higher cost.

Ceramic Substrates

Composition: Typically made from alumina (Al₂O₃) or aluminum nitride (AlN).

Ceramic substrates stand out for their superior thermal performance and electrical insulation. These materials are ideal when heat dissipation and stability are critical, making them a strong candidate for the best PCB substrate in high-power or high-reliability environments.

Properties:

  • Excellent thermal conductivity (up to 200 W/mK for some materials).

  • High mechanical strength and rigidity.

  • Stable electrical properties across temperature and frequency ranges.

Applications:

  • Power electronics and LED lighting modules.

  • Aerospace, automotive, and defense systems.

  • High-reliability applications with harsh operating environments.

Though more costly, ceramic is the best PCB substrate where extreme thermal and environmental conditions exist.

Metal Core Substrates (e.g., Aluminum)

Composition: A metal base layer (commonly aluminum), with a dielectric layer and a copper conducting layer.

Metal core PCBs (MCPCBs) are designed for enhanced thermal dissipation. They are especially effective for high-power devices that generate significant heat, offering a good balance of performance and cost.

Properties:

  • Excellent heat dissipation and thermal stability.

  • Mechanically robust and durable.

  • Lower thermal resistance than traditional FR-4.

Applications:

  • High-power LEDs and lighting systems.

  • Power converters and automotive electronics.

  • Motor control and industrial automation.

When thermal management is a primary concern, aluminum-based MCPCBs are often regarded as the best PCB substrate due to their superior heat-sinking ability and structural integrity.

Each material type offers distinct advantages depending on the application. Understanding their properties is the first step toward choosing the best PCB substrate for your design—balancing electrical performance, thermal demands, mechanical durability, and cost.

Choosing the best pcb substrate: Material Properties Comparison Table

Selecting the best pcb substrate means balancing multiple critical properties to meet the demands of specific applications. Below is a detailed comparative analysis of key material properties for common PCB substrates—FR-4, Rogers, PTFE, Ceramic, and Aluminum.

Property FR-4 Rogers PTFE Ceramic Aluminum
Dielectric Constant ~4.5 ~3.5 ~2.1 6–10 ~1
Loss Tangent 0.02 <0.004 0.001 Low Low
Thermal Conductivity Low Med Low High High
Cost Low High High High Medium

Detailed Explanation of Key Properties

1.Dielectric Constant

  • FR-4: With a dielectric constant around ~4.5, FR-4 offers reliable performance for everyday applications, ensuring stable signal propagation at moderate frequencies.

  • Rogers: Averaging around ~3.5, Rogers materials provide lower dielectric constants, which are ideal for high-speed and high-frequency circuits where signal integrity is paramount.

  • PTFE: With an even lower dielectric constant (~2.1), PTFE is favored in ultra-high frequency designs, reducing signal delay and distortion.

  • Ceramic: Exhibiting values between 6–10, ceramic substrates can be beneficial when high dielectric constant is required for specific circuit characteristics, though they might not be the optimal choice for standard RF or digital applications.

  • Aluminum: With a very low dielectric constant (~1), aluminum-based substrates are typically used for thermal management, making them suitable in designs where heat dissipation is more critical than dielectric performance.

2. Loss Tangent

  • FR-4: A loss tangent of 0.02 implies a modest energy loss during signal transmission, which is acceptable for many applications but might lead to signal degradation in high-frequency designs.

  • Rogers: With a loss tangent lower than 0.004, Rogers substrates are exceptional for applications that demand minimal signal loss and superior performance in RF and microwave environments.

  • PTFE: Possessing an extremely low loss tangent of 0.001, PTFE provides minimal energy loss, making it ideal for ultra-high frequency and precision applications.

  • Ceramic & Aluminum: Both materials are characterized by low loss tangent values, meaning they incur low signal loss during transmission. However, their selection often hinges on other performance aspects such as thermal management.

3. Thermal Conductivity

  • FR-4 and PTFE: Both offer low thermal conductivity, which can be a limiting factor in high-power or high-temperature environments.

  • Rogers: Provides medium thermal conductivity, striking a balance between electrical performance and thermal management for many advanced applications.

  • Ceramic & Aluminum: Stand out with high thermal conductivity, making them excellent for dissipating heat. These substrates are the best pcb substrate choices for applications where thermal management is critical, such as power electronics and high-power LED systems.

4. Cost

  • FR-4: As a cost-effective option, FR-4 is widely adopted for mass production and consumer electronics where budget constraints are a priority.

  • Rogers & PTFE: These high-performance materials come at a higher cost, reflecting their superior electrical properties, especially in high-speed and high-frequency designs.

  • Ceramic: Although offering excellent thermal and electrical performance, ceramic substrates are typically high-cost, reserved for specialized applications.

  • Aluminum: With a medium cost level, aluminum substrates provide a good compromise between performance and expense, particularly in designs where enhanced heat dissipation justifies the investment.

The choice of the best pcb substrate will largely depend on the specific application requirements—balancing dielectric performance, signal loss, thermal management, and overall cost. When developing high-performance electronic devices, engineers must carefully consider these factors to optimize reliability and functionality.

How to Choose the Best PCB Substrate Material?

Selecting the best pcb substrate material is a strategic decision that directly impacts the performance, reliability, and cost of your final electronic product. Since different applications place different demands on a PCB, the selection process must take a variety of factors into account. In this section, we’ll walk through the core considerations to help you confidently identify the best pcb substrate for your specific project requirements.

Based on Application Requirements: Frequency, Temperature, and Power

The starting point for selecting the best pcb substrate is understanding your application’s operating environment and performance expectations.

  • High-frequency applications (such as RF circuits, antennas, or 5G systems) require substrates with low dielectric constant (Dk) and very low loss tangent (Df) to ensure minimal signal distortion. Materials like PTFE or Rogers are preferred in such cases.

  • High-temperature environments (e.g., power converters, automotive ECUs) demand substrates with excellent thermal stability and a low coefficient of thermal expansion (CTE). Ceramic and aluminum substrates offer superior performance in these conditions.

  • High-power designs (such as LED drivers and power amplifiers) require materials with high thermal conductivity to effectively dissipate heat. Metal-core (like aluminum) or ceramic substrates are often considered the best pcb substrate choices in these power-intensive environments.

Matching the substrate to these real-world demands ensures functional stability, longer lifespan, and fewer thermal management challenges.

Electrical Performance: Signal Integrity and Impedance Control

In high-speed and high-frequency circuit designs, maintaining signal quality is crucial—and that depends heavily on the electrical properties of the substrate.

  • Signal integrity: A substrate with a consistent and low dielectric constant ensures predictable signal travel times, which is essential in preventing skew and jitter.

  • Impedance control: Tight impedance matching is necessary for high-speed interfaces like USB 3.0, PCIe, and HDMI. Substrates with predictable dielectric properties (such as Rogers or Megtron) allow for precise trace modeling and impedance control.

  • Materials with low loss tangent reduce energy dissipation during signal propagation, resulting in cleaner signals with less attenuation and cross-talk.

If your application involves sensitive analog, digital, or RF signals, then a high-performance laminate such as PTFE or Rogers is likely the best pcb substrate for preserving signal integrity.

Thermal and Mechanical Considerations

Heat buildup can degrade performance or even damage components, especially in compact or high-power circuits. Therefore, the best pcb substrate must be chosen with attention to both thermal and mechanical behavior.

  • Thermal conductivity: Materials like ceramic and aluminum excel at dissipating heat away from components, reducing the need for additional cooling mechanisms.

  • Mechanical strength: Substrates must withstand fabrication processes (drilling, etching, lamination) and operational stress (vibration, thermal cycling). FR-4 is a strong baseline for mechanical reliability, while ceramic offers superior structural stability.

  • Coefficient of Thermal Expansion (CTE): A substrate with low CTE reduces mechanical stress on solder joints and prevents warping during temperature fluctuations.

Designers working with harsh environments—such as aerospace, automotive, or power electronics—will often find ceramic or metal-core boards to be the best pcb substrate for ensuring durability and thermal reliability.

Balancing Cost and Performance

While high-performance substrates offer clear technical advantages, they often come with higher price tags. Choosing the best pcb substrate also involves striking a balance between performance benefits and manufacturing cost.

  • Budget-sensitive designs: For simple or low-frequency circuits, FR-4 remains the most cost-effective and widely supported material.

  • Performance-critical designs: When system failure is not an option—or where signal accuracy and thermal control are essential—investing in high-end materials like Rogers or ceramic can be justified by the performance gains.

  • Volume production vs. prototyping: Some premium substrates may not be necessary during early prototyping stages. However, switching to the best pcb substrate for the final product helps ensure compliance, reliability, and certification readiness.

Always assess the cost/performance tradeoff in the context of the product’s lifecycle, user expectations, and risk tolerance.

Final Thoughts

There is no one-size-fits-all answer when choosing the best pcb substrate. The right choice depends on carefully aligning material properties with your design’s electrical, thermal, mechanical, and budgetary requirements. By doing so, you ensure that your final product not only functions as expected but also stands up to real-world conditions—making your PCB both high-performing and reliable.

Best PCB Substrate Materials for High-Speed and RF Applications

Choosing the best pcb substrate is particularly critical for high-speed digital and RF (radio frequency) applications, where electrical performance requirements are far more demanding than in standard circuits. High-speed signals are highly sensitive to dielectric properties, signal loss, and impedance variation, all of which are directly affected by the choice of substrate material. In this section, we’ll examine the best pcb substrate options specifically designed for high-frequency and high-speed systems, including Rogers laminates, Isola, Megtron, and Nelco materials—and how they compare to the industry-standard FR-4.

Rogers Materials: RO4003C and RO4350B

Rogers Corporation is one of the most recognized names in high-frequency PCB materials. Their RO4003C and RO4350B laminates are widely regarded as some of the best pcb substrate materials for RF and microwave circuits.

Key Features

  • Low Dielectric Constant (Dk): RO4003C has a Dk of ~3.38 at 10 GHz, much lower than FR-4 (~4.5). This results in faster signal propagation and more consistent impedance control.

  • Low Loss Tangent (Df): With a Df as low as 0.0027, both RO4003C and RO4350B offer exceptional signal clarity over long distances or at high frequencies—minimizing attenuation.

  • Stable Electrical Properties: These laminates perform consistently across temperature and frequency ranges, making them ideal for critical RF and millimeter-wave applications.

  • Thermal and Mechanical Compatibility: Unlike many PTFE-based laminates, RO4000 series materials can be processed using standard epoxy/glass techniques, making them easier and more cost-effective to fabricate.

Applications

  • 5G antennas and base stations

  • RF amplifiers and transceivers

  • Satellite communication systems

  • Radar and automotive sensing

Rogers RO4003C and RO4350B consistently rank among the best pcb substrate options for high-frequency circuit designers seeking high performance and manufacturability.

Isola, Megtron, and Nelco High-Performance Laminates

Beyond Rogers, several other material brands also offer advanced laminates tailored for high-speed digital systems and high-frequency analog designs. These include Isola, Panasonic Megtron, and Nelco—each offering a variety of grades optimized for different design priorities.

Isola High-Speed Laminates

  • Examples: I-Speed®, Tachyon®, Astra MT77®

  • Known for very low Dk (~3.0–3.5) and ultra-low Df (<0.002), these materials are ideal for designs where timing, skew, and low cross-talk are mission-critical.

  • Used in server boards, network infrastructure, and aerospace electronics.

Megtron Series (Panasonic)

  • Examples: Megtron 6, Megtron 7

  • Megtron 6 offers a Dk around 3.4 and Df as low as 0.002, providing excellent electrical characteristics for data rates exceeding 25 Gbps.

  • Megtron 7 improves thermal reliability and is suitable for extreme environments like automotive and industrial electronics.

Nelco Laminates

  • Examples: Nelco N4000-13 series

  • Offers excellent thermal and electrical stability, low moisture absorption, and a Df down to 0.002, making them competitive with Rogers materials in terms of signal integrity.

These advanced laminates are considered by many industry experts to be among the best pcb substrate materials available for high-speed signal processing, high-density interconnect (HDI) boards, and next-generation computing platforms.

Why These Are Better Than FR-4 for High-Speed and RF Applications

While FR-4 is an affordable and widely available material, it is often inadequate for high-frequency or high-speed digital designs. Here’s why advanced laminates outperform FR-4—and why they’re considered the best pcb substrate in these cases:

Property FR-4 High-Performance Laminates
Dielectric Constant (Dk) ~4.5 ~3.0–3.5 (Rogers, Megtron, etc.)
Loss Tangent (Df) ~0.02 <0.004
Signal Integrity Moderate Excellent
Frequency Range <1 GHz 10–77 GHz+
Impedance Stability Inconsistent Highly predictable

  • Lower Dk means faster signal transmission and more accurate impedance matching—crucial for controlled impedance designs like differential pairs and transmission lines.

  • Lower Df results in reduced dielectric loss, ensuring that high-speed signals suffer minimal degradation over long traces or multilayer stackups.

  • Better signal quality is vital for meeting modern standards such as PCIe Gen 4/5, USB 4, and 5G mmWave designs.

For these reasons, while FR-4 remains dominant in general-purpose electronics, it cannot compete with the electrical performance offered by the specialized materials mentioned above. When signal fidelity, speed, and reliability matter, high-performance laminates from Rogers, Isola, Megtron, and Nelco are among the best pcb substrate choices available today.

By selecting one of these advanced materials, you ensure optimal signal clarity, tighter impedance control, and improved overall circuit reliability—hallmarks of the best pcb substrate for high-speed and RF applications.

Common Mistakes and Selection Tips When Choosing the Best PCB Substrate

Selecting the best pcb substrate is not just about picking a material with good specs—it’s about making informed, application-specific choices that balance performance, manufacturability, and long-term reliability. Many designers, especially when under pressure to cut costs or meet deadlines, fall into common traps that can jeopardize PCB quality and product performance. In this section, we’ll highlight typical mistakes and offer expert tips to help you choose the best pcb substrate with confidence.

Mistake #1: Choosing Based on Cost Alone

Why It’s a Problem:
While FR-4 and other low-cost substrates may be tempting for budget-conscious projects, selecting the best pcb substrate goes beyond price tags. Cost-focused decisions often result in compromised performance, increased rework, and even product failure—especially in high-speed, RF, or thermally demanding applications.

Tip:
Evaluate the total cost of ownership, which includes not only material costs but also the cost of potential performance issues, signal degradation, or field failures. Investing in higher-quality laminates like Rogers, Megtron, or Isola may seem expensive initially, but they often reduce debugging time, improve product reliability, and minimize costly redesigns.

Mistake #2: Using FR-4 in High-Frequency or High-Speed Designs

Why It’s a Problem:
FR-4 is the industry standard for many general-purpose PCBs, but its dielectric constant (~4.5) and high loss tangent (~0.02) make it unsuitable for high-speed or RF applications. Using FR-4 in these scenarios leads to excessive signal loss, impedance mismatches, and cross-talk.

Tip:
If your design involves frequencies above 1 GHz, or data rates exceeding 10 Gbps, avoid FR-4 and opt for high-performance laminates such as Rogers RO4350B, Megtron 6, or Isola Tachyon. These materials are specifically engineered to provide the signal integrity required by advanced communication, aerospace, or 5G applications—making them the true best pcb substrate for such use cases.

Mistake #3: Ignoring Material Availability and Consistency

Why It’s a Problem:
Some exotic or specialty substrates may not be readily available in all regions or through all PCB manufacturers. Inconsistent sourcing can lead to delays, increased costs, and problems with maintaining consistent electrical performance across production batches.

Tip:
Always validate the availability and supply chain of your chosen material before locking it into your design. Stick to materials that are widely supported by PCB fabricators and available from multiple distributors. This is especially important for mass production or long-lifecycle products, where material substitution can introduce risk.

When selecting the best pcb substrate, consistency and accessibility matter just as much as technical specs.

Mistake #4: Not Collaborating with Your PCB Fabricator Early

Why It’s a Problem:
Even the most well-intentioned material selection can backfire if it isn’t compatible with your fabricator’s capabilities. Some materials require specialized lamination, drilling, or plating processes, and not all fabricators are equipped to handle them.

Tip:
Involve your PCB fabricator early in the design process to confirm that the chosen substrate is compatible with their equipment and process flow. Ask for their input on the best laminate options for your stackup, impedance control, and thermal needs. Their experience can help you identify potential issues and confirm whether your choice truly qualifies as the best pcb substrate in practice—not just in theory.

Final Selection Tips for the Best PCB Substrate:

  • Define your performance goals first—frequency, signal speed, power handling, thermal limits—before shortlisting materials.

  • Match material properties with design constraints, such as layer count, trace width, and via type.

  • Consult datasheets for detailed material specs like Dk, Df, CTE, and thermal conductivity.

  • Request test coupons or evaluation boards when trialing a new substrate for critical applications.

By avoiding these common mistakes and following these practical tips, you’ll be in a strong position to select the best pcb substrate for your design—balancing performance, reliability, and manufacturability for optimal results.

Resources and Further Reading on the Best PCB Substrate Materials

Selecting the best pcb substrate involves more than simply comparing material specs—you need a deeper understanding of performance characteristics, fabrication compatibility, and application-specific trade-offs. To support designers and engineers in making informed decisions, we’ve compiled a curated list of helpful resources, tools, and reference materials. These include downloadable datasheets, detailed whitepapers, and online calculators tailored for electrical modeling—all designed to guide you in choosing the best pcb substrate for your unique design requirements.

Manufacturer Datasheets & Material Guides (PDF Downloads)

Accessing the original datasheets of leading substrate materials is essential for understanding detailed dielectric, thermal, and mechanical properties. The following documents are must-haves when evaluating the best pcb substrate for your application:

These datasheets are ideal for checking exact values of dielectric constant (Dk), dissipation factor (Df), thermal conductivity, CTE, and more—all of which are critical when determining the best pcb substrate for signal integrity, thermal performance, and structural reliability.

Recommended Blogs, Whitepapers, and Technical Articles

For in-depth knowledge and expert analysis of PCB substrate materials, the following blog posts and whitepapers provide excellent background and real-world design considerations:

These resources discuss the pros and cons of various substrate types, including FR-4, PTFE, ceramic, aluminum, and high-frequency laminates. They also explore real application use cases, which can help you make better, evidence-based decisions when identifying the best pcb substrate for your design.

Tools and Calculators for PCB Material Evaluation

To assist in evaluating and comparing materials for high-speed or RF performance, several tools and calculators are available online:

  • Saturn PCB Toolkit – A free desktop software for calculating impedance, trace width, dielectric loss, and other stackup parameters.

  • Rogers Impedance Calculator – Offers quick modeling for transmission lines on Rogers materials.

  • Microwave Impedance Calculator (by WCalc) – An online tool for microstrip, stripline, and coplanar impedance calculations, including dielectric parameters.

  • Z-zero Stackup Planner – A more advanced PCB stackup design and impedance modeling tool, often used for high-speed PCB layout.

These tools are indispensable when optimizing signal performance and verifying that your chosen material aligns with your layout’s electrical goals. They help ensure that you’re not just picking a theoretically good option—but truly implementing the best pcb substrate for your application.

Final Note

When you’re seeking the best pcb substrate, relying solely on datasheets isn’t enough. Combining real-world experience, vendor documentation, modeling tools, and technical insights enables you to make smarter substrate decisions—ones that deliver high reliability, performance, and manufacturability. Use the resources above to build a strong foundation for substrate selection, especially for high-speed, RF, or high-temperature applications.

/通过：
