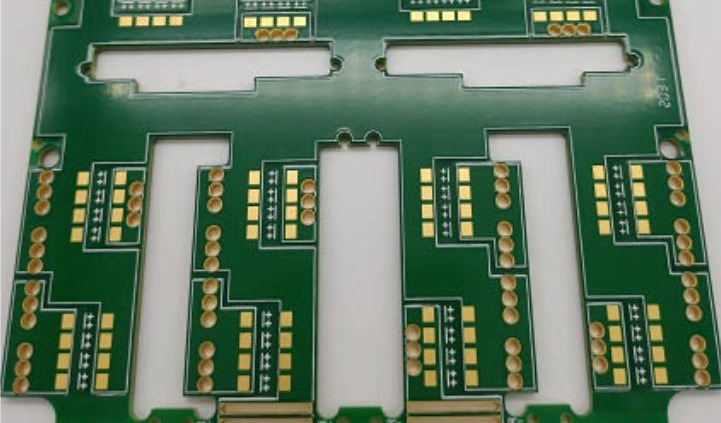

What Is FR4 PCB? A Comprehensive Overview of the Material
Printed Circuit Boards (PCBs) are essential components in modern electronic devices, serving to connect and support electronic components while ensuring effective transmission of signals and power. The design and material selection of PCBs directly impact the performance, reliability, and manufacturing costs of devices, making the choice of suitable PCB materials crucial.
FR4 is a commonly used material in PCB manufacturing, prized for its superior mechanical strength and electrical insulation properties. Its characteristics make it an ideal choice for both high-frequency and low-frequency electronic applications. Understanding “what is FR4 PCB” helps designers and engineers make informed material choices, ensuring their products remain competitive in an ever-evolving technological landscape. As electronic technology advances, the applications of FR4 continue to expand, further driving the growth of the PCB industry.
What is FR4 PCB Material?
Definition of FR4 and Its Composition
FR4 is a composite material widely used in the manufacturing of printed circuit boards (PCBs). It is defined as a flame-retardant grade of fiberglass-reinforced epoxy laminate. The composition of FR4 typically consists of woven fiberglass cloth, which is impregnated with epoxy resin, providing a strong and durable substrate for PCBs. This combination of materials ensures that FR4 offers excellent mechanical strength, dimensional stability, and thermal performance.
Explanation of the Properties that Make FR4 Suitable for PCBs
The properties that make FR4 suitable for PCBs are numerous. First and foremost, its excellent electrical insulating capabilities help prevent short circuits and signal interference, which is critical in electronic applications. Additionally, FR4 exhibits good thermal resistance, allowing it to withstand high temperatures during soldering processes and in operational environments. The material also has a relatively low moisture absorption rate, ensuring that it maintains its integrity in humid conditions.
Understanding “what is FR4 PCB” highlights the importance of this material in providing reliable performance in a wide range of electronic devices, from consumer electronics to industrial applications. Its combination of strength, insulation, and thermal stability makes it a preferred choice among manufacturers.
FR4 PCB Characteristics
Overview of FR4 PCB Characteristics
FR4 PCBs possess a range of characteristics that make them ideal for various electronic applications. One of the most notable features is their mechanical strength. The woven fiberglass reinforcement provides excellent structural integrity, allowing FR4 PCBs to withstand physical stresses during manufacturing and use. This durability is crucial for devices that may experience vibrations or impacts, ensuring that the PCB maintains its functionality over time.
Thermal stability is another key characteristic of FR4. The epoxy resin used in its composition enables FR4 to endure high temperatures without deforming or losing its mechanical properties. This thermal resistance is particularly important during soldering processes, where high temperatures are required to attach components to the PCB. Additionally, FR4’s ability to operate in elevated temperatures enhances the reliability of electronic devices, preventing failures due to overheating.
Electrical insulation is one of FR4’s most critical properties. FR4 provides excellent electrical insulation, which helps to prevent short circuits and minimize signal interference between traces on the PCB. This insulation is essential for maintaining the integrity of electrical signals, especially in high-frequency applications where any disruption can lead to performance degradation.
Discussion of the Dielectric Constant of FR4 and Its Significance
The dielectric constant of FR4 typically ranges from 4.0 to 5.0, depending on the specific formulation. This value indicates how the material interacts with electric fields and plays a significant role in determining the PCB’s performance. A lower dielectric constant is generally preferred for high-speed applications, as it leads to reduced signal loss and improved overall performance. Understanding the dielectric constant of FR4 is essential for designers who aim to optimize signal integrity and performance in their PCB layouts.
The characteristics of FR4 PCBs—mechanical strength, thermal stability, electrical insulation, and a suitable dielectric constant—make them a versatile choice for a wide array of electronic applications, contributing to their popularity in the industry.
FR4 Datasheet and Specifications
Key Specifications Found in an FR4 Datasheet
When evaluating FR4 PCBs, the datasheet provides essential specifications that inform designers about the material’s properties and performance capabilities. Key specifications typically found in an FR4 datasheet include:
- Dielectric Constant (Dk): As mentioned previously, the dielectric constant of FR4 usually ranges from 4.0 to 5.0. This value is crucial for understanding the material’s electrical performance, especially in high-frequency applications.
- Loss Tangent (Df): This parameter measures the energy loss in the dielectric material when an electric field is applied. For FR4, the loss tangent is generally low, indicating minimal signal loss, which is beneficial for maintaining signal integrity.
- Thermal Conductivity: This specification indicates how well the material can dissipate heat. FR4 typically has a thermal conductivity of around 0.3 to 0.4 W/m·K, allowing for effective heat management in electronic applications.
- Glass Transition Temperature (Tg): The glass transition temperature of FR4 is usually around 130°C to 150°C. This temperature is significant for determining the thermal stability of the PCB during soldering and in operational conditions.
- Mechanical Properties: Specifications such as tensile strength, flexural strength, and impact resistance provide insight into the material’s durability and structural integrity. FR4 generally exhibits high mechanical strength, making it suitable for a variety of applications.
Typical Thicknesses of FR4 PCBs
FR4 PCBs come in various thicknesses to accommodate different design requirements. Common thicknesses include:
- 0.8 mm (0.031 in): This thickness is frequently used in consumer electronics, such as smartphones and tablets, where space is limited.
- 1.6 mm (0.063 in): This is one of the most standard thicknesses for FR4 PCBs, commonly used in a wide range of electronic devices, including automotive and industrial applications.
- 2.0 mm (0.079 in): This thickness is often utilized in applications requiring additional mechanical strength, such as power supplies and heavy-duty equipment.
Standard PCB Thickness Comparisons
In comparison to other materials, FR4 offers a range of thickness options that can be tailored to specific applications. For instance, aluminum PCBs, known for their thermal conductivity, typically have standard thicknesses of around 1.5 mm, while flexible PCBs can vary significantly, often starting from 0.1 mm to accommodate tight bends and curves.
The specifications found in an FR4 datasheet, combined with the typical thicknesses available, allow designers to select the most appropriate FR4 PCB for their specific needs, ensuring optimal performance and reliability in electronic applications.
What Does FR4 Stand For?
The acronym “FR4” stands for “Flame Retardant 4,” indicating its classification as a flame-retardant material used primarily in the manufacture of printed circuit boards (PCBs). The designation is part of a broader categorization of materials that are rated for their flammability and ability to withstand combustion, which is crucial in electronic applications where safety and reliability are paramount.
Origins of FR4
The “FR” in FR4 signifies that the material is treated with specific flame-retardant chemicals to reduce its flammability. This treatment is essential in applications where electronic devices may be exposed to high temperatures or combustion risks. The “4” designates that it is the fourth formulation in a series of flame-retardant materials. This numerical classification helps manufacturers and engineers identify and differentiate among various flame-retardant grades, each with distinct properties and applications.
The FR4 material originated from the need for a reliable and safe substrate in the growing field of electronics during the mid-20th century. As the demand for electronic components surged, particularly in the consumer electronics and telecommunications sectors, the development of FR4 addressed the need for a strong, lightweight, and thermally stable material that could also meet stringent safety standards.
Importance of FR4 in Electronics
The adoption of FR4 as a standard material for PCBs has had a significant impact on the electronics industry. Its flame-retardant properties ensure that devices meet regulatory requirements regarding fire safety. Additionally, the mechanical and thermal stability of FR4 allows for the production of high-quality PCBs that can endure the rigors of modern electronic applications, from smartphones to industrial equipment.
Understanding what “FR4” stands for and its origins provides insight into the material’s critical role in the safety and reliability of electronic devices. This classification not only highlights the material’s flame-retardant nature but also emphasizes its widespread acceptance and use in PCB manufacturing, making it a cornerstone of modern electronics.
Differences Between FR1 and FR4 PCB
When comparing FR1 and FR4 PCBs, it is essential to examine their properties and applications to understand their suitability for various electronic projects. Both materials are used in the manufacture of printed circuit boards (PCBs), but they differ significantly in composition, performance, and intended use.
Comparison of Properties
1. Composition and Material Structure:
- FR1: This material is primarily made of paper reinforced with phenolic resin. It is a lower-grade laminate compared to FR4, which limits its mechanical strength and thermal performance.
- FR4: In contrast, FR4 is composed of woven fiberglass cloth impregnated with epoxy resin. This structure provides FR4 with superior mechanical properties, including increased tensile strength and durability.
2. Thermal Properties:
- FR1: The glass transition temperature (Tg) for FR1 is typically around 130°C. While it can handle standard soldering processes, its lower thermal stability makes it less suitable for high-temperature applications.
- FR4: FR4 has a higher Tg, usually ranging from 130°C to 150°C, enabling it to endure the heat generated during soldering and in operational environments, making it ideal for more demanding electronic applications.
3. Electrical Insulation:
- FR1: The electrical insulation properties of FR1 are adequate for low-frequency applications but may not be sufficient for high-speed circuits due to higher dielectric losses.
- FR4: FR4 offers excellent electrical insulation and lower dielectric losses, which is crucial for maintaining signal integrity in high-frequency and high-speed applications.
Comparison of Applications
1. Typical Applications:
- FR1: Due to its lower cost and adequate performance, FR1 is often used in simple and low-frequency applications, such as basic consumer electronics, toys, and non-critical devices.
- FR4: The versatility of FR4 allows it to be used in a wide range of applications, including telecommunications, automotive, industrial controls, and advanced consumer electronics. Its performance makes it suitable for both low and high-frequency devices.
Key Advantages of Using FR4 Over FR1
- Enhanced Durability: The fiberglass composition of FR4 provides higher mechanical strength and resistance to physical stresses, ensuring longer-lasting performance in demanding environments.
- Better Thermal Management: With its higher glass transition temperature, FR4 can withstand elevated temperatures during both manufacturing and operation, reducing the risk of warping or failure.
- Superior Electrical Performance: FR4’s lower dielectric losses and excellent insulation properties make it ideal for high-speed and high-frequency applications, ensuring optimal signal integrity.
- Wider Applicability: FR4 is more versatile and can accommodate a broader range of electronic devices, from basic to complex applications, making it a preferred choice among designers and engineers.
While both FR1 and FR4 serve as substrates for PCBs, the differences in their properties and applications make FR4 a superior choice for modern electronics. Its mechanical strength, thermal stability, and electrical performance set it apart, enabling the design and production of reliable, high-performance electronic devices.
Comparison of Aluminum PCB and FR4
When discussing printed circuit boards (PCBs), both aluminum PCBs and FR4 PCBs are widely used, each serving distinct purposes within the electronics industry. Understanding the characteristics, applications, and advantages of each can help designers choose the appropriate material for their specific needs.
Overview of Aluminum PCBs and Their Uses
Aluminum PCBs, also known as metal core PCBs (MCPCBs), consist of a layer of aluminum that serves as the base substrate, with a dielectric layer and the circuit layer laminated on top. This construction provides excellent thermal conductivity, making aluminum PCBs particularly valuable in applications where heat dissipation is critical.
- Common Uses:
- LED Lighting: Aluminum PCBs are frequently used in LED applications due to their ability to efficiently dissipate heat, prolonging the lifespan and performance of the LEDs.
- Power Electronics: In power electronics, where high currents can generate significant heat, aluminum PCBs help maintain safe operating temperatures.
- Automotive Applications: The automotive industry utilizes aluminum PCBs for components like headlight drivers and control units, where reliable thermal management is crucial.
Key Differences Between Aluminum PCB and FR4
- Thermal Conductivity:
- Aluminum PCB: One of the primary advantages of aluminum PCBs is their high thermal conductivity, which typically ranges from 1.5 to 3.0 W/m·K. This property allows them to effectively transfer heat away from components, making them ideal for high-power applications.
- FR4 PCB: FR4 materials have lower thermal conductivity, usually around 0.3 to 0.4 W/m·K. While they can manage heat to some extent, they are less effective in high-heat applications compared to aluminum PCBs.
2. Cost:
- Aluminum PCB: The manufacturing process for aluminum PCBs can be more expensive due to the use of metal substrates and specialized production techniques. This higher cost may be justified in applications requiring superior thermal management.
- FR4 PCB: FR4 PCBs are generally more cost-effective and are produced using standard PCB manufacturing processes. Their affordability makes them a popular choice for a wide range of electronic devices.
3. Application Suitability:
- Aluminum PCB: Due to their thermal management capabilities, aluminum PCBs are best suited for applications that generate significant heat, such as high-power LEDs, power supplies, and automotive electronics. They excel in environments where heat dissipation is critical to the device’s performance and reliability.
- FR4 PCB: FR4 PCBs are versatile and suitable for a broad range of applications, including consumer electronics, telecommunications, and general-purpose circuits. However, they are not ideal for high-power or high-heat applications where thermal management is a concern.
Both aluminum and FR4 PCBs have distinct advantages and are suitable for different applications. Aluminum PCBs are the preferred choice for high-heat and high-power applications due to their superior thermal conductivity, while FR4 PCBs offer a cost-effective solution for a wide range of electronic devices. Understanding these differences enables designers to make informed decisions based on the specific requirements of their projects.
Disadvantages of FR4
While FR4 is one of the most commonly used materials in PCB manufacturing, it is not without its limitations. Understanding these disadvantages can help designers make informed choices about whether FR4 is the right material for their specific applications or if alternatives should be considered.
Limitations and Disadvantages of Using FR4 Material
1.Thermal Limitations:
- Glass Transition Temperature (Tg): FR4 typically has a Tg of around 130°C to 150°C. In applications that experience high temperatures or where components generate significant heat, FR4 may not perform adequately. The risk of delamination or warping increases in high-thermal environments, potentially compromising the integrity of the PCB.
- Thermal Conductivity: Compared to aluminum PCBs or other specialized materials, FR4 has relatively low thermal conductivity (around 0.3 to 0.4 W/m·K). This means it is less effective at dissipating heat, making it unsuitable for high-power applications where efficient heat management is critical.
2. Electrical Performance:
- Dielectric Losses: The dielectric constant of FR4 varies, but it can lead to higher dielectric losses in high-frequency applications. This affects signal integrity, particularly in RF and high-speed digital circuits where maintaining low losses is crucial.
- Limited Frequency Range: FR4 is typically not ideal for applications that require consistent performance at microwave frequencies. Alternatives such as Rogers materials or PTFE-based substrates may be needed for high-frequency applications.
3. Moisture Absorption:
- Hygroscopic Nature: FR4 can absorb moisture from the environment, which may affect its electrical properties and lead to issues like corrosion or short circuits. In humid conditions, this moisture absorption can result in a degradation of performance over time, necessitating careful environmental control in applications.
4. Mechanical Strength:
- Brittleness: While FR4 provides good mechanical strength, it is also somewhat brittle. In scenarios where flexibility or robustness is required, such as in portable electronics that may experience bending or flexing, FR4 may not be the best choice. Alternatives like flexible PCBs or other composite materials may be necessary to accommodate mechanical stress.
Situations Where Alternatives to FR4 Might Be Necessary
- High-Temperature Applications:
- For devices that operate at elevated temperatures, such as automotive electronics or high-power LEDs, materials with higher thermal stability and better heat dissipation properties, like aluminum PCBs or polyimide substrates, would be more suitable.
2. High-Frequency Applications:
- In RF and microwave applications, where maintaining signal integrity is paramount, specialized materials like Rogers or Teflon-based substrates may be required to minimize losses and ensure consistent performance.
3. Moisture-Prone Environments:
- In applications exposed to high humidity or liquids, such as marine electronics or outdoor devices, FR4 may not provide the necessary protection. Alternative materials with lower moisture absorption rates, such as epoxy-glass composites or metal core PCBs, could be better choices.
4. Flexible Applications:
- In situations requiring flexible circuit designs, such as wearable electronics, flexible PCBs or other flexible materials should be considered instead of rigid FR4.
While FR4 is a versatile and widely used material for PCBs, its limitations in thermal performance, electrical properties, moisture absorption, and mechanical strength can restrict its applicability in certain environments. Understanding these disadvantages allows designers to evaluate the need for alternative materials that can better meet the demands of specific applications, ensuring both reliability and performance in electronic devices.
High-Speed PCB Design Guide
Designing high-speed PCBs using FR4 material requires careful consideration of various factors to ensure optimal performance and signal integrity. As electronic devices continue to evolve, the demand for faster data rates and improved functionality increases, making effective high-speed PCB design crucial.
Tips and Considerations for Designing High-Speed PCBs Using FR4
- Controlled Impedance:
- Impedance Matching: Maintaining a controlled impedance is essential for high-speed signal integrity. Designers should calculate and design traces to have specific impedance values (e.g., 50Ω or 75Ω) to minimize reflections. This can be achieved by adjusting trace width, spacing, and using appropriate dielectric materials.
- Layer Stack-Up: Carefully designing the PCB layer stack-up is critical. Using a combination of signal layers, ground planes, and power planes can help achieve better impedance control and signal integrity.
2. Short Trace Lengths:
- Minimize Trace Lengths: High-speed signals are sensitive to trace length. Designers should minimize trace lengths to reduce propagation delay and the potential for signal degradation. This can be achieved through careful placement of components and routing strategies.
3. Via Management:
- Limit the Number of Vias: Vias introduce inductance and capacitance, which can affect signal integrity. Designers should minimize the number of vias in high-speed paths and consider using blind or buried vias where appropriate to reduce signal disruptions.
4. Differential Pair Routing:
- Use Differential Pairs: For high-speed signals, routing differential pairs can help improve noise immunity and reduce electromagnetic interference (EMI). Maintaining consistent spacing between the pairs and ensuring they are of equal length is crucial for balanced signal transmission.
5. Grounding Techniques:
- Solid Ground Plane: Utilizing a solid ground plane helps to provide a low-impedance return path for signals, reducing noise and interference. Proper grounding is critical in high-speed designs to enhance performance and reduce crosstalk.
Common Design Challenges and Solutions Related to FR4
- Signal Integrity Issues:
- Challenge: As frequencies increase, signal integrity can degrade due to reflections, crosstalk, and other factors.
- Solution: Implementing simulation tools like SPICE or specialized PCB design software can help analyze and mitigate signal integrity issues early in the design process.
2. Thermal Management:
- Challenge: High-speed PCBs often generate more heat due to increased power consumption, which can affect performance.
- Solution: Consider adding thermal vias, heat sinks, or copper pours to distribute heat effectively. Ensure the design allows for adequate airflow or cooling mechanisms.
3. EMI and Crosstalk:
- Challenge: High-speed signals can create EMI and crosstalk, leading to degraded performance and unintended interactions between traces.
- Solution: Use proper shielding techniques, such as ground planes and routed traces, to minimize crosstalk. Keep sensitive traces away from high-frequency signals and use appropriate spacing.
4. Design Rule Violations:
- Challenge: High-speed designs can easily violate manufacturing constraints due to tight spacing and complex routing.
- Solution: Work closely with the PCB manufacturer to understand their capabilities and ensure that the design complies with their specifications. Utilizing design rule checks (DRC) during the layout process can help identify potential issues early.
Designing high-speed PCBs using FR4 requires a comprehensive understanding of the material’s limitations and the challenges presented by high-speed signals. By employing effective design strategies and considering potential pitfalls, engineers can create robust and reliable high-speed PCB designs that meet the demands of modern electronic applications.
FQAs Abut What Is FR4 PCB
FR4 stands for “Flame Retardant 4,” which refers to a grade of glass-reinforced epoxy laminate material used in printed circuit boards (PCBs). The “FR” indicates its flame-retardant properties, while the “4” denotes its specific formulation and manufacturing standards.
The main difference between FR1 and FR4 PCBs lies in their material composition and properties. FR1 is made of paper-based phenolic resin, while FR4 is made of fiberglass and epoxy resin. FR4 offers better mechanical strength, thermal stability, and electrical insulation compared to FR1, making it more suitable for high-performance applications. Additionally, FR4 has a higher dielectric constant and can withstand higher temperatures.
Aluminum PCBs are made with a metal substrate (usually aluminum) that provides excellent thermal conductivity, making them ideal for applications requiring heat dissipation, such as LED lighting. In contrast, FR4 PCBs are made from a composite material that offers good electrical insulation but lower thermal conductivity. While aluminum PCBs are typically more expensive, they are preferred in high-power applications, whereas FR4 is commonly used in general electronic devices.
The disadvantages of FR4 include its relatively lower thermal conductivity compared to metal-based substrates, which can lead to heat buildup in high-power applications. Additionally, FR4 may not perform as well in high-frequency applications due to its dielectric properties, resulting in signal integrity issues. It is also less suitable for environments exposed to high humidity or extreme temperatures, as it can absorb moisture and degrade over time.
