Key Benefits of Teflon PCB Substrate in High-Frequency Circuits

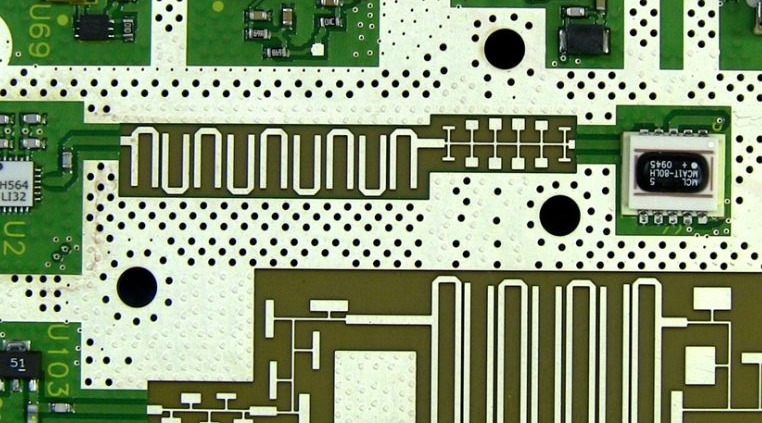

Teflon PCB substrate is a type of printed circuit board made from Teflon (PTFE) material, known for its excellent electrical properties, especially in high-frequency applications. As a specialized PCB substrate material, Teflon PCB substrate offers advantages such as low dielectric constant and low loss factor, making it ideal for high-frequency and microwave circuit designs. The unique properties of Teflon make it the preferred choice in applications such as RF (Radio Frequency) circuits, microwave circuits, and high-speed communication systems. With the growing demand for technologies like wireless communication, satellite systems, and 5G, the use of Teflon PCB substrate is on the rise. It plays a crucial role in industries like aerospace, automotive, medical, and military, ensuring stable high-frequency signal transmission and minimizing signal attenuation.
What is PTFE in Teflon PCB Substrate?
Polytetrafluoroethylene (PTFE), commonly known as Teflon, is a high-performance polymer renowned for its unique chemical properties. It is a white, waxy solid that is highly resistant to heat, chemicals, and electrical conductivity, making it an ideal material for a variety of applications, including as a Teflon PCB substrate. PTFE is a non-reactive material, meaning it does not easily degrade or corrode when exposed to harsh environments or chemicals. This gives it exceptional durability and longevity, particularly in challenging conditions where traditional PCB substrates might fail.
Its role as a PCB substrate
As a PCB substrate, PTFE plays a vital role in high-frequency electronic applications. The material’s low dielectric constant and low loss tangent make it highly effective in reducing signal loss and maintaining signal integrity in RF (Radio Frequency) circuits. These properties are particularly crucial in applications that involve high-speed data transmission, such as in wireless communication systems, satellite technology, and military-grade electronics.
Advantages of using PTFE in electronics
The advantages of using PTFE in electronics are numerous. First, its excellent thermal stability allows it to perform well in high-temperature environments, which is crucial for components like power amplifiers and high-frequency signal processing. Additionally, PTFE’s low friction coefficient and resistance to electrical breakdown make it a highly reliable choice for use in Teflon PCB substrates. In comparison to traditional PCB materials like FR-4, PTFE offers superior performance in high-frequency and high-power applications, making it an essential material in advanced electronics.
Properties of Teflon PCBs
Teflon PCBs are known for their superior properties that make them the preferred choice for high-performance electronic applications, especially in high-frequency environments. These properties include exceptional high-frequency performance, low loss factor and low dielectric constant, excellent temperature stability, and remarkable durability and chemical resistance.
High-Frequency Performance
Teflon PCB substrates are particularly valued for their outstanding high-frequency performance. The unique characteristics of PTFE (Polytetrafluoroethylene) allow for minimal signal degradation, which is crucial for RF (Radio Frequency) and microwave circuits. In high-frequency applications, signal integrity is paramount, and Teflon PCBs maintain signal quality better than traditional materials like FR-4, making them essential for industries such as telecommunications, satellite communications, and radar systems. The ability of Teflon PCBs to efficiently transmit signals without interference or loss gives them a distinct edge in applications that demand high-speed, low-loss performance.
Low Loss Factor and Low Dielectric Constant
Teflon PCB substrates exhibit a low loss factor and a low dielectric constant, both of which are vital for minimizing energy loss in high-frequency circuits. The dielectric constant of PTFE typically ranges from 2.1 to 2.5, depending on the specific grade of the material, which is significantly lower than that of traditional PCB materials like FR-4 (typically around 4.5). A lower dielectric constant reduces signal delay and allows for faster signal transmission, which is critical in modern high-speed communication and electronic systems. The low loss factor ensures that minimal energy is dissipated as heat, contributing to more efficient circuits, especially in power-sensitive or high-speed applications.
Temperature Stability
One of the most significant advantages of Teflon PCBs is their excellent temperature stability. PTFE can withstand extreme temperatures, with a thermal range that typically spans from -200°C to +260°C, depending on the specific application. This high thermal stability makes Teflon PCBs suitable for environments that experience large temperature fluctuations, such as aerospace, automotive, and military applications. Additionally, the stability of PTFE at elevated temperatures ensures that the PCB retains its mechanical integrity and electrical properties even under harsh thermal conditions, reducing the risk of circuit failure due to thermal stress.
Durability and Chemical Resistance
Teflon PCB substrates are highly durable and offer exceptional chemical resistance. PTFE is non-reactive to most chemicals, oils, and solvents, making it an ideal choice for use in aggressive environments where exposure to harsh chemicals is common. This property makes Teflon PCBs especially useful in industries like aerospace, automotive, and medical devices, where components must endure exposure to corrosive substances without degrading. The durability of Teflon also contributes to the overall longevity of the PCB, reducing the need for frequent replacements and maintenance in demanding applications. Furthermore, PTFE is resistant to moisture, which helps maintain the integrity of the PCB in humid or wet environments.
The unique combination of high-frequency performance, low loss factor, temperature stability, and chemical resistance makes Teflon PCB substrates an essential material for high-performance electronics. These properties ensure that Teflon PCBs can meet the demanding requirements of modern electronic systems, offering both reliability and efficiency in critical applications.
Teflon PCB vs. FR-4: Key Differences
When comparing Teflon PCBs and FR-4 PCBs, there are several critical differences to consider, including electrical properties, mechanical properties, and the types of applications best suited for each material. While both materials are commonly used in the PCB industry, their unique characteristics make them suitable for different types of electronic applications.
Electrical Properties Comparison
The most significant difference between Teflon PCBs and FR-4 PCBs lies in their electrical properties, particularly in terms of signal transmission.
- Teflon PCBs: One of the standout features of Teflon (PTFE) is its low dielectric constant (typically around 2.1-2.5), which results in reduced signal delay and minimal signal loss, especially at high frequencies. This makes Teflon PCBs ideal for high-frequency and high-speed applications, such as RF (Radio Frequency) circuits, microwave communication, satellite systems, and 5G technologies. Additionally, Teflon offers a low loss factor, meaning less energy is dissipated as heat, ensuring efficient transmission of high-frequency signals.
- FR-4 PCBs: FR-4, a composite material of woven fiberglass and epoxy resin, has a higher dielectric constant (typically around 4.5), which means it has more signal delay and higher signal attenuation at high frequencies compared to Teflon. While FR-4 is adequate for general-purpose electronics and lower-frequency circuits, it is less suited for high-frequency applications where signal integrity is critical. FR-4 also has a higher loss factor, making it less efficient for high-speed data transmission.
Mechanical Properties Comparison
While both Teflon and FR-4 offer solid mechanical strength, they differ in terms of temperature tolerance, flexibility, and durability.
- Teflon PCBs: PTFE has exceptional thermal stability, with the ability to withstand high temperatures ranging from -200°C to +260°C. This makes Teflon PCBs ideal for extreme environments, including aerospace, military, and automotive applications, where components may be exposed to fluctuating and extreme temperatures. Additionally, Teflon is more chemically resistant than FR-4, providing better protection against exposure to harsh chemicals and solvents.
- FR-4 PCBs: While FR-4 also offers good mechanical strength, it has a lower maximum temperature rating (typically around 130°C) compared to Teflon. This limits its use in high-temperature applications. FR-4 is also more prone to mechanical stress and chemical degradation over time, especially when exposed to harsh environments. However, FR-4 is highly durable in everyday electronics and is commonly used in consumer devices, computers, and industrial applications.
Applications Best Suited for Each Material
Given their differing electrical and mechanical properties, Teflon PCBs and FR-4 PCBs are better suited for specific types of applications:
- Teflon PCB Applications: Due to its low dielectric constant, low loss factor, and high-temperature stability, Teflon PCBs are best suited for high-frequency and high-speed applications, such as:
- RF (Radio Frequency) circuits for telecommunications and broadcasting
- Microwave circuits used in radar systems and satellite communications
- 5G wireless networks that require fast and stable signal transmission
- Aerospace and military electronics where high performance and reliability are critical
- Medical devices where high signal integrity is required for diagnostic and treatment equipment
- FR-4 PCB Applications: FR-4 is more versatile and cost-effective for general-purpose electronics, and is widely used in applications that don’t require the high-performance characteristics of Teflon. Its typical uses include:
- Consumer electronics such as smartphones, laptops, and tablets
- Industrial control systems where moderate temperatures and signal speeds are sufficient
- Automotive electronics for basic sensor and control circuits
- Power electronics for power distribution boards and low-frequency circuits
- Computer and networking devices like motherboards and peripheral equipment
The choice between Teflon PCBs and FR-4 PCBs largely depends on the specific requirements of the application. Teflon PCBs are indispensable for high-performance, high-frequency, and temperature-sensitive applications, while FR-4 remains the go-to material for cost-effective and general-purpose electronics that do not require the advanced electrical and mechanical properties of Teflon.
Manufacturing Process of Teflon PCBs
Manufacturing Teflon PCBs presents several unique challenges compared to traditional PCB materials like FR-4, due to the distinct properties of Teflon (PTFE) and the specialized techniques required for processing this material. The process involves several critical steps, including lamination, drilling, and etching, with specific attention to the handling of PTFE to preserve its electrical and mechanical properties.
Unique Challenges in Manufacturing Teflon PCBs
Teflon (PTFE) is chemically inert, highly resistant to heat, and non-conductive, making it an excellent material for high-frequency applications. However, these very properties also present challenges in the PCB manufacturing process:
- Material Handling: PTFE is more fragile and softer compared to traditional PCB materials like FR-4. This makes it more prone to damage during handling, especially during the initial stages of the manufacturing process. Careful handling is necessary to avoid any damage that could impact the performance of the final PCB.
- Drilling Challenges: Drilling Teflon for vias and holes is significantly more difficult than drilling FR-4 due to the material’s toughness and lack of flexibility. Special drilling tools with high-quality carbide bits are used to prevent cracking and ensure precise hole dimensions. Drilling speeds are typically slower, and the cooling of tools during drilling is crucial to prevent excessive heat buildup, which could degrade the PTFE material.
- Lamination Difficulty: Laminating Teflon to copper foil or other conductive materials can be challenging due to its low surface energy. Unlike FR-4, which bonds relatively easily to copper during lamination, PTFE requires specialized preparation, such as surface treatment (e.g., plasma etching or chemical treatments), to improve adhesion. This ensures that the copper layers bond securely with the PTFE substrate.
- Cost and Material Availability: PTFE materials are more expensive and less widely available compared to standard PCB materials like FR-4. The higher cost of PTFE can make the manufacturing process more expensive, particularly for large-volume production. Additionally, PTFE’s relatively limited availability in standard sizes can also pose challenges for manufacturers.
Techniques Used in PCB Fabrication
The manufacturing of Teflon PCBs involves several specialized techniques that differ from those used in conventional FR-4 PCB fabrication. These processes ensure that the unique properties of PTFE are maintained while achieving high-quality, reliable PCBs.
- Lamination Process: The first step in fabricating a Teflon PCB is the lamination of PTFE to copper foil. This is typically achieved through a process known as hot pressing, where the PTFE material is combined with a copper foil layer under high temperature and pressure. Since PTFE’s surface is naturally low in energy, it requires surface treatment to ensure strong bonding with the copper. Plasma etching or chemical surface activation can be used to increase the surface roughness of PTFE, improving the adhesion of the copper foil during lamination.
- Etching: After lamination, the next step is the etching of copper traces to form the circuit pattern. Since PTFE is a non-conductive material, the etching process follows the same principles as in traditional PCB manufacturing, but with adjustments for PTFE’s unique properties. Laser etching and wet chemical etching are commonly used for patterning the copper on Teflon substrates. In some cases, a photoresist mask is applied to the surface of the copper before etching to protect certain areas from being etched away.
- Drilling and Via Formation: Drilling holes and creating vias in Teflon PCBs requires special equipment and precision. Laser drilling is often used for creating small, precise holes, while mechanical drilling with carbide bits is used for larger vias. After drilling, the holes are typically plated with copper through an electroplating process to form conductive vias, ensuring signal integrity across different layers of the PCB.
- Surface Finishing: Once the copper traces are etched and vias are formed, the final step involves surface finishing. Common finishes include immersion gold, HASL (Hot Air Solder Leveling), and OSP (Organic Solderability Preservative). These finishes are applied to the copper pads and traces to ensure proper solderability and protection from oxidation. For Teflon PCBs, it is important to ensure that the surface finish does not degrade the material’s electrical properties.
Specialized Equipment for Teflon PCB Manufacturing
The unique properties of Teflon require specific, high-quality equipment for successful PCB fabrication. Some of the specialized equipment includes:
- Plasma Etching Equipment: Used for surface treatment of PTFE before copper lamination, plasma etching increases the surface energy of PTFE, enabling better adhesion of copper foils.
- High-Precision Drilling Machines: Since drilling PTFE is challenging, high-precision CNC drilling machines with carbide drills are essential. These machines operate at lower speeds to minimize the risk of cracking and to ensure hole accuracy.
- Laser Systems: For etching fine traces and drilling small vias, high-precision laser systems are commonly employed. These lasers are highly accurate and can work with the hard, tough surface of PTFE without causing material degradation.
- Vacuum Laminating Presses: Given that PTFE requires a specific process for bonding with copper, vacuum presses are used to ensure uniform pressure and temperature during lamination, creating a consistent bond between the Teflon substrate and copper layers.
- Electroplating Equipment: To form conductive vias and finish the copper pads, electroplating equipment is used to coat the drilled holes and traces with a thin layer of copper, ensuring electrical continuity across the PCB.
The manufacturing process of Teflon PCBs involves specialized techniques and equipment to address the challenges of working with PTFE. From surface treatment and lamination to precision drilling and etching, each step requires careful attention to preserve the unique electrical and mechanical properties of Teflon, ensuring the production of high-quality PCBs suitable for demanding high-frequency applications.
Applications of Teflon PCBs
Teflon PCBs, with their exceptional electrical and mechanical properties, are highly sought after in industries where performance, reliability, and high-frequency capabilities are critical. The unique characteristics of Teflon (PTFE) substrates make them ideal for various advanced electronic applications, including RF and microwave circuits, high-frequency communication, and specialized industries like aerospace, automotive, and medical sectors.
RF and Microwave Circuits
One of the most prominent applications of Teflon PCBs is in RF (Radio Frequency) and microwave circuits. These circuits are integral to a wide range of electronic systems, from wireless communication devices to radar and satellite systems. The low dielectric constant (typically between 2.1 and 2.5) and low loss factor of Teflon make it an excellent material for minimizing signal degradation, reducing transmission losses, and preserving signal integrity.
Teflon PCBs are used in critical components such as:
- Antenna circuits: Teflon’s ability to maintain high performance at high frequencies ensures that signals are transmitted efficiently, even in challenging environments.
- Filter circuits: In RF applications, filters are used to separate signals of different frequencies. Teflon PCBs are ideal for these circuits because they prevent the loss of high-frequency signals.
- Oscillators and amplifiers: These components require stable electrical properties to maintain signal accuracy, and Teflon provides the necessary performance in high-speed, high-frequency conditions.
Because of their excellent high-frequency properties, Teflon PCBs are also used in microwave circuit design, where signals operate in the GHz range. These systems require materials that can handle high frequencies without significant loss or distortion, making Teflon an indispensable material.
High-Frequency Communication
Teflon PCBs are also widely used in high-frequency communication applications, particularly in technologies like 5G networks, satellite communication, and wireless communication systems. With the growing demand for high-speed data transfer and minimal signal loss, Teflon’s low dielectric constant and minimal signal attenuation make it the ideal material for components that support these systems.
Some examples of high-frequency communication applications include:
- 5G infrastructure: Teflon PCBs are used in the design and production of base stations, antennas, and signal amplifiers that form the backbone of 5G networks. The demand for faster, more reliable data transfer places a premium on low-loss materials, and Teflon ensures optimal performance in these environments.
- Satellite communication systems: High-frequency circuits used in satellite communication must perform under extreme environmental conditions. Teflon’s temperature stability and low loss factor make it an excellent choice for components that need to maintain signal quality over long distances and in harsh conditions.
- Wireless communication: Devices such as smartphones, tablets, and wireless routers rely on Teflon PCBs to ensure efficient signal transmission in the GHz range, supporting faster data speeds and more reliable connections.
By offering excellent high-frequency characteristics, Teflon ensures that these systems can operate efficiently, providing faster data rates and clearer communication signals.
Aerospace, Automotive, and Medical Sectors
Teflon PCBs are essential in industries where performance, durability, and reliability are paramount. In sectors such as aerospace, automotive, and medical, the ability of Teflon to withstand extreme conditions while maintaining signal integrity makes it the material of choice for mission-critical systems.
- Aerospace: In aerospace applications, electronic systems need to function reliably in extreme temperatures, high radiation environments, and under mechanical stresses. Teflon PCBs are used in components such as radar systems, satellite communication modules, and navigation systems. Teflon’s ability to perform well in high-frequency circuits makes it particularly useful in these applications, where accuracy and reliability are essential. Furthermore, Teflon’s resistance to temperature fluctuations ensures that components can survive in space or high-altitude environments.
- Automotive: As modern vehicles become more reliant on sophisticated electronics for navigation, autonomous driving, and safety systems, Teflon PCBs are increasingly used in automotive electronics. The material’s chemical resistance and high-temperature stability make it ideal for circuits in engine control systems, GPS modules, and sensor networks. Teflon’s low loss factor also ensures efficient signal transmission in high-frequency components, such as radar and LIDAR systems, which are crucial for autonomous vehicles.
- Medical: In the medical sector, Teflon PCBs are used in a range of life-saving devices where performance and reliability are critical. Medical imaging systems, diagnostic equipment, and implantable devices often rely on Teflon PCBs due to their ability to operate reliably under harsh conditions. For example, Teflon’s biocompatibility and chemical resistance are crucial in devices that come into direct contact with the human body. Additionally, Teflon PCBs are used in high-frequency medical equipment like MRI machines, where maintaining signal integrity is crucial for producing clear, high-quality images.
Other Specialized Applications
Beyond the industries mentioned above, Teflon PCBs also find applications in high-performance computing, military electronics, and telecommunications infrastructure. The low loss and high thermal stability make Teflon PCBs ideal for components that must perform reliably over long periods and under demanding conditions.
Teflon PCBs are vital in a broad range of applications that require exceptional electrical performance, high-frequency capabilities, and durability in extreme conditions. Whether it’s for RF circuits, high-frequency communication systems, or advanced aerospace, automotive, and medical technologies, Teflon PCBs ensure that electronic components function at the highest levels of reliability and performance. The material’s unique properties make it indispensable in cutting-edge industries, where failure is not an option.
Advantages of Using Teflon for PCBs
Teflon (PTFE) PCBs offer several advantages, particularly in applications that demand high-frequency performance, reliability, and longevity. These benefits make Teflon the material of choice for many advanced and specialized electronic systems, despite its higher cost compared to traditional materials like FR-4. Below are the key advantages of using Teflon for PCB substrates:
Enhanced Performance in High-Frequency Environments
One of the primary reasons Teflon is favored for high-performance PCBs is its outstanding high-frequency capabilities. In electronic systems that operate at microwave and RF (Radio Frequency) frequencies, the quality of the PCB material directly impacts the signal integrity and overall system performance. Teflon provides several electrical benefits that make it highly effective for high-frequency applications:
- Low Dielectric Constant: Teflon has a low dielectric constant (typically between 2.1 and 2.5), which helps reduce the delay in signal transmission. A low dielectric constant allows for faster signal propagation, essential for high-speed communications and applications like 5G networks, satellite systems, and radar. In comparison, materials like FR-4 have a much higher dielectric constant (around 4.5), leading to higher signal delays and attenuation.
- Low Loss Factor: Teflon also boasts a low loss factor, which minimizes signal loss and power dissipation during transmission. This feature is crucial for maintaining signal quality and efficiency in high-frequency circuits. A low loss factor ensures that energy is not wasted as heat, preserving the integrity of the signal, even at GHz frequencies. This makes Teflon ideal for high-speed data transmission and ensures reliable performance in sensitive communications systems.
- Minimal Signal Distortion: The combination of a low dielectric constant and low loss factor ensures that signals remain clear and distortion-free, even over long distances or through complex circuits. This makes Teflon a preferred material for applications like RF amplifiers, oscillators, and filters, where signal purity is crucial for system performance.
Reliability and Longevity
Teflon PCBs offer exceptional reliability and longevity, making them suitable for demanding, mission-critical applications where performance over time is essential. The key aspects of Teflon’s reliability include:
- Thermal Stability: Teflon has excellent temperature resistance, withstanding a wide range of operating temperatures from -200°C to +260°C. This high thermal stability ensures that Teflon PCBs can operate effectively in environments with extreme temperature fluctuations, such as in aerospace, automotive, or military applications. The ability to maintain electrical and mechanical properties across such a wide temperature range reduces the likelihood of failure due to thermal stress, ensuring long-term reliability.
- Chemical Resistance: Teflon’s chemical resistance is another critical advantage. PTFE is highly resistant to most acids, solvents, and oils, making it ideal for applications in harsh environments, such as automotive, aerospace, and medical systems, where exposure to aggressive chemicals is common. This chemical inertness ensures that Teflon PCBs remain unaffected by corrosive substances, prolonging their service life and maintaining their performance over time.
- Moisture Resistance: Teflon is also highly resistant to moisture, preventing issues like corrosion and degradation that can occur when PCBs are exposed to high humidity. This makes Teflon PCBs highly durable in humid or wet conditions, contributing to their long-term performance in systems exposed to environmental stressors.
- Low Maintenance: Teflon’s robustness and resistance to environmental degradation also result in reduced need for maintenance or replacement of components. This is particularly important in industries where downtime is costly, such as in aerospace and military applications, where components must operate continuously without failure.
Cost and Availability Considerations
While Teflon offers significant advantages in terms of electrical performance and durability, it also presents some cost and availability challenges that need to be considered in the decision-making process.
- Cost: Teflon is generally more expensive than traditional PCB materials like FR-4, primarily due to the cost of the raw material and the specialized manufacturing techniques required to process it. The increased cost comes from factors such as the difficulty in drilling, lamination, and handling of Teflon compared to more common materials. This can make Teflon PCBs less cost-effective for low- to mid-range applications where the advanced properties of Teflon are not necessary.
- Manufacturing Complexity: The process of fabricating Teflon PCBs is more intricate and requires specialized equipment and expertise. For example, Teflon requires surface treatment to bond effectively with copper, and the drilling process must be done with high precision to avoid damage. These additional steps contribute to the higher manufacturing cost of Teflon PCBs.
- Availability: Teflon is less widely available than FR-4 and may be harder to source in some regions or in larger quantities. Moreover, Teflon comes in specific grades and thicknesses, which may limit its availability for some custom or large-scale production runs. Manufacturers may need to work with suppliers that specialize in Teflon or PTFE materials, potentially increasing lead times for production.
- Cost vs. Performance: Despite the higher cost, Teflon is often the material of choice for applications that demand the highest performance, such as 5G technology, aerospace systems, RF circuits, and satellite communication. In these cases, the performance benefits far outweigh the additional cost, as the cost of failure or suboptimal performance in high-frequency circuits can be far more expensive than the extra investment in Teflon.
Teflon PCBs offer substantial advantages, particularly in high-frequency environments, where their low dielectric constant, low loss factor, and minimal signal distortion deliver enhanced performance. The reliability and longevity of Teflon also make it an excellent choice for industries where durability and long-term operation are crucial. However, the higher cost and specialized manufacturing processes must be weighed against the performance requirements of the application. For high-performance, mission-critical systems, the benefits of Teflon far outweigh the additional costs, making it an indispensable material for advanced electronics.
Challenges and Considerations
While Teflon PCBs offer numerous advantages in high-frequency performance, reliability, and durability, there are several challenges and considerations that need to be addressed when opting for this material. These challenges include cost concerns, the complexities involved in handling and processing, and issues related to material availability and fabrication capabilities. Below is a detailed discussion of each of these factors:
Cost of Teflon PCBs Compared to Traditional FR-4
One of the most significant challenges when using Teflon PCBs is the higher cost compared to traditional materials like FR-4. Several factors contribute to the increased cost of Teflon PCBs:
- Raw Material Costs: Teflon (PTFE) is more expensive than FR-4, primarily due to its superior electrical properties, temperature stability, and chemical resistance. The production of PTFE material involves more complex and specialized processes, making it inherently more costly than the epoxy resins used in FR-4. Additionally, Teflon’s lower dielectric constant and minimal signal loss in high-frequency environments contribute to its premium price.
- Manufacturing Complexity: Fabricating Teflon PCBs requires specialized equipment and expertise. PTFE’s unique properties—such as its low surface energy—mean that it requires additional processing steps, such as surface treatment (e.g., plasma etching) to improve adhesion to copper and other materials. The PCB manufacturing process for Teflon substrates is more time-consuming, and the need for precision drilling, specialized lamination processes, and laser etching adds to the overall manufacturing cost. These additional steps, coupled with the need for more refined quality control measures, result in a higher overall cost per unit compared to FR-4.
- Economies of Scale: FR-4 is a widely available, mass-produced material, resulting in a cost advantage due to economies of scale. In contrast, Teflon PCBs are produced in smaller quantities, leading to a higher per-unit cost. For low- or medium-volume applications, the higher cost of Teflon may be prohibitive, especially when compared to the relatively low cost and high availability of FR-4.
- Cost-Effectiveness for Specific Applications: While Teflon PCBs are more expensive, they are often the material of choice for high-performance applications, such as RF and microwave circuits, where the benefits of enhanced performance justify the extra cost. In applications where high-frequency signal integrity, low loss, and temperature stability are critical, the higher cost of Teflon is considered a worthwhile investment.
Handling and Processing Challenges
Teflon is a relatively delicate material to work with, and special care must be taken during manufacturing to prevent damage and ensure the desired performance. Some of the handling and processing challenges include:
- Brittleness and Fragility: While Teflon is known for its durability in harsh environments, it is also more brittle than materials like FR-4. This brittleness can make it prone to cracking or chipping during handling or processing. The rigidity of Teflon requires careful handling to avoid breakage, especially during the cutting, drilling, and lamination processes. Proper storage and transport conditions are also essential to prevent material damage.
- Difficulty in Drilling: Drilling Teflon is significantly more challenging than drilling FR-4, as the material is not as flexible, and the drilling process generates heat that could degrade the substrate. Specialized high-precision carbide drill bits are required to create holes without damaging the material. Moreover, laser drilling is often employed for more intricate vias, but this requires specialized equipment and higher precision.
- Lamination Process: Teflon’s low surface energy means that bonding it to copper foils or other layers during the lamination process can be difficult. Unlike FR-4, which bonds relatively easily, Teflon requires surface activation treatments, such as plasma etching or chemical treatment, to improve adhesion. These additional processes increase the overall complexity and cost of Teflon PCB fabrication.
- Etching and Patterning: Traditional etching methods used for FR-4, such as chemical or mechanical etching, may not be effective with Teflon due to its low surface reactivity. Teflon requires more advanced techniques, like laser etching or plasma etching, to define copper traces and circuits. These methods can be slower and require additional expertise and equipment, further contributing to the overall complexity and cost of production.
Availability of Materials and Fabrication Capabilities
The availability of Teflon PCBs and the capabilities of manufacturers to produce them can also present challenges. These challenges include:
- Limited Availability of Teflon in Standard PCB Sizes: While Teflon is a specialized material, it is not as widely available in standard PCB thicknesses and sizes as FR-4. Teflon substrates may need to be sourced from specialized suppliers, and they may be available only in specific grades that meet the performance requirements for certain applications. This can lead to longer lead times or additional costs if a custom substrate size or grade is required.
- Specialized PCB Fabricators: Not all PCB manufacturers are equipped to handle Teflon due to the specialized processing techniques involved. Teflon requires specific lamination presses, drilling machines, and etching equipment, which not all PCB manufacturers have. As a result, finding qualified manufacturers who can process Teflon PCBs may be more challenging, and these manufacturers may have higher minimum order requirements or longer lead times. This can be an obstacle for small-to-medium-sized companies or those in industries that require smaller production runs.
- Supply Chain Issues: The supply chain for Teflon materials and the equipment required to process them can be more limited than that for FR-4. This is especially true for higher-grade Teflon, which is often used for specialized applications in RF and microwave electronics, aerospace, and medical industries. Supply disruptions, such as shortages of PTFE material or equipment, can further complicate the production of Teflon PCBs and lead to increased costs and delays.
- Material Sourcing Costs: Due to the specialized nature of Teflon, sourcing the raw material can be expensive. In addition to the higher cost of the PTFE itself, sourcing from suppliers who specialize in Teflon PCB production may involve additional logistical costs, including shipping fees for specialized raw materials or custom-sized substrates.
While Teflon PCBs offer numerous advantages, such as superior high-frequency performance, low loss, and excellent temperature stability, the higher cost, manufacturing complexities, and availability challenges present significant hurdles. The cost of Teflon compared to traditional materials like FR-4 can be prohibitive for low-volume or less critical applications, and the need for specialized processing techniques, such as precision drilling, surface treatment, and advanced etching methods, adds to the overall expense. Moreover, the availability of Teflon substrates and the specialized fabrication capabilities required to process them may limit options for some companies. Nonetheless, for high-performance applications that demand the exceptional properties of Teflon, such as RF circuits, high-frequency communication, and aerospace systems, the material’s advantages far outweigh these challenges, making it the material of choice for these demanding applications.
Future Trends in Teflon PCB Substrate
The use of Teflon (PTFE) in PCBs is expected to grow significantly as technological advancements continue and demand for high-performance electronics escalates. Several factors are contributing to the increasing adoption of Teflon PCBs across various industries. In this section, we explore the future trends, focusing on technological advancements, the growing demand for high-performance electronics, and the emerging industries utilizing Teflon PCBs.
Technological Advancements
Technological advancements in materials science and PCB manufacturing techniques are playing a crucial role in enhancing the capabilities of Teflon PCBs. These innovations are expected to drive their adoption in future applications:
- Improved Processing Technologies: As the demand for Teflon PCBs increases, manufacturers are developing more advanced processing techniques to address the challenges of working with PTFE. These innovations include laser drilling, plasma etching, and automated lamination methods, which reduce the complexity and cost of producing Teflon-based PCBs. Moreover, new adhesion techniques are being developed to improve the bonding between Teflon and other materials, such as copper, which will further streamline the fabrication process and lower manufacturing costs.
- Advanced Dielectric Materials: Ongoing research into dielectric materials may lead to the development of next-generation PTFE-based composites with even lower loss factors, better thermal stability, and enhanced signal integrity. These advancements will likely improve the performance of Teflon PCBs, making them even more suitable for 5G communication, satellite systems, and high-speed digital circuits. New composite formulations may also reduce the overall cost of Teflon PCBs, making them more accessible to a broader range of applications.
- Miniaturization and High-Density Interconnects (HDI): As electronics continue to become more compact and efficient, Teflon PCBs are expected to evolve to meet the needs of high-density interconnects (HDI). These advanced PCB designs feature smaller, more densely packed circuits, and Teflon’s low signal loss and high-frequency capabilities make it an ideal material for these applications. The ability to manufacture Teflon-based HDI PCBs could unlock new opportunities in consumer electronics, aerospace, and communications.
Increasing Demand in High-Performance Electronics
The ongoing demand for high-performance electronics is a key driver behind the growth of Teflon PCBs. As technologies evolve, the need for components that can operate at higher frequencies, with greater reliability, and in challenging environmental conditions will continue to rise. Here are some areas where Teflon PCBs are likely to see increasing adoption:
- 5G and Next-Generation Communication Networks: With the rollout of 5G networks and the increasing demand for faster and more reliable communication, the need for advanced materials like Teflon will grow. Teflon’s low dielectric constant and minimal signal loss make it ideal for 5G base stations, antenna systems, and RF modules. These components must operate at extremely high frequencies with minimal interference, and Teflon PCBs will be essential in ensuring optimal performance. Additionally, Teflon is expected to play a crucial role in supporting the increasing volume of data traffic and the development of next-generation communication protocols.
- High-Speed Data Transmission: The growing reliance on high-speed data transmission across industries such as telecommunications, cloud computing, and data centers will push the demand for Teflon PCBs. As data transfer rates continue to increase, the low-loss properties of Teflon will become indispensable in reducing signal degradation and maintaining signal integrity. Teflon’s superior electrical properties will be especially critical in data networking, optical communication systems, and high-frequency processors.
- High-Frequency Consumer Electronics: The consumer electronics industry is also becoming more reliant on high-frequency components, including smartphones, wearables, and wireless communication devices. These devices require high-performance PCBs that can handle rapid data transfer, reduced power consumption, and enhanced thermal management. Teflon’s ability to operate efficiently at high frequencies while maintaining low loss and high thermal stability will make it an increasingly popular choice for these applications.
- Aerospace and Military: Teflon’s inherent qualities, such as temperature stability, chemical resistance, and signal integrity, make it ideal for aerospace and military electronics. As the demand for satellite systems, radar technology, and military communications grows, Teflon PCBs will be crucial in ensuring the reliability of these mission-critical systems. The future will see even greater integration of Teflon in space exploration, defense electronics, and unmanned systems.
Emerging Industries Utilizing Teflon PCBs
In addition to the established sectors, emerging industries are beginning to recognize the unique properties of Teflon PCBs and are incorporating them into their designs for next-generation technologies:
- Internet of Things (IoT): The IoT market is expanding rapidly, with more and more devices requiring reliable, low-loss, and high-frequency PCBs. Teflon’s performance in wireless communication systems and low-power applications makes it an excellent choice for IoT devices that need to operate in challenging environments. Smart homes, industrial automation, and connected healthcare devices will likely benefit from the integration of Teflon PCBs as the demand for connected, high-performance devices increases.
- Automotive Industry: The automotive industry, particularly with the rise of electric vehicles (EVs) and autonomous driving technologies, requires high-performance electronic systems. Teflon PCBs will play a role in the development of advanced sensors, radar systems, and infotainment systems that demand precise signal handling at high frequencies. As the demand for vehicle-to-everything (V2X) communication and vehicle sensors grows, Teflon will become increasingly important in supporting these innovations.
- Medical Electronics: The medical industry continues to innovate with devices that demand high levels of precision and reliability. Teflon PCBs are already used in certain medical devices that require high-frequency performance and biocompatibility. As medical technology continues to evolve, particularly in areas such as telemedicine, implantable devices, and medical imaging, Teflon’s superior performance will be essential in ensuring both safety and functionality.
- Quantum Computing and Advanced Computing Systems: As quantum computing and other advanced computing technologies progress, the need for specialized PCBs to handle extremely high-frequency signals, sensitive data processing, and minimal interference will increase. Teflon’s exceptional properties make it a promising material for the future of quantum circuit boards and high-performance computing systems that require ultra-low loss and high stability at extremely high frequencies.
The future of Teflon PCBs looks promising, driven by ongoing technological advancements and the increasing demand for high-performance electronics across a variety of sectors. As new manufacturing techniques are developed, the cost of Teflon PCBs may decrease, making them more accessible for a broader range of applications. The material’s low loss, high-frequency capabilities, and durability will continue to make it the substrate of choice in 5G communication, high-speed data transmission, aerospace, automotive, medical devices, and emerging fields like quantum computing. As the demand for cutting-edge electronics grows, Teflon PCBs will be a critical enabler of the next generation of advanced technology.
FQAs Abut Teflon PCB Substrate
A Teflon PCB refers to a printed circuit board that uses Teflon (PTFE, Polytetrafluoroethylene) as its base material or substrate. Teflon is a high-performance polymer known for its excellent electrical insulation properties, low signal loss, high frequency handling, and superior temperature stability. Teflon PCBs are commonly used in high-frequency applications such as RF (Radio Frequency) circuits, microwave communication systems, and aerospace electronics due to their ability to maintain signal integrity even at very high frequencies.
A PTFE substrate is a type of material made from Polytetrafluoroethylene (PTFE), a fluoropolymer that is widely used as a dielectric material in printed circuit boards (PCBs). PTFE has unique properties such as low dielectric constant, low loss factor, and high resistance to heat and chemicals, making it suitable for high-frequency and high-performance electronic applications. PTFE substrates are used in PCBs to minimize signal loss, improve high-speed performance, and withstand harsh environments, particularly in fields like telecommunications, aerospace, and medical devices.
The most common material used as a substrate for printed circuit boards (PCBs) is FR-4, a composite of epoxy resin and woven glass fiber. FR-4 is popular because it offers a balance of good mechanical strength, electrical insulation, and cost-effectiveness for general-purpose PCBs. However, for specialized applications that require high-frequency performance, materials such as Teflon (PTFE), ceramics, and high-frequency laminates (like Rogers materials) are used as substrates. These materials are chosen based on specific electrical, thermal, and mechanical properties needed for advanced applications.
The key differences between FR-4 and PTFE (Teflon) substrates are based on their electrical properties, mechanical characteristics, and applications:
Electrical Properties:
FR-4 has a higher dielectric constant and higher loss factor compared to PTFE. This means that FR-4 is less suitable for high-frequency applications, as it tends to degrade signal quality at higher speeds.
PTFE, on the other hand, has a low dielectric constant and low loss factor, making it ideal for high-frequency and microwave applications like RF circuits, where minimizing signal loss and interference is critical.
Temperature and Chemical Resistance:
FR-4 is suitable for general-purpose applications but has limited performance at high temperatures (typically up to 130°C).
PTFE can withstand much higher temperatures (up to 260°C) and offers superior chemical resistance, making it suitable for extreme environments, such as aerospace and military applications.
Mechanical Properties:
FR-4 is generally more rigid and less brittle compared to PTFE, which can be more challenging to handle during manufacturing processes due to its brittleness and low surface energy.
Cost:
FR-4 is significantly cheaper than PTFE, making it a more cost-effective option for standard PCBs in consumer electronics.
PTFE is more expensive due to its specialized properties and is typically used in high-performance, high-frequency applications.
FR-4 is a versatile, cost-effective material suitable for most general applications, while PTFE is the material of choice for high-frequency, high-performance applications that demand low signal loss and temperature stability.
