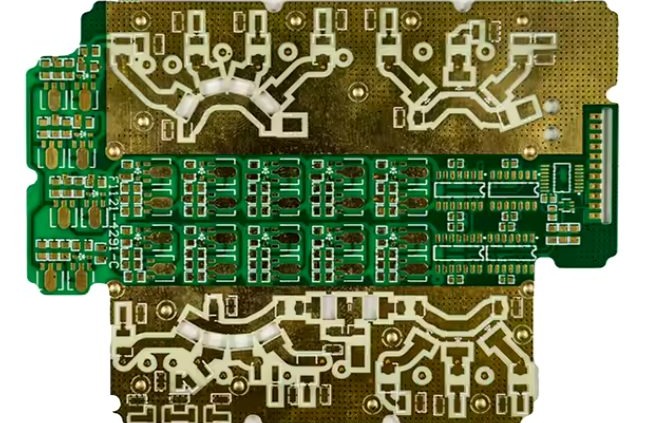

Understanding the Advantages of Rogers 5880 PCB Materials

Rogers Corporation is a leading manufacturer of high-frequency circuit materials, renowned for its innovative solutions in the PCB materials market. With a commitment to quality and advanced technology, Rogers has established itself as a trusted name for engineers and designers across various industries. Among its impressive product line, Rogers 5880 PCB stands out for its exceptional performance characteristics, making it an ideal choice for high-frequency and high-speed applications. This advanced material is primarily utilized in telecommunications, aerospace, and automotive sectors, where reliability and efficiency are paramount. The unique properties of Rogers 5880 PCB, including its low loss tangent and high dielectric constant, enable it to meet the demanding requirements of modern electronic devices. As the need for faster and more efficient technology continues to grow, Rogers 5880 PCB plays a crucial role in supporting the next generation of innovative electronic designs.

Basic Information on Rogers 5880 PCB

Definition of Rogers RT/duroid 5880

Rogers 5880 PCB, known as Rogers RT/duroid 5880, is a premier high-frequency laminate that excels in demanding electronic applications. This material is designed to provide superior performance, particularly in environments where signal integrity is critical. Rogers RT/duroid 5880 features a glass-reinforced hydrocarbon composite, which ensures excellent mechanical strength while maintaining a lightweight profile.

Overview of material properties

The material properties of Rogers 5880 PCB are tailored to meet the needs of modern electronic designs. It boasts a low dielectric loss, with a loss tangent typically around 0.002, making it ideal for high-speed communications where minimizing signal loss is essential. Additionally, it has a dielectric constant of approximately 2.2, allowing for tighter design layouts and improved signal transmission.

Rogers 5880 PCB also offers excellent thermal stability, which is crucial for applications that generate significant heat. Its low moisture absorption further enhances its reliability, ensuring consistent performance over time. Overall, Rogers RT/duroid 5880 is a top choice for engineers seeking high-quality materials for their PCB designs.

Technical Specifications of Rogers 5880 PCB

Thickness

Rogers 5880 PCB is available in various thickness options, typically ranging from 0.508 mm (20 mils) to 1.524 mm (60 mils). These different thicknesses allow engineers to design flexibly according to specific application requirements. The choice of thickness affects the mechanical strength of the PCB, signal transmission characteristics, and thermal performance.

Specifications for Copper Thickness

Regarding copper thickness, Rogers 5880 PCB typically offers options of 1 oz (approximately 35 μm) and 2 oz (approximately 70 μm). These copper thicknesses are suitable for high-frequency and high-speed circuit applications, effectively supporting larger current loads while ensuring signal integrity. The choice of copper thickness also impacts the manufacturing process and overall cost of the PCB.

Dielectric Constant

The dielectric constant is a critical parameter that measures a material’s ability to respond to an electric field. In PCB design, the dielectric constant directly affects the speed of signal propagation and the performance of the circuit. A lower dielectric constant usually means faster signal propagation, which is particularly important for high-speed circuits.

For Rogers 5880 PCB, the dielectric constant is approximately 2.2. This value makes Rogers 5880 highly suitable for high-frequency applications, effectively reducing signal delays and improving signal quality.

Loss Tangent

Loss tangent is an important indicator of dielectric loss in materials, representing the proportion of energy lost during signal propagation. In high-frequency circuits, a lower loss tangent value indicates better material performance, as it signifies less signal loss and higher signal quality.

The loss tangent value for Rogers 5880 typically hovers around 0.002. This low-loss characteristic allows Rogers 5880 to excel in applications with stringent signal quality requirements, such as communications and radar systems. Understanding these technical specifications enables engineers to select materials that best fit their specific application needs.

Pricing Information for Rogers 5880 PCB

Market Pricing for Rogers 5880

The market price for Rogers 5880 PCB can vary significantly based on several factors, including thickness, copper weight, and the volume of the order. Typically, prices range from $50 to $100 per square meter, but this can fluctuate depending on the specific configurations requested. Custom specifications or low-volume orders may lead to higher prices due to the additional manufacturing processes involved.

Price Comparison from Different Suppliers

When comparing prices from various suppliers, it’s important to consider not just the base price but also additional factors such as shipping costs and lead times. Some suppliers may offer competitive prices for large orders, while others might have attractive rates for smaller quantities. For example, one supplier may charge $75 per square meter for a standard thickness, while another could offer a similar product for $60, but with longer delivery times. It’s advisable to obtain quotes from multiple suppliers to ensure the best value for money.

Factors Affecting Pricing

Several factors influence the pricing of Rogers 5880 PCB. These include raw material costs, manufacturing processes, and market demand. The cost of the underlying materials, such as the resin and copper, can fluctuate based on global market conditions, affecting the final price. Additionally, more complex designs requiring special fabrication techniques will typically incur higher costs. Lead times also play a role; shorter lead times may result in a premium charge due to expedited processing. Understanding these factors can help engineers and procurement specialists make informed decisions when budgeting for their projects.

Application Areas for Rogers 5880 PCB

Application Scenarios

Rogers 5880 PCB is widely recognized for its exceptional performance in various high-frequency and high-speed applications. Its unique material properties make it an ideal choice for scenarios where signal integrity and reliability are paramount. Engineers and designers leverage Rogers 5880 for its ability to maintain performance under demanding conditions, making it suitable for cutting-edge electronic devices.

Use in High-Frequency, High-Speed PCBs

The high-frequency capabilities of Rogers 5880 PCB make it particularly valuable in applications such as RF (radio frequency) circuits and microwave systems. The low loss tangent and stable dielectric constant allow signals to travel with minimal distortion, which is crucial for maintaining data integrity in high-speed communication systems. This material is commonly used in printed circuit boards (PCBs) for antennas, amplifiers, and filters, where precision and performance are critical.

Applications in Communications, Aerospace, and More

Rogers 5880 PCB is extensively utilized in various industries, including:

• Communications: In the telecommunications sector, Rogers 5880 PCB is employed in base stations, satellite communications, and wireless infrastructure. Its high-frequency performance supports the transmission of high-bandwidth signals, enabling faster data rates and improved connectivity.
• Aerospace: The aerospace industry benefits from the thermal stability and reliability of Rogers 5880 PCB in applications such as radar systems, avionics, and satellite technology. The material’s ability to withstand extreme environmental conditions ensures consistent performance, which is essential for safety-critical applications.
• Automotive: As vehicles become more reliant on advanced electronics, Rogers 5880 PCB is increasingly used in automotive applications such as radar sensors and advanced driver-assistance systems (ADAS). The material’s durability and signal integrity contribute to the effectiveness of these technologies.
• Medical Devices: In the medical field, Rogers 5880 PCB is used in diagnostic equipment and imaging systems, where precise signal transmission is vital for accurate results.

Overall, Rogers 5880 PCB is a versatile material that plays a crucial role in a wide range of high-tech applications, driving innovation and enhancing performance across multiple industries.

Comparison with Other Materials

Comparison with Rogers 5870

Rogers 5880 PCB and Rogers 5870 are both high-frequency laminates produced by Rogers Corporation, but they serve different purposes and exhibit distinct characteristics. Understanding these differences is crucial for engineers and designers when selecting the appropriate material for specific applications.

Key Differences

1. Dielectric Constant:

• Rogers 5880 has a dielectric constant of approximately 2.2, making it suitable for high-speed applications that require minimal signal delay.
• Rogers 5870, on the other hand, has a higher dielectric constant of around 2.33. This can be advantageous for applications where a higher capacitance is needed, but it may introduce more signal delay in high-frequency scenarios.

1. Loss Tangent:

• Rogers 5880 features a lower loss tangent of about 0.002, which is ideal for applications that demand high signal integrity with minimal loss.
• Rogers 5870 has a slightly higher loss tangent, making it less favorable for extremely high-frequency applications, though still suitable for many RF designs.

1. Thermal Stability:

• Both materials exhibit excellent thermal stability, but Rogers 5880 is particularly noted for its performance under high thermal loads, making it a preferred choice for high-power applications.

Advantages and Disadvantages of Each

• Rogers 5880:
• Advantages:
  • Lower loss tangent, which ensures better signal integrity and less energy loss.
  • Good thermal stability, suitable for demanding environments.
  • Lower dielectric constant, advantageous for high-speed applications.
• Disadvantages:
  • May not provide as much capacitance for specific applications compared to higher dielectric constant materials.
• Rogers 5870:
• Advantages:
  • Higher dielectric constant can be beneficial for applications requiring greater capacitance.
  • Suitable for a wider range of RF applications due to its versatile performance characteristics.
• Disadvantages:
  • Higher loss tangent may result in greater signal degradation at extremely high frequencies.
  • Slightly less effective in applications where signal integrity is critical compared to Rogers 5880.

The choice between Rogers 5880 and Rogers 5870 ultimately depends on the specific requirements of the application. Engineers must weigh the advantages and disadvantages of each material to select the one that best meets their design goals.
