The Benefits of OSP Substrate in Modern PCB Manufacturing

In PCB (Printed Circuit Board) manufacturing, the choice of surface finish plays a crucial role in ensuring the performance and reliability of the final product. One such widely used surface finish is OSP (Organic Solderability Preservative), which has gained popularity due to its excellent soldering properties and cost-effectiveness. OSP substrate provides a thin organic coating on the copper surface, which prevents oxidation and preserves the solderability of the PCB during the manufacturing process. This eco-friendly surface treatment is not only free from toxic materials but also helps in maintaining the integrity of the soldering process. By offering superior protection against oxidation, OSP ensures that the PCB remains easy to solder even after long storage periods, thus enhancing the overall reliability of the final product. As a result, OSP substrate is increasingly favored by manufacturers seeking to deliver high-quality, environmentally conscious PCB solutions.

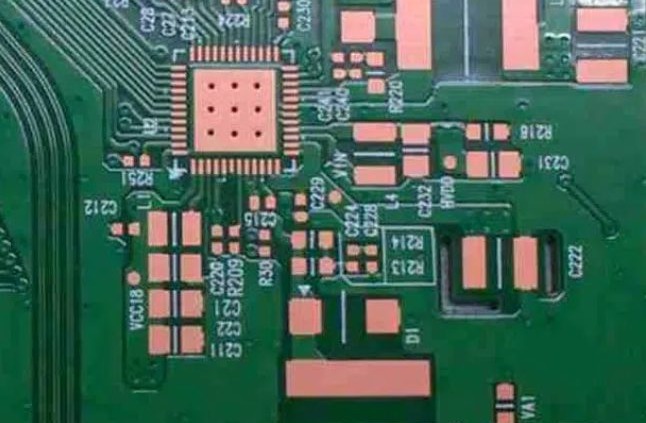

What is OSP Substrate? Definition and Basic Concepts

OSP (Organic Solderability Preservative) is a surface finish applied to PCBs to prevent copper oxidation and maintain solderability. This organic coating forms a protective layer over copper pads and traces, ensuring they remain suitable for soldering during assembly. OSP protects copper surfaces from oxidation, which can degrade soldering quality and cause poor electrical connections.

The OSP coating is typically very thin—just a few microns thick—yet it is highly effective in maintaining the integrity of the copper beneath. By creating a barrier between the copper and the environment, OSP ensures that the copper remains clean and free of oxide layers that could interfere with the soldering process. When PCBs are exposed to air, copper tends to oxidize and form a layer of copper oxide, which impedes solderability. The OSP substrate prevents this oxidation, ensuring that the PCB remains easily soldered, even after prolonged storage.

OSP Materials and Composition

The primary materials used in OSP surface finishes are organic compounds and chemical agents, typically containing nitrogen and oxygen groups that bind to the copper surface. The composition of these materials allows for the formation of a stable, protective organic layer. This layer is not only effective in preventing oxidation but also ensures that the PCB retains its excellent solderability properties. The organic compounds used in OSP finishes are often water-based, making the process environmentally friendly and safer compared to other more hazardous surface finishes.

When compared to other surface finishes like ENIG (Electroless Nickel Immersion Gold) and HASL (Hot Air Solder Leveling), OSP has distinct advantages in terms of cost, environmental impact, and application. ENIG involves nickel and gold plating, which provides better durability but is more expensive and less eco-friendly. HASL, while durable, uses solder to level the surface, which can be less reliable for fine-pitch components. OSP substrate, on the other hand, offers a low-cost and eco-friendly alternative that is particularly effective for general PCB applications, especially when the PCB needs to be environmentally conscious and cost-efficient without compromising solderability.

Advantages and Disadvantages of OSP Substrate Surface Finish

Advantages of OSP Substrate Surface Finish

1. Eco-friendly
   One of the key benefits of OSP substrate is its eco-friendliness. Unlike other surface finishes containing harmful chemicals like lead or nickel, OSP is a non-toxic, organic compound that meets RoHS standards. With its water-based formula and absence of heavy metals, OSP substrate is a sustainable choice for reducing the environmental impact of PCB manufacturing.
2. Cost-effective
   OSP substrate is a cost-effective surface finish compared to more complex options like ENIG or gold plating. These processes involve multiple metal layers, increasing production costs, while OSP is simpler and uses fewer materials, making it more affordable, especially for high-volume PCB production. This cost efficiency is ideal for industries like consumer electronics and automotive, where cost control is crucial without compromising quality.
3. Good Solderability
   The OSP substrate ensures excellent soldering properties by providing a thin organic layer that protects the copper pads from oxidation. This protective coating helps preserve the solderability of the PCB even after prolonged storage, ensuring that the copper remains clean and ready for soldering. The superior solderability of OSP-treated boards enhances the overall reliability of the PCB, reducing the likelihood of soldering defects and improving the quality of electrical connections. This makes OSP a preferred choice for manufacturers focusing on quality assurance and reliable product performance.
4. Wide Applicability
   Another significant advantage of OSP substrate is its broad applicability across various PCB types. Whether for single-sided, double-sided, or multilayer PCBs, OSP can be used effectively without the need for specialized treatments. This versatility makes OSP a highly adaptable solution, especially for standard and high-volume PCB applications where different layer configurations are required. It is also commonly used in the production of flexible PCBs, as well as in consumer electronics, telecommunications, and automotive sectors, ensuring that it meets the demands of diverse industries.

Disadvantages of OSP Substrate Surface Finish

1. Lower Durability
   Despite its many benefits, the OSP substrate does have a notable disadvantage: lower durability compared to other surface finishes like ENIG or HASL. The organic coating applied in OSP is relatively thin and can be more fragile, especially during handling, storage, and transportation. If the PCB is exposed to physical stress or rough handling, the OSP layer can be scratched or damaged, compromising the protection against oxidation. Manufacturers must take extra precautions to ensure that OSP-treated PCBs are handled carefully to avoid damage to the protective coating.
2. Moisture Sensitivity
   OSP coatings are highly sensitive to moisture and environmental factors, which can significantly affect their performance. When exposed to high humidity or moisture for extended periods, the OSP coating can degrade, weakening its protective properties and causing oxidation of the copper beneath. This degradation can lead to soldering issues, poor electrical connections, or even failure during assembly. Therefore, PCBs with OSP substrate need to be stored and transported in moisture-controlled environments to preserve the integrity of the coating. This requirement for careful storage adds an additional layer of complexity when using OSP for PCB production.

While the OSP substrate surface finish offers eco-friendliness, cost-effectiveness, and good solderability, its lower durability and moisture sensitivity require careful handling, limiting its use in high-demand applications. Despite this, OSP remains popular for its cost, environmental benefits, and solderability.

Manufacturing Process of OSP Substrate Surface Finish

The manufacturing process of an OSP (Organic Solderability Preservative) substrate involves critical steps to apply the protective coating for effective solderability, including cleaning, chemical coating, and drying/curing, each crucial for the final quality of the OSP finish. Below is a detailed breakdown of each stage:

Processing Steps

1. Cleaning
   The first step in the OSP substrate manufacturing process is cleaning the PCB surface to remove contaminants like oils, dust, or oxidation. This ensures proper adhesion of the OSP coating and its effectiveness. Cleaning is typically done using chemical solutions or ultrasonic processes to remove residues from previous stages. A pristine surface is crucial for the OSP to bond well with the copper and protect against further oxidation.
2. Chemical Coating
   After cleaning, the PCB undergoes a chemical coating process where a specially formulated organic solution is applied to the copper surface. This solution contains organic compounds that are designed to chemically bond with the copper, forming a thin protective layer. The OSP coating not only prevents further oxidation but also ensures that the copper remains solderable throughout the assembly process. The chemical solution is typically applied through a dip process, spray application, or brush coating, depending on the manufacturer’s setup and the size of the PCB. The key here is to ensure uniform application, which helps in achieving consistent quality and performance across the entire PCB.
3. Drying and Curing
   Once the OSP solution has been applied, the PCB needs to undergo drying and curing to ensure that the protective layer is stable and effective. The drying process is typically done in an oven or by using infrared drying equipment, which evaporates the solvent from the applied chemical solution. This step helps to set the OSP layer and prevent it from being removed or disturbed during subsequent handling. Following drying, the PCB may go through a curing process where the OSP coating undergoes additional heat treatment to enhance the layer’s bonding strength, ensuring that it forms a durable protective shield against oxidation. Proper curing is essential because an improperly cured OSP coating can be prone to damage and moisture absorption, potentially leading to soldering failures.

Technical Requirements

For the OSP substrate coating process to be successful, certain technical requirements must be carefully controlled to ensure the uniformity and quality of the finish. These include:

1. Coating Thickness
   The thickness of the OSP coating is a critical parameter in the process. If the coating is too thin, it may not provide adequate protection against oxidation, leading to poor soldering results. On the other hand, if the coating is too thick, it can become brittle and prone to cracking, which would also compromise solderability. Typically, the OSP coating thickness ranges from 0.2 to 0.5 microns. Strict control of the coating thickness ensures that the PCB surface is well-protected while maintaining the quality of solder joints.
2. Uniformity
   Ensuring uniformity in the OSP coating is another crucial technical requirement. Uneven coating can lead to areas of the PCB that are either underprotected or overly coated, which can affect the overall performance of the PCB during soldering and lead to inconsistent solder joints. The coating process must be carefully controlled to ensure that the OSP layer is evenly distributed across all areas of the copper surface, especially for complex and multi-layered boards. Manufacturers often use advanced equipment like automatic dipping systems or spray nozzles to ensure even distribution of the OSP solution.
3. Surface Cleanliness and Preparation
   The cleanliness of the PCB surface before applying the OSP coating is vital for achieving good adhesion. Any leftover residues from cleaning agents or previous processing stages could interfere with the bonding of the organic layer. Additionally, a smooth and polished surface will result in a more consistent OSP coating, ensuring its effectiveness in preserving solderability.
4. Curing Process Control
   The curing process must be strictly monitored to ensure that the OSP coating bonds correctly and achieves the desired durability. Temperature, time, and airflow must be optimized during the curing phase to prevent overheating or insufficient curing, both of which could negatively impact the stability of the OSP finish.

The manufacturing process of OSP substrate involves several key steps, each requiring precise control to ensure the highest quality. From the cleaning stage to the chemical coating and drying/curing, each step plays a vital role in ensuring that the OSP finish provides reliable solderability and protection for the copper surface. The technical requirements such as coating thickness, uniformity, and surface cleanliness are essential to achieving a high-quality OSP substrate, which will ultimately result in a PCB that performs reliably in its intended application.

Comparison of OSP Substrate with Other Surface Finishes

When choosing the right surface finish for a Printed Circuit Board (PCB), it is essential to compare the characteristics of OSP (Organic Solderability Preservative) substrate with other popular surface finishes, such as ENIG (Electroless Nickel Immersion Gold), HASL (Hot Air Solder Leveling), and immersion silver/gold. Each surface finish has its own set of advantages and drawbacks depending on factors like cost, reliability, application, and performance. Below is a detailed comparison of OSP substrate with these other surface finishes.

OSP vs ENIG (Electroless Nickel Immersion Gold)

1. Cost
   One of the most significant differences between OSP substrate and ENIG is the cost. OSP is generally much more affordable compared to ENIG, which involves multiple steps such as nickel deposition and gold plating. The complex nature of the ENIG process makes it a more expensive choice, especially for high-volume production. OSP substrate, on the other hand, is a simpler and less expensive surface finish, making it an attractive option for manufacturers looking to reduce costs without compromising too much on soldering quality.
2. Reliability
   ENIG is known for its high reliability, especially in demanding applications where durability and long-term performance are critical. ENIG provides excellent corrosion resistance, enhanced conductivity, and superior flatness, making it ideal for high-frequency and high-performance PCBs. OSP substrate, while reliable, offers a more temporary protection and is more prone to damage or degradation over time, especially if exposed to moisture or improper storage conditions. Thus, OSP substrate may not be suitable for highly demanding, long-lasting, or mission-critical applications, such as high-frequency or high-performance PCBs.
3. Application Scope
   ENIG is widely used in high-performance applications such as telecommunications, aerospace, and medical devices, where reliable long-term performance is required. OSP is suitable for less critical applications, including consumer electronics, automotive, and standard PCBs, where cost-effectiveness and good solderability are more important than long-term durability.
4. Advantages of ENIG
   ENIG is particularly beneficial for high-frequency and high-performance PCBs due to its excellent soldering characteristics, high conductivity, and stability in harsh environments. It provides a smooth and flat surface for precise soldering, which is crucial for fine-pitch components in high-speed circuits. Additionally, the gold layer provides good resistance to corrosion, enhancing the board’s overall longevity and performance.

OSP vs HASL (Hot Air Solder Leveling)

1. Durability
   HASL provides a more robust and durable surface compared to OSP substrate. The HASL process involves applying a layer of molten solder to the PCB, which is then leveled using hot air. This results in a relatively thick coating that provides mechanical protection. In contrast, OSP substrate is a thin organic layer that can easily be damaged or scratched, reducing its ability to protect the PCB during handling and assembly. As a result, HASL is generally considered more durable, especially for PCBs that may undergo rough handling during assembly.
2. Eco-friendliness
   OSP substrate holds a clear advantage over HASL in terms of eco-friendliness. HASL uses lead-based solder in many cases, which raises environmental concerns and violates certain industry standards such as RoHS (Restriction of Hazardous Substances). OSP, however, is an organic, non-toxic coating that is free of harmful materials like lead, making it a more environmentally friendly choice. This eco-friendly aspect of OSP substrate is an important factor for manufacturers focused on sustainability and compliance with environmental regulations.
3. Solderability
   In terms of solderability, OSP substrate offers excellent performance for most standard PCBs. However, HASL can offer slightly better soldering results for certain components due to the thicker solder coating, which can be advantageous in certain applications that involve larger components or higher thermal demands. OSP substrate tends to offer better results for fine-pitch and smaller components, as it provides a cleaner and more consistent copper surface without the need for a thick solder layer.

OSP vs Immersion Silver/Gold

1. Performance in Various Applications
   When comparing OSP substrate with immersion silver or immersion gold, the primary difference lies in performance, particularly in demanding applications. Immersion silver and immersion gold finishes provide superior corrosion resistance and are more durable compared to OSP substrate. These finishes offer excellent flatness and smoothness, which are especially critical in high-performance applications like RF (radio frequency) circuits, telecommunications, and fine-pitch component soldering.
2. Cost and Durability
   Both immersion silver and immersion gold are more expensive than OSP substrate. Immersion silver involves the deposition of a thin layer of silver onto the copper, while immersion gold involves both nickel and gold plating. These processes are more complex and costlier than the organic treatment used for OSP. However, they provide more durable and long-lasting finishes, especially in applications where the PCB will be exposed to harsh conditions or where long-term reliability is required. OSP substrate, on the other hand, offers a more cost-effective solution, though it lacks the durability of silver or gold finishes.
3. Use Cases
   Immersion silver is often used in high-speed or high-frequency applications because it provides a low-resistance surface, which is important for high-performance circuits. Immersion gold is also used in precision and high-reliability applications where long-term stability and corrosion resistance are essential. While OSP substrate offers good solderability, it is generally not recommended for these high-demand environments where immersion silver or gold would be more effective.

OSP substrate offers a cost-effective, eco-friendly solution with excellent solderability for many standard PCB applications. However, when compared to other finishes like ENIG, HASL, and immersion silver/gold, OSP substrate may not provide the same level of durability, performance, or long-term reliability required for more demanding, high-frequency, or high-performance applications. Understanding the trade-offs between these finishes is crucial for selecting the right surface finish based on the specific needs of the PCB design and its intended application.

Common Issues and Challenges with OSP Substrate Surface Finish

While OSP substrate provides a cost-effective and eco-friendly solution for PCB surface finish, there are several challenges and issues that manufacturers may face during production, storage, and assembly. Addressing these common problems is essential to ensuring the quality and reliability of PCBs using OSP substrate. Below, we explore some of the primary issues associated with OSP substrate and provide solutions to mitigate them.

Surface Protection Issues

One of the most common challenges with OSP substrate is film damage, which can occur during storage, transportation, or even assembly. The thin organic coating of OSP is susceptible to physical damage, particularly when exposed to rough handling or environmental factors. The OSP finish can be easily scratched or worn away, compromising its protective properties and potentially affecting the solderability of the PCB.

Possible Issues:

• Scratching and Abrasion: During handling, the OSP coating can be scratched, exposing the copper beneath, which leads to oxidation and poor soldering.
• Moisture Sensitivity: OSP substrate is sensitive to moisture. If the PCB is exposed to humidity, the protective layer can degrade, leading to oxidation of the copper and impaired solderability.

Solutions:

• Moisture-Proof Packaging: To prevent moisture exposure and damage, PCBs with OSP substrate should be packaged in moisture-proof or vacuum-sealed bags. Desiccants and humidity indicators can also be included in packaging to maintain low humidity levels.
• Proper Handling and Storage: PCBs should be stored in controlled environments where temperature and humidity are regulated. Handling should be done carefully to avoid physical damage to the OSP layer, and workers should be trained in best practices to minimize damage risks during transportation and assembly.

Solderability Issues

While OSP substrate is known for its good solderability, problems can arise during the soldering process, leading to poor solder joint quality. Several factors can affect soldering performance, and troubleshooting these issues is critical to maintaining the reliability of the PCB.

Possible Issues:

• Poor Solder Joint Formation: Inconsistent soldering or cold solder joints can occur if the OSP layer is not uniform or if it degrades during storage. This can result in poor electrical connections and component failure.
• Solder Bridges or Voids: If the OSP coating is too thick or uneven, it may lead to solder bridges or voids in the solder joints. Inadequate cleaning before soldering can also cause flux residues to interfere with the soldering process.

Solutions:

• Proper Pre-solder Cleaning: Ensure that the PCB is thoroughly cleaned before the soldering process to remove any flux residues, oils, or contaminants that could interfere with solder joint formation. This is particularly important for OSP substrate, as residues can prevent the organic coating from bonding properly with the solder.
• Soldering Process Control: Use proper soldering techniques, such as maintaining the correct soldering temperature and time, to ensure the OSP coating remains intact. Overheating can degrade the organic coating, while insufficient heating may result in poor joint formation.
• Testing and Inspection: Perform regular solderability testing to check the quality of solder joints on OSP substrate-treated PCBs. Soldering inspection techniques like X-ray imaging or visual inspection can identify poor joints, solder bridges, and voids that need to be addressed.

Quality Control

Ensuring consistent quality and stability in OSP substrate-treated PCBs is essential for reliable performance. Due to the delicate nature of the OSP coating, manufacturers must employ rigorous quality control methods to monitor and verify the integrity of the coating and ensure uniformity throughout the production process.

Possible Issues:

• Inconsistent Coating Thickness: Variation in coating thickness can lead to areas that are either underprotected or overly coated. This inconsistency can affect solderability and reliability.
• Degradation Over Time: The OSP layer can degrade over time if not handled or stored properly, leading to a loss of its protective and solderable properties.

Solutions:

• Inspection Methods: Implement regular visual inspections and automated optical inspections (AOI) to check the consistency of the OSP coating. This can help detect areas where the OSP layer may be too thin or missing altogether.
• Solderability Testing: Conduct solderability testing to evaluate the effectiveness of the OSP coating. Common tests include wetting balance testing and solder dip tests, which help determine the soldering performance of the PCB and whether the OSP layer is still intact.
• Environmental Monitoring: To prevent OSP degradation, maintain a controlled storage environment with proper temperature and humidity levels. Regularly monitor environmental factors to ensure that moisture levels do not exceed acceptable limits, as high humidity can cause the OSP layer to break down and expose copper to oxidation.

While OSP substrate offers numerous benefits, such as cost-effectiveness and eco-friendliness, manufacturers must be mindful of the potential issues related to surface protection, solderability, and quality control. By implementing proper storage, handling, and testing procedures, and ensuring that the OSP coating is applied consistently, manufacturers can overcome these challenges and ensure that OSP substrate-finished PCBs meet the required performance standards.

Applications of OSP Substrate in Modern PCBs

OSP substrate has become an integral part of modern PCB manufacturing, offering a reliable and cost-effective solution for various applications. Its unique properties, including excellent solderability, eco-friendliness, and versatility, make it suitable for a wide range of industries. Below, we will explore the key applications of OSP substrate in different sectors, highlighting its impact on the performance and reliability of PCBs in consumer electronics, automotive electronics, and communication and networking equipment.

In Consumer Electronics

OSP substrate plays a crucial role in improving the performance and reliability of PCBs in a wide range of consumer electronics, including smartphones, laptops, tablets, and other portable devices. These electronic products require high-density interconnects and efficient performance, where soldering quality is of utmost importance. The OSP substrate surface finish ensures that PCBs maintain excellent solderability, leading to stable electrical connections and enhancing overall product reliability.

Key Benefits in Consumer Electronics:

• Enhanced Soldering Quality: The organic solderability preservative (OSP) finish prevents copper oxidation, ensuring that solder joints remain robust and reliable even in small, complex PCB designs.
• Cost-Effective: Compared to other surface finishes like ENIG or gold plating, OSP is a more affordable solution, which makes it ideal for high-volume manufacturing of consumer electronics, where cost control is essential.
• Compact Designs: OSP substrate supports fine-pitch components and high-density boards that are common in consumer electronics, ensuring a high level of precision and reliability in miniaturized devices.

In Automotive Electronics

The automotive electronics industry relies on OSP substrate to ensure PCBs in vehicles are durable and can withstand high temperatures, vibrations, moisture, and other stresses, providing strong protection and excellent solderability.

Key Benefits in Automotive Electronics:

• Improved Durability: The OSP finish on PCBs used in automotive applications helps resist corrosion and oxidation, which is crucial in maintaining long-term reliability under demanding conditions.
• Moisture Resistance: Since OSP substrate coatings are designed to protect copper from moisture and oxidation, they offer enhanced resistance to the environmental factors that automotive electronics often encounter, such as humidity and extreme temperatures.
• Cost-Effective Solution: The automotive industry often requires large quantities of PCBs for a range of components, from engine control units to infotainment systems. OSP’s cost-effectiveness makes it a popular choice for these applications without compromising on quality and performance.

In Communication and Networking Equipment

In the communication and networking sectors, PCBs with OSP substrate finishes are crucial for ensuring high performance and reliability in devices such as routers, servers, smartphones, and communication infrastructure equipment. These devices demand PCBs that can perform efficiently at high frequencies while maintaining stable connections over time.

Key Benefits in Communication and Networking Equipment:

• High-Frequency Performance: Communication devices, especially those used in networking and high-speed data transmission, require PCBs that support high-frequency signals. OSP substrate provides a smooth and stable surface that helps minimize signal loss and interference, enhancing the overall performance of communication systems.
• Reliability in Critical Applications: For networking equipment, reliability is key, as any failure can result in significant disruptions. OSP substrate enhances solder joint quality, ensuring that connections remain intact over long periods and in high-performance environments.
• Energy Efficiency: With growing demand for energy-efficient equipment in the telecommunications industry, OSP finish provides a lower-cost and lower-energy solution compared to more expensive surface finishes. This makes it a preferred choice for eco-conscious companies looking to optimize their production processes.

OSP substrate is a versatile surface finish widely used in consumer electronics, automotive electronics, and communication equipment. Its excellent solderability, environmental protection, and cost efficiency make it a preferred choice for PCB manufacturers. As technology evolves, OSP substrate continues to play a key role in enhancing the reliability and performance of modern electronic devices.

Future Trends and Technological Developments in OSP Substrate

The OSP substrate technology has come a long way since its inception, offering numerous benefits for PCB manufacturers, such as cost-effectiveness, eco-friendliness, and reliable soldering properties. However, as the electronics industry evolves, so do the demands placed on surface finishes. In this section, we will explore the future trends and technological advancements in OSP substrate technology, challenges faced in high-frequency applications, and the market outlook for OSP substrate in the global PCB industry.

Advancements in OSP Technology

The future of OSP substrate technology lies in continuous research and development aimed at improving its performance, durability, and environmental impact. As electronic devices become more compact, efficient, and complex, the need for more robust and reliable surface finishes has grown. Research is focusing on several key areas to enhance OSP substrate technologies:

Key Areas of Development:

• Durability Improvements: One of the primary challenges with OSP substrate is its relatively fragile protective layer. Researchers are working on creating more durable organic coatings that can better withstand mechanical stress, such as bending or impact during handling, storage, and assembly. New materials and advanced curing techniques are being explored to develop OSP substrate finishes that offer better protection against wear and oxidation without compromising solderability.
• Eco-friendly Coatings: As environmental standards continue to tighten, particularly with regulations such as RoHS (Restriction of Hazardous Substances), the demand for sustainable and eco-friendly processes has increased. In the future, we can expect to see OSP substrate finishes that use fewer harmful chemicals, rely on renewable resources, and have a lower environmental footprint. New formulations may include bio-based compounds that replace more toxic substances, enhancing sustainability while maintaining performance.
• Enhanced Performance for Advanced Applications: For high-end applications like 5G, IoT, and advanced consumer electronics, OSP substrate technology is being adapted to handle the specific challenges these technologies present. Research into surface finishes that can support increasingly fine-pitch components and higher-density boards is critical, as these are essential for next-generation electronic devices.

Challenges in High-Frequency Applications

While OSP substrate offers excellent solderability and cost efficiency, its performance in high-frequency and high-speed PCB applications faces some limitations. The high-speed electronics used in fields like telecommunications, automotive radar systems, and military electronics require surface finishes that can maintain signal integrity at higher frequencies.

Key Challenges:

• Signal Integrity: At high frequencies, even small imperfections in the PCB surface can lead to signal loss, reflection, and interference. The organic material in OSP substrate may not always provide the best performance for maintaining the integrity of high-frequency signals, especially in high-speed circuits where even slight signal degradation can cause performance issues.
• Limited Thermal and Electrical Conductivity: Being organic, OSP substrate coatings have lower thermal and electrical conductivity than gold or nickel finishes, which can be a disadvantage in high-frequency or high-power electronics where heat dissipation and signal transmission are crucial.

Technological Advancements: To address these challenges, several advancements are being researched:

• Hybrid Surface Finishes: Some manufacturers are exploring hybrid finishes that combine the benefits of OSP substrate with other finishes like ENIG (Electroless Nickel Immersion Gold) to improve performance in high-frequency applications. These hybrid finishes could offer the best of both worlds: cost-effective, eco-friendly coatings with enhanced conductivity and signal integrity.
• New Organic Coating Materials: Advancements in polymer chemistry are paving the way for the development of more effective organic coatings that can provide higher electrical and thermal performance, specifically designed for high-frequency circuits. These next-generation coatings could potentially improve the ability of OSP substrate to function in environments with high-speed signals and elevated thermal loads.

Market Outlook

The global PCB market is growing rapidly, driven by rising demand for electronic devices across various industries. OSP substrate remains a popular choice for manufacturers due to its cost-effectiveness, eco-friendliness, and reliable performance in standard applications.

Expected Growth of OSP Substrate:

• Widespread Adoption in Consumer Electronics: The miniaturization of consumer electronics, including smartphones, wearables, and IoT devices, will drive increased demand for OSP substrate. As consumers seek more compact and efficient devices, manufacturers will turn to OSP substrate for its ability to support complex, high-density PCB designs affordably.
• Growth in Automotive and Industrial Electronics: The growing adoption of electronic systems in automotive and industrial applications, particularly with the rise of electric vehicles (EVs), autonomous driving technologies, and Industry 4.0, will likely increase demand for OSP substrate-treated PCBs. These industries prioritize reliability and durability, areas where OSP substrate technology continues to improve.
• Technological Developments in Communications: As 5G and advanced communication technologies grow, the demand for high-performance PCBs will rise. Despite challenges in high-frequency applications, ongoing research and hybrid finishes may sustain OSP substrate’s use in next-gen communication equipment.

Future Trends:

• Diversification of Applications: As OSP substrate technology advances, its application range is expected to broaden. From high-end consumer electronics to emerging fields like quantum computing and wearable tech, OSP substrate will likely evolve to meet the specialized needs of these sectors.
• Competitive Pricing with High-Performance Options: As competition in the PCB market intensifies, OSP substrate is expected to remain an affordable yet high-performing option for many applications. Its role in low-cost, high-volume production will continue to be a key factor driving its growth.

The future of OSP substrate involves advancements to enhance durability, high-frequency performance, and environmental sustainability. As demand for smaller, faster, and more reliable electronics increases, OSP substrate will remain crucial, offering an affordable and eco-friendly surface finish for the PCB industry.

FQAs Abut OSP Substrate

What is OSP Substrate?

OSP substrate is a PCB surface finish that uses Organic Solderability Preservative (OSP) as a protective coating for copper traces, preventing oxidation and ensuring good solderability. It is an eco-friendly, cost-effective alternative to finishes like ENIG or HASL.

What is OSP Material?

OSP material refers to the organic compounds used in the OSP substrate process. These materials are typically organic acids or organic chemicals that create a thin protective coating over copper traces. The OSP material forms a chemical bond with the copper, protecting it from oxidation and ensuring that the copper remains solderable for assembly processes. OSP materials are chosen for their ability to provide excellent solderability, low environmental impact, and cost-effectiveness.

What Does OSP Mean in Manufacturing?

In manufacturing, OSP stands for Organic Solderability Preservative, a surface finish used in PCB production. OSP helps preserve the solderability of copper pads on a PCB by preventing oxidation during storage and handling. It is applied as a thin organic coating that acts as a protective layer for the copper, ensuring high-quality solder joints and preventing the degradation of electrical performance due to oxidation. OSP is commonly used for PCBs where a simple and environmentally friendly finish is required.

What is the Composition of OSP Finish?

The composition of the OSP finish typically consists of organic compounds, including:

• Organic acids: These acids bond with copper to form a protective organic layer that prevents oxidation.
• Other chemical additives: These may include stabilizers or accelerators to enhance the protective effect of the coating and ensure uniformity. The finish is a thin, transparent layer that coats the copper surface, offering protection without the need for more complex or costly finishes like gold plating or nickel. The key benefit of OSP finishes is that they are environmentally friendly, as they do not use harmful chemicals like lead or cadmium.
