Narrow Circuit Substrates
Customized narrow-width substrates for compact electronic assemblies and space-limited designs.

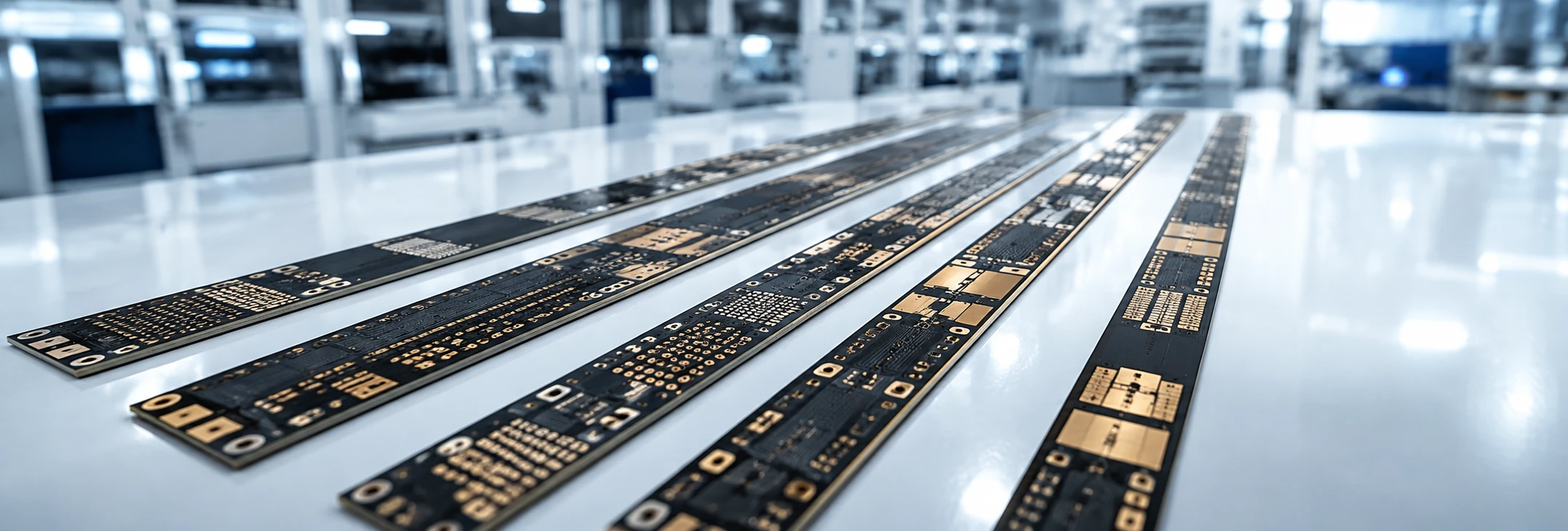

Long & Narrow Substrates
Elongated substrate structures developed according to customer dimensions, routing requirements and assembly conditions.
Multi-Material Narrow Substrates
Narrow-format structures can be evaluated using organic, ceramic, glass, metal-based and other customer-specified materials.
Custom Narrow-Format Substrates
Application-specific substrates developed according to drawings, dimensions, material requirements and manufacturing conditions.
Narrow-Format Substrates for Space-Constrained Designs
Electronic products with limited installation space often require substrate dimensions that cannot be accommodated by conventional panel or board formats.
ALCANTA develops customized narrow-format substrates according to the required width, length, thickness, material system, circuit structure and application environment.
Engineering evaluation can include:
✓ Customized width and length
✓ Long and narrow geometries
✓ Multiple substrate materials
✓ Fine circuit structures
✓ Special thickness requirements
✓ Application-specific manufacturing support
Narrow-Format Substrate Solutions
Compact Substrate Geometry
Narrow circuit substrates are developed for applications where available installation width is limited.
Substrate width, circuit layout and material selection can be evaluated together to achieve the required mechanical and electrical performance.
Typical Applications
- Sensors
- Compact Electronic Modules
- Lighting Electronics
- Industrial Devices
Narrow-Format Substrate Manufacturing Capability
| Item | Capability |
|---|---|
| Substrate Width | Customized According to Design |
| Substrate Length | Project-Specific |
| Aspect Ratio | Evaluated According to Geometry |
| Material | Organic, Glass, Ceramic, Metal-Based & Customer-Specified |
| Layer Structure | Customized |
| Substrate Thickness | Project-Specific |
| Circuit Features | Evaluated According to Material & Design |
| Hole / Via Structure | Project-Specific |
| Surface Finish | Selected According to Application |
| Special Geometry | Available for Engineering Review |
Narrow-format substrate capability cannot be defined by width alone.
Manufacturing feasibility depends on the combined relationship between material, substrate thickness, width-to-length ratio, circuit structure, dimensional tolerance and processing requirements.
Final specifications are confirmed through project-specific engineering review.

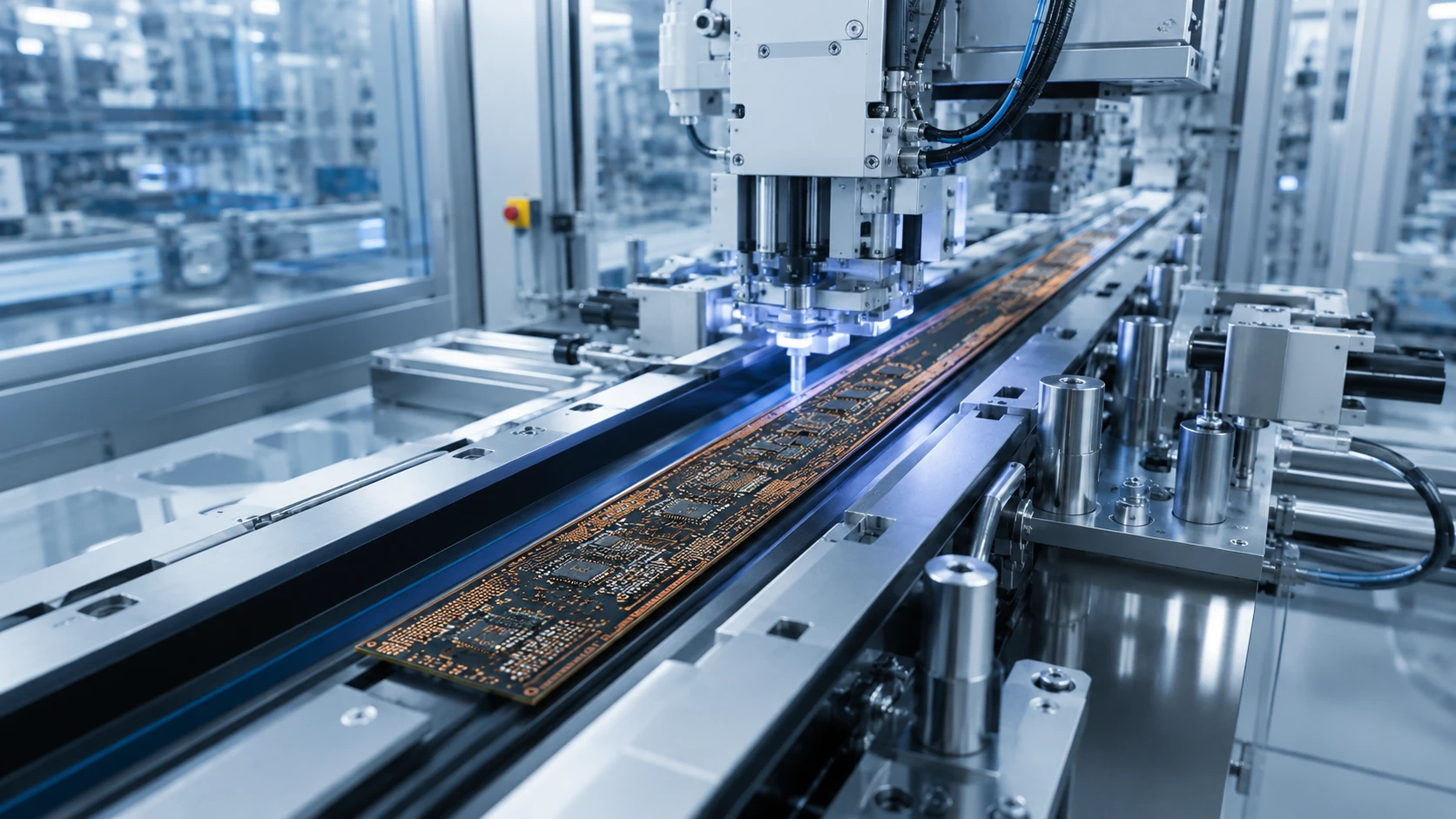

From Design Review to Production
Engineering Review
We review dimensions, materials, structure and key manufacturing requirements to confirm project feasibility.
Prototype Validation
Prototype production helps verify dimensions, structure and process feasibility before repeat production.
Volume Production
Validated designs move into repeat or volume production with defined process and quality controls.
Frequently Asked Questions About Narrow-Format Substrate
What is a Narrow-Format Substrate?
A Narrow-Format Substrate is a substrate designed with a reduced width or elongated geometry for applications where conventional substrate dimensions are not suitable.
Dimensions are normally customized according to the available installation space and application requirements.
What is the minimum width available?
There is no single standard minimum width.
The achievable width depends on the substrate material, length, thickness, circuit structure, dimensional tolerance and manufacturing requirements.
Customers can submit drawings for engineering evaluation.
Can you manufacture long and narrow substrates?
Yes.
ALCANTA can evaluate long and narrow substrate structures according to the required dimensions, material system, thickness and circuit design.
What materials can be used?
Depending on the application, ALCANTA can evaluate:
- BT
- ABF
- FR-4
- Polyimide
- Glass
- Ceramic
- Metal-Based Materials
- High-Frequency Materials
- Customer-Specified Materials
Final material selection depends on electrical, thermal, mechanical and manufacturing requirements.
Can the substrate thickness be customized?
Yes.
Thickness can be evaluated according to the selected material, substrate dimensions, mechanical requirements and application conditions.
Can you manufacture fine-line narrow substrates?
Yes.
Fine circuit structures can be evaluated according to the selected material, copper structure, substrate geometry and overall design.
Final capability is confirmed through engineering review.
Do you support non-standard substrate dimensions?
Yes.
Non-standard widths, lengths, aspect ratios and special geometries are a key part of ALCANTA’s narrow-format substrate development capability.
Can you evaluate customer-specified materials?
Yes.
Customer-specified materials can be evaluated according to technical data sheets, samples, drawings and application requirements.
What files should I provide?
For engineering review and quotation, we recommend providing:
- Gerber or ODB++ files
- Mechanical drawing
- Required width and length
- Substrate thickness
- Material requirement
- Layer structure
- Minimum line / space
- Hole or via requirements
- Surface finish
- Dimensional tolerances
- Prototype or production quantity
