Key Considerations in High Frequency PCB Design Guidelines

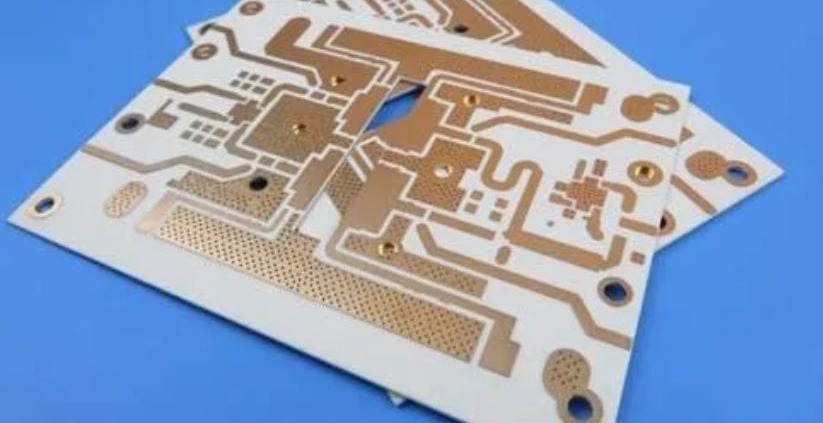

High-frequency PCB design refers to the process of creating printed circuit boards for circuits that operate at frequencies above 1 GHz, critical in applications such as RF (Radio Frequency), wireless communication, and signal processing. These PCBs are essential for devices that require fast signal transmission and high-speed data processing, ensuring minimal signal loss and interference. The importance of high-frequency PCBs lies in their ability to handle complex, high-speed signals efficiently, as seen in smartphones, wireless routers, and radar systems. However, designing these PCBs presents several challenges, including managing electromagnetic interference (EMI), minimizing signal degradation, and controlling thermal dissipation. Following high frequency PCB design guidelines is crucial to address these issues, ensuring optimal performance and reliability in modern electronic systems.

Table of Contents

Key Design Considerations in High-Frequency PCB Design Guidelines

When designing high-frequency PCBs, several key factors must be carefully considered to ensure optimal performance. Adhering to high frequency PCB design guidelines is crucial to address these challenges and deliver high-quality, reliable products.

Signal Integrity and Quality

Signal integrity is paramount in high-frequency PCB design. At high frequencies, signals are more susceptible to distortion, reflections, and loss due to factors like trace impedance mismatch, crosstalk, and interference from other components. To maintain signal quality, it is essential to ensure that signal traces are properly designed with controlled impedance and that ground planes are solid and continuous. Techniques such as careful trace routing, minimizing the length of signal paths, and using proper termination resistors can help reduce signal degradation and preserve signal integrity throughout the PCB.

Electromagnetic Interference (EMI) and Electromagnetic Compatibility (EMC)

Electromagnetic interference (EMI) and electromagnetic compatibility (EMC) are significant concerns when designing high-frequency PCBs. EMI occurs when high-frequency signals generate unwanted electromagnetic radiation that interferes with nearby circuits or systems. To mitigate EMI, designers need to focus on minimizing noise coupling through careful routing, shielding, and proper grounding. Additionally, EMC must be maintained by ensuring the PCB does not emit harmful interference that could affect surrounding devices. Shielding methods, such as using metal enclosures or adding ground layers, help confine EMI and improve the EMC of the PCB.

Thermal Management in High-Frequency Circuits

Thermal management is a critical aspect of high-frequency PCB design. High-frequency circuits can generate significant amounts of heat, which can negatively impact the performance and reliability of components. Effective thermal management techniques, such as using thermal vias to dissipate heat, adding heat sinks, and designing for proper airflow, are vital in high-frequency designs. Following high frequency PCB design guidelines ensures that heat is efficiently managed, preventing overheating and ensuring the longevity of the PCB. It’s important to carefully assess the thermal requirements of each component and the overall design to optimize heat dissipation throughout the circuit.

High-Frequency PCB Design Guidelines: PCB Layout Best Practices for High-Frequency Designs

Effective PCB layout is critical in ensuring that high-frequency designs operate with optimal performance and minimal interference. Adhering to high frequency PCB design guidelines allows designers to address the challenges associated with signal integrity, noise, and electromagnetic compatibility (EMC). Below are some of the key PCB layout considerations that need to be carefully implemented in high-frequency designs.

High-Frequency PCB Design Guidelines: Trace Width and Spacing Considerations

The trace width and spacing are crucial parameters in high-frequency PCB designs. These factors influence the signal integrity and the ability of the PCB to handle high-frequency signals without distortion or loss. Trace width must be carefully selected based on the desired impedance for the signal trace, as the width directly affects the resistance and inductance of the trace. Spacing between traces is equally important, as too small a gap can result in cross-talk, where signals from adjacent traces interfere with one another, leading to noise and degraded performance.

A widely used design rule in high-frequency PCB layout is the 3W rule, which suggests that the trace spacing should be at least three times the width of the trace to minimize interference. Following the high frequency PCB design guidelines, it’s crucial to use precise trace width calculations to ensure that signal paths maintain controlled impedance, especially in high-speed and RF applications.

High Frequency PCB Design Guidelines: The Role of Ground Planes

Ground planes are an essential part of high-frequency PCB design. A solid, uninterrupted ground plane provides a stable reference for the signals and helps minimize noise and ground bounce. Ground planes effectively shield the high-frequency traces from external electromagnetic interference (EMI) and reduce the potential for crosstalk between adjacent signal traces.

In high-frequency designs, it’s also important to implement via stitching to connect the ground planes and reduce inductance. Via stitching involves placing vias at regular intervals between ground layers to create a low-impedance path to the ground, ensuring effective noise suppression and grounding stability. This practice, which follows high frequency PCB design guidelines, is crucial for ensuring that high-frequency signals return to the ground without interference.

High-Frequency PCB Design Guidelines: Controlled Impedance and Its Importance

Controlled impedance is vital in high-frequency PCB designs to ensure that signals travel through the PCB without reflections or signal degradation. Impedance mismatches can lead to signal integrity issues, especially at high speeds. Designers must ensure that the impedance of signal traces is consistent across the entire PCB layout.

To achieve controlled impedance, designers must carefully calculate the characteristic impedance of signal traces. Different types of signal traces, such as microstrip and stripline, require specific design considerations. For example, microstrip traces have an impedance determined by their width, the height of the PCB, and the dielectric constant of the PCB material. Following high frequency PCB design guidelines, using simulation tools can help optimize impedance calculations and ensure that the signal integrity is maintained throughout the design.

Via Types in High-Frequency PCB Design Guidelines

Vias are essential for connecting different layers of a high-frequency PCB, but their type and placement can impact the performance of high-speed signals. There are two main types of vias to consider: via-in-pad and via-over-pad. In high-frequency designs, via-in-pad is typically avoided as it can cause signal degradation and high inductance, leading to increased signal reflections. Instead, via-over-pad is preferred for better signal integrity, as it ensures a cleaner, more stable electrical path.

To minimize the effects of vias, high frequency PCB design guidelines recommend the careful placement and design of vias, ensuring that they are used efficiently and in conjunction with proper routing strategies. Excessive use of vias can introduce unwanted inductance, so it is essential to place vias strategically and minimize their use where possible.

By incorporating these layout principles—trace width and spacing, solid ground planes, controlled impedance, and carefully managed via types—high-frequency PCB designers can create boards that minimize signal loss, reduce interference, and maintain high levels of performance.

Thermal Design in High-Frequency PCB Design Guidelines

Thermal management is a critical factor in high-frequency PCB design, as high-speed circuits often generate significant amounts of heat. If not managed properly, this heat can cause components to fail, reduce the reliability of the PCB, and degrade overall performance. Following high frequency PCB design guidelines ensures that thermal issues are addressed early in the design process, preventing overheating and ensuring the longevity and efficiency of the circuit.

Managing Heat in High-Frequency Circuits

High-frequency circuits generate heat due to the high-speed operation of components, such as processors, power amplifiers, and RF circuits. This heat can accumulate quickly in tightly packed PCBs, leading to thermal hotspots that can affect component performance and cause thermal stress. Therefore, it is crucial to design the PCB with effective heat management strategies.

One effective way to manage heat is by distributing heat more evenly across the PCB. Designers can achieve this by ensuring that high-power components are placed strategically with proper spacing to allow for better airflow and heat dissipation. Following high frequency PCB design guidelines, designers should also take into account the thermal characteristics of each component and utilize materials with better thermal conductivity to facilitate heat flow away from sensitive areas.

Thermal Vias and Their Role in Heat Dissipation

Thermal vias play an essential role in transferring heat from the PCB’s surface to internal or external layers. These vias allow heat to travel vertically through the PCB, helping dissipate the heat generated by high-power components. By connecting the top or bottom layer of the PCB to the internal layers with thermal vias, designers can effectively spread the heat across the board, preventing overheating in concentrated areas.

The placement and size of thermal vias are critical to their effectiveness. Thermal vias should be placed directly under or near heat-sensitive components, and their size should be optimized based on the amount of heat that needs to be dissipated. Following high frequency PCB design guidelines, it’s essential to ensure that the vias are properly sized and positioned to maximize their thermal conductivity without compromising the structural integrity of the PCB or the routing of other signals.

Use of Heat Sinks and Proper Layout to Prevent Thermal Issues

In addition to thermal vias, heat sinks are commonly used to further improve heat dissipation. Heat sinks are typically attached to high-power components or areas with significant heat buildup, such as voltage regulators or power amplifiers. These devices help by increasing the surface area available for heat dissipation and improving airflow around the component.

Proper layout is another essential aspect of preventing thermal issues. The arrangement of components should prioritize keeping heat-sensitive parts away from high-heat-generating components. By following high frequency PCB design guidelines, designers should ensure that components generating significant heat are not placed too close to each other, allowing sufficient space for thermal management solutions like heat sinks and thermal vias. Additionally, careful consideration of the PCB’s layer stack-up can ensure that heat can be conducted efficiently to external layers or heat-dissipating surfaces.

By effectively managing heat through these strategies—using thermal vias, heat sinks, and optimized layout—high-frequency PCB designs can achieve better thermal performance, preventing potential thermal failures and ensuring that the circuit operates at peak efficiency even under high-speed conditions.

High-Frequency PCB Design Guidelines: Designing for EMC Compliance

Designing high-frequency PCBs to meet electromagnetic compatibility (EMC) standards is essential to ensure that the device operates without causing or being susceptible to electromagnetic interference (EMI). Adhering to high frequency PCB design guidelines helps minimize EMI, prevent crosstalk between traces, and ensure that the PCB complies with EMC standards. This is particularly important in high-speed designs, where the rapid switching of signals can easily result in unwanted noise and interference.

Minimizing Noise and Crosstalk Between Traces

One of the primary challenges in high-frequency PCB design is preventing crosstalk—unwanted interference between traces—especially in dense, high-speed circuits. Crosstalk occurs when signals from one trace inductively or capacitively couple with neighboring traces, which can lead to signal degradation, data errors, and performance issues.

To minimize crosstalk, high frequency PCB design guidelines recommend several strategies:

Increasing trace spacing: Proper spacing between signal traces reduces the chance of coupling between adjacent traces.
Using ground planes: A solid, continuous ground plane beneath the signal traces provides a stable reference and helps isolate traces from one another.
Routing sensitive signals away from noisy traces: By carefully planning the placement of high-speed and sensitive signals, designers can avoid placing them near noisy components or other high-frequency traces.
Differential signaling: Using differential pairs for high-speed signals reduces the likelihood of crosstalk because these pairs are inherently more resistant to noise.

Shielding Techniques for High-Frequency PCBs

Shielding is an essential technique in high-frequency PCB designs to prevent EMI from escaping and interfering with other components or circuits. Shielding helps confine electromagnetic fields within specific areas of the PCB, improving EMC performance and minimizing external interference.

There are several shielding techniques commonly used in high-frequency PCBs:

Metal Enclosures: Surrounding critical components with a metal shield or enclosure can block EMI from escaping the PCB, especially in RF circuits. This is particularly useful for shielding sensitive areas from external electromagnetic fields.
Grounded Shielding Layers: Adding additional ground planes or copper shielding layers can help contain high-frequency signals and reduce the risk of EMI. A well-connected ground shield can reflect and absorb unwanted electromagnetic waves.
Conductive Coatings and Gaskets: For more complex shielding requirements, conductive coatings or gaskets can be applied around vulnerable components or PCB areas to further enhance EMI containment.

By incorporating shielding into the PCB design, following high frequency PCB design guidelines, designers can significantly reduce the amount of EMI emitted by the circuit, improving its overall EMC performance.

Compliance with EMC Standards for High-Speed Designs

Compliance with EMC standards is essential in high-speed PCB designs, especially when the device will be used in environments regulated for electromagnetic emissions. Various standards, such as the European Union’s CE marking or the U.S. Federal Communications Commission (FCC) regulations, set limits on the amount of EMI that can be emitted by electronic devices.

To ensure compliance with these standards, designers must consider:

Proper grounding: Ensuring that the PCB has an effective grounding system to minimize noise and provide a stable reference for high-speed signals.
PCB layout and routing: Following high frequency PCB design guidelines to minimize noise generation and prevent it from radiating out of the PCB. This includes avoiding sharp corners in traces, using short and direct routing paths, and maintaining proper impedance control.
Simulating EMC performance: Utilizing simulation tools that model electromagnetic behavior helps identify potential EMC issues early in the design process. These tools can provide insight into the effects of various components and layout choices on EMI.

By integrating these practices into the design, and ensuring compliance with EMC standards, designers can build high-frequency PCBs that are not only functional but also meet the regulatory requirements for electromagnetic emissions and immunity.

Designing for EMC compliance in high-frequency PCBs involves careful management of noise, crosstalk, shielding, and adherence to standards. Following high frequency PCB design guidelines will help reduce EMI, improve signal integrity, and ensure that high-speed designs meet the necessary EMC requirements for reliable operation in diverse environments.

Component Placement and Routing in High-Frequency PCB Design Guidelines

The placement of components and the routing of high-speed signals are essential elements in designing high-frequency PCBs. Proper component placement and routing help ensure that the PCB operates efficiently, minimizing interference, and maintaining signal integrity. Following high frequency PCB design guidelines ensures that critical components are placed optimally, and high-speed signals are routed with minimal distortion, crosstalk, or signal degradation.

Placing Critical Components such as Oscillators, Power Supplies, and High-Speed ICs

In high-frequency PCB designs, careful placement of critical components—such as oscillators, power supplies, and high-speed ICs—is essential for maintaining signal integrity and preventing interference.

Oscillators: Oscillators generate clock signals, which are fundamental in high-frequency circuits. It’s crucial to place oscillators as close to the components they drive (e.g., microcontrollers or high-speed ICs) to minimize signal degradation and reduce the length of clock traces, which could introduce noise or jitter.
Power Supplies: Power supplies should be placed near the components they power to minimize the impact of voltage drops and reduce the potential for power-related noise. Power traces should be designed to handle the required current with minimal resistance and inductance. It’s important to separate noisy power supplies (such as high-frequency switching regulators) from sensitive analog circuits to prevent power-related noise from affecting signal integrity.
High-Speed ICs: High-speed ICs, such as processors or FPGAs, should be placed where they have the shortest possible routing to avoid long trace lengths that could introduce signal loss or delay. Keeping these components in close proximity to their respective input/output pins also reduces the potential for signal degradation due to trace resistance or parasitic inductance.

Following high frequency PCB design guidelines, placing these critical components with careful consideration of their roles and interaction with other components ensures that high-frequency signals are preserved, and power integrity is maintained.

Proper Routing of High-Speed Signals to Avoid Interference

Routing high-speed signals is one of the most challenging aspects of high-frequency PCB design. High-speed signals are particularly vulnerable to crosstalk and electromagnetic interference (EMI), both of which can degrade performance or cause complete system failure. To mitigate these risks, proper routing techniques must be followed.

Minimizing Coupling and Crosstalk: High-speed traces should be routed with adequate spacing to prevent coupling between them. Where possible, signals should be routed on inner layers of the PCB, with solid ground planes on both sides to shield the signals from external interference. Differential pairs should be used for high-speed signals to minimize noise and ensure that the signals remain in balance.
Avoiding Sharp Corners: Sharp corners in signal traces can lead to impedance discontinuities, causing reflections and signal integrity issues. Following high frequency PCB design guidelines, traces should be routed with smooth, gentle curves to avoid these problems.
Maintaining Consistent Impedance: It’s crucial to maintain a consistent impedance along the entire path of high-speed signals to avoid signal reflections and ensure proper signal transmission. This can be achieved by adjusting the width of the traces and ensuring that they are routed with the correct dielectric material and spacing from the ground plane.

Guidelines for Minimizing Signal Path Length and Reducing Latency

Reducing the length of signal paths and minimizing latency are critical for high-speed PCB designs. Long signal paths can introduce delays, reflections, and signal degradation, leading to performance issues, especially in high-frequency applications.

Shortening Signal Paths: To reduce latency and signal degradation, high-speed traces should be kept as short as possible. This means placing components in a way that allows for direct routing of the signals with minimal trace length. Signal traces should be routed in a way that minimizes unnecessary turns and detours. By following high frequency PCB design guidelines, designers can ensure that signal paths are kept efficient, reducing potential delays and reflections.
Layer Stack-up Considerations: The layer stack-up of the PCB should be optimized to minimize the length of the signal paths while maintaining controlled impedance and good grounding. Multi-layer boards allow for better signal routing with shorter traces and optimal separation between signal and power planes, which can help minimize latency and signal interference.

By carefully placing components and routing high-speed signals according to these principles, high frequency PCB design guidelines ensure that high-frequency PCBs maintain optimal performance. Minimizing signal path length, avoiding interference, and properly managing the placement of critical components all contribute to building a reliable, high-performance PCB that can handle the challenges of high-speed, high-frequency operation.

3H and 20H Rules in High-Frequency PCB Design Guidelines

In high-frequency PCB designs, adhering to specific spacing rules is crucial for maintaining signal integrity and minimizing interference. The 3H and 20H rules are two such design principles that guide the placement of signal traces relative to ground planes and other signals. Following high frequency PCB design guidelines ensures that these rules are properly implemented to achieve optimal performance in high-speed circuits.

What is the 3H Rule?

The 3H rule is a commonly used guideline in PCB design that addresses the spacing between signal traces and the ground or power planes. According to the 3H rule, the minimum distance between a signal trace and the nearest ground or power plane should be at least three times the height (H) of the trace above the plane.

Explanation of the 3H Rule (Distance Between Signal Traces and Ground/Power Planes)

The 3H rule ensures that the signal traces maintain a stable reference to the ground or power plane, which is essential for minimizing noise and preventing voltage fluctuations. By maintaining a minimum distance of three times the trace height, this rule helps to:

Reduce capacitive coupling: When a signal trace is too close to the ground or power plane, unwanted coupling can occur, leading to crosstalk and signal interference. The 3H rule ensures adequate spacing to reduce this risk.
Maintain controlled impedance: The distance between the signal trace and the ground plane affects the characteristic impedance of the trace. By following the 3H rule, designers can help ensure consistent impedance, which is critical for high-frequency signal transmission.
Improve signal integrity: Proper spacing between the trace and the plane minimizes the effects of noise, ensuring that the signal maintains its integrity during transmission.

In practice, adhering to the 3H rule prevents signal degradation and ensures a stable and predictable signal path, which is crucial for high-frequency designs where signal fidelity is paramount.

What is the 20H Rule?

The 20H rule pertains to the spacing between high-speed signal traces in high-frequency PCB designs. According to the 20H rule, the minimum distance between two high-speed signal traces should be at least twenty times the height (H) of the trace above the PCB’s surface.

Explanation of the 20H Rule (Spacing Between High-Speed Signals)

The 20H rule is designed to prevent crosstalk, which occurs when signals from one trace interfere with adjacent traces, especially in high-speed designs where signals are traveling at fast frequencies. By ensuring a sufficient distance between signal traces, the 20H rule helps to:

Minimize signal interference: Spacing the traces according to the 20H rule ensures that the electric fields of adjacent signals do not couple, preventing the degradation of signal integrity.
Reduce the risk of noise: In high-frequency circuits, noise from neighboring traces can corrupt signals, leading to data errors or malfunctioning of the system. The 20H rule provides enough space to prevent noise from propagating between traces.
Maintain signal quality: High-speed signals, such as those in RF or high-speed digital circuits, require clean and noise-free transmission paths. The 20H rule helps to maintain the quality of these signals by ensuring they do not interfere with each other.

Practical Examples and Application of Both Rules in High-Frequency PCB Designs

To see how these rules apply in real-world PCB designs, consider the following practical examples:

3H Rule in Power and Ground Layers: In a high-frequency PCB, power and ground planes provide a reference for signal traces. If a signal trace is placed too close to the power or ground plane, unwanted coupling may occur, affecting the performance of sensitive signals. Following the 3H rule, designers should ensure that the signal trace has a proper distance from the ground plane to minimize interference and maintain stable signal quality.
20H Rule in High-Speed Digital and RF Circuits: When designing a high-speed digital circuit, such as a high-frequency processor or FPGA, it is essential to maintain a significant distance between signal traces to avoid crosstalk. By following the 20H rule, designers can prevent the signals from interfering with one another. For example, in an RF PCB design, where multiple signal traces run in parallel, the 20H rule ensures that each trace maintains its integrity and doesn’t corrupt the other signals due to unwanted coupling.
Practical Application: Suppose a designer is working on a high-speed communication PCB that uses 100-mil wide traces. According to the 3H rule, the designer should ensure that the minimum distance between a signal trace and the ground plane is 300 mils (three times the height of the trace). For the 20H rule, the designer would ensure that the spacing between high-speed signal traces is at least 2 inches, assuming the trace height is 100 mils. These considerations help achieve optimal signal integrity and prevent crosstalk and noise.

By incorporating these rules, following high frequency PCB design guidelines, designers can significantly improve the performance of their high-frequency circuits, ensuring that signal integrity is maintained, and interference is minimized. The 3H and 20H rules are fundamental principles that guide the layout of high-frequency PCBs and are essential for achieving reliable and high-performance designs.

High-Frequency PCB Design Guidelines: Simulation and Analysis Tools for Optimal Design

In high-frequency PCB design, simulation tools play a critical role in ensuring that the design performs as expected before fabrication. These tools allow designers to model complex behaviors such as signal integrity, power integrity, and thermal effects, which are essential for high-speed circuits. Following high frequency PCB design guidelines while using simulation tools helps to identify and address potential issues early in the design process, saving time and costs while improving the overall performance of the PCB.

Importance of Using Simulation Tools for High-Frequency Design

Simulation tools are indispensable in high-frequency PCB design because they allow designers to test and validate the performance of their designs in a virtual environment before physical prototypes are made. High-frequency circuits are particularly sensitive to factors such as impedance mismatch, crosstalk, and signal degradation, which can lead to system failures if not properly addressed. Simulation tools enable designers to:

Predict signal behavior: Tools simulate the propagation of signals through traces, vias, and components to assess whether the signal maintains integrity or if it is subject to degradation due to factors such as reflections or excessive delay.
Assess power integrity: Power integrity analysis ensures that the power supply to the PCB is stable and free of noise or voltage drops, which could impact high-speed components.
Analyze thermal effects: High-frequency designs generate heat that can affect performance or even cause damage to components. Simulation tools help predict temperature distribution across the PCB and identify potential hotspots.
Optimize the design: Simulating different design iterations allows designers to tweak parameters such as trace width, spacing, and layer stack-up to optimize performance, minimize noise, and meet impedance requirements.

By following high frequency PCB design guidelines, simulation tools help designers address these challenges early, avoiding costly mistakes in the final physical design.

Overview of Commonly Used Simulation Tools

Several advanced simulation tools are commonly used in high-frequency PCB design to ensure that designs meet signal, power, and thermal requirements. Below are some of the most popular tools used in the industry:

ANSYS HFSS

ANSYS HFSS (High-Frequency Structure Simulator) is one of the leading tools for simulating high-frequency electromagnetic fields, including signal propagation, crosstalk, and impedance matching. HFSS uses finite element analysis (FEA) to simulate 3D models of PCBs and analyze the effects of various design parameters on high-frequency signals. This tool is particularly useful for:

Modeling complex structures like antennas or RF circuits.
Simulating the behavior of signals in multi-layer PCBs with intricate routing and vias.
Performing electromagnetic field analysis to predict the effects of layout on signal integrity.

Cadence Allegro

Cadence Allegro is a comprehensive PCB design suite that includes tools for signal integrity, power integrity, and electromagnetic interference (EMI) analysis. Allegro provides specialized features for high frequency PCB design guidelines, such as:

Signal integrity analysis to identify issues with reflections, crosstalk, and trace routing.
Power integrity analysis to ensure that power delivery networks (PDNs) are stable and free of noise.
Thermal analysis tools to predict heat generation and distribution across the PCB, helping to prevent overheating.

Cadence Allegro’s real-time simulation capabilities allow for continuous feedback during the design process, helping designers make informed decisions as they refine their designs.

Altium Designer

Altium Designer is a versatile PCB design tool that also offers simulation capabilities for high-frequency applications. It includes features for:

Signal integrity analysis: Altium Designer helps simulate the impact of trace layout on signal quality and identifies areas where reflections or impedance mismatch might occur.
Power integrity checks: Altium allows users to simulate power distribution and identify potential issues with voltage drops or noise that could affect high-speed components.
Thermal simulation: Altium Designer has built-in thermal analysis tools that model heat generation and dissipation, helping designers prevent thermal damage to components in high-frequency PCBs.

Altium Designer integrates both schematic capture and PCB layout into a single environment, making it easier for designers to optimize high-frequency PCB designs from start to finish.

How to Simulate Signal Integrity, Power Integrity, and Thermal Effects

Simulating different aspects of a high-frequency PCB design is crucial for ensuring its performance. Here’s how simulation tools can be used to evaluate three key factors:

Signal Integrity

Signal integrity (SI) simulation involves modeling the behavior of high-frequency signals as they travel through the PCB traces. Using tools like ANSYS HFSS or Cadence Allegro, designers can simulate how signals interact with traces, vias, and components, looking for:

Reflections: Reflections occur when the signal encounters an impedance mismatch, causing a portion of the signal to reflect back towards the source, which can degrade the signal quality.
Crosstalk: Simulating crosstalk helps identify unwanted coupling between traces, which can result in noise and affect signal clarity.
Rise/fall times: Simulation tools help measure how quickly signals rise and fall, ensuring that high-speed signals transition correctly without excessive delays.

By simulating these factors, designers can adjust their layout to minimize signal degradation and ensure high-fidelity signal transmission.

Power Integrity

Power integrity (PI) analysis ensures that the PCB’s power delivery network (PDN) is capable of supplying clean, stable power to high-speed components without significant noise or voltage drops. Tools like Cadence Allegro provide simulations that assess:

Voltage drops: Simulating the distribution of power across the PCB helps identify areas where voltage may drop due to resistance, which can affect component performance.
Noise levels: Power noise can be caused by switching power supplies or high-frequency components. Simulation tools help assess the impact of this noise on sensitive circuits.
Decoupling capacitors: Simulation tools also help evaluate the effectiveness of decoupling capacitors in smoothing out power fluctuations and maintaining a stable power supply.

Thermal Effects

High-frequency circuits generate heat, and managing this heat is critical to maintaining the reliability of the PCB. Thermal simulation tools like those in Altium Designer help model the heat generated by high-speed components and predict temperature distribution across the board. By simulating thermal effects, designers can:

Identify hotspots where excessive heat may accumulate, potentially damaging components or affecting performance.
Simulate the effects of different thermal management strategies, such as heat sinks, thermal vias, or copper pours, to ensure effective heat dissipation.
Optimize component placement and trace layout to prevent thermal issues.

By following high frequency PCB design guidelines, designers can simulate and address these critical factors to ensure that the final design is stable, reliable, and performs optimally in real-world conditions.

Simulation tools are essential in high-frequency PCB design. They enable designers to test and optimize their designs for signal integrity, power integrity, and thermal performance, ensuring that the final product meets the necessary specifications and operates reliably in high-speed environments. By incorporating these tools into the design process and following high frequency PCB design guidelines, designers can avoid costly mistakes and produce high-quality, high-performance PCBs.

High-Frequency PCB Design Guidelines: Common Mistakes to Avoid

Designing high-frequency PCBs requires careful attention to detail, as even small mistakes can lead to significant performance issues. Following high frequency PCB design guidelines helps ensure that designs meet the necessary standards for signal integrity, power delivery, and thermal management. However, there are several common mistakes that designers often overlook when working with high-frequency designs. Understanding and avoiding these mistakes is crucial for successful high-speed circuit design.

Overlooking Impedance Mismatch

One of the most critical aspects of high-frequency PCB design is maintaining consistent impedance throughout the entire signal path. Impedance mismatch occurs when the characteristic impedance of a trace, via, or component does not match the impedance of the transmission line, resulting in signal reflections, data loss, and overall degradation in performance. This is particularly important for high-speed signals, where even small mismatches can significantly affect signal quality.

Why Impedance Mismatch is a Problem

Impedance mismatch can cause reflections, which occur when a signal encounters a discontinuity in its transmission line, such as a change in trace width, via, or the transition between layers. These reflections travel back towards the source, distorting the original signal and causing data errors or signal degradation. In high-frequency circuits, where precise timing is essential, even a small reflection can disrupt performance.

How to Avoid Impedance Mismatch

To avoid impedance mismatch, it’s essential to:

Maintain consistent trace width: Follow high frequency PCB design guidelines to ensure that trace width remains constant and matches the calculated impedance.
Use controlled impedance routing: Implement controlled impedance traces (e.g., microstrip, stripline) to guarantee consistent impedance.
Properly design vias: Ensure vias are designed with a consistent impedance and minimal inductance to prevent reflections.

By adhering to these guidelines, designers can minimize impedance mismatches and maintain signal integrity in high-frequency circuits.

Inadequate Grounding and Poor Via Placement

Proper grounding is essential in any PCB design, but it becomes even more critical in high-frequency designs. Inadequate grounding or poor via placement can cause a range of problems, including noise, signal interference, and poor signal integrity. High-frequency circuits are particularly sensitive to the integrity of the ground plane, as any disruptions can lead to noise or improper signal reference.

Problems with Poor Grounding and Via Placement

Floating ground planes: If the ground plane is not continuous or adequately stitched, it can create unwanted impedance and signal noise, disrupting signal integrity.
Ground bounce and noise: A poorly connected ground can lead to ground bounce, where the voltage level of the ground plane fluctuates, which can affect the stability of the signal and cause errors in high-speed circuits.
Via inductance: Vias introduce inductance, which can affect high-frequency signals. Poorly placed vias or too many vias can cause signal distortion and delay, especially in high-speed designs.

How to Improve Grounding and Via Placement

Use solid ground planes: Ensure the ground plane is continuous and has minimal interruptions, especially in high-frequency designs.
Via stitching: Follow high frequency PCB design guidelines for via stitching, which involves connecting the ground plane to different layers to reduce impedance and improve signal integrity.
Strategic via placement: Place vias where they minimize inductive effects and ensure that high-frequency signals are routed with the least amount of via transitions.

By addressing grounding and via placement early in the design process, designers can prevent many common issues related to noise and signal distortion.

Not Accounting for High-Frequency Signal Loss

High-frequency signals are particularly susceptible to signal loss, which can occur due to factors such as skin effect, dielectric losses, and conductor resistance. Signal loss can lead to attenuation, where the signal weakens as it travels along the PCB traces, leading to data errors or loss of functionality in the circuit.

Understanding High-Frequency Signal Loss

At high frequencies, the current tends to flow along the surface of the conductor, a phenomenon known as the skin effect. This reduces the effective cross-sectional area of the conductor, increasing the resistance and causing signal attenuation. Additionally, the dielectric material between the trace and the ground plane can also cause signal loss if it has high loss factors.

How to Minimize Signal Loss

Choose the right materials: Select low-loss materials for the PCB, such as those with low dielectric constants and low dissipation factors, to minimize signal attenuation.
Use wider traces: Wider traces reduce the resistance, helping to mitigate the effects of the skin effect and improving signal transmission.
Optimize trace length: Keep the signal path as short as possible to reduce the distance over which the signal can degrade.
Use high-quality connectors: Ensure connectors used for high-frequency signals are rated for high-speed applications to reduce loss at the connection points.

By following high frequency PCB design guidelines, designers can optimize the signal path to minimize attenuation and maintain the strength and quality of high-frequency signals.

Avoiding these common mistakes is essential for the successful design of high-frequency PCBs. Impedance mismatch, inadequate grounding, poor via placement, and unaccounted signal loss can all lead to significant performance issues in high-speed circuits. By following high frequency PCB design guidelines, designers can ensure that their designs are robust, reliable, and perform optimally in high-frequency applications. Properly managing these aspects will help in achieving signal integrity, stable power delivery, and efficient thermal management, leading to a successful high-speed PCB design.

FQAs Abut High Frequency PCB Design Guidelines

How to Design a High-Frequency PCB?

Designing a high-frequency PCB involves a series of important steps to ensure the integrity and performance of high-speed signals. Here are the key aspects:

Signal Integrity: Ensure traces are routed in a way that maintains signal quality. This includes maintaining proper impedance and avoiding sharp corners in traces.
Grounding: Use solid and continuous ground planes to minimize noise and provide a stable reference for signals.
Thermal Management: High-frequency circuits generate heat, so ensure proper heat dissipation using thermal vias, heat sinks, and efficient PCB layout techniques.
Impedance Control: Use controlled impedance traces to ensure that signals maintain consistent characteristics as they travel through the PCB.
Via Design: Minimize via usage and carefully design them to avoid introducing excessive inductance or impedance discontinuities.
Simulation: Use simulation tools to test for signal integrity, power integrity, and thermal effects before fabrication.

By following high-frequency PCB design guidelines, designers can ensure that the board meets the required performance standards for high-speed applications.

What is the 3W Rule in PCB Design?

The 3W rule in PCB design refers to the guideline that the width of the trace should be three times the width of the spacing between the trace and the adjacent features (such as ground planes or other traces). This rule helps to ensure proper signal integrity and minimize signal degradation, especially in high-frequency designs where maintaining a consistent impedance is critical.

What is the 20H Rule in PCB Design?

The 20H rule in PCB design relates to the spacing between high-speed signal traces. According to this rule, the distance between high-speed signal traces should be at least 20 times the height (H) of the signal trace above the reference plane. This helps to reduce the likelihood of crosstalk, which is interference between adjacent signals, and maintains the overall performance of the PCB.

What is the 3H Rule in PCB Design?

The 3H rule in PCB design refers to the recommended spacing between signal traces and ground or power planes. According to this rule, the distance between signal traces and the nearest ground or power planes should be at least three times the height (H) of the trace above the reference plane. This helps prevent signal degradation and noise coupling from the power or ground planes, ensuring better signal integrity in high-frequency designs.
