Key Advantages of HDI PCB Technology for Modern Electronics

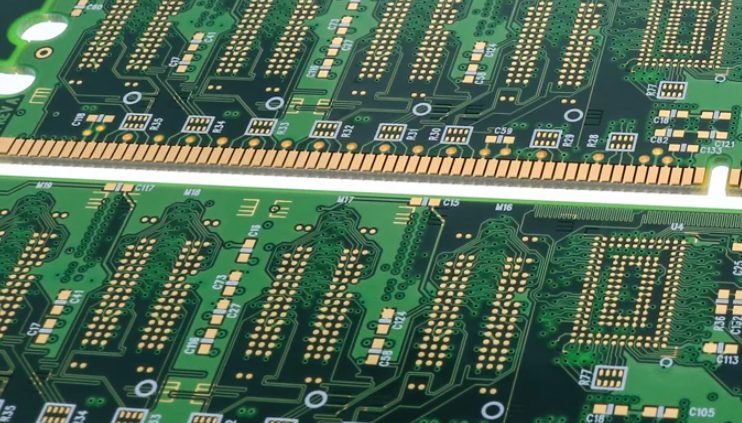

hdi pcb technology

HDI PCB technology, or High-Density Interconnect PCB technology, refers to a type of printed circuit board with a higher wiring density per unit area compared to conventional PCBs. It utilizes advanced design features such as laser-drilled microvias, blind and buried vias, and high-performance thin materials to achieve superior electrical performance and space efficiency.

The importance of high-density interconnect technology in modern electronics is significant, as it enables the development of compact, lightweight, and high-performance devices. This technology is widely used in smartphones, tablets, medical devices, aerospace systems, and automotive electronics, where miniaturization and reliability are crucial. By reducing signal loss and improving power distribution, it enhances device efficiency and functionality. As the demand for smaller and more powerful electronic products grows, this technology continues to be a key enabler of innovation in the electronics industry.

What is HDI PCB Technology?

HDI PCB technology, or High-Density Interconnect PCB technology, is an advanced circuit board design approach that enhances electrical performance and miniaturization by incorporating high-density interconnections. Unlike traditional PCBs, HDI PCBs feature finer lines and spaces, smaller vias, and higher layer densities, allowing for more compact and efficient electronic designs.

High-Density Interconnect (HDI) Explained

High-Density Interconnect (HDI) refers to the use of microvias, blind and buried vias, and sequential lamination techniques to achieve increased circuit density. These features enable higher signal integrity, reduced electromagnetic interference, and improved power distribution. As a result, HDI PCB technology is essential in applications requiring high-speed signal transmission and compact form factors, such as smartphones, medical devices, and aerospace systems.

Key Design Principles of HDI PCBs

The core design principles of HDI PCB technology include:

  • Microvias: Laser-drilled vias that enhance space utilization and improve signal routing.

  • Sequential Lamination: Layer-by-layer fabrication allowing for complex multi-layer structures.

  • Fine-Line Traces: Increased circuit density for better electrical performance and signal integrity.

Manufacturing Techniques

HDI PCB technology relies on advanced manufacturing processes to achieve high precision and reliability:

  • Laser Drilling: Creates microvias with high accuracy to connect multiple PCB layers.

  • Sequential Lamination: Uses multiple press cycles to build complex layer structures.

  • Electroless Copper Deposition: Ensures strong via connections and enhances conductivity.

Through these design principles and manufacturing techniques, HDI PCB technology continues to drive innovation in modern electronics.

Difference Between Standard PCB and HDI PCB Technology

HDI PCB technology differs significantly from standard PCB designs in terms of materials, structure, design complexity, and overall performance. As electronic devices continue to demand higher performance within smaller footprints, High-Density Interconnect PCB technology has become a crucial innovation that outperforms traditional PCBs in various aspects.

Material and Structural Differences

Standard PCBs typically use thicker materials and larger trace widths, making them suitable for simpler electronic applications. In contrast, HDI PCB technology utilizes high-performance materials such as thin dielectric layers, high-Tg laminates, and advanced copper foils to support high-density routing and signal integrity. Additionally, HDI PCBs incorporate microvias, blind vias, and buried vias, whereas standard PCBs primarily rely on through-hole vias, which require more space and limit design flexibility.

Design Complexity Comparison

HDI PCB technology enables more complex and compact circuit designs by employing fine-pitch components, reduced trace widths, and multiple lamination cycles. This technology supports multilayer structures with high interconnect density, while standard PCBs typically have fewer layers and larger spacing between traces. The advanced design techniques in High-Density Interconnect PCB technology allow for better component placement and optimized signal paths, making it ideal for high-speed electronic applications.

Performance Advantages of HDI PCBs

The primary advantage of HDI PCB technology over standard PCBs is its superior electrical performance. The use of shorter signal paths and high-density interconnections reduces signal loss, electromagnetic interference (EMI), and crosstalk. Additionally, High-Density Interconnect PCB technology enhances power distribution and thermal management, leading to improved device reliability and efficiency. These performance benefits make High-Density Interconnect PCB technology a preferred choice for applications in telecommunications, aerospace, medical electronics, and high-speed computing.

HDI PCB Technology vs. PTH PCB

HDI PCB technology and Plated Through-Hole (PTH) PCB technology represent two different approaches to printed circuit board design and manufacturing. While both have their own advantages, the choice between them depends on factors such as performance requirements, manufacturing complexity, and cost considerations. Understanding the differences between these technologies is essential for selecting the right solution for a specific application.

Through-Hole Technology (PTH) Overview

PTH technology is a traditional PCB manufacturing method that uses drilled holes plated with copper to create electrical connections between layers. Components are inserted through these holes and soldered to ensure mechanical stability and electrical conductivity. PTH PCBs are known for their robustness and are widely used in applications requiring high mechanical strength, such as industrial equipment and power electronics. However, their larger hole sizes and lower circuit density limit their suitability for miniaturized and high-speed applications.

When to Choose HDI PCB Technology Over PTH PCB

HDI PCB technology is preferred over PTH PCB when:

  • Miniaturization is required: HDI PCBs support finer trace widths and microvias, enabling compact and lightweight designs for modern electronic devices like smartphones and wearable technology.

  • High-speed signal integrity is crucial: The shorter signal paths in High-Density Interconnect PCB technology reduce signal loss, interference, and crosstalk, making it ideal for applications such as 5G communication, high-performance computing, and medical imaging systems.

  • Higher component density is needed: High-Density Interconnect PCB technology allows for the integration of more components in a smaller area, supporting complex multi-layer designs that are difficult to achieve with PTH PCBs.

Cost and Production Considerations

While PTH PCBs are generally more affordable and simpler to manufacture, HDI PCB technology involves more advanced fabrication techniques, such as laser drilling, sequential lamination, and thin dielectric materials, which increase production costs. However, the benefits of High-Density Interconnect PCB technology—such as improved performance, space savings, and enhanced reliability—often justify the higher cost for applications that demand high-density integration and superior electrical characteristics.

High-Density Interconnect PCB technology is the preferred choice for advanced electronic applications requiring high performance, miniaturization, and design flexibility, while PTH PCBs remain suitable for cost-sensitive, high-durability applications with lower circuit density requirements.

Cost Factors of HDI PCB Technology

The cost of HDI PCB technology is influenced by several factors, including manufacturing complexity, material selection, and the number of layers required for a given design. While High-Density Interconnect PCB technology offers superior performance and miniaturization benefits, it typically comes at a higher cost compared to traditional PCBs due to the advanced fabrication processes involved. Understanding these cost factors is crucial for optimizing production budgets while leveraging the advantages of High-Density Interconnect PCB technology.

Manufacturing Cost Considerations

HDI PCB technology requires sophisticated manufacturing techniques such as laser drilling for microvias, sequential lamination for multilayer interconnections, and high-precision etching for fine-pitch circuitry. These processes demand specialized equipment and highly controlled production environments, which contribute to increased manufacturing costs. Additionally, the yield rate in High-Density Interconnect PCB technology can impact overall expenses, as complex designs may lead to a higher percentage of defective boards, necessitating stricter quality control measures.

Factors Affecting the Price

Several key factors influence the pricing of HDI PCB technology, including:

  • Number of Layers: Higher-layer HDI PCBs require multiple lamination cycles, increasing production time and cost.

  • Material Selection: The use of high-Tg laminates, low-loss dielectric materials, and ultra-thin copper foils can significantly impact overall expenses.

  • Microvia and Via-in-Pad Design: The inclusion of microvias, buried vias, and via-in-pad structures adds complexity, leading to higher fabrication costs.

  • Component Density and Trace Width: Smaller trace widths and higher component densities require more precise manufacturing techniques, raising production expenses.

Cost Comparison with Traditional PCBs

Compared to conventional PCBs, HDI PCB technology typically costs more due to the use of advanced materials and processes. Standard PCBs, which rely on through-hole vias and simpler layer structures, are more cost-effective for applications with lower performance and density requirements. However, while High-Density Interconnect PCB technology involves a higher initial investment, its benefits—such as improved electrical performance, reduced form factor, and enhanced reliability—often result in lower long-term costs by reducing the need for additional components and improving overall system efficiency.

While High-Density Interconnect PCB technology carries a higher manufacturing cost, its advantages in high-performance electronics justify the investment for applications that demand miniaturization, signal integrity, and advanced functionality.

HDI PCB Manufacturing Process in HDI PCB Technology

The manufacturing process of HDI PCB technology is significantly more advanced than traditional PCB fabrication. It involves high-precision techniques such as laser drilling, sequential lamination, and microvia technology to achieve higher circuit density, improved signal integrity, and miniaturization. Due to the complexity of High-Density Interconnect PCB technology, manufacturers must implement cutting-edge processes to ensure high-quality production while addressing fabrication challenges.

Laser Drilling and Microvia Technology

One of the defining features of HDI PCB technology is the use of microvias, which are small-diameter vias (typically less than 150µm) that connect different layers of the PCB. Unlike traditional mechanical drilling, HDI PCB technology utilizes laser drilling to create these precise microvias with high accuracy.

  • Laser Drilling Advantages: This process enables the creation of extremely small via holes with better alignment and minimal thermal stress on surrounding materials.

  • Microvia Structure: HDI PCB technology often employs blind vias (connecting an outer layer to an inner layer) and buried vias (connecting internal layers) to optimize interconnect density.

  • Via-in-Pad Technology: In advanced High-Density Interconnect PCB technology, vias can be placed directly under component pads, reducing trace lengths and improving electrical performance.

Sequential Lamination Process

The sequential lamination process is a critical step in HDI PCB technology, allowing for the construction of multilayer boards with complex interconnections. Unlike traditional PCBs that are laminated all at once, HDI PCBs undergo multiple lamination cycles to build up their high-density interconnect structure.

  • Stack-Up Design: HDI PCB technology uses different stack-up configurations such as 1+N+1, 2+N+2, and Any-Layer HDI, where “N” represents the number of core layers.

  • Resin-Coated Copper Foil (RCCF): This material is often used to improve adhesion between layers and ensure strong electrical connections.

  • Sequential Build-Up (SBU) Process: New layers are added in stages, with each step involving laser drilling, copper plating, and etching to form conductive pathways.

Key Challenges and Solutions in HDI Fabrication

Due to its complexity, HDI PCB technology presents several manufacturing challenges, but advancements in fabrication techniques have provided effective solutions:

  • Challenge: Microvia Reliability – Microvias may suffer from structural weaknesses due to repeated thermal cycling.
    Solution: Manufacturers use via filling techniques (such as conductive or non-conductive epoxy) and optimize plating processes to enhance via strength.

  • Challenge: Alignment Precision – As circuit density increases, precise alignment of layers and vias becomes more difficult.
    Solution: Advanced laser direct imaging (LDI) and X-ray registration systems ensure accurate layer alignment.

  • Challenge: Higher Production Costs – The multiple lamination steps and specialized materials in HDI PCB technology increase manufacturing expenses.
    Solution: Optimizing panel utilization, refining the stack-up design, and leveraging automated fabrication can help control costs while maintaining quality.

HDI PCB technology requires state-of-the-art manufacturing techniques to produce high-density, high-performance circuit boards. Through laser drilling, sequential lamination, and advanced fabrication strategies, High-Density Interconnect PCB technology continues to drive the evolution of compact and powerful electronic devices.

Advantages and Applications of HDI PCB Technology

HDI PCB technology offers numerous advantages over traditional PCB designs, making it the preferred choice for high-performance and miniaturized electronic devices. With its ability to enhance circuit density, improve signal integrity, and optimize power distribution, High-Density Interconnect PCB technology has become a critical innovation in various industries.

Benefits of HDI PCB Technology

HDI PCB technology provides several key advantages that significantly improve the functionality and reliability of modern electronic products:

  • Size Reduction: The use of microvias, fine-line traces, and high-density routing enables more compact circuit designs. This is essential for portable and space-constrained devices such as smartphones, tablets, and wearable technology.

  • Better Performance: By shortening electrical paths, High-Density Interconnect PCB technology minimizes signal loss and improves power efficiency. The reduced parasitic capacitance and inductance enhance overall system performance.

  • Enhanced Signal Integrity: High-Density Interconnect PCB technology reduces electromagnetic interference (EMI) and crosstalk by optimizing trace layouts and interlayer connections. This is crucial for high-speed applications such as 5G communication and high-frequency computing.

  • Higher Component Density: HDI PCB technology allows for more components to be placed in a smaller area, supporting complex and multi-functional electronic systems.

  • Improved Thermal Management: The use of advanced materials and via-in-pad designs helps dissipate heat efficiently, improving reliability and longevity.

Industries Using HDI PCB Technology

Due to its superior electrical and mechanical properties, HDI PCB technology is widely adopted across multiple industries:

  • Smartphones and Consumer Electronics: Modern smartphones rely heavily on High-Density Interconnect PCB technology to accommodate high-density chips, advanced camera systems, and compact battery designs while maintaining fast processing speeds and low power consumption.

  • Medical Devices: High-Density Interconnect PCB technology enables the miniaturization of life-saving medical equipment such as pacemakers, hearing aids, and diagnostic imaging devices, ensuring high reliability and precision.

  • Aerospace and Defense: The aerospace industry benefits from High-Density Interconnect PCB technology in avionics, satellite systems, and military-grade communication equipment. The lightweight, high-performance characteristics of HDI PCBs contribute to enhanced durability and signal integrity in extreme conditions.

  • Automotive Electronics: With the rise of autonomous vehicles and electric cars, HDI PCB technology is crucial for advanced driver-assistance systems (ADAS), infotainment systems, and high-speed data processing in modern automotive electronics.

HDI PCB technology plays a pivotal role in advancing the capabilities of modern electronic devices across various industries. By offering superior performance, compact designs, and enhanced reliability, High-Density Interconnect PCB technology continues to drive innovation in the global electronics market.

Key Considerations for Designing HDI PCB Technology

Designing with HDI PCB technology requires careful planning to optimize circuit performance, signal integrity, and thermal management. Due to the high-density nature of High-Density Interconnect PCB technology, best practices for layout, via selection, and heat dissipation must be followed to ensure reliable functionality and manufacturability.

Best Practices for Layout and Routing

Effective PCB layout and routing are essential in HDI PCB technology to maximize performance while minimizing design complexities. Key best practices include:

  • Minimizing Trace Lengths: Keeping signal traces as short as possible reduces signal degradation and improves performance.

  • Utilizing Multiple Ground Planes: Dedicated ground layers help manage return paths and minimize electromagnetic interference (EMI).

  • Impedance Control: Proper trace width and spacing must be maintained to ensure controlled impedance, which is crucial for high-speed circuits.

  • Avoiding Crosstalk: Maintaining sufficient spacing between high-speed signal traces prevents unwanted signal interference.

  • Optimizing Component Placement: Placing components strategically reduces routing complexity and enhances thermal management.

Via Types in HDI PCB Technology

HDI PCB technology incorporates advanced via structures that differ from traditional through-hole vias, allowing for higher interconnect density and better electrical performance. The primary via types include:

  • Blind Vias: These vias connect an outer layer to an inner layer but do not extend through the entire board. They optimize space usage and improve signal integrity.

  • Buried Vias: Buried inside the PCB, these vias connect inner layers without reaching the outer surfaces, helping to reduce surface clutter and increase routing flexibility.

  • Microvias: These are laser-drilled vias with diameters smaller than 150µm, allowing for extremely dense circuit layouts. Microvias improve electrical performance and are a key enabler of HDI PCB technology.

  • Via-in-Pad Design: By placing microvias directly under component pads, this design technique reduces signal path lengths, minimizes parasitic capacitance, and enhances electrical performance.

Signal Integrity and Thermal Management in HDI PCB Technology

Ensuring signal integrity and effective thermal management is critical when designing with HDI PCB technology:

  • Signal Integrity:

    • Use controlled impedance routing to maintain signal integrity at high frequencies.

    • Implement differential pair routing for high-speed signals to reduce noise and interference.

    • Use shielding techniques and ground vias to further enhance signal stability.

  • Thermal Management:

    • Incorporate thermal vias to improve heat dissipation in high-power applications.

    • Use copper planes to distribute heat efficiently across the PCB.

    • Select high-Tg materials that can withstand elevated temperatures without compromising performance.

By following these design considerations, HDI PCB technology can be optimized for high-performance applications, ensuring reliability, miniaturization, and advanced signal integrity in modern electronic devices.

Future Trends in HDI PCB Technology

As the demand for smaller, faster, and more efficient electronic devices continues to grow, HDI PCB technology is evolving to meet the requirements of next-generation applications. Innovations in materials, fabrication techniques, and emerging applications are driving the future of High-Density Interconnect PCB technology, enabling higher performance, improved reliability, and enhanced miniaturization in advanced electronic systems.

Innovations in Materials and Fabrication Methods

The future of HDI PCB technology is heavily influenced by advancements in materials and manufacturing techniques. Key innovations include:

  • Advanced Substrate Materials: Traditional FR4 laminates are being replaced with high-Tg, low-loss materials such as polyimide, PTFE, and liquid crystal polymer (LCP) to enhance signal integrity and thermal performance.

  • Ultra-Thin Dielectric Layers: Next-generation High-Density Interconnect PCB technology is adopting thinner dielectric layers to support higher circuit densities and reduce signal propagation delays.

  • Embedded Components: Future designs will integrate passive and active components within the PCB layers, reducing board size and improving electrical performance.

  • Additive Manufacturing (3D Printing): Emerging 3D printing techniques are being explored for rapid prototyping and cost-effective production of complex HDI PCB structures.

  • Laser Direct Structuring (LDS): LDS technology allows for more precise and flexible PCB designs, particularly in wearable and IoT devices that require unconventional form factors.

Emerging Applications in Advanced Electronics

HDI PCB technology is playing a crucial role in enabling advancements in multiple industries, particularly as electronic systems become more compact and functionally dense. Some of the key emerging applications include:

  • 5G and Beyond: The deployment of 5G networks requires high-frequency, low-loss PCBs with superior signal integrity. HDI PCB technology is being optimized for high-speed data transmission in networking and communication infrastructure.

  • Artificial Intelligence (AI) and High-Performance Computing (HPC): AI-driven devices and data centers require ultra-fast processing speeds and high-density interconnects, making HDI PCB technology essential for AI processors, GPUs, and advanced computing systems.

  • Automotive Electronics and Autonomous Vehicles: As electric vehicles (EVs) and autonomous driving systems advance, High-Density Interconnect PCB technology is being used in radar, LiDAR, ADAS (Advanced Driver-Assistance Systems), and power management applications.

  • Flexible and Rigid-Flex PCBs: The combination of High-Density Interconnect PCB technology with flexible and rigid-flex PCB designs is expanding applications in medical devices, aerospace, and next-generation wearable technology.

  • Quantum Computing and Advanced Sensors: Future quantum computing systems and high-precision sensing devices will rely on high-density interconnects and ultra-low-latency PCB structures, making High-Density Interconnect PCB technology a key enabler.

The future of HDI PCB technology is being shaped by rapid advancements in materials, fabrication techniques, and high-performance applications. As industries continue to demand more compact, efficient, and powerful electronics, High-Density Interconnect PCB technology will play a pivotal role in driving innovation across telecommunications, computing, automotive, healthcare, and beyond.

FQAs Abut HDI PCB Technology

What is HDI PCB technology?

HDI (High-Density Interconnect) PCB technology refers to a type of printed circuit board that features higher circuit density, with more components packed into a smaller area. It uses advanced techniques like microvias (small-diameter holes), blind and buried vias, and thinner dielectric layers to enable high-performance, compact, and complex circuit designs. HDI PCBs are commonly used in applications that require miniaturization, such as smartphones, wearable devices, medical equipment, and high-speed communications.

What is the difference between PCB and HDI PCB?

The main difference between a standard PCB and HDI PCB lies in their structure and design capabilities. While traditional PCBs use through-hole vias and fewer layers, HDI PCBs incorporate advanced techniques such as microvias, buried vias, and blind vias, which allow for more compact, high-density designs. HDI PCBs also support finer trace widths, smaller via sizes, and more layers, making them suitable for applications that require smaller form factors, better electrical performance, and higher component density.

How much does HDI PCB cost?

The cost of HDI PCBs varies depending on several factors such as the number of layers, the complexity of the design, the materials used, and the production volume. Generally, HDI PCBs are more expensive than traditional PCBs due to the advanced manufacturing processes, like laser drilling and sequential lamination, required to create microvias and dense circuit layouts. Prices can range from a few dollars per unit for simpler designs to several hundred dollars per unit for highly complex multi-layer HDI PCBs.

What is the difference between HDI and PTH PCB?

HDI PCBs (High-Density Interconnect PCBs) and PTH PCBs (Plated Through-Hole PCBs) differ mainly in their construction and functionality.

  • PTH PCBs: Use traditional through-holes for electrical connections between layers, which are usually larger and more spaced out. They are simpler to manufacture and more cost-effective but are limited in terms of component density and miniaturization.

  • HDI PCBs: Use microvias, blind vias, and buried vias, allowing for higher component density, faster signal transmission, and smaller designs. HDI PCBs are more complex to manufacture and costlier but are better suited for high-performance and miniaturized electronic devices.
