Applications of Ceramic Substrate Circuit Board in Modern Technology

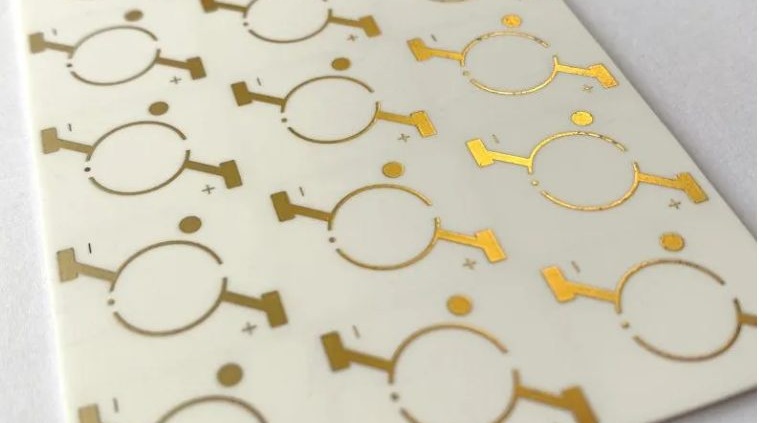

ceramic substrate circuit board

Ceramic substrate circuit boards have become a crucial component in modern electronics due to their exceptional properties and ability to meet the demands of advanced technologies. These boards are made from high-performance ceramic materials such as Alumina, Aluminum Nitride, and Silicon Nitride, offering a range of benefits over traditional FR-4 boards. Ceramic substrates are known for their high thermal stability, making them ideal for applications that require reliable performance under extreme temperatures. Unlike FR-4, which has a relatively high coefficient of thermal expansion, ceramic substrate circuit boards have low thermal expansion, ensuring dimensional stability even under thermal cycling. Furthermore, ceramic substrates provide superior electrical performance, including low dielectric loss and high insulation resistance, making them well-suited for high-frequency and high-power applications. As a result, ceramic substrate circuit boards are increasingly used in fields such as LED lighting, automotive electronics, and telecommunications, where reliability and performance are essential.

Overview of Ceramic Substrate Circuit Boards

Ceramic substrate circuit boards are made from high-performance ceramic materials that offer superior mechanical, thermal, and electrical properties compared to traditional materials like FR-4. The most commonly used ceramics in the production of ceramic substrate circuit boards include Alumina (Al₂O₃), Aluminum Nitride (AlN), and Silicon Nitride (SiN). Alumina is widely used due to its excellent electrical insulation properties and cost-effectiveness, while Aluminum Nitride is known for its exceptional thermal conductivity, making it ideal for high-power applications. Silicon Nitride, on the other hand, offers superior mechanical strength and high temperature stability, making it suitable for high-stress environments.

The manufacturing process for ceramic substrate circuit boards involves several key steps. First, the ceramic material is carefully selected based on the specific needs of the application. The material is then processed using techniques such as laser cutting, screen printing, and pressing to create precise patterns and shapes. In some cases, metallization is used to create conductive layers on the ceramic surface, allowing for the integration of electronic components. Due to the unique properties of ceramics, the production of these boards requires specialized equipment and expertise to ensure high precision and performance.

When compared to traditional substrates like FR-4 or metal-core PCBs, ceramic substrate circuit boards offer distinct advantages. While FR-4 boards are widely used in most applications due to their lower cost, they cannot match the thermal performance or electrical properties of ceramic substrates. Ceramic materials excel in applications requiring high heat dissipation, high-frequency performance, and stability under extreme conditions. Metal-core PCBs offer better thermal management than FR-4 but still fall short of ceramic substrates, especially when higher thermal conductivity and insulation resistance are needed. As a result, ceramic substrate circuit boards are preferred in industries such as LED lighting, automotive, telecommunications, and high-frequency communication devices where performance and reliability are critical.

Material Choices for Ceramic Substrate Circuit Boards

The selection of the right material for ceramic substrate circuit boards is crucial, as it directly influences the board’s performance in terms of thermal management, electrical insulation, and mechanical strength. There are several commonly used ceramic materials, each offering unique properties suited to specific applications.

Alumina (Al₂O₃) Substrates

Alumina, or aluminum oxide (Al₂O₃), is one of the most widely used ceramic materials for substrate applications. Known for its excellent electrical insulation and mechanical strength, alumina is commonly used in low-cost applications where high electrical resistance and moderate thermal conductivity are sufficient. Alumina substrates are cost-effective and relatively easy to process, making them an attractive choice for applications such as consumer electronics, sensors, and low-power components. They provide good dimensional stability and durability, making them ideal for medium-performance applications where cost and reliability are key considerations.

Aluminum Nitride (AlN) Substrates

Aluminum Nitride (AlN) is a high-performance ceramic material known for its exceptional thermal conductivity, which makes it an excellent choice for high-power density and high-frequency applications. AlN substrates are widely used in power electronics, LED applications, and other high-heat-generating devices where effective heat dissipation is critical. The material’s thermal conductivity is significantly higher than that of Alumina, making it capable of handling high thermal loads while maintaining stable electrical properties. Additionally, AlN has excellent electrical insulation properties, which are essential for applications involving high voltages or complex power systems. Due to these properties, Aluminum Nitride is a preferred material for high-end applications such as RF modules, power amplifiers, and automotive electronics, where both thermal management and electrical performance are critical.

Silicon Nitride (SiN) Substrates

Silicon Nitride (SiN) substrates offer excellent mechanical strength and temperature stability, making them suitable for applications requiring higher structural integrity under stress. SiN substrates can withstand high mechanical loads and thermal shocks, which makes them ideal for demanding environments such as aerospace and military applications. This material also exhibits high resistance to oxidation and corrosion, further enhancing its durability and lifespan in harsh conditions. While Silicon Nitride has a lower thermal conductivity compared to Aluminum Nitride, it offers superior strength and temperature resistance, making it suitable for applications in which mechanical robustness is more important than thermal conductivity, such as high-power lasers, sensors, and high-precision components.

Other Ceramic Materials

In addition to Alumina, Aluminum Nitride, and Silicon Nitride, other ceramic materials are sometimes used for specific applications in ceramic substrate circuit boards:

  • Barium Titanate (BaTiO₃): Barium Titanate is a ferroelectric ceramic material with a high dielectric constant, making it suitable for use in high-frequency and capacitor applications. Its ability to store electrical charge makes it valuable in certain types of high-performance capacitors and sensors, especially where space and power constraints are critical.
  • Silicon Carbide (SiC): Silicon Carbide is a highly durable ceramic material known for its exceptional hardness, high thermal conductivity, and high-temperature performance. SiC substrates are often used in power electronics and high-temperature applications, such as electric vehicles, power transistors, and high-temperature sensors. Its resistance to thermal degradation and oxidation makes it an ideal material for harsh environments where reliability and performance are crucial.

Each of these materials offers specific advantages that make them suitable for different types of ceramic substrate circuit board applications. The choice of material depends on the requirements of the end application, such as thermal management, electrical performance, mechanical strength, and cost considerations. Selecting the right ceramic substrate material ensures optimal performance and longevity of the electronic device or system it supports.

Advantages of Ceramic Substrate Circuit Boards

Ceramic substrate circuit boards offer a range of significant advantages, particularly in high-performance and demanding applications where traditional substrates such as FR-4 may not meet the requirements. These advantages make ceramic substrates ideal for a wide variety of industries, including telecommunications, automotive, aerospace, and power electronics. Below are the key benefits of ceramic substrate circuit boards:

Thermal Management

One of the standout advantages of ceramic substrate circuit boards is their high thermal conductivity. Ceramic materials, especially Aluminum Nitride (AlN), are known for their exceptional ability to conduct heat, which is crucial in applications involving high power or high-frequency signals. The high thermal conductivity of ceramic substrates helps dissipate heat effectively, preventing components from overheating and ensuring reliable operation. This is particularly important in power electronics, LED lighting, and RF applications, where excessive heat can significantly impact performance and shorten the lifespan of components. Ceramic substrates provide a solution by effectively managing heat, improving the overall thermal management of the device, and maintaining optimal performance even in challenging thermal environments.

High-Temperature Stability

Unlike FR-4 substrates, which are typically limited to a maximum operating temperature of around 130°C to 140°C, ceramic substrates can withstand much higher temperatures. Materials like Aluminum Nitride (AlN) and Silicon Nitride (SiN) have extremely high thermal stability, with some ceramic substrates able to operate at temperatures exceeding 300°C. This makes ceramic substrate circuit boards ideal for high-temperature applications, such as those found in automotive electronics, aerospace, and industrial systems, where components are exposed to extreme environmental conditions. Ceramic substrates can function reliably in high-temperature environments without experiencing degradation in performance, which makes them essential in industries where heat resistance is a critical factor for long-term durability and safety.

Electrical Performance

Ceramic substrates are renowned for their excellent electrical insulation properties. They offer high resistance to electrical currents, which is essential for maintaining signal integrity and preventing short circuits. Additionally, ceramic materials generally exhibit low dielectric loss, meaning they experience minimal energy loss when used in high-frequency circuits. This makes ceramic substrate circuit boards an excellent choice for high-frequency applications such as RF (radio frequency) communication devices, microwave circuits, and high-speed digital systems. The low dielectric loss of ceramic substrates ensures that signals are transmitted with minimal distortion, enhancing the performance and reliability of communication systems. Their ability to operate at high frequencies with minimal signal degradation makes them a preferred material for advanced electronics in industries like telecommunications and medical devices.

Dimensional Stability

Another key benefit of ceramic substrate circuit boards is their dimensional stability. Ceramic materials, especially those with a low coefficient of thermal expansion (CTE), experience minimal expansion or contraction when exposed to temperature variations. This means that ceramic substrates maintain their structural integrity even under extreme thermal cycling, where materials are subjected to rapid changes in temperature. In contrast, materials like FR-4 tend to expand and contract more significantly with temperature fluctuations, which can lead to warping, cracking, or misalignment of electronic components. The low thermal expansion of ceramic substrates ensures that they retain their shape and performance over time, making them particularly valuable in precision applications and in environments where temperature variation is frequent or extreme.

The advantages of ceramic substrate circuit boards—superior thermal management, high-temperature stability, excellent electrical performance, and dimensional stability—make them essential in many high-performance applications. These properties allow ceramic substrates to outperform traditional materials in critical areas, providing the reliability and longevity needed in advanced electronics such as power systems, telecommunications, aerospace, and high-frequency devices. By choosing ceramic substrates, manufacturers can ensure their products operate efficiently and consistently in the most demanding conditions.

Applications of Ceramic Substrate Circuit Boards

Ceramic substrate circuit boards are increasingly finding use in a wide array of industries, thanks to their superior thermal, electrical, and mechanical properties. These properties make them an ideal choice for applications that require high reliability, thermal management, and performance under extreme conditions. Below are some of the most common applications of ceramic substrate circuit boards:

LED Lighting

In LED lighting, ceramic substrates play a crucial role in enhancing heat dissipation, which is critical for ensuring the longevity and performance of the LEDs. LEDs generate significant amounts of heat during operation, and if this heat is not effectively managed, it can cause the LEDs to degrade faster, leading to shorter lifespans and reduced efficiency. Ceramic substrates, particularly Aluminum Nitride (AlN), are ideal for this purpose due to their high thermal conductivity. The excellent heat dissipation properties of ceramic substrates help prevent overheating by efficiently transferring heat away from the LED chips. This ability to manage thermal energy is especially important in high-power LED applications, such as industrial lighting, automotive headlights, and street lamps, where the LEDs are subjected to high thermal loads. By using ceramic substrate circuit boards, manufacturers can improve the thermal management of LED lighting systems, ensuring better performance, reliability, and longer operational lifetimes.

Automotive Electronics

The automotive industry demands highly reliable and durable electronic systems that can perform in challenging environments, often exposed to high temperatures, vibrations, and harsh conditions. Ceramic substrates are widely used in automotive electronics for their high-temperature stability and mechanical strength. Automotive systems such as powertrains, lighting, sensors, and advanced driver-assistance systems (ADAS) require components that can function reliably under high thermal stress. Ceramic substrates, particularly Aluminum Nitride (AlN) and Silicon Nitride (SiN), offer superior heat resistance, making them ideal for automotive electronics that operate in high-temperature conditions. Additionally, ceramic substrates’ low thermal expansion helps maintain the structural integrity of electronic components, even under rapid temperature changes commonly found in automotive environments. From engine control units (ECUs) to power electronics and sensors, ceramic substrates play a key role in enhancing the performance and longevity of automotive electronic systems.

Communication Devices

In communication devices, especially those operating in high-frequency and high-speed environments, ceramic substrates provide enhanced signal transmission efficiency. Communication systems, including RF (radio frequency) and microwave circuits, require materials that can maintain signal integrity without significant attenuation or distortion. Ceramic substrates, such as those made from Aluminum Nitride (AlN) or Alumina (Al₂O₃), are known for their low dielectric loss and excellent electrical insulation, making them ideal for these high-frequency applications. The low dielectric constant and low loss tangent of ceramic substrates ensure that the transmission of signals is efficient, with minimal interference or degradation over long distances. These characteristics are crucial in applications like telecommunications, satellite communications, and cellular networks, where maintaining clear, high-quality signals is essential. Ceramic substrates also enable miniaturization and improved performance of communication devices by reducing the size of the components and enhancing the overall efficiency of the circuit boards.

Military & Aerospace Electronics

Military and aerospace electronics operate in some of the most demanding environments, where reliability, durability, and high performance are absolutely critical. Ceramic substrates are widely used in these industries due to their high reliability, heat resistance, and mechanical strength. Aerospace and military systems often involve components that must withstand extreme temperatures, vibrations, and radiation, while maintaining optimal performance over extended periods. Ceramic substrates, particularly those made from Silicon Nitride (SiN) and Aluminum Nitride (AlN), offer exceptional temperature stability and resistance to thermal cycling, making them ideal for applications such as avionics, radar systems, satellite communications, and military electronics. Their ability to endure harsh conditions, combined with their electrical insulation properties, ensures that military and aerospace devices function reliably under critical conditions. In these fields, the use of ceramic substrates can significantly reduce the risk of failure, enhancing the safety and effectiveness of high-tech systems.

Medical Devices

In the medical field, precision, reliability, and longevity are paramount. Ceramic substrates are increasingly used in medical devices for their excellent electrical performance, mechanical strength, and thermal stability. Medical devices, such as implantable devices, diagnostic equipment, and sensors, require substrates that can provide reliable performance over long periods, often in challenging environments. Ceramic substrates, particularly those made from Alumina (Al₂O₃) and Aluminum Nitride (AlN), are ideal for these applications due to their biocompatibility, low thermal expansion, and high electrical insulation properties. Ceramic substrates help ensure the precise operation of medical devices, such as pacemakers, hearing aids, and sensors used in diagnostic equipment. The ability to maintain performance under varying temperatures, as well as the durability to withstand mechanical stress, makes ceramic substrates an indispensable material in medical electronics. Additionally, the long-term stability and resistance to corrosion make them suitable for use in both external and implantable medical devices.

Ceramic substrate circuit boards have become integral to a variety of industries due to their unique properties, including excellent heat dissipation, high-temperature stability, superior electrical performance, and mechanical strength. From LED lighting to automotive electronics, communication devices, military and aerospace electronics, and medical devices, ceramic substrates are enabling the development of more reliable, efficient, and long-lasting electronic systems. These boards are crucial for applications that require high performance in extreme conditions, ensuring that devices operate reliably and efficiently for years to come.

Design Considerations for Ceramic Substrate Circuit Boards

Designing ceramic substrate circuit boards presents several unique challenges and considerations that differ from those associated with traditional PCB materials like FR-4. While ceramic substrates offer exceptional performance in terms of thermal management, electrical insulation, and mechanical strength, their use in circuit board design requires careful planning and attention to the properties of the material itself. Below are the key design considerations when working with ceramic substrate circuit boards:

Design Challenges

One of the most significant challenges in designing ceramic substrate circuit boards is the inherent brittleness of ceramic materials. Unlike traditional PCB materials such as FR-4, which are more flexible and forgiving, ceramics are fragile and can crack or break if not handled properly during manufacturing, transportation, or assembly. This brittleness can lead to higher failure rates during the fabrication process or in end-use applications if the ceramic substrate is subjected to mechanical stress or impact.

Machining ceramic materials requires specialized equipment and techniques. Unlike FR-4, which can be drilled and routed using standard PCB manufacturing tools, ceramic substrates require laser cutting or diamond-tipped drills to create holes and vias, which can increase the complexity and cost of the design process. The precision required in working with ceramic materials to create fine features, as well as the potential for material cracking during cutting or drilling, adds another layer of complexity to the design process.

Thermal Management

Thermal management is one of the primary advantages of ceramic substrate circuit boards, but it also presents design challenges that must be addressed in the design phase. Ceramic materials such as Aluminum Nitride (AlN) and Silicon Nitride (SiN) have excellent thermal conductivity, which allows for effective heat dissipation from high-power components. However, the thermal expansion properties of ceramics need careful consideration during design to ensure reliable performance over time.

While ceramics generally have low thermal expansion coefficients compared to materials like FR-4, differential thermal expansion between the ceramic substrate and attached components (such as solder pads or active devices) can still cause stress and lead to reliability issues. Thermal cycling — the repetitive heating and cooling of the device during operation — can lead to cracking, delamination, or failure of the solder joints or the ceramic material itself. Designers must ensure that the thermal expansion of the ceramic substrate matches that of the components to avoid stresses that can compromise the integrity of the circuit board.

Careful planning is necessary for heat dissipation in high-power applications. Ceramic substrates help dissipate heat, but if the component density is too high, or if the design does not adequately spread heat away from critical components, overheating could still occur. Designers must incorporate effective thermal vias and heat sinks, or use micro-structured ceramic substrates to increase the surface area for heat dissipation.

Electrical Performance Optimization

Ceramic substrates offer excellent electrical properties, but optimizing their performance requires careful attention to the dielectric constant and loss factor of the ceramic material used. The dielectric constant affects the capacitance of the circuit, and therefore the speed and bandwidth of high-frequency signals. Materials like Alumina (Al₂O₃) and Aluminum Nitride (AlN) typically have relatively low dielectric constants, which can be advantageous in many high-frequency applications, such as RF and microwave circuits. However, the choice of ceramic material with an appropriate dielectric constant is essential for ensuring signal integrity in these circuits.

The dielectric loss factor—which represents the amount of signal loss due to energy dissipation in the substrate—must also be considered when selecting a ceramic material. Materials with low dielectric loss are preferred for high-frequency and high-speed digital applications to minimize signal degradation. The optimization of electrical performance is critical when designing for sensitive applications such as telecommunications, radar systems, and medical devices, where the precision of the signal is paramount.

The surface roughness of the ceramic substrate can influence the electrical performance, especially in high-frequency applications. The smoother the surface, the less likely there will be signal reflection and interference, which is crucial for maintaining signal integrity at high frequencies.

Cost & Manufacturing Challenges

While ceramic substrate circuit boards offer exceptional performance, they come with certain cost-related challenges. The production of ceramic substrates is inherently more expensive than traditional FR-4 boards due to the cost of raw materials and the specialized manufacturing processes required. For example, the process of sintering, which involves heating ceramic powders to high temperatures to form solid substrates, is more energy-intensive and time-consuming than the lamination process used in traditional PCB fabrication. Additionally, the use of specialized machinery, such as laser cutters and diamond drills, for machining ceramic substrates increases production costs.

The material costs of ceramic substrates like Aluminum Nitride (AlN) or Silicon Nitride (SiN) can also be significantly higher than that of Alumina (Al₂O₃) or FR-4, particularly for specialized high-performance applications. While high-performance ceramics offer better thermal and electrical properties, they also come with a higher price tag, which may not be justified for all applications, particularly those with lower power or less demanding performance requirements.

Designers must also balance performance with manufacturing feasibility and cost constraints. While ceramic substrates offer high performance, the longer lead times and higher labor costs associated with their manufacturing can make it challenging to meet tight production schedules. Additionally, certain design features—such as fine-pitch vias, complex shapes, or multiple layers—can be more difficult to produce in ceramic substrates compared to traditional materials. As a result, manufacturers must carefully weigh the benefits of ceramic substrates against the overall production cost and the end application’s requirements to ensure that the design is both cost-effective and capable of meeting performance expectations.

Designing ceramic substrate circuit boards requires addressing a number of technical challenges, including material brittleness, thermal expansion issues, and electrical performance optimization. While ceramic substrates offer outstanding benefits in terms of heat dissipation, high-temperature stability, and electrical insulation, they also come with higher manufacturing costs and specialized design considerations. By understanding and mitigating these challenges, engineers can design highly effective and reliable ceramic substrate circuit boards for applications in industries such as LED lighting, automotive electronics, communications, and medical devices.

Manufacturing and Processing Techniques for Ceramic Substrate Circuit Boards

The manufacturing of ceramic substrate circuit boards is a sophisticated and specialized process that involves several advanced techniques to ensure the high-performance qualities that ceramic materials offer. These processes need to address the unique physical characteristics of ceramics, such as their brittleness, high thermal conductivity, and the need for precision in fabrication. Below is an in-depth look at the key manufacturing processes, surface treatment techniques, and the challenges and innovations in the ceramic substrate circuit board industry.

Overview of Manufacturing Processes

The production of ceramic substrate circuit boards involves a combination of traditional and specialized manufacturing processes, which are tailored to the specific material characteristics and performance requirements of the final product. Some of the most common techniques include laser cutting, pressing technologies, and surface mounting (SMT).

  • Laser Cutting: Laser cutting is a precise and widely used method for shaping ceramic substrates. Given the brittleness of ceramic materials, traditional mechanical methods like drilling or milling are often impractical because they can cause cracking or chipping. Instead, laser cutting uses high-powered lasers to carefully etch or cut through ceramic materials without inducing mechanical stress. This method is particularly useful for creating intricate patterns, small holes, or vias in high-precision circuit designs. The laser cutting process ensures minimal thermal damage to the material, preserving the mechanical properties of the ceramic.
  • Pressing Technologies: Ceramic substrates are often produced by pressing ceramic powders into the desired shape and size. This is typically done through cold pressing or hot pressing techniques. In cold pressing, powdered ceramic material is placed into a mold and subjected to high pressure to form a compact shape. This process is followed by a sintering step, where the pressed ceramic is heated to high temperatures to bond the particles together and form a solid, dense substrate. Hot pressing, on the other hand, involves both pressure and heat simultaneously, making it more suitable for producing dense, high-performance ceramics like Aluminum Nitride (AlN) and Silicon Nitride (SiN). These materials are particularly valuable in applications requiring high thermal conductivity and electrical insulation.
  • Surface Mounting (SMT): Once the ceramic substrates are fabricated, the next critical step is surface mounting (SMT) of the electronic components. SMT is a widely used method for attaching electronic components directly onto the surface of the ceramic substrate. Unlike traditional through-hole mounting, where components are inserted into holes drilled in the substrate, SMT components are soldered directly onto the surface of the ceramic. This process is suitable for ceramic substrates due to their smooth surface and excellent thermal management capabilities, allowing for efficient heat dissipation during the mounting process. Flip-chip technology, a variant of SMT, is also used in high-performance applications where components are placed upside down and directly soldered onto the ceramic substrate using gold bumps or solder balls.

Surface Treatment Techniques

After the ceramic substrate circuit board is formed, several surface treatment techniques are employed to enhance its properties, such as electrical conductivity, mechanical strength, and adhesion. These treatments are crucial for ensuring the optimal performance of the circuit board in its end-use applications.

  • Coating: Coatings are applied to ceramic substrates to improve their surface properties, such as thermal protection, corrosion resistance, and electrical conductivity. Gold plating is commonly used for improving electrical contact and ensuring low-resistance connections, particularly in high-frequency circuits. For thermal management, thermal barrier coatings or protective coatings may be applied to the ceramic substrate to help reduce heat stress and improve the overall durability of the board. Coatings like Nickel or Tungsten are also used in certain applications to provide both electrical conductivity and mechanical protection.
  • Electroplating: Electroplating is another important surface treatment for ceramic substrates, especially for creating conductive pathways or bonding pads for the attachment of electronic components. In this process, a metal layer, such as gold, silver, or copper, is deposited onto the surface of the ceramic substrate by passing a current through an electrolyte solution containing metal salts. The result is a thin but durable metal coating that enhances the substrate’s electrical properties and facilitates the attachment of components via soldering. Electroplating is particularly critical in high-frequency applications where low resistance and high reliability are required for signal transmission.
  • Metallization Techniques: Metallization is essential for ensuring that ceramic substrates can be used in traditional electronic assembly processes. Metallization involves applying thin metal layers to the ceramic substrate to create electrical contacts or conductive traces. This is typically done by sputtering or vacuum deposition, where metals like tungsten, platinum, or copper are deposited onto the ceramic surface under controlled conditions. This ensures that the ceramic substrate can carry electrical signals or serve as a base for mounting components. The choice of metal for metallization depends on the specific requirements of the application, such as the need for high-frequency performance or heat resistance.

Challenges & Innovations

Despite the many advantages of ceramic substrate circuit boards, their manufacturing and processing present several challenges, many of which require ongoing innovations and technological advancements to address.

  • Brittleness of Ceramic Materials: As mentioned earlier, one of the primary challenges in ceramic substrate manufacturing is the brittleness of ceramic materials. The delicate nature of ceramics makes them prone to cracking or chipping during cutting, handling, or soldering. Manufacturers have developed innovative techniques such as laser processing to minimize the mechanical stresses on ceramics, thereby improving the yield and reducing the risk of breakage. Additionally, newer, tougher ceramic materials with higher fracture toughness are being developed to overcome these issues and provide more robust substrates.
  • Machining and Shaping Difficulties: The machining of ceramic substrates is more complex than traditional PCB materials. This requires the use of advanced tools like diamond cutters or laser systems, which can be expensive and time-consuming. Innovations in laser cutting and precision drilling techniques are helping to improve the efficiency of ceramic processing while reducing the risk of material damage. Companies are also working on automated and robotic solutions to streamline the process and reduce labor costs.
  • Cost and Scalability: Ceramic substrates tend to be more expensive to manufacture than traditional PCBs due to the specialized materials and processes involved. The cost of raw ceramic materials and the need for high-precision machinery make it challenging to scale up production while keeping costs competitive. However, advances in additive manufacturing (3D printing) for ceramics are promising solutions for reducing production costs and enabling more flexible, high-volume manufacturing. Additionally, researchers are working on developing lower-cost ceramic materials that retain excellent performance characteristics but are more affordable for a broader range of applications.
  • Thermal and Electrical Performance Optimization: Another challenge lies in optimizing the thermal and electrical properties of ceramic substrates to meet the specific needs of different applications. Innovations in multi-layer ceramic substrates and hybrid materials are being explored to enhance the thermal conductivity and electrical insulation properties of ceramic substrates. Nano-coatings and microstructural design are also being utilized to improve heat dissipation and electrical performance, especially in high-frequency and high-power applications.

The manufacturing and processing of ceramic substrate circuit boards involves a complex blend of specialized techniques, including laser cutting, pressing, and surface mounting. Surface treatment techniques such as coating, electroplating, and metallization further enhance the performance and reliability of these boards. However, the inherent challenges associated with ceramic substrates, such as brittleness, machining difficulties, and cost, require ongoing innovations and advancements in manufacturing technologies. The ceramic PCB industry is continuously evolving, and with the adoption of newer techniques and materials, the scope and application of ceramic substrates in high-performance electronics are expanding.

Future Trends of Ceramic Substrate Circuit Boards

As the electronics industry continues to evolve, ceramic substrate circuit boards are poised to play a key role in the future of high-performance, miniaturized, and energy-efficient electronic systems. Research into new materials, the drive for miniaturization and integration, green manufacturing initiatives, and the adoption of automation in production are shaping the next generation of ceramic substrates. Below are the key future trends that will likely define the advancement of ceramic substrate circuit boards:

Research into New Materials

One of the most significant trends in ceramic substrate technology is the ongoing research and development of new ceramic materials that can meet increasingly demanding performance requirements. As electronics continue to get smaller and more powerful, the need for substrates that can withstand higher power densities, extreme temperatures, and high-frequency operations is growing. Researchers are focusing on improving the thermal conductivity, mechanical strength, and electrical insulation properties of ceramic materials. For instance, materials like Aluminum Nitride (AlN) and Silicon Nitride (SiN) are already favored for their high thermal conductivity and durability, but newer compounds, such as Beryllium Oxide (BeO) or hybrid ceramic-metal composites, are being explored to push the boundaries of performance. The development of nanostructured ceramics and ceramic nanocomposites is also on the horizon, offering even higher performance characteristics for high-power, high-frequency, and high-reliability applications, including in 5G communications, automotive electronics, and medical devices.

Ceramic materials are being engineered to meet specific industry needs, such as low dielectric constant materials for high-speed digital circuits or high-reliability ceramics for aerospace and defense applications. The continual evolution of these advanced materials will ensure that ceramic substrates remain a top choice for cutting-edge electronics in the future.

Miniaturization & Integration

As the demand for smaller, lighter, and more powerful electronic devices grows, the miniaturization and integration of components on ceramic substrates are becoming a critical trend. Ceramic substrates, with their excellent thermal properties and electrical insulation, are ideally suited for high-density designs that require the integration of multiple components into compact, high-performance packages. In particular, multilayer ceramic substrates (MLCs) are gaining traction, enabling designers to incorporate complex circuits into a single substrate with fewer interconnects, improving the signal integrity and electrical performance of the system.

The ability of ceramic substrates to support 3D integration—stacking chips or components vertically within a substrate—will drive the next generation of system-in-package (SiP) technologies. This trend is essential for the miniaturization of applications like mobile devices, wearables, and IoT devices, where both size and performance are critical. As the integration of more functions into a single ceramic substrate becomes possible, the demand for high-performance, small-footprint ceramic substrates will increase, creating new opportunities for the design and manufacturing of sophisticated, miniaturized electronic systems.

Green Manufacturing

Sustainability is becoming a major focus in the electronics industry, and green manufacturing practices are an important trend in ceramic substrate production. As the push for environmentally friendly manufacturing techniques intensifies, there is a growing emphasis on reducing material waste, improving energy efficiency, and minimizing the environmental impact of the manufacturing process. Ceramic substrates, which are inherently durable and long-lasting, can be a key part of the solution in reducing the overall environmental footprint of electronics.

Innovations in material recycling and the use of sustainable raw materials in the production of ceramic substrates are already underway. For example, manufacturers are looking at recycled ceramic materials or exploring alternative ceramic formulations that are more environmentally friendly while maintaining high performance. Additionally, improvements in energy-efficient sintering and lower-temperature processing are helping to reduce the energy consumption during the manufacturing process. The future of ceramic substrate production will likely see an increased use of eco-friendly coatings and non-toxic metallization processes, minimizing harmful chemicals and waste in production.

Closed-loop production systems that reuse materials or recycle waste from the ceramic substrate fabrication process will become more common. This shift toward greener manufacturing will not only reduce costs but also align with global sustainability goals, enhancing the appeal of ceramic substrates in environmentally conscious industries.

Automation in Production

Automation is revolutionizing many areas of manufacturing, and the production of ceramic substrate circuit boards is no exception. The rise of automated production lines is expected to significantly reduce labor costs, improve manufacturing consistency, and enhance the overall efficiency of ceramic substrate production. These advances in automation will help address some of the labor-intensive aspects of ceramic manufacturing, such as precision laser cutting, pressing, and surface treatment processes.

Automated systems for laser etching, inspection, and quality control will become more sophisticated, allowing for faster detection of defects and ensuring that only high-quality ceramic substrates are produced. Additionally, advancements in robotics will facilitate the handling and assembly of delicate ceramic substrates, reducing the risk of damage and increasing throughput.

Another key benefit of automation in ceramic substrate production is the potential for high-volume manufacturing at reduced costs. As production scales, the ability to integrate automated material handling, robotic soldering, and precision assembly will streamline operations, reduce human error, and increase the reliability of the finished product. AI-driven process optimization will further enhance production efficiency by adjusting parameters in real time to maximize yield and minimize waste.

In the future, we can expect to see even more integrated automation systems that combine 3D printing of ceramics, automated sintering, and advanced material handling to enable the production of complex ceramic substrates in shorter times and with greater precision. This trend will make ceramic substrates more accessible for industries looking for custom, high-performance electronic solutions.

The future of ceramic substrate circuit boards is bright, driven by innovations in materials, miniaturization, sustainability, and automation. The continuous research into new materials will push the performance boundaries of ceramic substrates, enabling their use in even more demanding applications. The trend toward miniaturization and integration will make ceramic substrates central to the development of compact, high-performance electronics, while green manufacturing techniques will reduce their environmental impact. Finally, automation will enhance production efficiency, scalability, and consistency, making ceramic substrates more accessible for a wider range of industries. As these trends unfold, ceramic substrate circuit boards will remain a crucial technology in the advancement of modern electronics, from consumer devices to high-reliability systems in aerospace and defense.
