Understanding the Role of Semiconductor Glass Substrate in Electronics

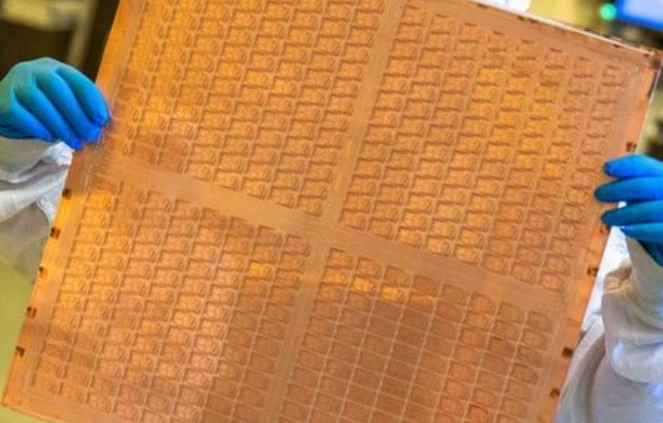

semiconductor glass substrate

In recent years, the semiconductor glass substrate has emerged as a critical material in the semiconductor industry, particularly in advanced packaging technologies. As electronic devices continue to demand higher performance and increased miniaturization, glass substrates offer unique benefits over traditional silicon substrates. Unlike silicon, glass provides superior thermal stability, a lower dielectric constant, and a closer thermal expansion match with other packaging materials, which helps to minimize warping and other structural issues during use. These characteristics make semiconductor glass substrates highly suitable for applications such as 5G, artificial intelligence, and high-frequency circuits. The ability of glass to support Through-Glass Via (TGV) technology also enables more compact and efficient designs, further enhancing device performance. This expanding role of glass substrates in the semiconductor sector highlights their potential to drive advancements in both packaging density and electronic signal integrity, marking a significant shift in materials for next-generation electronics.

What Are Semiconductor Glass Substrates?

Semiconductor glass substrates are specially engineered glass materials used as foundational layers in semiconductor devices and packaging. Structurally, these substrates are composed of high-purity glass that offers excellent chemical stability and smooth surface properties, ideal for precise electronic applications. Glass substrates exhibit a unique combination of qualities essential for advanced electronics, including exceptional transparency, which facilitates optical applications, and high flatness, which is crucial for layering processes and reduces defects during fabrication.

Describe the Unique Benefits of Glass Substrates in Electronic Packaging

One of the notable advantages of semiconductor glass substrates in electronic packaging is their favorable thermal expansion coefficient. This property closely aligns with that of other materials in semiconductor packages, reducing thermal stress and minimizing deformation during device operation. Furthermore, the dimensional stability and rigidity of glass provide a stable base for constructing intricate electronic circuits. These qualities make semiconductor glass substrates invaluable for advanced packaging solutions, including high-frequency circuits, where low dielectric loss and signal integrity are critical.

Types of Substrate Materials in Semiconductors

Overview of Common Semiconductor Substrate Materials

In the semiconductor industry, several materials are used as substrates for fabricating devices, with the most common being silicon, ceramic, and glass. Each material offers unique properties that cater to specific applications.

  • Silicon Substrates: Silicon has been the traditional material for semiconductor substrates for decades due to its abundance, well-understood manufacturing processes, and semiconductor properties. It provides excellent electrical characteristics, making it ideal for most semiconductor applications, particularly in integrated circuits (ICs).
  • Ceramic Substrates: Ceramic materials, such as alumina (Al₂O₃), are often used in high-power applications due to their excellent electrical insulation properties and resistance to heat. Ceramic substrates are especially suitable for power devices and applications requiring high reliability and thermal management.
  • Glass Substrates: Semiconductor glass substrates are gaining prominence as an alternative to silicon and ceramics. They are valued for their smooth, flat surfaces, excellent transparency, and superior thermal properties. The ability of glass to support high-density interconnects, such as Through-Glass Vias (TGV), further enhances its appeal for advanced packaging.

Comparison of Glass and Silicon Substrate Characteristics

When comparing semiconductor glass substrates to silicon, several key differences emerge:

  • Mechanical Strength: Silicon substrates, while strong, can be more brittle compared to semiconductor glass substrates. Glass, especially specialty glasses like borosilicate or quartz, can offer higher resistance to mechanical stress and greater flexibility in design without compromising structural integrity. However, glass can be more challenging to process compared to silicon.
  • Thermal Conductivity: One of the major differences lies in thermal conductivity. Semiconductor glass substrates generally have lower thermal conductivity compared to silicon, which may be advantageous in certain applications where insulation from heat is desired. On the other hand, silicon is known for its higher thermal conductivity, making it suitable for applications where heat dissipation is critical.

These differences underscore the need to choose the right substrate material based on the specific performance requirements of the semiconductor application. While silicon remains a dominant choice in many areas, the unique advantages of semiconductor glass substrates are driving their adoption in emerging, high-performance applications.

Current Technological Advancements in Glass Substrates

Recent advancements in semiconductor glass substrates reflect a rapid evolution driven by leading tech companies such as Intel, SKC, and TrendForce. Intel has pioneered work in this area, unveiling cutting-edge semiconductor glass substrates that aim to increase processing power and bandwidth in high-performance computing. Their research has focused on enhancing glass’s thermal stability and incorporating innovations like Through-Glass Via (TGV) technology, which enables the vertical stacking of chips with high-density interconnections, reducing overall footprint and enhancing data transmission efficiency.

SKC has made strides in developing glass substrates with a uniform, ultra-flat surface, meeting the high demands of next-generation electronic devices. Their research emphasizes reducing substrate thickness while maintaining structural integrity, making glass suitable for thinner, more compact devices. TrendForce, meanwhile, has reported on the growing adoption of TGV technology, predicting that it will become central to advanced packaging due to its ability to improve signal transmission and reduce power consumption. This convergence of innovation is setting new standards for semiconductor glass substrates in complex, high-speed applications, reinforcing their importance in the semiconductor industry’s shift toward more efficient and compact designs.

Advantages and Applications of Glass Substrates

Explain the Benefits of Glass Substrates

Semiconductor glass substrates offer significant advantages in advanced packaging, establishing them as an ideal choice for high-performance electronics. One key benefit is their high dimensional precision, which allows for finer circuit patterns essential for modern electronic devices. This precision minimizes alignment errors during fabrication, contributing to higher device yield and reliability. Another advantage is their low signal loss; glass substrates have a lower dielectric constant compared to other materials, which reduces signal degradation and enhances the transmission speed in high-frequency applications. This feature is critical in advanced communication systems, where signal clarity and speed are paramount.

Describe Specific Application Areas

The applications of semiconductor glass substrates span multiple high-tech areas. In 5G technology, glass substrates support high-frequency signal integrity, essential for maintaining the fast data transfer rates needed for next-generation networks. For AI chips, glass substrates provide a stable base for complex, densely packed circuits, which improve computational power while managing heat dissipation effectively. High-frequency circuits, such as those found in radar and satellite communication systems, also benefit from glass substrates due to their low dielectric loss and compatibility with Through-Glass Via (TGV) technology, enabling efficient, multi-layered circuit designs. These qualities position semiconductor glass substrates as pivotal components in the evolution of high-speed, high-performance electronics.

Comparison Between Glass and Silicon Substrates

The choice between semiconductor glass substrates and traditional silicon substrates often depends on a balance of cost, manufacturing complexity, and specific performance requirements. In terms of cost, silicon substrates have historically been more economical due to established supply chains and decades of optimization in the semiconductor industry. Silicon’s abundant availability and straightforward production make it cost-effective for mass-produced devices. However, as manufacturing processes for glass substrates advance, particularly with techniques like Through-Glass Via (TGV), the cost disparity is gradually decreasing.

From a manufacturing standpoint, glass substrates require specialized handling due to their unique chemical and thermal properties. Silicon, with its established processing techniques, remains advantageous in fabrication simplicity. However, glass’s ultra-smooth surface and compatibility with TGV allow for more compact, high-density interconnections—features critical in advanced packaging and 3D stacking.

Performance-wise, semiconductor glass substrates surpass silicon in specific applications due to their lower dielectric constant, which minimizes signal loss, and their thermal stability, which reduces deformation under high temperatures. These attributes make glass ideal for high-frequency applications like 5G and radar, where signal clarity and minimal interference are essential. Silicon, however, remains dominant in applications that benefit from its mechanical durability and thermal conductivity, such as standard processors and microcontrollers in consumer electronics. This comparison highlights that while silicon remains a staple for conventional uses, glass substrates are carving a niche in high-performance and frequency-sensitive applications.

Types of Glass Used in Semiconductor Substrates

Semiconductor glass substrates are crafted from specialized glass materials chosen for their unique properties, each providing distinct advantages in packaging technology. Quartz glass, for instance, is widely used due to its excellent thermal stability and high purity, which reduce contamination risks in sensitive electronic environments. Quartz’s low coefficient of thermal expansion is essential for maintaining dimensional accuracy, particularly in high-temperature processes, making it a preferred choice in high-frequency and optical applications where signal fidelity and minimal deformation are critical.

Borosilicate glass is another popular material for semiconductor glass substrates, valued for its durability and resistance to chemical corrosion. Its composition includes boron trioxide, which enhances thermal resistance and reduces stress when exposed to fluctuating temperatures. This makes borosilicate glass an ideal candidate for applications requiring robust and stable substrates, such as advanced packaging and high-density interconnections.

The choice of glass type significantly impacts the performance of packaging technology. For example, quartz glass’s low dielectric constant is beneficial in reducing signal loss in RF applications, while borosilicate’s resilience supports long-term reliability in harsh conditions. By carefully selecting materials, manufacturers can optimize semiconductor glass substrates to meet the demands of high-performance electronics, thereby broadening the range of potential applications in semiconductor technology.

Future Trends and Challenges

The future of semiconductor glass substrates looks promising as demand grows for advanced packaging solutions in high-performance applications like 5G, AI, and automotive electronics. The shift toward compact, multi-layered designs has increased the need for substrates that minimize signal interference and support higher frequencies, making glass an appealing choice. Through-Glass Via (TGV) technology, enabling high-density vertical interconnections, is anticipated to be a cornerstone in the development of smaller, faster devices, expanding the technological potential of glass substrates.

Significant challenges remain, particularly in scaling up mass production. Glass substrates, although advantageous, require specialized manufacturing processes that are still less mature than those for silicon. High precision is necessary to achieve uniform thickness and smoothness, adding complexity and cost. Additionally, TGV technology, while promising, involves intricate drilling and filling processes that currently limit throughput.

Managing these costs and refining manufacturing methods to be both efficient and scalable are crucial for widespread adoption. Continued research and investment in production innovations, as well as potential partnerships among industry leaders, could help overcome these hurdles. If these challenges are addressed, semiconductor glass substrates could become mainstream, supporting the next generation of compact, high-speed electronics.

FQAs Abut Semiconductor Glass Substrate

What are glass substrates?

Glass substrates are thin, flat, and rigid layers of glass that serve as the foundational material for semiconductor devices, electronic circuits, and packaging. They are specially engineered for use in high-performance applications, offering benefits such as transparency, high thermal stability, and a smooth surface. Glass substrates are used in various industries, including electronics, optics, and photonics.

What is the substrate material in semiconductors?

In semiconductors, the substrate material is the base material upon which the semiconductor devices or integrated circuits are built. Traditionally, silicon is the most commonly used substrate material due to its excellent electrical properties, abundance, and cost-effectiveness. However, newer materials like semiconductor glass substrates are gaining popularity due to their unique benefits for advanced packaging and high-performance applications.

What is the difference between glass substrate and silicon substrate?

The key difference between glass and silicon substrates lies in their material properties. Glass substrates, particularly semiconductor glass substrates, offer advantages such as a lower dielectric constant, higher transparency, and better thermal stability compared to silicon. Glass also has a closer match in thermal expansion with certain other materials used in packaging, reducing stress during temperature fluctuations. On the other hand, silicon substrates are more commonly used due to their cost-effectiveness, established manufacturing processes, and high mechanical strength, but they have limitations in high-frequency applications and advanced packaging.

What glass is used in semiconductors?

In semiconductor applications, various types of glass are used, with the most common being quartz glass and borosilicate glass. Quartz glass is valued for its high thermal stability, purity, and low thermal expansion, making it ideal for high-frequency and optical applications. Borosilicate glass is known for its chemical resistance and durability, making it suitable for advanced packaging and applications requiring robust substrates. Additionally, specialized glass materials such as semiconductor glass substrates are being developed to meet the demands of modern semiconductor technologies.
