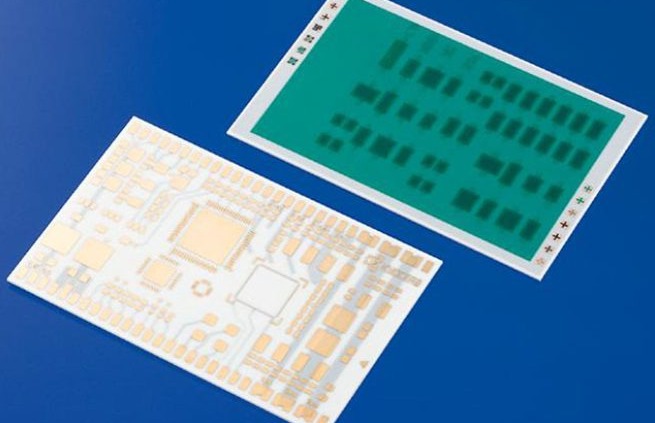

Understanding Multilayer Substrate Technology in Electronics

A multilayer substrate is a type of material used in electronic components and systems, consisting of multiple layers of insulating and conductive materials. These layers are stacked and bonded together to form a substrate that can support complex circuits. Multilayer substrates are essential in modern electronics and PCB (Printed Circuit Board) technology, enabling the creation of high-performance, compact devices.

In the electronics industry, substrates come in various types, including ceramic, metal, and organic materials. Ceramic substrates, such as alumina and ALN, are used for high-frequency and high-power applications. Metal substrates, like aluminum and copper, are often used in power electronics for heat dissipation. Organic substrates, such as FR4, are common in general consumer electronics.

The use of multilayer substrates is critical in enhancing the performance, miniaturization, and functionality of electronic devices. They allow for denser circuits, better thermal management, and improved overall reliability, making them indispensable in today’s advanced electronics.

What is a Multilayer Substrate?

A multilayer substrate is a material used in electronic devices, consisting of stacked and bonded layers of insulating and conductive materials. Its main function is to efficiently route electrical signals between components while providing mechanical strength and thermal stability. By integrating multiple layers, these substrates enable compact, high-performance designs, essential for modern electronics where space and performance are critical.

The materials used in multilayer substrates vary depending on the application and performance requirements. Ceramic materials like Alumina (Al2O3) and Aluminum Nitride (ALN) are known for their excellent thermal conductivity and electrical insulation, making them ideal for high-power or high-frequency applications. Organic materials like FR4, a cost-effective fiberglass-based material, are common in consumer electronics due to their ease of fabrication. Advanced substrates, such as polyimide and metal-based materials (e.g., copper or aluminum), are used in specialized applications for better heat dissipation and electrical performance.

Types of Multilayer Substrate

Ceramic Substrates in Multilayer Substrate Technology

Ceramic multilayer substrates are highly valued for their superior thermal conductivity, mechanical strength, and electrical insulation properties. Materials like Alumina (Al2O3) and Aluminum Nitride (ALN) are commonly used in these substrates. Ceramic substrates are ideal for high-power and high-frequency applications because they can efficiently manage heat dissipation while maintaining electrical performance. Ceramic multilayer substrates, like ALN, are crucial in industries such as automotive, telecommunications, and aerospace due to their ability to withstand high temperatures and harsh environments. ALN substrates are commonly used in power amplifiers, radar systems, and high-frequency circuits for their superior thermal management and low signal loss.

Organic Substrates in Multilayer Substrate Technology

Organic multilayer substrates are widely used in general consumer electronics due to their cost-effectiveness and ease of manufacturing. Common organic materials include FR4, polyimide, and other epoxy-based resins. These substrates offer good mechanical properties and can be fabricated with relatively low complexity compared to ceramic or metal substrates. FR4 is the most commonly used material in multilayer substrates for applications such as mobile phones, computers, and consumer electronics. Polyimide substrates, known for their high thermal stability and flexibility, are used in applications that require durable, flexible electronics, such as wearable devices and flexible circuits.

Metal Substrates in Multilayer Substrate Technology

Metal multilayer substrates, particularly those made from Aluminum and Copper, are preferred for applications where heat dissipation is a critical factor. These substrates are designed to provide efficient thermal management in power electronics, automotive systems, and high-performance computing. Aluminum-based multilayer substrates are commonly used in power modules, where their excellent thermal conductivity helps to dissipate the heat generated during operation. Copper substrates, on the other hand, are often chosen for their superior electrical conductivity, making them ideal for applications like power electronics and LED lighting, where both heat and electrical conductivity need to be carefully managed.

Hybrid Multilayer Substrates in Multilayer Substrate Technology

Hybrid multilayer substrates combine two or more materials to achieve the best performance characteristics for specific applications. These substrates combine ceramic, organic, and metal materials to optimize heat dissipation, electrical performance, and mechanical strength. For example, a hybrid substrate may use a ceramic base for thermal management, an organic layer for electrical insulation, and a metal layer for conductivity. Hybrid multilayer substrates are commonly used in power modules for electric vehicles, high-frequency communications, and advanced medical devices, where balancing thermal, electrical, and mechanical properties is essential.

Manufacturing Process of Multilayer Substrate

The production of multilayer substrates involves critical steps like layering, bonding, and laminating to create precise electronic circuits, with fabrication techniques tailored to the materials used.

Layering Process

The layering process is the foundation of multilayer substrates. It begins with the selection of the appropriate materials for each layer, depending on the application and the required performance characteristics. In general, layers consist of conductive materials (such as copper) for circuit traces and insulating materials (such as ceramic, FR4, or polyimide) for electrical separation. The layers are stacked in a specific order, often alternating between conductive and insulating materials. Each layer is then bonded together using pressure and heat. In some cases, the layers are laminated under high pressure to ensure a strong, uniform bond, creating a solid and stable multilayer structure. The number of layers can vary depending on the complexity of the circuit and the specific application requirements.

Fabrication Techniques

The fabrication of multilayer substrates requires a variety of techniques to achieve precise patterns and ensure the layers are properly interconnected. Common methods include:

• Etching: This is the process used to create intricate circuit patterns on the conductive layers. In multilayer substrates, etching removes unwanted material from the copper or other metal layers to form the desired circuit paths. Photolithographic etching is commonly used, where a photoresist is applied, exposed to light, and then developed to create the circuit pattern.
• Pressing: After layering the materials, they are often pressed together to form a cohesive structure. The pressing process ensures that the individual layers are tightly bonded and that the substrate has the required mechanical strength and stability. This process may involve applying heat and pressure simultaneously, ensuring the layers fuse securely.
• Sintering: For ceramic-based multilayer substrates, sintering is a key process. The ceramic material is heated to a high temperature, just below its melting point, to form strong chemical bonds between particles, creating a durable and reliable substrate for high-temperature electronic applications.

Key Considerations

When manufacturing multilayer substrates, several factors must be carefully controlled to ensure high-quality production:

• Accuracy in Layer Alignment: Ensuring that the layers are properly aligned is crucial in maintaining the integrity of the circuit. Misalignment can lead to defective circuits, signal loss, and electrical interference. Advanced alignment systems are often employed to guarantee precise positioning of each layer during the manufacturing process.
• Material Compatibility: The materials used in multilayer substrates must be compatible in terms of thermal expansion, electrical conductivity, and chemical properties. For example, mismatched thermal expansion rates between layers could cause warping or delamination during temperature cycling. It is critical that each material is chosen with the overall substrate performance in mind, ensuring the final product meets the required specifications.
• Durability: The durability of a multilayer substrate is essential for its long-term performance, especially in harsh environments. The materials and bonding methods must be chosen to ensure the substrate can withstand mechanical stress, temperature variations, and electrical wear over time. Rigorous testing and quality control are necessary to guarantee that the final substrate will perform reliably in its intended application.

These processes and considerations are key to producing high-performance multilayer substrates that meet the demands of advanced electronic applications.

Applications of Multilayer Substrate

PCBs in Electronics

Multilayer substrates play a crucial role in the development of Printed Circuit Boards (PCBs), which are the backbone of modern electronics. In consumer electronics, multilayer substrates allow for the miniaturization of devices while ensuring high performance and reliability. For mobile devices, such as smartphones and tablets, these substrates enable compact designs with multiple layers of circuits, improving signal routing and enhancing overall functionality. Similarly, in automotive electronics, multilayer substrates are used in complex control systems, sensors, and power management modules, ensuring efficient communication and high reliability in harsh environments. Medical devices, particularly those that require precise and reliable electrical connections, also benefit from the use of multilayer substrates. In these devices, substrates with multiple layers help to integrate advanced functionalities into a small footprint, essential for applications like diagnostic tools, patient monitoring systems, and implantable devices.

High-Frequency and RF Applications

In high-frequency and radio frequency (RF) applications, multilayer substrates are indispensable for the efficient transmission of signals. These substrates are commonly used in communication devices, such as mobile phones, satellite systems, and Wi-Fi routers, where the ability to handle high-frequency signals with minimal signal loss is critical. Multilayer substrates help to create efficient circuit designs that minimize interference and improve signal integrity. In radar systems, multilayer substrates enable compact, high-performance circuits for fast signal processing and support precise RF signal routing in antennas for high-frequency operation across various frequencies. These applications highlight the importance of multilayer substrates in the modern world of wireless communication and radar technology.

Power Electronics

The use of multilayer substrates in power electronics has grown significantly, especially in electric vehicles (EVs), renewable energy systems, and industrial machinery. In EVs, they are used in power modules for efficient power conversion and distribution. These substrates enable high-density circuits, reducing size and weight while maintaining power efficiency. In renewable energy systems, such as solar inverters and wind turbine controllers, multilayer substrates integrate multiple power functions in one module for reliable energy conversion and storage. Industrial machinery benefits from multilayer substrates in control systems and motor drives, where reliability and heat dissipation are crucial. As the demand for energy-efficient and compact solutions grows, the use of multilayer substrates in power electronics continues to expand.

These diverse applications demonstrate the versatility and importance of multilayer substrates in meeting the growing demands for high-performance, miniaturized, and reliable electronic systems.

Advantages of Multilayer Substrate

Miniaturization

One of the most significant advantages of multilayer substrates is their ability to enable more compact and efficient designs. By stacking multiple layers of conductive and insulating materials, multilayer substrates allow for higher density circuits in a smaller footprint. This miniaturization is essential in meeting the ever-growing demand for smaller, lighter, and more powerful electronic devices. In consumer electronics, such as smartphones, tablets, and wearables, multilayer substrates help integrate complex functionalities into compact, space-saving designs. Incorporating more layers into the substrate allows for more components, reducing the need for larger circuit boards. This is especially valuable in industries like automotive electronics and medical devices, where space constraints and miniaturization directly affect performance and usability.

Thermal Management

Effective thermal management is a key concern in modern electronics, and multilayer substrates offer significant benefits in this area. Materials like ceramic and metal-based multilayer substrates are chosen for their excellent thermal conductivity, efficiently dissipating heat from high-power components. For instance, multilayer substrates made of aluminum nitride (ALN) or copper efficiently transfer heat, reducing overheating risks and improving system reliability. In power electronics, they help maintain safe temperature ranges for power modules, protecting circuit performance and longevity.

Improved Performance

Multilayer substrates enhance the performance of high-speed circuits by providing better signal integrity and reducing signal loss. In high-frequency applications, such as communication devices and radar systems, the precision of the routing and the minimal interference between layers in multilayer substrates are critical for ensuring high performance. The multiple layers enable the effective routing of signals through tightly packed circuits, which reduces the path length and minimizes signal degradation. This is particularly important in RF (radio frequency) applications, where maintaining signal strength and quality is essential for reliable communication. The improved performance of high-speed circuits also leads to faster data transmission and greater reliability, making multilayer substrates an indispensable component in modern electronics, from consumer gadgets to industrial systems.

Cost-Effectiveness

The production of multilayer substrates is more complex than single-layer boards, but they offer long-term cost benefits, especially in mass production. By integrating more functionality into a smaller area, they reduce the size of electronic devices, lowering material and assembly costs. Multilayer substrates also maximize space and material efficiency, reducing the need for multiple circuit board layers. Although initial manufacturing costs may be higher due to advanced fabrication techniques, the long-term benefits of reduced size, improved performance, and higher density circuits make them cost-effective. As production volumes rise, economies of scale further lower costs, making multilayer substrates ideal for high-volume manufacturing.

These advantages show why multilayer substrates are crucial in modern electronics, addressing miniaturization, thermal management, performance, and cost.

Challenges in Multilayer Substrate Technology

Manufacturing Complexity

The fabrication of multilayer substrates is a highly complex process that involves multiple stages, each of which introduces potential technical challenges. One of the main hurdles is ensuring the precise alignment of the layers during manufacturing. Any misalignment between the layers can lead to defects, signal integrity issues, or even complete failure of the substrate. Achieving consistent alignment across multiple layers is critical, especially as the number of layers increases. Multilayer substrates require advanced techniques like etching, pressing, and sintering, which demand high accuracy. These processes are sensitive to temperature, pressure, and material variations, making consistency difficult. Manufacturing variations can cause defects like warping, delamination, or poor adhesion, affecting the final product’s functionality. The fabrication complexity also leads to longer production times and higher costs, challenging manufacturers to provide cost-effective, high-performance solutions.

Material Selection

Selecting the right materials for multilayer substrates is challenging, as material choice affects performance, durability, and cost. Materials must meet electrical and thermal requirements and be compatible in terms of thermal expansion, chemical stability, and mechanical properties. For high-frequency applications, low dielectric constant materials like ceramics or specialized organics are needed, but mismatched expansion rates can cause warping or cracking. The selection of materials is further complicated by the need to balance performance with cost. While advanced ceramics and metals offer superior performance, they may be more expensive than traditional materials like FR4. Manufacturers must carefully consider the trade-offs between material properties and the overall cost of production to ensure that the multilayer substrate meets both technical specifications and budget constraints.

Reliability and Durability

The reliability and durability of multilayer substrates are critical concerns, particularly when they are used in harsh environments. Multilayer substrates are often exposed to extreme conditions, including high temperatures, humidity, mechanical stress, and chemical exposure. These factors can lead to degradation over time, potentially affecting the performance and longevity of the electronic devices they support. For instance, temperature fluctuations can cause differential thermal expansion between layers, leading to delamination or cracking, especially in ceramic-based multilayer substrates. In power electronics, effective thermal management is crucial to prevent overheating and ensure long-term reliability. The stability of materials used in multilayer substrates, such as resistance to corrosion, oxidation, and fatigue, impacts their performance under demanding conditions. Manufacturers must conduct rigorous testing to ensure multilayer substrates meet durability standards and perform reliably over time. Advances in material science and manufacturing techniques are improving reliability, but challenges remain in ensuring these substrates can endure increasingly extreme conditions in modern electronics.

These challenges underscore the complexity of multilayer substrate technology and the ongoing need for innovation to overcome manufacturing hurdles, select appropriate materials, and ensure long-term reliability.

Future Trends in Multilayer Substrate

Emerging Materials

As demand for high-performance, reliable multilayer substrates grows, researchers are exploring advanced materials like Aluminum Nitride (ALN) and Silicon Nitride (Si3N4) for their superior thermal conductivity, high dielectric strength, and mechanical stability.  These materials are ideal for high-power applications, where efficient heat dissipation and durability are crucial. In addition to ceramics, metal-ceramic hybrid composites are gaining attention for their balance of performance and cost. Nanomaterials like carbon nanotubes and graphene are also being researched for their exceptional electrical and thermal properties, which could improve the performance of multilayer substrates in high-speed, high-frequency circuits. These advanced materials could open new possibilities for multilayer substrates, enabling more efficient, compact, and high-performance electronics in the future.

3D Printing in Substrate Manufacturing

3D printing, or additive manufacturing, is emerging as a revolutionary technology for the production of multilayer substrates. Traditional substrate fabrication methods, such as etching and lamination, require precise alignment and layering, which can be complex and time-consuming. However, 3D printing allows for the creation of multilayer substrates with more design flexibility and speed. Through 3D printing, manufacturers can create intricate, custom-designed multilayer structures with reduced material waste and lower production costs. This method also enables the direct printing of conductive materials, insulating layers, and even embedded components into the substrate itself. As 3D printing technologies evolve, they could dramatically reduce the time and cost of manufacturing multilayer substrates, while also opening up possibilities for new, complex geometries and applications that were previously difficult to achieve with traditional methods. This could lead to faster prototyping, greater design freedom, and ultimately, more cost-effective solutions in high-performance electronics.

Integration with IoT and 5G Technologies

As multilayer substrates evolve, they will increasingly support next-gen devices, especially in 5G, IoT, and AI-driven systems. 5G technology, which promises faster speeds and greater connectivity, requires multilayer substrates that can handle high-frequency signals with minimal loss. The high-speed, low-latency needs of 5G networks drive the demand for advanced materials and precise manufacturing, making multilayer substrates essential for base stations, smartphones, and communication devices. Likewise, the rise of IoT devices will boost the need for compact, power-efficient multilayer substrates integrating sensors, processors, and communication modules. In AI systems, multilayer substrates will enable the integration of complex circuits into smaller, efficient packages for real-time data processing. The miniaturization and increased functionality provided by multilayer substrates are vital for the performance of next-gen technologies, driving innovation in autonomous vehicles, smart cities, and edge computing.

As these trends progress, multilayer substrates will evolve, advancing material science, manufacturing, and electronics integration. The future promises more efficient, compact, and high-performance devices to meet the growing demands of the digital world.

FQAs Abut Multilayer Substrate

What is the definition of a substrate?

A substrate is a base or underlying layer that provides support for another material or structure. In different contexts, it refers to the material or surface on which processes or reactions occur. In electronics, a substrate is typically a base material (such as a PCB) that supports the components and wiring of electronic circuits.

What is the difference between substrate and coating?

A substrate is the primary material or surface that provides structural support, while a coating is a layer of material applied to the substrate’s surface for protection, aesthetic enhancement, or functional purposes (such as corrosion resistance or electrical insulation). The coating does not serve as the base material but rather enhances or modifies the properties of the substrate.

What is the other meaning of substrate?

In biology, a substrate refers to a substance or surface on which an organism lives, grows, or is attached, such as the soil for plants or the surface a microorganism uses for growth. In chemistry, it refers to the substance that an enzyme acts upon during a biochemical reaction.

What is substrate in wall construction?

In wall construction, a substrate is the base material of the wall, supporting layers like plaster, paint, or tiles. Common substrates include drywall, concrete, wood, and cement boards, providing structural support and a surface for finishes.
