A Comprehensive Analysis of HTCC Ceramic Substrates

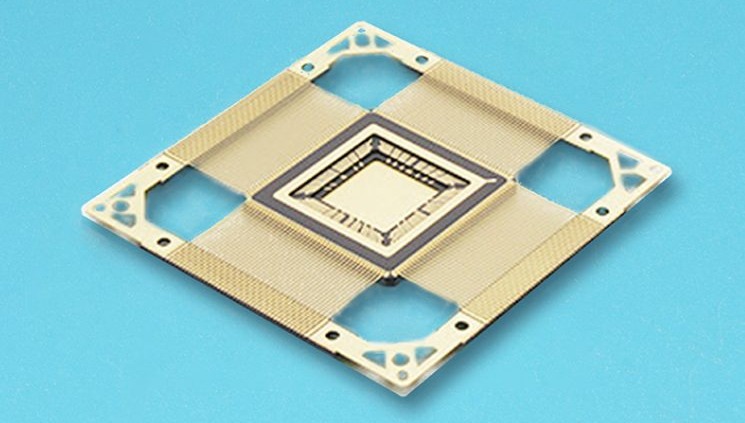

htcc ceramic substrate

High-Temperature Co-Fired Ceramic (HTCC) substrates are advanced materials widely used in the electronics and power device industries. These substrates are manufactured through a high-temperature sintering process that ensures exceptional durability and performance. Known for their excellent thermal stability, electrical insulation properties, and resistance to extreme temperatures, HTCC ceramic substrates have become indispensable in modern electronic technologies. Their ability to support complex multilayer circuit designs while maintaining reliability makes them ideal for high-power applications, such as LED packaging, RF modules, and power electronics.

In addition to their inherent advantages, HTCC ceramic substrates are often compared with Low-Temperature Co-Fired Ceramic (LTCC) substrates. This blog will provide a comprehensive overview of HTCC ceramic substrates, delving into their unique manufacturing process, key features, and differences from LTCC. Furthermore, we will highlight their significant applications across various industries and discuss their role in shaping future electronic advancements.

What Are HTCC Ceramic Substrates?

HTCC ceramic substrate refers to a specialized type of electronic substrate made using the High-Temperature Co-Fired Ceramic process. This technology involves the use of high-purity ceramic materials, such as alumina or zirconia, combined with conductive materials like tungsten or molybdenum. The multilayer structure of HTCC ceramic substrate is achieved by co-firing the stacked ceramic and conductive layers at temperatures exceeding 1600°C. This results in a robust and compact substrate with excellent thermal stability, electrical insulation, and resistance to harsh environmental conditions.

In the electronics industry, HTCC ceramic substrate plays a critical role as a foundation for high-power and high-frequency electronic devices. It supports intricate circuit designs while efficiently dissipating heat, making it an ideal choice for power modules, LED packaging, and RF communication components. Renowned manufacturers such as MARUWA, AdTech Ceramics, and NGK Insulators are leading the innovation and production of HTCC ceramic substrate, catering to the increasing demand in advanced electronic applications.

The HTCC Ceramic Substrate Manufacturing Process

The production of HTCC ceramic substrate involves a precise and complex manufacturing process designed to create substrates with superior performance and reliability. Below is an in-depth look at the key stages and features of the process:

Raw Material Preparation

The process begins with the selection of high-purity ceramic powders, such as alumina or zirconia. These powders are mixed with binders, solvents, and plasticizers to form a uniform ceramic slurry. This slurry is cast into thin sheets or tapes, which serve as the base material for HTCC ceramic substrate production.

Layer Stacking and Pressing

To create the multilayer structure of an HTCC ceramic substrate, individual ceramic layers are stacked together with printed conductive patterns made from refractory metals like tungsten or molybdenum. These layers are carefully aligned to ensure accurate circuitry design. Once stacked, the layers are pressed under controlled pressure to form a compact and cohesive structure.

High-Temperature Sintering

The pressed substrate is subjected to high-temperature sintering at temperatures typically exceeding 1600°C. This step co-fires the ceramic and conductive layers simultaneously, resulting in a dense, mechanically strong substrate with excellent thermal and electrical properties.

Application of Conductive and Insulating Layers

After sintering, additional conductive layers or insulating coatings can be applied to enhance the substrate’s functionality. These layers allow for more complex circuit designs and improve the substrate’s compatibility with various electronic components.

Key Technological Features

The HTCC ceramic substrate manufacturing process enables the creation of multilayer structures with high-density circuitry, supporting advanced electronic designs. This feature makes HTCC substrates ideal for applications requiring compact, efficient, and reliable components.

Common Challenges and Solutions

The process of manufacturing HTCC ceramic substrate presents several challenges, including achieving precise alignment of layers, preventing defects during sintering, and ensuring strong adhesion between the ceramic and conductive materials. These challenges are addressed through meticulous quality control, advanced material formulations, and continuous process optimization.

The result is a robust, versatile, and high-performing substrate that meets the demands of modern electronic technologies.

Differences Between HTCC and LTCC

High-Temperature Co-Fired Ceramic (HTCC) and Low-Temperature Co-Fired Ceramic (LTCC) are two distinct technologies used to manufacture ceramic substrates. While both offer unique advantages, their fabrication processes, material properties, and applications differ significantly. Understanding these differences is crucial for selecting the right substrate for specific electronic applications.

Core Differences in the Fabrication Process

The key distinction lies in the sintering temperatures. HTCC ceramic substrate is co-fired at temperatures above 1600°C, which allows for the use of refractory materials like tungsten and molybdenum as conductive layers. In contrast, LTCC substrates are co-fired at much lower temperatures, typically between 850°C and 1000°C, using silver, gold, or copper conductors that would not withstand HTCC’s higher temperatures.

Sintering Temperatures: High-Temperature (HTCC) vs. Low-Temperature (LTCC)

  • HTCC Ceramic Substrate: High-temperature sintering provides excellent mechanical strength, thermal stability, and resistance to harsh environments.
  • LTCC Substrate: Low-temperature sintering allows for the integration of more delicate materials, such as glass-based ceramics, which are unsuitable for HTCC processes.

Material Selection and Compatibility

  • HTCC Ceramic Substrate: Typically uses alumina or zirconia ceramics combined with tungsten or molybdenum for conductive layers. These materials are ideal for high-power and high-frequency applications due to their durability and stability.
  • LTCC Substrate: Incorporates a mix of glass and ceramic materials, offering greater design flexibility. The ability to use low-resistance conductors like silver or copper makes LTCC suitable for high-speed and low-loss signal applications.

Variation in Application Areas

  • HTCC Ceramic Substrate: Primarily used in high-power electronics, LED packaging, IGBT modules, and applications requiring excellent heat dissipation and insulation properties.
  • LTCC Substrate: Commonly found in RF components, microwave devices, and compact electronic modules where low dielectric loss and miniaturization are essential.

Pros and Cons of HTCC vs. LTCC

  • HTCC Ceramic Substrate:
    • Pros: Superior thermal and mechanical properties; excellent for high-power, high-frequency applications.
    • Cons: Higher production costs and limited material options.
  • LTCC Substrate:
    • Pros: Lower sintering temperatures, compatibility with low-resistance conductors, and greater design flexibility.
    • Cons: Less durable in high-temperature environments compared to HTCC.

Choosing the Right Ceramic Substrate Based on Application Needs

The choice between HTCC ceramic substrate and LTCC depends on specific application requirements:

  • For high-power, high-temperature, or mechanically demanding environments, HTCC ceramic substrate is the preferred choice.
  • For applications requiring low-loss signal transmission, miniaturization, or cost-efficiency, LTCC is often more suitable.

By understanding the differences and benefits of these two technologies, engineers can make informed decisions to optimize the performance and reliability of their electronic designs.

Advantages of HTCC Ceramic Substrates

HTCC ceramic substrate technology offers several key advantages that make it a preferred choice in high-performance electronic and power device applications. Its unique combination of material properties and manufacturing techniques provides unmatched reliability and efficiency. Below are the primary advantages in detail:

Outstanding High-Temperature Resistance

One of the standout features of HTCC ceramic substrate is its exceptional ability to withstand extreme temperatures. With sintering temperatures exceeding 1600°C during production, HTCC substrates maintain stability and performance even in harsh operating environments. This makes them ideal for applications in aerospace, automotive electronics, and power devices, where temperature fluctuations are common.

Superior Mechanical Strength and Stability

The high-temperature co-firing process imparts excellent mechanical strength to HTCC substrates, enabling them to resist mechanical stresses and maintain structural integrity. This characteristic is crucial for applications that involve heavy loads or vibrations, such as industrial control systems and high-power modules.

Excellent Electrical Insulation Properties

HTCC ceramic substrate provides outstanding electrical insulation, ensuring minimal interference between circuits and components. This property is essential for applications requiring high electrical reliability, such as IGBT modules and RF communication devices. The insulating nature of the ceramic material helps prevent short circuits and improves overall device safety and efficiency.

Effective Thermal Management for High-Power Applications

Thermal management is a critical factor in high-power electronic devices. The ceramic material used in HTCC ceramic substrate exhibits excellent thermal conductivity, effectively dissipating heat generated by high-power components. This capability prevents overheating, enhances device performance, and prolongs the lifespan of electronic systems, especially in power electronics and LED lighting.

Capability for Complex Multilayer Designs

The multilayer structure enabled by HTCC technology allows for the integration of dense and complex circuits within a compact substrate. This feature supports advanced designs, such as embedded resistors and capacitors, enabling miniaturization without compromising functionality. HTCC substrates are widely used in applications where space constraints and high-density circuitry are critical, such as medical devices and telecommunications equipment.

By combining these advantages, HTCC ceramic substrate continues to be a leading solution for industries demanding high reliability, efficiency, and durability in challenging environments. Its ability to perform under extreme conditions ensures its role as a cornerstone in the advancement of modern electronic technologies.

Applications of HTCC Ceramic Substrates in Power Electronics

HTCC ceramic substrates play a crucial role in power electronics, offering exceptional thermal management, electrical insulation, and mechanical stability in demanding applications. Their unique properties make them ideal for high-power and high-frequency devices, where heat dissipation and reliability are critical. Below is a detailed exploration of how HTCC ceramic substrate is applied in various power electronics sectors:

Thermal Management and Insulation in Power Electronic Modules

One of the most important functions of HTCC ceramic substrate in power electronics is its ability to effectively manage heat and provide electrical insulation. Power electronic modules, such as those used in motor drives, power supplies, and industrial control systems, generate significant heat during operation. The excellent thermal conductivity of HTCC ceramic substrates ensures efficient heat dissipation, which helps prevent overheating and enhances the overall reliability of the module. Additionally, the superior electrical insulation properties of HTCC substrates prevent short circuits and damage to sensitive components, ensuring the safe and efficient operation of high-power electronics.

Use Cases

  • IGBT Modules (Insulated Gate Bipolar Transistor): HTCC ceramic substrate is commonly used in the construction of IGBT modules, which are widely used in power converters, electric vehicle drives, and industrial equipment. HTCC substrates provide the necessary thermal and electrical properties to ensure IGBT modules perform efficiently, even under high-voltage and high-temperature conditions.
  • LED Packaging: In LED lighting systems, HTCC ceramic substrates are utilized for their excellent thermal management capabilities. LEDs generate significant heat, and HTCC ceramic substrate helps dissipate this heat while maintaining insulation to ensure the LEDs operate reliably over long periods. The durability and thermal stability of HTCC substrates are key to improving the lifespan and performance of LED modules.
  • RF Modules: HTCC ceramic substrates are also widely used in RF (Radio Frequency) modules, which are essential for wireless communication devices. The high-frequency performance of HTCC materials ensures minimal signal loss and supports the miniaturization of complex RF circuits. The insulation and thermal properties of HTCC substrates also help maintain stable operation in RF applications where power dissipation is a concern.

Growing Adoption in Renewable Energy and Automotive Electronics Sectors

  • Renewable Energy: As renewable energy technologies such as wind turbines and solar power systems gain prominence, the demand for reliable and efficient power electronics has increased. HTCC ceramic substrate is becoming increasingly important in the power electronics used in these sectors. For example, in solar inverters and wind turbine controllers, HTCC substrates ensure high thermal stability and insulation, enabling efficient energy conversion and distribution. The ability of HTCC substrates to withstand high temperatures makes them a perfect choice for renewable energy systems that operate in varying environmental conditions.
  • Automotive Electronics: The automotive industry, especially with the rise of electric vehicles (EVs), is also driving the demand for HTCC ceramic substrate. In EV powertrains, electric motors, and battery management systems, HTCC substrates are used in power modules that control and distribute electrical power. The substrates’ thermal management properties are critical for handling the heat generated by high-power components like IGBTs and MOSFETs, which are commonly found in EV systems. Additionally, HTCC substrates provide the necessary insulation and durability to meet the harsh conditions of automotive environments.

HTCC ceramic substrates offer versatile and reliable solutions for various power electronics applications. Their ability to manage heat, provide electrical insulation, and maintain mechanical stability under extreme conditions makes them indispensable in industries ranging from automotive and renewable energy to consumer electronics and industrial power systems. As these sectors continue to grow and evolve, the role of HTCC substrates in enhancing performance, safety, and efficiency will only increase.

Future Trends in HTCC Ceramic Substrates

As technology continues to advance, HTCC ceramic substrates are evolving to meet the growing demands of modern electronics. These substrates, known for their high-temperature resistance and superior mechanical properties, are expected to play an even more significant role in the future, driven by innovations in technology, integration with other materials, and market-driven growth. Below are some key trends shaping the future of HTCC ceramic substrates:

Innovations in Technology

With the constant push for more compact, efficient, and powerful electronic devices, the demand for HTCC ceramic substrates that can accommodate higher-density circuitry is growing. Future innovations in HTCC technology will focus on enabling even more complex designs within smaller footprints. Advances in multi-layer technology will allow for the integration of additional features, such as embedded passive components (e.g., resistors and capacitors) directly within the ceramic substrate. This evolution will support the development of high-performance devices that require increased functionality without compromising space, such as advanced power modules and high-frequency systems. Moreover, the ability to integrate more complex designs will make HTCC ceramic substrates essential for next-generation semiconductor packaging, where space and performance are critical factors.

Competition and Integration with Other Advanced Substrate Materials

As the electronics industry continues to demand greater performance, HTCC ceramic substrates will increasingly compete with, and complement, other advanced materials such as silicon and glass-based substrates. Silicon, known for its excellent electrical properties, is widely used in microelectronics, while glass substrates offer low-loss characteristics for high-frequency applications.

In the future, we may see more integrated solutions where HTCC ceramic substrates are combined with silicon or glass materials to leverage the strengths of each material. For example, hybrid substrates that combine HTCC ceramics with silicon may be used in high-power and high-frequency devices, enhancing both thermal management and electrical performance. Additionally, advancements in glass-to-ceramic bonding techniques could allow for the development of multi-material substrates that offer improved thermal, electrical, and mechanical performance, addressing the specific needs of next-generation electronics.

Market-Driven Growth

The growth of electric vehicles (EVs) and 5G communication technologies is expected to be a major driver for the future of HTCC ceramic substrates. In the automotive sector, the demand for reliable, high-performance power electronics is increasing rapidly as electric vehicles become more mainstream. HTCC ceramic substrates are critical for power modules used in electric vehicle powertrains, battery management systems, and charging stations, where thermal stability and electrical insulation are paramount. As EV manufacturers seek to optimize performance and reduce the size and weight of their power modules, the versatility and high-temperature resistance of HTCC substrates will make them indispensable.

The rollout of 5G networks, which require high-frequency and high-power devices, is driving the need for substrates that can handle the heat and electrical demands of next-generation communication equipment. HTCC ceramic substrates are perfectly suited for use in 5G infrastructure, such as base stations, RF modules, and antenna systems, where performance under high power and temperature conditions is essential. The ability of HTCC substrates to support dense, high-frequency circuitry while maintaining thermal and electrical integrity makes them an ideal choice for these demanding applications.

The future of HTCC ceramic substrates will be shaped by continued technological innovations, their integration with other advanced materials, and the growing demand from industries like electric vehicles and 5G communication. As electronic devices become more powerful and compact, HTCC ceramic substrates will remain at the forefront of enabling reliable, high-performance solutions for the next generation of electronic systems.

FQAs Abut HTCC Ceramic Substrates

What is the process of HTCC ceramics?

The High-Temperature Co-Fired Ceramic (HTCC) process involves the creation of multi-layer ceramic substrates by co-firing layers of ceramic materials at very high temperatures, typically above 1600°C. This process includes several stages:
Raw Material Preparation: Ceramic powders, such as alumina (Al₂O₃), are mixed with binders and solvents to form a slurry or paste.
Layer Stacking and Pressing: The ceramic paste is applied to thin layers and stacked to form the desired substrate structure.
High-Temperature Sintering: The stacked layers are sintered in a kiln at temperatures over 1600°C, which fuses the layers together, creating a dense, solid structure.
Adding Conductive and Insulating Layers: Conductive materials like gold or copper are added to create circuit pathways, and insulating layers are applied for electrical isolation.
The result is a robust ceramic substrate that can withstand high temperatures and harsh environments, commonly used in power electronics and other high-performance applications.

What is the difference between LTCC and HTCC?

Sintering Temperatures: The key difference lies in the sintering temperature. HTCC ceramics are sintered at high temperatures (above 1600°C), while LTCC (Low-Temperature Co-Fired Ceramic) materials are sintered at lower temperatures (typically between 850°C and 1000°C).
Material Selection: HTCC typically uses alumina and similar materials, which require high-temperature sintering, while LTCC uses materials that can be sintered at lower temperatures, such as glass ceramics.
Applications: HTCC is used in high-power applications requiring high thermal conductivity and mechanical strength, such as power electronics and automotive electronics. LTCC is used in applications where complex circuits and lower operating temperatures are suitable, such as RF modules and high-frequency electronics.
Complexity of Design: LTCC allows for more complex designs with embedded passive components (e.g., resistors and capacitors), whereas HTCC is typically used for simpler, high-performance applications.

What is a ceramic substrate?

A ceramic substrate is a thin layer of ceramic material used as a base for mounting and connecting electronic components. These substrates are known for their excellent thermal, electrical, and mechanical properties, making them ideal for use in high-performance electronic devices. Ceramic substrates are typically used in the manufacture of circuit boards and packaging for power electronics, semiconductors, and high-frequency devices. The most common types of ceramic substrates are made from materials like alumina (Al₂O₃), aluminum nitride (AlN), and silicon carbide (SiC), which offer high thermal conductivity, electrical insulation, and resistance to heat and corrosion.

What is a ceramic substrate for power electronics?

A ceramic substrate for power electronics is a specialized type of ceramic material used to support and insulate electronic components in high-power applications. These substrates serve several important functions:
Thermal Management: They help dissipate heat generated by power components like IGBTs, MOSFETs, and diodes.
Electrical Insulation: Ceramic substrates provide electrical isolation between circuits and components to prevent short circuits and ensure safe operation.
Mechanical Strength: They offer mechanical stability, ensuring the integrity of the device even under thermal cycling and mechanical stress.
Ceramic substrates for power electronics are commonly made from materials with high thermal conductivity (e.g., aluminum nitride, beryllium oxide) and are used in power modules, automotive electronics, renewable energy systems, and other applications where high power and heat management are critical.
