A Comprehensive Guide to HDI PCB Design Techniques and Tools

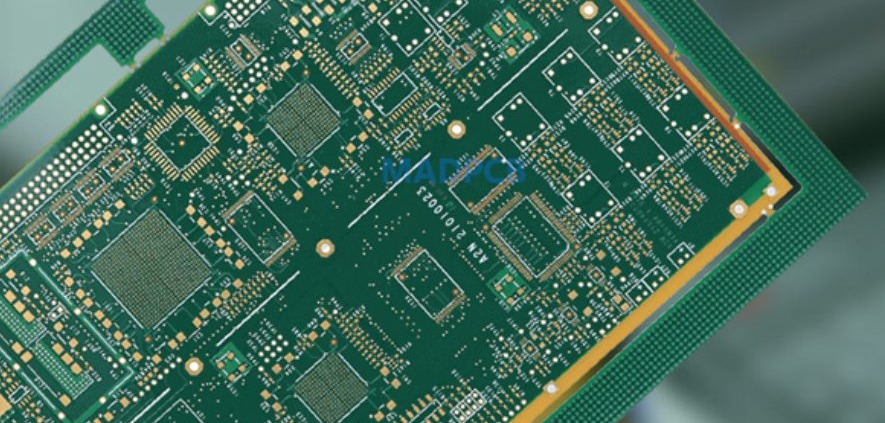

HDI PCB Design (High-Density Interconnect PCB) refers to advanced printed circuit boards with higher wiring density per unit area compared to traditional PCBs. High-density interconnect PCBs incorporate microvias, blind vias, and buried vias, allowing more compact circuit layouts and reducing the number of PCB layers. This technology supports miniaturization while enhancing signal integrity and performance. Compared to traditional boards, this design offers a significant advantage in terms of space optimization and lightweight construction, making it ideal for high-speed and high-frequency applications. Modern electronic devices such as smartphones, medical devices, and automotive systems heavily rely on this advanced design to achieve smaller form factors, faster signal transmission, and improved reliability. As demand for compact and efficient electronics rises, this technology continues to play a pivotal role in advancing innovation and meeting industry needs.

What is HDI in PCB Design?

HDI PCB design (High-Density Interconnect PCB design) is a specialized technology that enables the development of compact and high-performance printed circuit boards by incorporating advanced interconnect solutions. High-density interconnect PCBs utilize microvias, blind vias, and buried vias to achieve higher routing density, reduce signal interference, and enhance overall circuit performance. The core principle behind this design is to minimize the distance between components and optimize signal paths, ensuring superior signal integrity and reliability in modern electronic applications.

Types of HDI Structures in HDI PCB Design

• 1+N+1 HDI Structure
  The 1+N+1 structure is the most basic configuration in HDI PCBs, consisting of one HDI layer on each side of a core layer (N). Microvias are drilled through the outer layers and terminate at the core layer, enabling a high-density interconnection between the top and bottom layers.

• 2+N+2 HDI Structure
  In this configuration, two HDI layers are incorporated on each side of the core layer, enhancing the board’s capability to accommodate high-pin-count devices by offering increased wiring density and better signal routing. This structure is commonly used in applications where higher functionality and signal integrity are required.

• Any-Layer HDI Structure
  The most advanced configuration, the any-layer structure, enables microvias to be stacked and connected between any layers of the PCB. This structure offers the highest level of design flexibility and routing efficiency, making it ideal for highly complex and compact devices such as smartphones, wearables, and high-frequency communication equipment.

Microvias, Blind Vias, and Buried Vias in HDI PCB Design

• Microvias: Essential to HDI technology, microvias are small-diameter vias that allow layer-to-layer connections. These vias reduce parasitic capacitance and inductance, enhancing the performance of high-speed signals.

• Blind Vias: Blind vias connect outer layers to inner layers without penetrating the entire board. They improve signal integrity and increase routing density in high-density interconnect designs.

• Buried Vias: Buried vias connect internal layers and remain invisible from the outer surface. They are widely used in advanced PCB manufacturing to maximize routing space and enhance signal efficiency.

Stack-Up Configurations in HDI PCB Design

High-density interconnect (HDI) PCBs utilize specialized stack-up configurations to optimize performance and reduce board thickness. Common stack-up strategies include:

• Sequential Lamination: Layers are laminated sequentially with microvias formed after each lamination step. This technique ensures the integrity and alignment of vias.

• Via-in-Pad Technology: This method places microvias directly under component pads, minimizing space and enhancing electrical performance.

• Staggered and Stacked Microvias: Depending on design requirements, microvias may be staggered or stacked to optimize routing and enhance connectivity.

By leveraging these advanced design principles, high-density PCBs deliver superior electrical performance, miniaturization, and reliability, making them a crucial technology for next-generation electronic devices.

Difference Between HDI PCB and Non-HDI PCB in HDI PCB Design

High-Density Interconnect (HDI) PCBs introduce advanced interconnection technology that significantly outperforms traditional PCB designs in terms of complexity, space utilization, and functionality. Compared to non-HDI PCBs, these boards offer superior performance by enabling smaller form factors, higher wiring density, and improved signal integrity. Below is a detailed comparison between HDI and non-HDI PCBs across various critical aspects.

Layer Structure and Complexity in HDI PCBs

The layer structure in HDI PCBs is more complex than that of non-HDI PCBs. These boards utilize multiple layers with microvias, blind vias, and buried vias, allowing connections between different layers without relying solely on through-hole vias. Common stack-ups include:

• 1+N+1: One HDI layer on each side of a core layer.

• 2+N+2: Two HDI layers on both sides for increased interconnectivity.

• Any-Layer HDI: Microvias connecting any layer, offering maximum routing flexibility.

Non-HDI PCBs rely primarily on through-hole vias that pass through the entire board, limiting design flexibility and interconnection options.

Space Optimization and Circuit Density

High-density interconnect (HDI) PCBs achieve greater circuit density by minimizing space between components and reducing trace widths. Microvias allow routing in dense areas and enable complex connections in multi-layer boards. Via-in-pad technology and stacked microvias further enhance space optimization, making them ideal for compact and high-performance electronic applications.

Non-HDI PCBs, on the other hand, require larger traces and spacing due to the limitations of through-hole vias. This restricts the ability to miniaturize devices and increases the overall size of the PCB. Consequently, HDI PCB design supports higher circuit density, making it ideal for compact and high-performance electronic devices.

Manufacturing Process and Cost Implications

The manufacturing process in HDI PCB design involves complex steps such as:

• Laser Drilling: For microvias with precision.

• Sequential Lamination: Layer-by-layer build-up with multiple lamination cycles.

• Copper Filling and Via-In-Pad Technology: To ensure optimal electrical performance and minimize signal loss.

These processes in HDI PCBs increase the overall manufacturing cost due to the need for advanced equipment and specialized techniques. However, the enhanced performance and space efficiency justify the higher cost, especially in high-end applications.

Non-HDI PCBs, using traditional through-hole drilling and simpler lamination processes, incur lower production costs. However, they lack the design flexibility and performance advantages offered by HDI technology.

Application Areas Where HDI PCB Design Outperforms Non-HDI PCBs

HDI PCB design is widely adopted in applications where miniaturization, high signal integrity, and increased functionality are essential. Key industries include:

• Smartphones and Wearable Devices: Compact size with high-performance capabilities.

• Medical Devices: Enhanced reliability and precision in critical applications.

• Automotive Electronics: Advanced driver-assistance systems (ADAS) and infotainment.

• Aerospace and Defense Systems: High-speed communication and reliability in harsh environments.

Non-HDI PCBs are suitable for less complex applications where high routing density and space optimization are not required.

Summary of Key Differences in HDI PCB Design

• Layer Structure: Higher complexity in advanced PCB designs with microvias and stacked layers.

• Space Optimization: Enables higher circuit density and miniaturization in compact layouts.

• Manufacturing Cost: Increased complexity in modern PCB fabrication results in higher costs.

• Applications: Excels in high-speed, high-frequency, and space-constrained devices.

These advanced PCBs provide superior performance, design flexibility, and space efficiency, making them the preferred choice for cutting-edge electronic applications.

HDI PCB vs. PTH PCB – Key Differences in HDI PCB Design

High-Density Interconnect (HDI) PCBs introduce advanced microvia technologies that greatly improve routing density and signal integrity, distinguishing them from traditional Plated Through Hole (PTH) PCBs. As electronic devices become increasingly compact and complex, these PCBs offer superior performance and greater design flexibility. Below is an in-depth comparison between HDI and PTH PCBs, highlighting their key differences.

Definition of PTH (Plated Through Hole) PCB

PTH (Plated Through Hole) PCB is a traditional printed circuit board where holes are drilled through the entire board, allowing electrical connections between the top and bottom layers. These through-holes are plated with conductive material to ensure electrical continuity between layers. PTH PCBs are widely used in applications where high mechanical strength and reliability are required but lack the miniaturization and high-frequency capabilities that HDI PCB design provides.

Via Structures: Microvias in HDI PCB Design vs. Through-Holes in PTH PCB

One of the most significant differences between HDI PCB design and PTH PCBs lies in their via structures.

• Microvias in HDI PCB Design: Microvias are small-diameter vias (usually less than 150 µm) used in HDI PCB design to establish connections between layers. They can be blind, buried, or stacked, allowing more intricate routing and higher wiring density. Microvias enhance signal integrity and reduce parasitic effects.

• Through-Holes in PTH PCB: PTH PCBs use through-holes that pass through the entire board to connect top and bottom layers. These vias have larger diameters and occupy more space, limiting the ability to design high-density circuits.

In HDI PCB design, microvias enable a more compact layout, whereas PTH PCBs are constrained by the size and space limitations of through-holes.

Routing Density and Layer Count in HDI PCB Design vs. PTH PCB

High-density interconnect PCBs allow for significantly higher routing density by incorporating stacked and staggered microvias, reducing trace widths, and enabling finer pitch components.

• HDI PCB Design: With multiple build-up layers and advanced via-in-pad technology, this PCB design achieves increased layer density while maintaining a compact form factor. Typical structures include 1+N+1, 2+N+2, and any-layer configurations.

• PTH PCB: PTH PCBs require larger spacing between traces and vias, resulting in lower wiring density. They often have fewer layers due to design limitations and are less capable of handling high-speed signals and complex routing.

The higher layer count and compact routing achieved through this PCB design make it ideal for miniaturized, high-performance electronic devices.

Signal Integrity and Performance in High-Density Interconnect PCB design vs. PTH PCB

Signal integrity is critical in high-frequency applications, and High-Density Interconnect PCB design excels in maintaining superior signal quality compared to PTH PCBs.

• Signal Integrity in High-Density Interconnect PCB design: Microvias, shorter interconnect lengths, and optimized layer stack-ups in HDI PCB design reduce signal loss, impedance mismatches, and crosstalk. This results in enhanced signal performance, making High-Density Interconnect PCB design the preferred choice for high-speed and high-frequency applications.

• Signal Integrity in PTH PCB: Due to longer via lengths and increased parasitic capacitance, PTH PCBs experience higher signal loss and interference. This limits their effectiveness in applications requiring high data rates and minimal noise.

Advantages of High-Density Interconnect PCB design Over PTH PCB in High-Speed Applications

HDI PCB design offers numerous advantages over PTH PCBs, particularly in high-speed applications:

• Higher Routing Density: High-Density Interconnect PCB design supports fine-pitch components and tighter trace spacing, allowing more complex circuits in a smaller footprint.

• Improved Signal Integrity: Microvias and optimized layer configurations in High-Density Interconnect PCB design minimize signal degradation and electromagnetic interference (EMI).

• Compact and Lightweight Design: High-Density Interconnect PCB design reduces the size and weight of electronic devices, making it ideal for mobile, IoT, and wearable applications.

• Higher Layer Count with Reduced Space: High-Density Interconnect PCB design enables the incorporation of multiple layers without increasing board thickness, ensuring high functionality in a smaller form factor.

Summary of Key Differences in High-Density Interconnect PCB design vs. PTH PCB

• Via Structures: Microvias in High-Density Interconnect PCB design vs. larger through-holes in PTH PCBs.

• Routing Density: High-Density Interconnect PCB design achieves higher wiring density and layer count.

• Signal Integrity: High-Density Interconnect PCB design ensures superior performance in high-frequency applications.

• Application Scope: High-Density Interconnect PCB design is ideal for advanced, high-speed applications, while PTH PCBs are better suited for less complex circuits.

High-Density Interconnect PCB design outperforms PTH PCBs in terms of miniaturization, signal integrity, and design flexibility, making it the preferred choice for next-generation electronic devices.

Core Design Guidelines for HDI PCB Layout in HDI PCB Design

High-Density Interconnect PCB design requires meticulous planning and adherence to specialized design guidelines to ensure optimal performance, high signal integrity, and manufacturability. Since HDI PCBs integrates microvias, advanced stack-ups, and fine-pitch components, following industry-proven design rules is essential to achieve desired functionality and minimize production errors. Below are the core guidelines for ensuring successful High-Density Interconnect PCB design

Via-in-Pad Techniques in High-Density Interconnect PCB design

Via-in-pad is a critical technique in High-Density Interconnect PCB design where microvias are placed directly beneath component pads, reducing the routing footprint and enhancing electrical performance.

• Advantages:

  • Minimizes inductance and capacitance, improving signal integrity.

  • Enables higher component density and space optimization.

  • Facilitates efficient thermal management in compact designs.

• Key Design Considerations:

  • Ensure microvias are filled with conductive or non-conductive epoxy to prevent solder wicking during assembly.

  • Properly planarize via-in-pad structures to maintain flat surfaces for reliable soldering.

  • Validate via-in-pad placement using simulation tools to avoid thermal or mechanical stress.

Via-in-pad technology significantly enhances the efficiency and reliability of HDI PCB design in high-speed applications.

Aspect Ratio and Microvia Size Considerations

In HDI PCB design, the aspect ratio and microvia size play a crucial role in ensuring manufacturability and performance.

• Aspect Ratio Guidelines:

  • Aspect ratio is defined as the ratio of the hole depth to the hole diameter. For microvias in High-Density Interconnect PCB design, the recommended aspect ratio should be ≤ 0.75:1 to maintain structural integrity.

  • For blind and buried vias, maintaining a lower aspect ratio helps prevent drilling defects and ensures reliable plating.

• Microvia Size Recommendations:

  • Microvias in High-Density Interconnect PCB design typically range from 75 µm to 150 µm in diameter.

  • Use laser drilling for microvias to maintain high precision and alignment.

Correctly managing aspect ratio and microvia dimensions improves signal integrity and reliability in High-Density Interconnect PCB design.

Trace Width and Spacing Requirements in High-Density Interconnect PCB design

Trace width and spacing optimization is essential in High-Density Interconnect PCB design to prevent crosstalk, reduce EMI, and enhance overall circuit performance.

• Design Rules for Trace Width and Spacing:

  • Maintain a minimum trace width of 3 mils (75 µm) and spacing of 3 mils (75 µm) to support high-density routing.

  • For higher-frequency signals in High-Density Interconnect PCB design, reduce trace width to minimize skin effect and ensure impedance control.

  • Consider differential pair routing for high-speed signals, maintaining consistent spacing and length matching.

• Impedance Control:

  • Define controlled impedance values based on dielectric material properties and trace geometry.

  • Use impedance calculators and field solvers to validate trace width and spacing configurations in High-Density Interconnect PCB design.

Guidelines for Selecting HDI Materials in High-Density Interconnect PCB design

Material selection in High-Density Interconnect PCB design impacts signal integrity, thermal management, and overall performance. Choosing appropriate laminates ensures reliability in high-frequency and high-speed applications.

• FR4 Laminates:

  • Widely used in HDI PCB design due to its cost-effectiveness and availability.

  • Suitable for applications with moderate-frequency requirements but may exhibit higher dielectric losses at high frequencies.

• Rogers Laminates:

  • Preferred in HDI PCB design for high-frequency and RF applications due to low dielectric loss and superior thermal stability.

  • Common options include Rogers 4003C, RO4350, and RO5880 for maintaining high signal fidelity in HDI designs.

• Material Selection Guidelines:

  • Consider the dielectric constant (Dk) and loss tangent (Df) of the material to optimize signal propagation.

  • Use low-loss laminates for minimizing signal attenuation in high-speed circuits.

Signal Integrity Management in High-Density Interconnect PCB design

Maintaining signal integrity is critical in High-Density Interconnect PCB design, especially in high-speed, multi-layer designs where signal degradation can compromise performance.

• Key Signal Integrity Considerations:

  • Minimize Crosstalk: Use ground planes and tightly controlled trace spacing to mitigate crosstalk.

  • Control Impedance: Define consistent impedance paths through controlled dielectric thickness and trace dimensions.

  • Reduce Parasitics: Implement via stitching and shielding techniques to reduce parasitic effects and signal reflection.

• Best Practices for Signal Integrity in HDI PCB Design:

  • Use differential signaling to ensure signal symmetry and reduce noise.

  • Employ signal integrity analysis tools to simulate and validate high-speed performance.

  • Opt for staggered microvias instead of stacked vias when possible to minimize signal distortion.

Summary of Core Design Guidelines for High-Density Interconnect PCB design

• Via-in-Pad Technology: Enhances routing density and thermal performance.

• Aspect Ratio Management: Ensures reliability by maintaining appropriate via dimensions.

• Trace Width and Spacing Control: Prevents crosstalk and improves signal quality.

• Material Selection: Chooses suitable laminates like FR4 and Rogers to optimize high-frequency performance.

• Signal Integrity Management: Protects against signal degradation in high-speed circuits.

By following these core guidelines, HDI PCB design ensures reliable, high-performance, and cost-effective solutions for next-generation electronic applications.

Challenges and Considerations in HDI PCB Design

HDI PCB design (High-Density Interconnect PCB design) offers numerous advantages in terms of space optimization, signal integrity, and miniaturization. However, the complexity of High-Density Interconnect PCB design introduces several challenges that must be carefully managed to ensure reliability and performance. Addressing these challenges requires a thorough understanding of thermal management, impedance control, crosstalk reduction, and avoiding manufacturing defects. Below is an in-depth analysis of the critical challenges and considerations in High-Density Interconnect PCB design.

Thermal Management in HDI PCB Design

Thermal management is a critical aspect of High-Density Interconnect PCB design, especially as circuit density increases and component size decreases. High component density and multiple layers can trap heat, leading to thermal stress, reduced performance, and potential damage to components.

• Challenges in Thermal Management:

  • Limited space for heat dissipation due to compact layouts in High-Density Interconnect PCB design.

  • Increased heat generation in high-speed circuits and power-dense applications.

  • Difficulty in incorporating thermal vias and heat sinks in multi-layer HDI boards.

• Thermal Management Strategies:

  • Via-in-Pad with Thermal Vias: Integrate thermal vias to facilitate heat dissipation from critical components.

  • Use of High-Thermal Conductivity Materials: Select laminates with high thermal conductivity, such as Rogers or metal-core materials, to improve heat dissipation.

  • Heat Spreading Layers: Incorporate ground and power planes as heat spreaders to distribute thermal load efficiently in HDI PCB design.

  • Simulation and Thermal Analysis: Perform thermal simulations to identify hot spots and optimize heat dissipation paths in the design phase.

Controlling Impedance and Crosstalk in High-Density Circuits

Maintaining controlled impedance and minimizing crosstalk are essential for ensuring signal integrity in HDI PCB design, particularly in high-frequency applications. As circuit density increases, the risk of impedance mismatches and signal coupling between traces grows, which can degrade performance.

• Challenges in Impedance and Crosstalk Control:

  • Reduced spacing between traces and vias increases the likelihood of electromagnetic interference (EMI).

  • High-frequency signals are prone to impedance mismatches and reflection, causing signal degradation.

  • Crosstalk between adjacent traces in dense layouts can introduce unwanted noise and reduce signal quality.

• Strategies for Impedance and Crosstalk Control:

  • Controlled Impedance Routing: Define and maintain controlled impedance paths by carefully managing trace width, spacing, and dielectric thickness in HDI PCB design.

  • Differential Pair Routing: Use differential signaling to minimize noise and improve signal stability.

  • Ground and Power Plane Optimization: Place continuous ground and power planes between high-speed signal layers to shield signals and reduce crosstalk.

  • Stack-Up Optimization: Choose appropriate layer stack-up configurations to maintain consistent impedance and isolate high-frequency signals.

By carefully managing impedance and crosstalk, HDI PCB design ensures superior signal integrity, making it ideal for high-speed and high-frequency applications.

Avoiding Manufacturing Defects Due to Improper Via-in-Pad Placement

Via-in-pad technology is a critical feature in HDI PCB design that enhances routing density and space utilization. However, improper via-in-pad placement can lead to several manufacturing defects that compromise the reliability of the final product.

• Challenges in Via-in-Pad Placement:

  • Solder Wicking and Voiding: Improperly filled or planarized vias can cause solder to flow into the via, resulting in voids and poor solder joints.

  • Thermal Stress and Cracking: Unoptimized via-in-pad designs can create thermal stress, leading to cracks and reliability issues.

  • Misalignment and Registration Issues: Misaligned vias can lead to connectivity failures and misregistration during manufacturing.

• Best Practices to Avoid Via-in-Pad Defects:

  • Epoxy Filling and Planarization: Use conductive or non-conductive epoxy to fill vias and ensure proper planarization for a smooth surface.

  • Solder Mask Defined Pads (SMD Pads): Apply solder mask-defined pads to minimize the risk of solder wicking and ensure consistent soldering.

  • Laser Drilling for Microvias: Employ laser drilling to achieve precise via placement and alignment in HDI PCB design.

  • DFM (Design for Manufacturability) Checks: Conduct thorough DFM analysis to identify and address potential via-in-pad defects before production.

By adhering to these best practices, HDI PCB design minimizes manufacturing defects, ensuring high reliability and consistent performance.

Summary of Key Challenges in HDI PCB Design

• Thermal Management: Efficient heat dissipation using thermal vias, high-conductivity materials, and simulation tools.

• Impedance and Crosstalk Control: Careful routing, layer stack-up, and plane optimization to maintain signal integrity.

• Avoiding Via-in-Pad Defects: Proper via filling, alignment, and DFM checks to prevent solder issues and ensure manufacturing success.

Addressing these challenges effectively ensures that HDI PCB design delivers superior performance, high reliability, and long-term durability in advanced electronic applications.

How Much Does HDI PCB Cost in HDI PCB Design

The cost of HDI PCB design (High-Density Interconnect PCB design) is significantly higher than that of traditional PCBs due to its complexity, advanced fabrication processes, and specialized materials. As High-Density Interconnect PCB design integrates multiple layers, microvias, and fine-pitch components, the manufacturing costs increase with the need for precision and higher performance. Below is a detailed breakdown of the factors that influence the cost of High-Density Interconnect PCB design and a comparative analysis with standard PCB manufacturing.

Number of Layers and Microvias in HDI PCB Design

The number of layers and the complexity of microvias play a critical role in determining the cost of HDI PCB design.

• Impact of Layer Count on Cost:

  • Single-Layer or 1+N+1 HDI: Less expensive, used for moderate-density applications.

  • 2+N+2 HDI and Beyond: Higher costs due to increased lamination cycles and microvia processing.

  • Any-Layer HDI: Significantly more expensive due to the complex manufacturing of microvias connecting any layer.

• Microvia Complexity and Cost:

  • Stacked Microvias: Higher cost due to increased lamination and laser drilling cycles.

  • Staggered Microvias: Less expensive than stacked vias but still higher than through-hole vias used in standard PCBs.

  • Via-in-Pad Technology: Adds cost due to epoxy filling, planarization, and additional processing steps.

As the layer count and via complexity increase in HDI PCB design, so does the overall fabrication cost.

Material Selection and Stack-Up Complexity in HDI PCB Design

Material selection and stack-up configuration significantly affect the cost of HDI PCB design, especially in high-frequency and high-speed applications.

• FR4 Materials:

  • Widely used in HDI PCB design due to its cost-effectiveness and mechanical stability.

  • Suitable for low to medium-frequency applications, but performance may degrade at higher frequencies.

• Rogers and High-Performance Laminates:

  • Preferred for high-frequency applications where signal integrity is critical.

  • Laminates such as Rogers 4003C, RO4350, and RO5880 are commonly used in HDI PCB design, but they significantly increase the cost due to their superior electrical and thermal properties.

• Stack-Up Complexity and Cost:

  • Single Lamination (1+N+1): Lower cost due to fewer lamination cycles.

  • Multiple Laminations (2+N+2 or Any-Layer HDI): Higher cost due to multiple sequential lamination and alignment processes.

Complex stack-ups with high-frequency laminates increase material and processing costs in HDI PCB design.

Fabrication Techniques and Turnaround Time in HDI PCB Design

The fabrication processes involved in HDI PCB design are more advanced than those used for traditional PCBs, contributing to increased production costs.

• Laser Drilling for Microvias:

  • High-precision laser drilling adds cost due to the need for multiple laser passes to create microvias and blind/buried vias.

  • Laser drilling equipment and alignment systems further increase the overall cost of HDI PCB design.

• Sequential Lamination and Build-Up Cycles:

  • Each additional lamination and build-up cycle increases the production cost and time.

  • Complex HDI PCB design with multiple lamination steps incurs higher costs than simpler designs.

• Via Filling and Planarization:

  • Via-in-Pad Technology: Adds cost due to epoxy filling, planarization, and plating processes.

  • Ensuring smooth surfaces for soldering requires precise control, further increasing fabrication expenses.

• Turnaround Time Impact:

  • Faster turnaround times in HDI PCB design require premium manufacturing services, adding to the overall cost.

  • Standard lead times (5–7 days) are more affordable, but expedited production (24–48 hours) significantly increases the price.

Cost Comparison: HDI PCB Design vs. Standard PCB Manufacturing

Compared to standard PCB manufacturing, HDI PCB design incurs higher costs due to its advanced features and processes.

• Layer Count and Complexity:

  • Standard PCBs typically range from 2 to 8 layers with through-hole vias, resulting in lower production costs.

  • HDI PCB design involves multiple build-up layers, microvias, and via-in-pad technology, driving up costs.

• Material Cost Differences:

  • Standard PCBs often use basic FR4 materials, which are less expensive than high-performance laminates.

  • HDI PCB design with specialized materials such as Rogers laminates costs significantly more.

• Manufacturing Process Differences:

  • Standard PCBs use mechanical drilling and simple lamination, keeping costs lower.

  • HDI PCB design requires laser drilling, sequential lamination, and advanced alignment techniques, contributing to higher costs.

• Cost Range Comparison:

  • Standard PCB Manufacturing: $50–$200 per square meter, depending on complexity.

  • HDI PCB Design: $300–$800 per square meter for moderate complexity, with high-end designs exceeding $1,000 per square meter.

Summary of Cost Factors in HDI PCB Design

• Layer Count and Microvia Complexity: Higher layers and microvias increase fabrication costs.

• Material Selection: High-performance laminates and complex stack-ups add to overall expenses.

• Fabrication Techniques and Turnaround Time: Laser drilling, via-in-pad technology, and expedited lead times raise manufacturing costs.

• Cost Comparison: High-Density Interconnect PCB design is substantially more expensive than standard PCB manufacturing due to its complexity and advanced technologies.

By understanding these cost factors, designers can make informed decisions when optimizing HDI PCB design for performance and cost-efficiency.

Manufacturing Process of HDI PCB in HDI PCB Design

High-Density Interconnect PCBs require a highly sophisticated and precise manufacturing process to meet the demands of modern high-speed electronic applications. Due to the complexity involved, including multiple layers, microvias, and fine-pitch components, each manufacturing step must be executed with meticulous precision to ensure reliability and performance. Below is a step-by-step guide detailing the manufacturing process of these advanced circuit boards.

Laser Drilling and Via Formation in HDI PCB Design

Laser drilling is a critical process in high-density interconnect PCBs that enables the formation of microvias, blind vias, and buried vias. Unlike traditional PCBs that rely on mechanical drilling, this method uses laser technology to create extremely small vias, allowing for higher wiring density and improved signal integrity.

• Microvia Formation:

  • Microvias, typically 75 µm to 150 µm in diameter, are formed using high-precision lasers.

  • Laser drilling technology ensures precise via alignment, enabling complex via configurations in HDI PCB design such as stacked and staggered vias.

• Blind and Buried Vias:

  • Blind Vias: Connect the outer layers to one or more inner layers, enhancing signal routing efficiency.

  • Buried Vias: Connect internal layers without extending to the surface, allowing for denser layouts.

• Via-in-Pad Technology:

  • In HDI PCB design, via-in-pad techniques reduce parasitic inductance and improve thermal management.

  • Proper filling and planarization of vias prevent solder wicking during assembly.

Laser drilling is essential for achieving the high-density interconnects that define HDI PCB design.

Sequential Lamination Process in HDI PCB Design

Sequential lamination is a multi-step process used in HDI PCB design to build complex layer structures and ensure reliable connections between different layers. This process involves repeated lamination and drilling cycles, progressively adding layers to the PCB.

• Step-by-Step Lamination Process:

  • Core Layer Preparation: The base core is fabricated with through-hole vias and initial copper plating.

  • First Lamination (1+N+1): Outer layers are laminated with dielectric materials and copper foils.

  • Drilling and Plating: Microvias are laser-drilled and plated with copper to establish interlayer connections.

  • Additional Build-Up Layers (2+N+2 or Any-Layer HDI): Subsequent lamination cycles add additional layers with sequentially drilled and plated vias.

  • Bonding and Alignment: Each lamination step requires precise alignment to ensure accurate layer-to-layer connectivity.

• Challenges in Sequential Lamination:

  • Higher lamination cycles increase process complexity and cost.

  • Proper alignment and registration are critical to prevent via misalignment and layer shift.

Sequential lamination ensures the creation of complex multi-layer structures in HDI PCB design, enabling high-density component placement.

Plating, Etching, and Solder Mask Application in HDI PCB Design

Plating, etching, and solder mask application are essential processes in HDI PCB design to define circuit patterns, enhance electrical conductivity, and protect the PCB surface from environmental factors.

• Copper Plating and Via Metallization:

  • After drilling, microvias and through-holes are metallized using electroplating or electroless copper deposition.

  • High-quality copper plating ensures low-resistance connections between layers in HDI PCB design.

• Etching to Define Circuit Patterns:

  • Circuit patterns are defined through a photolithography and etching process.

  • Fine-line etching ensures precise trace widths and spacing required for high-speed signal routing in HDI PCB design.

• Solder Mask Application:

  • A solder mask is applied to protect the copper traces and vias from oxidation and contamination.

  • HDI PCB design requires high-precision solder mask application to ensure accurate pad exposure and prevent solder bridging.

• Surface Finish:

  • Common surface finishes include ENIG (Electroless Nickel Immersion Gold), OSP (Organic Solderability Preservative), and HASL (Hot Air Solder Leveling).

  • In HDI PCB design, ENIG is often preferred for its excellent surface planarity and corrosion resistance.

These steps ensure the durability and functionality of the complex interconnects in HDI PCB design.

Quality Control and Inspection for HDI Boards

Quality control is a critical phase in HDI PCB design to ensure that the fabricated boards meet performance and reliability standards. Given the high complexity of High-Density Interconnect PCB design, rigorous inspection and testing procedures are implemented to identify defects and maintain quality.

• Automated Optical Inspection (AOI):

  • AOI detects defects such as misalignment, open circuits, and solder mask irregularities.

  • High-resolution imaging systems ensure that microvias, traces, and pads meet dimensional specifications.

• X-Ray Inspection:

  • X-ray inspection verifies the integrity of buried vias and internal connections in HDI PCB design.

  • It identifies potential defects in solder joints and detects voids or misalignment in the layers.

• Electrical Testing (Flying Probe and Bed-of-Nails):

  • Flying probe testing checks for continuity and insulation resistance between traces.

  • Bed-of-nails testing ensures that all connections and vias in HDI PCB design are electrically functional.

• Thermal and Reliability Testing:

  • Thermal cycling and thermal shock tests evaluate the durability of HDI PCB design under varying temperature conditions.

  • Reliability tests assess the board’s ability to withstand mechanical and environmental stress.

Strict quality control protocols ensure that HDI PCB design meets the highest standards for performance and longevity.

Summary of the Manufacturing Process of HDI PCB Design

• Laser Drilling and Via Formation: Creates precise microvias, blind vias, and buried vias using high-precision laser technology.

• Sequential Lamination Process: Adds multiple layers through repeated lamination and drilling cycles, ensuring complex interconnects.

• Plating, Etching, and Solder Mask Application: Defines circuit patterns and protects the PCB surface.

• Quality Control and Inspection: Ensures that all aspects of HDI PCB design meet performance and reliability standards.

By meticulously following these steps, manufacturers ensure that HDI PCB design achieves the high density, signal integrity, and reliability required in advanced electronic applications.

Applications and Future Trends in HDI PCB Design

HDI PCB design (High-Density Interconnect PCB design) is transforming various industries by enabling compact, high-speed, and reliable electronic devices. As the demand for miniaturization and high-performance systems grows, High-Density Interconnect PCB design has become indispensable in sectors such as telecommunications, IoT, aerospace, defense, high-performance computing (HPC), and AI hardware. Moreover, emerging technologies in HDI fabrication are driving continuous improvements in High-Density Interconnect PCB design, paving the way for next-generation electronic applications. Below is a comprehensive overview of the key application sectors and future trends in High-Density Interconnect PCB design.

Telecommunications and IoT Devices in HDI PCB Design

Telecommunications and IoT (Internet of Things) devices are among the primary beneficiaries of HDI PCB design. These devices require compact, high-frequency PCBs with reliable signal integrity to meet the growing demand for data transfer, low latency, and high-speed connectivity.

• Key Applications in Telecommunications:

  • 5G Infrastructure: HDI PCBs enable high-frequency millimeter-wave communication in 5G base stations and networking equipment.

  • RF Modules and Antennas: HDI PCB design enhances the performance of RF circuits, minimizing signal loss and improving impedance control.

  • High-Speed Routers and Switches: HDI boards provide the necessary signal integrity and density required for high-bandwidth data processing.

• IoT Device Integration:

  • Wearable Technology: Compact HDI boards support the miniaturization of wearable devices while maintaining functionality.

  • Smart Home Devices: HDI PCB design enhances the reliability and performance of IoT devices used in home automation systems.

  • Industrial IoT Sensors: HDI technology supports sensor integration in industrial IoT applications by enabling higher density and better connectivity.

As telecommunications and IoT continue to advance, HDI PCB design will play a pivotal role in supporting faster, more reliable, and energy-efficient devices.

Aerospace and Defense Systems Utilizing HDI PCB Design

Aerospace and defense systems require rugged and high-reliability electronic solutions capable of withstanding extreme conditions, including high temperatures, vibrations, and radiation. HDI PCB design meets these demanding requirements by offering enhanced durability, superior thermal management, and high-density routing.

• Applications in Aerospace:

  • Avionics Systems: HDI PCB design ensures reliable performance in avionics control systems, including flight control, navigation, and communication.

  • Satellite Communication Systems: HDI PCBs support high-frequency RF communication and data processing in satellite payloads.

  • Radar and Sensor Modules: Microvias and advanced routing in HDI PCB design enable high-performance radar and sensor systems used in aerospace applications.

• Defense and Military Applications:

  • Missile Guidance Systems: HDI PCBs provide the high-speed processing required for guidance and control systems.

  • Electronic Warfare (EW) Systems: HDI PCB design supports the integration of complex RF and digital systems for signal interception and jamming.

  • Secure Communication Devices: HDI technology ensures high-reliability communication in encrypted defense systems.

The adoption of High-Density Interconnect PCB design in aerospace and defense continues to grow as systems demand higher performance and compact form factors.

High-Performance Computing (HPC) and AI Hardware with HDI PCB Design

High-performance computing (HPC) and AI (Artificial Intelligence) hardware demand PCBs with high signal integrity, minimal latency, and the ability to support complex processing architectures. HDI PCB design addresses these requirements by providing higher layer counts, optimized microvia structures, and superior signal integrity for high-frequency operations.

• Applications in High-Performance Computing (HPC):

  • Data Centers and Server Boards: HDI PCB design enables high-speed data transfer and efficient heat dissipation in HPC environments.

  • GPU and FPGA Systems: HDI technology supports dense layouts with multiple high-speed components, essential for GPU and FPGA architectures.

  • Cloud Computing Infrastructure: HDI PCBs provide reliable performance in cloud servers, ensuring uninterrupted data processing.

• AI and Machine Learning Hardware:

  • AI Processors and Neural Networks: HDI PCB design enhances the performance of AI accelerators by minimizing signal delays and improving heat dissipation.

  • Edge Computing Devices: HDI PCBs enable the miniaturization of edge devices that require real-time data processing and low-latency communication.

  • Autonomous Systems and Robotics: AI-driven autonomous systems benefit from the compact and high-speed routing enabled by HDI PCB design.

The rise of AI and HPC applications continues to drive demand for advanced HDI PCB design to meet increasing computational power and data transfer needs.

Emerging Technologies in HDI PCB Fabrication Driving Future Trends

Emerging technologies in HDI PCB fabrication are setting the stage for the next generation of HDI PCB design. These innovations improve the performance, reliability, and cost-efficiency of HDI boards, enabling them to meet the requirements of future electronic systems.

• Advanced Microvia and Any-Layer Technology:

  • Stacked Microvias: Allow for higher routing density and improved interlayer connectivity.

  • Any-Layer HDI: Provides enhanced design flexibility by allowing microvias to connect any layer in the PCB stack-up.

• Ultra-Thin Substrates and High-Frequency Laminates:

  • Ultra-Thin Substrates: Enable the miniaturization of electronic devices while maintaining high performance.

  • Rogers and High-Frequency Laminates: Support high-frequency applications, improving signal integrity and reducing transmission loss.

• Embedded Components and Passive Integration:

  • Embedded Passive Components: Reduce board size and improve performance by integrating capacitors and resistors directly into the PCB layers.

  • System-in-Package (SiP) and Multi-Chip Modules (MCM): HDI technology enables the integration of multiple components in compact packages.

• AI-Driven PCB Design Automation:

  • AI and Machine Learning: Automates layout optimization, DFM (Design for Manufacturability) checks, and thermal management in HDI PCB design.

Summary of Applications and Future Trends in HDI PCB Design

• Key Application Sectors:

  • Telecommunications and IoT Devices: High-frequency, compact solutions for 5G and smart devices.

  • Aerospace and Defense Systems: Rugged, high-reliability solutions for mission-critical applications.

  • HPC and AI Hardware: High-density, low-latency designs for advanced computing and AI systems.

• Future Trends in HDI PCB Fabrication:

  • Advanced microvia technology, ultra-thin substrates, and high-frequency laminates.

  • Embedded component integration and AI-driven design optimization.

As electronic systems evolve, High-Density Interconnect PCB design will remain at the forefront of enabling advanced technologies, supporting future innovations across various industries.

Resources for HDI PCB Design Mastery in HDI PCB Design

Becoming proficient in HDI PCB design requires not only a solid understanding of the fundamental concepts but also access to reliable resources and tools to enhance your skills and streamline your design process. Below, we will explore some key guidelines, articles, and software tools that will help you master High-Density Interconnect PCB design and ensure high-quality, high-performance PCB layouts.

Recommended HDI PCB Design Guidelines and Resources

To gain expertise in High-Density Interconnect PCB design, several comprehensive guides, manuals, and resources can significantly aid in understanding the intricate aspects of HDI board fabrication and layout. Below are some of the most recommended resources for High-Density Interconnect PCB design mastery:

• Altium’s HDI Design Guidelines:
  Altium, a leading PCB design software provider, offers a thorough set of guidelines tailored to High-Density Interconnect PCB design. Altium’s resources cover topics such as layer stack-ups, via types, and design rules to help engineers optimize their HDI PCB layouts for signal integrity, manufacturing processes, and high-frequency performance.

• ProtoExpress HDI PCB Design Knowledge Base:
  ProtoExpress, a renowned PCB manufacturer, offers valuable resources for HDI PCB design, including technical papers and design tips. Their knowledge base includes articles on selecting materials, understanding the different types of vias used in HDI designs, and optimizing designs for manufacturability and cost-effectiveness.

• Hemeixin PCB Design Guides:
  Hemeixin PCB provides extensive guidelines for High-Density Interconnect PCB design that address various topics such as high-frequency design considerations, layer stack-ups, and microvia handling. Their resources help engineers understand the design process from conceptualization to prototyping.

These guides are invaluable for engineers who want to delve deeper into the nuances of High-Density Interconnect PCB design.

Wurth Elektronik HDI CBT PDF Guide

Wurth Elektronik is a leader in providing electronic components, and their HDI PCB design resources include a detailed PDF guide on HDI CBT (Component-Based Technology). This guide covers various aspects of HDI design, focusing on the integration of passive components, via structures, and effective PCB routing for high-density applications.

• Key Features of the Wurth Elektronik HDI CBT PDF Guide:

  • Understanding High-Density Interconnect PCB design and its impact on component placement and routing.

  • Techniques for reducing the number of layers while maintaining signal integrity.

  • Best practices for designing HDI PCBs that meet the strict requirements of high-frequency applications.

The guide is particularly useful for designers looking to improve the functionality and performance of their High-Density Interconnect PCB design through advanced component integration and routing strategies.

Viasion and NW Engineering LLC Design Articles

For designers aiming to stay updated with the latest trends and techniques in HDI PCB design, several industry experts publish insightful articles that provide deep dives into High-Density Interconnect PCB design principles, challenges, and solutions.

• Viasion’s Mastering HDI PCB Design Blog:
  Viasion, a well-respected name in PCB design and manufacturing, offers a comprehensive blog that covers the intricacies of HDI PCB design. Topics include stack-up designs, microvia techniques, and strategies for improving signal integrity in high-density circuits. Viasion’s blog provides step-by-step tutorials and case studies, making it an excellent resource for both beginners and experienced designers.

• NW Engineering LLC Design Articles:
  NW Engineering LLC is a trusted provider of High-Density Interconnect PCB design resources and offers in-depth articles on various aspects of PCB design, including best practices, error avoidance, and real-world design challenges. Their articles on High-Density Interconnect PCB design are practical, focusing on layout strategies, thermal management, and the impact of high-density routing on overall performance.

These articles provide actionable insights and are essential for professionals aiming to sharpen their High-Density Interconnect PCB design expertise.

Tools and Software for HDI PCB Design and Simulation

To master HDI PCB design, it’s crucial to work with cutting-edge tools that enable accurate design, simulation, and analysis. Below are some of the most popular software tools and platforms used for High-Density Interconnect PCB design:

• Altium Designer:
  Altium Designer is one of the most powerful and widely used PCB design software packages. It offers features specifically geared towards HDI PCB design, such as integrated layer stack-up editors, advanced routing capabilities, and support for microvia design. Altium’s robust simulation tools also help designers test signal integrity, power distribution, and thermal performance before fabrication.

• Cadence Allegro:
  Cadence Allegro is another high-end tool that supports HDI PCB design. Known for its advanced routing and layout features, Allegro helps engineers design high-density interconnect PCBs efficiently. It also provides powerful simulation capabilities, including signal and power integrity analysis, to ensure that High-Density Interconnect PCB design meets high-performance standards.

• KiCad:
  For designers seeking a free, open-source option, KiCad offers many tools that support High-Density Interconnect PCB design, including 3D visualization, advanced layout features, and support for custom via types. While it may not have all the advanced features of paid tools like Altium or Cadence, KiCad remains a valuable resource for High-Density Interconnect PCB design.

• ANSYS HFSS (High-Frequency Structure Simulator):
  ANSYS HFSS is an electromagnetic simulation software that is particularly useful in HDI PCB design for simulating high-frequency signals and ensuring that signal integrity is maintained. Engineers can use this software to model and test the behavior of their High-Density Interconnect PCB design before physical prototyping, which is especially useful in high-speed communication and RF applications.

• Mentor Graphics PADS:
  PADS is a powerful PCB design and layout tool that supports high-density designs, including High-Density Interconnect PCB design. PADS provides intuitive routing and simulation tools and is particularly beneficial for designing complex multilayer HDI PCBs used in industries like telecommunications and consumer electronics.

Summary of Resources for HDI PCB Design Mastery

• Guidelines and Resources:

  • Altium, ProtoExpress, and Hemeixin PCB design guides offer comprehensive insights into HDI design principles.

  • Wurth Elektronik’s HDI CBT PDF guide provides in-depth information on component-based design for High-Density Interconnect PCB design.

  • Viasion and NW Engineering LLC’s design articles offer practical insights and real-world solutions for High-Density Interconnect PCB design challenges.

• Tools for HDI PCB Design:

  • Altium Designer, Cadence Allegro, and KiCad provide the essential software features for advanced High-Density Interconnect PCB design.

  • ANSYS HFSS and Mentor Graphics PADS offer powerful simulation and analysis tools for high-frequency High-Density Interconnect PCB design.

By utilizing these guidelines, articles, and software tools, engineers can improve their High-Density Interconnect PCB design skills and create innovative, high-performance PCB layouts that meet the requirements of modern electronic applications.

FQAs Abut HDI PCB Design

What is HDI in PCB design?

HDI (High-Density Interconnect) PCB design refers to a type of printed circuit board (PCB) that uses advanced manufacturing techniques to achieve a higher density of components and connections. This involves utilizing finer traces, smaller vias (such as microvias), and more complex layer stack-ups, which allow for greater miniaturization and performance in electronic devices. HDI PCBs are typically used in applications where space and performance are critical, such as smartphones, medical devices, and high-speed computing.

What is the difference between HDI and non-HDI PCB?

The primary differences between HDI PCBs and non-HDI PCBs (traditional PCBs) include:

• Density and Miniaturization: HDI PCBs have a higher component density, allowing for smaller and more compact designs. Non-HDI PCBs typically have larger trace widths and vias.

• Via Types: HDI PCBs use microvias, blind vias, and buried vias, which reduce the size of the vias and make it possible to have more layers in a smaller form factor. Non-HDI PCBs usually have through-hole vias (PTH) that are larger and take up more space.

• Manufacturing Complexity: HDI PCBs are more complex and expensive to manufacture due to their advanced via structures, multi-layer stack-ups, and more precise drilling techniques. Non-HDI PCBs are simpler and less costly to produce.

• Applications: HDI PCBs are commonly used in high-performance, miniaturized devices like smartphones, tablets, and medical devices. Non-HDI PCBs are typically found in less complex applications such as home appliances and basic consumer electronics.

What is the difference between HDI and PTH PCB?

The key differences between HDI PCBs and PTH (Plated Through-Hole) PCBs are:

• Via Structures:

  • HDI PCBs use microvias (small-diameter holes) that allow for high-density interconnections between layers. These vias are typically smaller and more precise than through-hole vias used in PTH PCBs.

  • PTH PCBs use through-hole vias, which are larger and connect the PCB’s layers by drilling all the way through the board.

• Design Density:

  • HDI PCBs have higher component density due to smaller vias and finer trace widths, which allows for more compact and complex designs.

  • PTH PCBs are typically lower density, with larger vias that take up more space and restrict the number of components that can be placed on the board.

• Manufacturing Process:

  • HDI PCBs are more complex and expensive to produce due to the use of advanced technologies like laser drilling for microvias and stacked vias.

  • PTH PCBs are simpler to manufacture, with a straightforward drilling process for larger through-hole vias.

• Applications:

  • HDI PCBs are used in high-performance and miniaturized applications like smartphones, medical devices, and IoT devices.

  • PTH PCBs are used in applications where component density is not as critical, such as in power electronics and some consumer devices.

How much does HDI PCB cost?

The cost of HDI PCBs can vary significantly depending on factors such as:

• Layer Count: More layers increase the complexity and cost of HDI PCBs.

• Via Type: The use of microvias, blind vias, or buried vias in HDI designs requires more advanced manufacturing processes and increases the cost.

• Material Selection: High-quality materials, such as high-frequency laminates or advanced substrates, can drive up costs.

• Quantity: Smaller production runs often result in higher per-unit costs, while larger orders can reduce the price per PCB.

• Design Complexity: The more complex the High-Density Interconnect PCB design (e.g., intricate routing, fine traces, or tight tolerances), the higher the cost.

HDI PCBs are more expensive than traditional PCBs (non-HDI or PTH PCBs), with costs ranging from two to four times higher depending on the factors mentioned above. However, the increased cost is often justified by the higher performance and miniaturization benefits in advanced applications.
