The Benefits of Using a Flexible PCB Board in Modern Electronics

Printed circuit boards (PCBs) are the foundation of nearly every electronic device, serving as the core platform for mounting and connecting electronic components. While traditional rigid boards have dominated the industry for decades, the demand for more compact, lightweight, and adaptable electronics has led to the increasing use of the flexible pcb board. These boards offer unique advantages, such as the ability to bend, fold, and fit into tight spaces—making them ideal for modern devices like smartphones, medical wearables, and aerospace systems. As product designs become more intricate, the flexible pcb board has become a go-to solution for engineers aiming to balance form and functionality. To meet fast-paced development cycles, services like PCBWay now offer rapid prototyping, fast-turn PCB board production, and full PCB assembly for flexible circuits. These streamlined options help innovators quickly move from design to testing and production with greater efficiency and reliability.

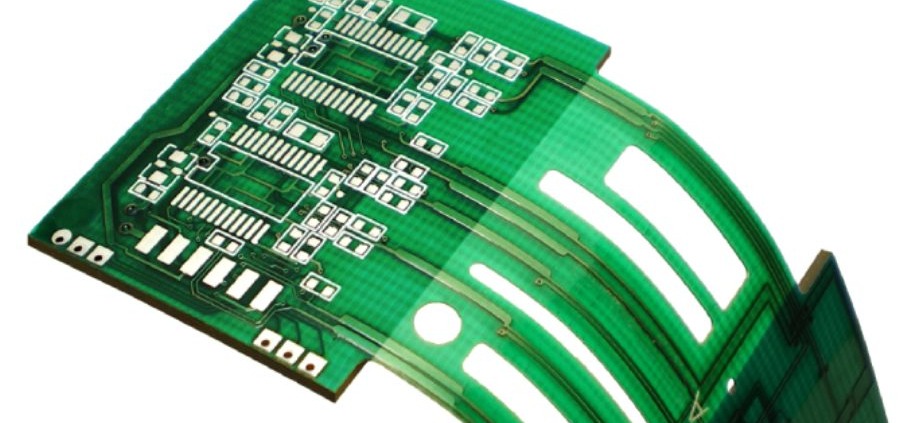

What is a Flexible PCB Board?

A flexible printed circuit board is a type of PCB designed to bend, fold, or twist without damaging the circuit integrity. Unlike traditional rigid PCBs, which are made from solid materials like FR4, this type of board uses a flexible base material—typically polyimide (PI) or polyester (PET)—that allows it to conform to three-dimensional spaces. This makes it an essential solution for compact and dynamic electronic devices.

The basic structure of a flexible pcb board includes one or more conductive copper layers, a flexible substrate that supports those layers, and an outer protective coverlay that insulates and shields the circuit. Despite its flexibility, the board maintains electrical reliability and mechanical stability even under repeated bending.

Compared to rigid PCBs, flexible versions offer lighter weight, reduced space usage, and enhanced durability in vibration-prone environments. According to resources from PCBWay and Ansys, these boards are revolutionizing how engineers approach circuit design in industries ranging from consumer electronics to aerospace.

Flexible PCB Board vs Rigid and Rigid-Flex: What’s the Difference?

Understanding the differences between a flexible pcb board, a rigid PCB, and a rigid-flex PCB is essential for selecting the right solution for your project. These PCB types vary greatly in structure, performance, and application adaptability.

Structural Differences

A flexible PCB is built on a bendable substrate, allowing it to twist or fold, making it ideal for dynamic or limited-space applications. In contrast, rigid PCBs are made from solid fiberglass materials and maintain a fixed shape. Rigid-flex PCBs combine both technologies—rigid sections for component mounting and flexible sections for interconnection.

Performance & Design Considerations

• Flexible PCB offers high adaptability, excellent resistance to vibration, and space-saving advantages.

• Rigid PCBs are easier to manufacture and ideal for flat, static designs.

• Rigid-flex balances both, reducing connectors and improving reliability in complex assemblies.

Application Environments

• Flexible PCB: wearable tech, foldable devices, aerospace

• Rigid PCB: desktop electronics, power supplies

• Rigid-Flex: military equipment, medical devices

Pros and Cons Comparison Table

According to Royal Circuits, using a flexible pcb board or rigid-flex solution can significantly improve reliability and design efficiency in demanding or space-constrained applications.

Types of Flexible PCB Board: A Comprehensive Overview

There are several types of flexible pcb board configurations, each designed to meet specific electrical, mechanical, and spatial requirements. Selecting the right type depends on the complexity of the circuit, required flexibility, and intended application.

Single-Sided Flexible PCB Board

The most basic form of flexible PCBs, single-sided flex PCBs consist of a single conductive copper layer on a flexible substrate, covered with a protective coverlay. They are ideal for simple circuits with low component density and are widely used in cameras, calculators, and printers.

Double-Sided Flexible PCB Board

These boards feature copper layers on both sides of the flexible substrate, connected by plated through-holes. A flexible PCB, with this structure allows for more complex routing and denser designs, making it suitable for industrial controls and automotive electronics.

Multilayer Flexible PCB Board

Multilayer flexible PCB designs integrate three or more conductive layers, separated by insulating materials. They provide enhanced functionality and high circuit density while maintaining flexibility. These are used in aerospace, military systems, and medical imaging devices.

Rigid-flex PCBs

Combining the benefits of rigid and flexible boards, rigid-flex PCBs integrate rigid sections for mounting components and flexible areas for folding or movement. This hybrid flexible PCB is ideal for applications requiring durability and space optimization, such as smartphones and surgical instruments.

HDI Flexible PCB Board

High-Density Interconnect (HDI) flexible PCB solutions offer fine lines, microvias, and high circuit density. They are commonly found in advanced electronics like mobile devices, wearables, and high-performance computing systems where miniaturization is crucial.

LED-Specific Flexible PCB Board

These specialized flexible PCB types are designed for LED strip lighting and flexible display panels. They often use white solder masks for light reflection and have enhanced thermal performance for LED integration in signage, automotive lighting, and architectural applications.

According to ProtoExpress, choosing the right flexible pcb board type is critical to ensuring product performance, especially in applications where durability, weight, and flexibility are essential.

How are Flexible PCB Board Products Made?

The manufacturing process of a flexible pcb board is more intricate than that of a rigid board due to the materials involved and the need for precision in flexible applications. Each step plays a critical role in ensuring flexibility, reliability, and long-term performance.

Material Selection

A flexible PCB typically begins with the selection of high-performance base materials such as polyimide (PI) or polyester (PET) films. These materials offer excellent thermal resistance, chemical stability, and flexibility. The copper foil is laminated onto the substrate to create the conductive layer.

Circuit Patterning

Next, the circuitry is defined using photolithography and etching processes. In photolithography, a photosensitive layer is applied and exposed through a mask. Unexposed areas are developed and etched away, forming the circuit traces. This step defines the layout and electrical paths on the flexible PCB.

Drilling and Plating

Micro-drilling or laser drilling is used to create holes for inter-layer connections. These vias are then electroplated with copper to establish conductivity between layers, especially important for double-sided and multilayer designs.

Lamination with Coverlays

A coverlay, usually made of polyimide and adhesive, is laminated over the circuit pattern to protect the copper traces from environmental damage, moisture, and mechanical wear. This layer enhances the flexible pcb board’s durability while maintaining its ability to bend.

Surface Finishing

To prepare the pads for soldering components, a surface finish is applied. Common options include OSP (Organic Solderability Preservative) and ENIG (Electroless Nickel Immersion Gold). These finishes improve solderability and prevent oxidation.

Final Testing and Inspection

The completed flexible PCB undergoes electrical testing, visual inspection, and flexibility testing to ensure performance and reliability. Any defects such as open circuits, shorts, or delamination are identified and corrected.

According to the PCBElec manufacturing process guide and this DIY guide on Instructables, careful material handling and process control are key to producing high-quality flexible PCBs that meet industrial standards.

Advantages & Challenges of Flexible PCB Board Designs

The flexible pcb board is rapidly becoming a key enabler in the design of compact, high-performance electronics. While it offers unique advantages over traditional PCBs, it also presents specific challenges during production and assembly. Understanding both sides helps engineers make informed design decisions.

Advantages of Flexible PCB Board Designs

• High Flexibility for Tight-Space Designs
  The core benefit of a flexible PCB is its ability to bend, twist, and fold. This makes it ideal for compact devices where space constraints are critical—such as smartphones, medical wearables, and drones.

• Lightweight and Thin
  Made from ultra-thin substrates like polyimide, a flexible PCB is significantly lighter and slimmer than rigid PCBs. This is particularly important in aerospace, automotive, and portable electronics applications.

• Excellent Vibration Resistance
  The bendable structure of a flexible PCB provides natural shock absorption, making it more resistant to vibrations and mechanical stress. This improves long-term reliability, especially in mobile or high-motion environments.

• Dynamic Flexing for Moving Parts
  A flexible pcb board can maintain performance even when continuously bent, which is essential in applications like printer heads, foldable screens, and robotic arms.

Challenges of Flexible PCB Board Designs

• Higher Production Costs
  The materials and manufacturing processes for a flexible pcb board are more expensive than those for traditional PCBs. This includes costs related to specialized substrates, coverlays, and fabrication equipment.

• Fragile During Handling
  Before lamination and final assembly, the thin flexible material can be prone to damage such as creasing or tearing. Proper handling and storage protocols are essential to avoid defects.

• Complex Assembly Process
  Assembling a flexible pcb board often requires customized fixtures and advanced techniques to prevent warping or misalignment. This increases the need for skilled labor and precision machinery.

As highlighted by Proto-Electronics, the advantages of a flexible pcb board can far outweigh its challenges when applied to the right use cases—especially where space savings, weight reduction, and dynamic performance are top priorities.

Applications of Flexible PCB Board in Modern Industries

Thanks to their lightweight, bendable structure and high reliability, the flexible pcb board has become a foundational component in a wide range of industries. From next-generation gadgets to mission-critical aerospace systems, these boards enable designs that are not only compact but also resilient in challenging environments.

Consumer Electronics

In smartphones, smartwatches, and wireless earbuds, the flexible pcb board allows manufacturers to achieve thinner profiles and accommodate irregular shapes. Their ability to fit into tight spaces and fold around structural components makes them indispensable in modern consumer tech. Foldable phones and wearable devices especially benefit from their dynamic flexibility.

Medical Devices

Medical electronics demand precision and miniaturization—qualities perfectly aligned with the flexible PCB. These boards are commonly used in endoscopes, portable monitors, hearing aids, and wearable health sensors. Their ability to withstand movement and sterilization while maintaining performance is critical in healthcare applications.

Automotive Systems

In the automotive industry, flexible pcb board designs are found in dashboards, LED lighting systems, and camera-based driver assistance systems. Their vibration resistance and ability to fit in curved spaces help manufacturers meet both aesthetic and functional design goals.

Aerospace & Defense

Aircraft and satellite systems utilize flexible PCB technology for its light weight and high reliability under extreme conditions. In avionics, they help connect subsystems in confined areas, while in satellites, their radiation resistance and thermal stability are invaluable.

Industrial Equipment

From robotic arms to automation controllers, flexible pcb board solutions are used in dynamic mechanical environments. Their adaptability to continuous motion and resistance to mechanical stress make them suitable for long-life, high-performance machinery in factories and processing plants.

The flexible PCB has proven itself as an enabling technology in diverse fields, helping engineers design smarter, more compact, and more reliable products that meet the ever-evolving needs of modern industries.

PCB Prototyping & Assembly Services for Flexible PCB Board Projects

Developing a high-performance flexible pcb board requires not only an optimized design but also reliable prototyping and assembly services. From concept validation to full-scale production, choosing the right supplier and service offering can significantly influence the success of your product.

Fast-Turn Prototyping for Flexible PCBs

Rapid prototyping is essential in today’s fast-paced electronics industry. Leading providers like PCBWay offer fast-turn flexible pcb board prototyping services that allow engineers to test their concepts within days. This speed is crucial for iterative design, debugging, and ensuring form-fit-function accuracy, especially in wearable tech, medical devices, and foldable electronics.

Flexible PCB Assembly Services

Assembling a flexible pcb board requires precise equipment and experience, especially when dealing with thin substrates and tight layouts. Assembly options typically include:

• SMT (Surface Mount Technology): Ideal for compact, high-density flexible circuits.

• Through-Hole Assembly: Used when stronger mechanical connections or high-power components are required.

Leading providers like ProtoExpress, AllFlex, and PCBWay offer specialized flexible PCB assembly services that accommodate both simple and complex builds. These companies support everything from component sourcing and soldering to inspection and final testing.

Choosing the Right Supplier

When selecting a flexible pcb board manufacturer or assembly partner, consider:

• Experience with flexible and rigid-flex materials

• Fast-turnaround capabilities

• Quality assurance certifications (e.g., ISO, IPC, RoHS)

• Design-for-manufacturing (DFM) support

Suppliers like PCBWay distinguish themselves with their comprehensive service offerings—from prototyping to mass production, covering both flexible and rigid-flex needs. Their user-friendly online quoting system and global logistics also make them a go-to option for engineers worldwide.

According to the PCBWay overview on flex and rigid-flex solutions, partnering with an experienced service provider helps reduce lead times, improve first-pass yield, and bring reliable flexible pcb board designs to market faster.

Are Flexible PCB Board Designs Reliable?

One of the most critical questions when working with a flexible pcb board is its reliability over time and in dynamic environments. These boards are often used in applications where constant movement or exposure to harsh conditions is common, making their longevity a key factor for success. Understanding how to optimize their durability is essential to achieving reliable performance.

Longevity and Reliability in Dynamic Environments

A flexible pcb board is specifically designed to endure dynamic conditions, including bending, twisting, and vibrating. Their inherent flexibility makes them suitable for applications like wearables, robotics, and aerospace systems, where traditional rigid PCBs would fail under the same conditions. With proper design and material selection, flexible PCB technology can provide long-term performance in environments where static solutions fall short.

Common Failure Modes

Despite their advantages, flexible pcb board designs can suffer from a few common failure modes:

• Cracking: Repeated flexing can cause micro-cracks in the copper traces or substrate, especially in areas of high mechanical stress. This often results in open circuits or unreliable connections.

• Delamination: The adhesive layers that bond the copper traces to the substrate can peel away due to repeated flexing or exposure to high temperatures, leading to the separation of layers.

Both of these issues can significantly affect the electrical and mechanical performance of a flexible PCB, particularly in high-stress applications.

Tips to Improve Reliability Through Proper Design and Materials

To ensure a flexible pcb board remains reliable over time, consider the following design and material best practices:

• Choose high-quality substrates like polyimide (PI) or polyester (PET) that offer superior flexibility and thermal stability.

• Use thicker copper traces or reinforced copper layers to reduce the risk of cracking under mechanical stress.

• Optimize the design layout by avoiding sharp bends and focusing on gradual, controlled flexing areas. Strategic placement of components and trace routing can improve the longevity of the board.

• Select appropriate coverlays and adhesives to ensure better adhesion and resistance to delamination, especially in harsh environments.

• Perform environmental testing to simulate real-world conditions, allowing for early detection of failure points.

According to Ansys’ introduction to flexible PCBs, optimizing a flexible pcb board for durability requires a combination of the right materials, design practices, and rigorous testing to ensure it withstands mechanical stress and environmental factors without compromising performance.

FQAs Abut Flexible PCB Board

Are there flexible PCBs?

Yes, flexible PCBs (Printed Circuit Boards) do exist. They are made from flexible substrates like polyimide or polyester, which allow them to bend, twist, or fold without compromising the circuit’s function. Flexible PCBs are used in a variety of applications, including wearables, flexible displays, medical devices, and automotive electronics.

Are flexible PCBs reliable?

Yes, flexible PCBs can be reliable, but their longevity and performance depend on factors like design, material choice, and the application environment. When designed correctly with high-quality materials and proper manufacturing processes, flexible PCBs can perform well over time, even in dynamic or harsh environments. However, issues like cracking or delamination can occur if the PCB is subjected to excessive mechanical stress or poor-quality materials.

How do you make a flexible PCB?

A flexible PCB is made by selecting a flexible substrate material such as polyimide (PI) or polyester (PET), then applying copper layers to create electrical circuits. The manufacturing process typically involves:

• Patterning the copper layers using photolithography and etching techniques.

• Drilling holes for vias, which connect different layers of the circuit.

• Laminating a coverlay to protect the copper and improve mechanical strength.

• Applying surface finishes like ENIG or OSP to ensure good solderability.

• Testing to ensure the functionality and durability of the final product.

What is the difference between rigid PCB and flexible PCB?

The primary difference between rigid and flexible PCBs lies in their structural composition. A rigid PCB is made from a solid, inflexible material (usually fiberglass or epoxy) and is designed for static applications. On the other hand, a flexible PCB is made from flexible materials like polyimide or polyester, allowing it to bend or fold, making it ideal for dynamic or space-constrained applications. Flexible PCBs are used in areas where traditional rigid PCBs would be impractical, such as in wearable devices, foldable displays, or flexible electronics.
