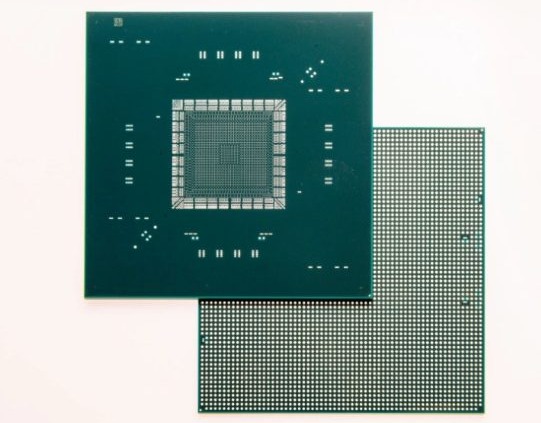

FCBGA Glass Substrate Benefits in Electronics

Electronic packaging is essential in modern technology, providing support, electrical interconnections, and thermal management for semiconductor components. Substrates, the foundation of this packaging, play a crucial role in ensuring the functionality and reliability of electronic devices. Among various packaging technologies, FCBGA (Flip-Chip Ball Grid Array) is particularly important for its high-density, high-performance applications in CPUs, GPUs, and advanced systems. A significant advancement in FCBGA packaging is the use of FCBGA Glass Substrate, which offers superior thermal stability, dimensional accuracy, and compatibility with fine-line routing. These benefits make glass substrates increasingly vital in meeting the performance and reliability needs of next-generation devices, including those in AI, 5G, and IoT applications.

Table of Contents

What is a BGA Substrate and Its Role in FCBGA Glass Substrate Technology?

A BGA (Ball Grid Array) substrate is a critical component in semiconductor packaging, acting as the intermediary layer between a chip and the printed circuit board (PCB). Its primary purpose is to provide mechanical support, electrical interconnection, and thermal management for integrated circuits, ensuring reliable performance in electronic devices. The substrate serves as a foundation for solder balls, which establish connections between the chip and the PCB.

BGA substrates are typically made from various materials, including organic laminates, silicon, and glass. Organic laminates, such as epoxy resin and polyimide, are widely used due to their cost-effectiveness and flexibility. Silicon substrates offer superior thermal conductivity and mechanical strength, making them ideal for high-performance applications. The FCBGA Glass Substrate, however, is emerging as a game-changer in advanced packaging. Glass substrates provide excellent dimensional stability, low thermal expansion, and the ability to support fine-pitch routing, making them particularly suitable for modern FCBGA technology.

BGA substrates are indispensable in applications ranging from consumer electronics and automotive systems to high-performance computing and telecommunications. In particular, the FCBGA Glass Substrate is becoming increasingly important for enabling next-generation technologies, such as 5G, AI, and IoT, where higher performance and reliability are paramount.

What is a Glass Substrate and Its Importance in FCBGA Glass Substrate Technology?

A glass substrate is a flat, rigid material made of glass, commonly used as a foundation in various advanced electronic applications. Known for its unique physical and chemical properties, a glass substrate provides high rigidity, excellent thermal and dimensional stability, and superior electrical insulation, making it an ideal choice for high-performance semiconductor packaging. In the context of the FCBGA Glass Substrate, glass substrates play a crucial role in enhancing the reliability and performance of flip-chip ball grid array packages.

One of the defining features of glass substrates is their high rigidity, which ensures minimal warpage during manufacturing and operation. This rigidity, combined with their exceptional thermal and dimensional stability, allows them to maintain precise structural integrity even under extreme conditions. Furthermore, glass substrates excel in high-frequency performance due to their low dielectric constant and loss tangent, making them suitable for advanced applications like 5G and AI.

Compared to other substrate materials, such as organic laminates and silicon, glass substrates offer distinct advantages. While organic laminates are cost-effective and widely used, they lack the thermal stability and precision required for cutting-edge technologies. Silicon substrates, though effective for thermal conductivity and electrical performance, are often limited by higher costs and restricted wafer sizes. The FCBGA Glass Substrate strikes a balance by providing scalability, high-frequency capability, and robust thermal properties, making it an ideal solution for modern electronic packaging challenges.

Differences Between Glass and Silicon Substrates in FCBGA Glass Substrate Applications

When it comes to advanced semiconductor packaging, glass and silicon substrates offer distinct advantages and limitations. Both play vital roles in electronic packaging, but their differences significantly impact their suitability for specific applications, especially in the context of FCBGA Glass Substrate technology.

Material Composition

Glass substrates feature an amorphous structure, which provides exceptional dimensional stability and reduced warpage. This property makes them ideal for applications requiring precise geometries and reliable performance under varying conditions. In contrast, silicon substrates have a crystalline structure, offering superior mechanical strength and thermal conductivity but with inherent brittleness.

Thermal Properties

Thermal conductivity is a key differentiator. Silicon substrates excel with higher thermal conductivity, making them well-suited for applications that require efficient heat dissipation, such as high-power ICs. On the other hand, glass substrates have lower thermal conductivity, but their stability at high temperatures makes them a strong candidate for emerging FCBGA Glass Substrate applications, where dimensional precision and insulation are more critical than heat transfer.

Cost and Availability

Glass substrates are generally more cost-effective and scalable compared to silicon. The manufacturing process for glass substrates supports larger panel sizes, reducing costs and enabling mass production for advanced packaging solutions like the FCBGA Glass Substrate. In contrast, silicon substrates are more expensive due to their complex production process and limited wafer sizes, which restrict scalability in high-volume production.

Application Suitability

The FCBGA Glass Substrate is gaining traction as a key innovation in advanced packaging due to its compatibility with high-frequency and high-density interconnections. Glass substrates are ideal for FCBGA technology, where features like fine-line routing, low dielectric constants, and minimal warpage are essential. Silicon substrates, while dominant in conventional IC packaging, face challenges in scalability and cost efficiency for next-generation technologies, making glass a more attractive alternative for advanced applications like AI, IoT, and 5G.

The FCBGA Glass Substrate combines the best attributes of glass—stability, scalability, and cost efficiency—to address the growing demands of cutting-edge electronics, providing a competitive edge over traditional silicon-based substrates in advanced packaging solutions.

What is FCBGA and How Does it Relate to FCBGA Glass Substrate Technology?

FCBGA, or Flip-Chip Ball Grid Array, is an advanced semiconductor packaging technology that connects a chip directly to a substrate using solder bumps. Unlike traditional wire bonding, the flip-chip method places the active side of the chip facing the substrate, allowing for a shorter electrical path and better overall performance. In the context of FCBGA Glass Substrate technology, this packaging method leverages the unique properties of glass substrates to achieve enhanced performance and reliability in cutting-edge applications.

Key Features and Advantages

High Input/Output Density
FCBGA packaging supports a large number of input/output (I/O) connections in a compact footprint, making it ideal for high-performance devices. The use of the FCBGA Glass Substrate further improves the ability to achieve fine-line routing, enabling even higher I/O densities required for next-generation applications.
Improved Electrical and Thermal Performance
The flip-chip design minimizes parasitic inductance and resistance, ensuring better electrical performance. Additionally, the FCBGA Glass Substrate contributes to improved signal integrity and insulation, making it suitable for high-frequency applications like 5G and AI. While glass has lower thermal conductivity compared to silicon, its stability ensures minimal warpage and consistent thermal performance over time.
Compact Size and High Reliability
By eliminating the need for wire bonds and reducing the package footprint, FCBGA allows for more compact designs. The high rigidity and dimensional stability of the FCBGA Glass Substrate enhance the reliability of the package, especially in demanding environments.

Applications

FCBGA technology, particularly when paired with FCBGA Glass Substrate innovations, is widely used in high-performance computing devices. Its applications include:

CPUs: Central processing units for desktops, laptops, and servers.
GPUs: Graphics processing units for gaming, AI, and data centers.
Advanced Server Processors: Critical components for cloud computing and enterprise-level workloads.

The combination of flip-chip packaging and FCBGA Glass Substrate materials is driving advancements in semiconductor packaging, meeting the demands of industries like AI, IoT, and telecommunications.

The Role of Glass Substrate in FCBGA Glass Substrate Technology

The FCBGA Glass Substrate is transforming semiconductor packaging by addressing challenges posed by traditional materials like organic laminates and silicon. Glass substrates are emerging as a key material for FCBGA due to their superior properties, which cater to the increasing demands of advanced electronics such as 5G, AI, and IoT.

Improved Warpage Control

Glass substrates offer exceptional dimensional stability, even under extreme thermal and mechanical stress. This stability minimizes warpage during the manufacturing process and device operation, a critical factor in achieving reliable connections in FCBGA packaging. For instance, glass’s low coefficient of thermal expansion (CTE) closely matches that of silicon chips, reducing stress during temperature fluctuations.

Compatibility with Fine-Line Routing

The FCBGA Glass Substrate supports finer routing capabilities, enabling more complex and dense interconnections. Glass substrates have a smoother surface and higher rigidity compared to organic laminates, which allows for precise patterning of smaller circuit features. This is essential for modern semiconductor devices that require high I/O density and compact designs.

Enhanced Electrical Insulation

Glass substrates have a low dielectric constant and excellent electrical insulation properties, making them ideal for high-frequency and high-speed applications. These properties reduce signal loss and interference, ensuring optimal performance for applications like advanced CPUs and GPUs.

Case Studies and Industry Examples

Leading companies like LG Innotek and Toppan are driving innovations in FCBGA Glass Substrate technology.

LG Innotek: Recently began mass production of FCBGA glass substrates tailored for high-performance server processors and AI chips, highlighting the scalability and effectiveness of glass in meeting industry demands.
Toppan: Focuses on developing glass substrates with advanced manufacturing techniques, enabling finer line widths and better cost efficiency.

These examples demonstrate how glass substrates are becoming a cornerstone for next-generation FCBGA packaging, offering unmatched reliability, scalability, and performance. As the industry shifts towards higher frequencies and miniaturized designs, the FCBGA Glass Substrate is poised to play a pivotal role in future semiconductor advancements.

Manufacturing Process of FCBGA with FCBGA Glass Substrate

The manufacturing process of FCBGA Glass Substrate involves precise engineering and advanced techniques to ensure high performance and reliability in modern semiconductor applications. Glass substrates introduce unique advantages but also require meticulous handling during production to address their specific properties. Below is an overview of the preparation and key steps involved in manufacturing FCBGA packages with glass substrates.

Overview of FCBGA Glass Substrate Preparation

The process begins with the production of glass panels, which are polished and treated to achieve a smooth, defect-free surface. These panels are then coated with dielectric layers and conductive materials to enable fine-line routing. Advanced photolithography and etching techniques are employed to pattern the circuits, ensuring compatibility with the high I/O density required in FCBGA packages. Glass substrates are also inspected rigorously to identify and eliminate surface irregularities that could impact performance.

Key Steps in FCBGA Glass Substrate Assembly

Flip-Chip Bonding

In the flip-chip bonding process, solder bumps are formed on the chip pads, and the chip is flipped to align with the conductive traces on the FCBGA Glass Substrate. The precise alignment is critical, as any deviation can compromise the electrical connections. The chip is then thermally reflowed, creating strong, reliable bonds between the solder bumps and the substrate.

Encapsulation and Underfill

To enhance mechanical stability and protect the connections, an underfill material is applied between the chip and the substrate. Encapsulation further safeguards the package against environmental factors like moisture and mechanical stress, ensuring long-term durability.

Testing and Quality Assurance

Comprehensive testing is conducted to verify the electrical and thermal performance of the FCBGA package. Key quality assurance steps include x-ray inspection, functional testing, and thermal cycling to detect potential defects and ensure the package meets stringent industry standards.

Challenges in Manufacturing FCBGA Glass Substrates

Precision Handling of Glass

Glass substrates, while rigid, are brittle and prone to cracking or chipping during handling. Specialized equipment and processes are required to minimize stress and ensure the substrate’s integrity throughout production.

Yield Improvement Techniques

Manufacturing FCBGA Glass Substrate packages demands high precision to maintain yield rates. Techniques like advanced process control (APC), real-time defect detection, and optimized reflow profiles are employed to reduce defects and enhance overall production efficiency.

The manufacturing process of FCBGA packages with FCBGA Glass Substrate technology combines advanced materials engineering and precise assembly techniques. Despite challenges such as the brittleness of glass and the complexity of fine-line routing, the benefits—improved performance, high-frequency compatibility, and scalability—make glass substrates an essential innovation for next-generation semiconductor packaging.

Advantages of FCBGA Glass Substrates in Modern Semiconductor Packaging

The FCBGA Glass Substrate is revolutionizing semiconductor packaging by addressing critical demands for performance, reliability, and scalability in advanced applications. Its unique properties position it as a superior choice over traditional materials like organic laminates and silicon substrates. Below are the key advantages of FCBGA Glass Substrates and their role in enabling next-generation technologies.

Scalability for High-Performance Computing

The FCBGA Glass Substrate offers unparalleled scalability, making it ideal for high-performance computing applications such as CPUs, GPUs, and server processors. Unlike silicon substrates, glass substrates can be manufactured in larger panel sizes, significantly reducing production costs and improving throughput. This scalability supports the growing demand for packaging solutions that accommodate higher input/output (I/O) density while maintaining cost efficiency. It also enables manufacturers to meet the needs of emerging technologies like AI and 5G with higher production capacity.

Superior Thermal and Mechanical Stability

Glass substrates exhibit exceptional thermal and mechanical stability, which is essential for the reliability of FCBGA packages. The low coefficient of thermal expansion (CTE) of glass closely matches that of silicon chips, minimizing stress during thermal cycling and ensuring consistent performance over time. Additionally, the high rigidity of glass reduces warpage during both manufacturing and operation, improving the overall structural integrity of the package. These properties make the FCBGA Glass Substrate particularly well-suited for applications that demand robust performance under extreme conditions.

Compatibility with Next-Generation Semiconductor Nodes

The FCBGA Glass Substrate is highly compatible with next-generation semiconductor nodes, enabling the fine-line routing and high-density interconnections required for advanced packaging. Its smooth surface and excellent dimensional stability support the precise patterning of smaller features, which are critical for semiconductor nodes below 5 nm. Furthermore, the low dielectric constant and loss tangent of glass enhance signal integrity, making it ideal for high-frequency applications like 5G networks, AI accelerators, and IoT devices.

The FCBGA Glass Substrate combines scalability, thermal stability, and advanced compatibility to meet the demands of modern semiconductor packaging. As industries continue to push the boundaries of miniaturization and performance, the FCBGA Glass Substrate is set to play a pivotal role in enabling the next generation of high-performance electronic devices.

Current Trends and Innovations in FCBGA Glass Substrate Technology

The FCBGA Glass Substrate has become a cornerstone in the evolution of semiconductor packaging, driven by the rapid growth of AI, IoT, and 5G technologies. Innovations in substrate technologies and increased industry focus on glass-based solutions are reshaping the landscape of advanced packaging. Below is an overview of current trends and developments shaping the FCBGA Glass Substrate market.

Increasing Demand for Glass-Based FCBGA in AI, IoT, and 5G Applications

With the proliferation of AI-driven workloads, the Internet of Things (IoT), and the deployment of 5G networks, the demand for high-performance, reliable, and compact semiconductor packages is surging. The FCBGA Glass Substrate meets these requirements with its superior thermal and dimensional stability, high-frequency compatibility, and scalability.

AI Applications: As AI workloads require faster data processing and higher bandwidth, glass substrates enable the high-density interconnections and signal integrity necessary for advanced processors and accelerators.
IoT Devices: Glass substrates are particularly advantageous for IoT devices, where compact designs, cost efficiency, and performance are critical.
5G Networks: The low dielectric constant and high-frequency performance of glass substrates make them ideal for 5G base stations and devices requiring minimal signal loss and interference.

Recent Advancements in Substrate Technologies

Recent technological innovations are driving the adoption of the FCBGA Glass Substrate:

Fine-Line Routing: Advances in photolithography and etching techniques have enabled the creation of finer circuit patterns, meeting the high I/O density demands of modern semiconductor nodes.
Panel-Level Packaging: Larger glass panels are now being used to produce multiple substrates simultaneously, reducing costs and improving manufacturing efficiency.
Enhanced Underfill Materials: New underfill materials are being developed to complement the properties of glass substrates, ensuring mechanical stability and improved thermal performance.

Insights into Manufacturers and Suppliers

Several industry leaders are investing heavily in the development and production of FCBGA Glass Substrate solutions:

LG Innotek: Recently commenced mass production of FCBGA glass substrates for advanced server processors and AI chips, showcasing their leadership in high-volume manufacturing.
Amkor Technology: A global leader in semiconductor packaging, Amkor is advancing glass-based substrate technologies for applications in high-performance computing and telecommunications.
Toppan: Known for its innovations in fine-line circuit design and panel-level manufacturing, Toppan is a key player in pushing the boundaries of FCBGA Glass Substrate production.

The FCBGA Glass Substrate is at the forefront of modern semiconductor packaging, addressing the challenges posed by increasing miniaturization and performance demands. With its unmatched thermal, mechanical, and electrical properties, coupled with ongoing advancements by leading manufacturers, glass substrates are poised to become the industry standard for AI, IoT, and 5G applications.

Challenges and Future Outlook for FCBGA Glass Substrate Technology

While the FCBGA Glass Substrate offers significant advantages in advanced semiconductor packaging, its adoption is not without challenges. As the industry continues to embrace glass substrates for FCBGA applications, key hurdles need to be addressed, and new opportunities for growth are emerging. Below is a detailed look at the challenges in the adoption of FCBGA Glass Substrates and the promising future prospects for these materials.

Key Challenges in Adoption

Material Brittleness

One of the primary challenges associated with FCBGA Glass Substrates is their inherent brittleness. Although glass is a rigid and stable material, it is more susceptible to cracking or chipping during handling, particularly during the manufacturing process. This makes precision handling and the use of specialized equipment essential to avoid damage. Manufacturers are exploring new techniques to reinforce the glass and reduce the likelihood of breakage, but this remains a key concern for large-scale adoption in high-volume production.

Cost Optimization

While glass substrates offer performance advantages, they are often more expensive to produce than traditional organic laminates or silicon-based substrates. The high cost of raw materials, complex manufacturing processes, and specialized equipment contribute to the overall price. To drive widespread adoption, significant efforts are being made to optimize the production process, including the development of more cost-effective manufacturing techniques such as panel-level packaging and improved yield rates. Lowering production costs will be critical in ensuring that glass-based FCBGA solutions become economically viable for a wider range of applications.

Future Opportunities for Glass Substrates in FCBGA Packaging

Expanding to Consumer Electronics

One of the most exciting future opportunities for FCBGA Glass Substrate technology is its potential application in consumer electronics. While the current focus is on high-performance computing and telecommunications, there is a growing demand for smaller, faster, and more efficient devices in consumer markets. Glass substrates, with their ability to support high-density I/O and fine-line routing, are well-positioned to address the increasing performance requirements of consumer devices like smartphones, wearables, and portable electronics. As manufacturing processes improve and costs decrease, we can expect broader adoption in this sector.

Adoption in Heterogeneous Integration

Heterogeneous integration, which involves combining multiple different types of chips or components into a single package, is another area where FCBGA Glass Substrates are poised to make a significant impact. Glass substrates provide the mechanical stability and electrical insulation needed for complex multi-chip systems, making them ideal for advanced packaging solutions in heterogeneous integration. This integration method is critical for applications such as AI, automotive electronics, and next-generation communication networks, where different types of chips—like memory, processors, and sensors—must work together seamlessly. The scalability and high-performance characteristics of glass will facilitate the development of these highly integrated systems.

While the FCBGA Glass Substrate faces challenges such as material brittleness and cost optimization, its advantages in performance, scalability, and electrical properties make it an essential component for next-generation semiconductor packaging. As manufacturing techniques evolve and costs decrease, glass substrates are set to play an even more prominent role in a wide range of industries, from consumer electronics to heterogeneous integration. The future of FCBGA Glass Substrate technology holds exciting possibilities for driving innovation across diverse fields, making it a key material in the evolution of advanced electronics.

FQAs Abut FCBGA Glass Substrate

What is BGA substrate?

BGA (Ball Grid Array) substrate is a type of printed circuit board (PCB) used for connecting chips to the board in a compact and efficient way. It features an array of solder balls at the bottom, which serve as electrical connections to the PCB. BGA substrates provide high-density interconnections and are widely used in advanced packaging of semiconductors.

What is the glass substrate?

A glass substrate is a type of material used in electronic packaging, particularly in high-performance applications. Glass offers high rigidity, excellent thermal stability, and low dielectric constants, making it ideal for substrates in flip-chip and other advanced packaging technologies. Glass substrates are becoming increasingly popular due to their ability to handle fine-line routing and high-frequency performance.

What is the difference between glass substrate and silicon substrate?

The main difference between glass and silicon substrates lies in their material composition and properties:

Glass substrates are amorphous, providing high rigidity, low thermal expansion, and excellent electrical insulation. They are used for applications requiring high-frequency performance and dimensional stability.
Silicon substrates, on the other hand, are crystalline, offering higher thermal conductivity but generally less dimensional stability than glass. Silicon is widely used in traditional ICs and microelectronics for its electrical conductivity and ability to integrate with semiconductors.

What is FCBGA?

FCBGA (Flip-Chip Ball Grid Array) is a semiconductor packaging technology where a chip is flipped upside down and attached to a substrate using solder bumps. This arrangement allows for higher I/O density, improved thermal and electrical performance, and a compact package size. FCBGA is commonly used in applications requiring high-performance processors, such as CPUs, GPUs, and server chips.
