Microwave & RF PCB Boards | Trusted Manufacturer

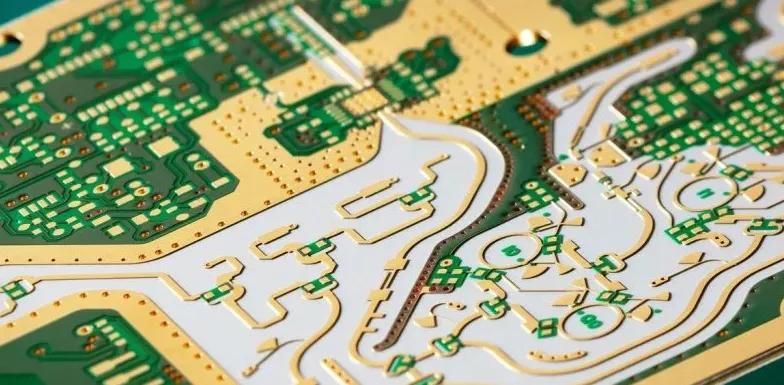

A microwave PCB is a specialized high-frequency circuit board used for RF and microwave applications. Leading microwave PCB manufacturers design these boards with low-loss materials and precise impedance control, ensuring stable performance in 5G, radar, aerospace, and satellite communications.

Key Features of Microwave PCBs

Microwave PCBs differ from conventional boards in several critical ways:

  • High-Frequency Performance – stable operation in the gigahertz range

  • Low Signal Loss – specialized laminates (Rogers, Taconic, PTFE, ceramics) reduce insertion loss

  • Controlled Impedance – precise dielectric thickness and trace width ensure signal consistency

  • Thermal Stability – materials with low CTE provide reliability under temperature variations

  • Hybrid Stack-Ups – cost-optimized designs using a mix of FR4 and high-frequency materials

  • Precision Fabrication – advanced drilling, plating, and etching ensure tight tolerances

These features make microwave PCBs suitable for mission-critical applications where even minor performance losses are unacceptable.

Microwave PCB Design Considerations

Designing microwave PCBs is more complex than designing standard digital boards. Some of the most important factors include:

  • Impedance Control – exact calculations of line width and dielectric thickness for 50Ω or 75Ω transmission lines

  • Signal Integrity – reducing crosstalk, reflections, and insertion loss through proper spacing and routing

  • Component Placement – optimized layouts for RF filters, amplifiers, and antennas

  • Thermal Management – effective dissipation through vias, heatsinks, or conductive substrates

  • Simulation & Modeling – advanced tools (HFSS, ADS, CST) ensure accuracy before fabrication

  • Connector & Transition Design – minimizing losses at coaxial-to-microstrip or stripline transitions

Good design ensures reliable RF performance and shortens the path from prototype to production.

RF & Microwave PCB Board Manufacture

RF and microwave PCB board manufacture is a specialized process focused on achieving high-frequency performance with minimal signal degradation.

Key aspects include:

  • Material Selection – Rogers, Taconic, PTFE composites, and ceramic laminates with low dielectric loss

  • Advanced Processes – sequential lamination, blind/buried vias, hybrid stack-ups, via filling

  • Controlled Impedance Fabrication – strict tolerances in etching and lamination for stable transmission lines

  • Assembly for High-Frequency Applications – fine-pitch components, RF connectors, shielding for EMI control

  • Testing & Quality Control – TDR, VNA, and thermal cycling ensure the board meets performance requirements

These capabilities are essential for applications in radar, satellite communication, 5G, and aerospace electronics.

 China Microwave PCB Board Manufacturer

China has become one of the largest hubs for microwave PCB manufacturing, offering cost-effective, large-scale solutions.

Strengths of Chinese manufacturers:

  • High-volume production for telecom and automotive industries

  • Competitive pricing with economies of scale

  • Wide selection of RF materials (Rogers, Taconic, PTFE)

  • Rapid prototyping for design validation

Challenges to consider:

  • Longer lead times due to overseas shipping

  • Varying levels of IP protection across suppliers

  • Limited ITAR and aerospace certifications compared to US-based manufacturers

Chinese microwave PCB board manufacturers are ideal for commercial electronics and high-volume applications where cost efficiency is key.

Choosing the Right Microwave PCB Manufacturer

Selecting the right manufacturing partner involves balancing cost, compliance, and performance.

Evaluation criteria:

  1. Material Availability – support for Rogers, PTFE, and advanced laminates

  2. Design Expertise – capability in impedance control and RF simulation

  3. Fabrication Precision – advanced drilling, plating, and tight tolerance control

  4. Testing Capabilities – TDR, VNA, EMI testing, and thermal cycling

  5. Compliance & Certifications – ISO, IPC, ITAR, MIL-spec depending on the project

USA vs. China Manufacturers

Criteria USA Manufacturers China Manufacturers
Prototyping Speed Very fast, ideal for R&D and low-volume runs Moderate, depends on logistics/shipping
Cost Efficiency Higher, premium pricing Lower, highly cost-competitive
Certifications Strong in ITAR, aerospace, defense standards Varies, some lack high-level compliance
Volume Capability Best for small-to-mid scale production Excellent for high-volume mass production
IP Protection Strong regulatory protection Varies, must choose carefully

 Conclusion

Microwave PCBs are essential for high-frequency applications in telecom, aerospace, defense, automotive, and medical fields. Their success depends on advanced design practices, specialized materials, and precise manufacturing processes.

  • RF & Microwave PCB board manufacture requires expertise in impedance control, low-loss materials, and rigorous testing.

  • China microwave PCB board manufacturers provide cost-effective, large-scale solutions for commercial applications.

  • Regional manufacturers such as those in the USA excel in prototyping, compliance, and aerospace-grade reliability.

Ultimately, the right partner depends on your priorities. For cutting-edge performance and compliance, choose a specialized RF/microwave PCB manufacturer with certifications. For cost efficiency and scalability, Chinese manufacturers offer strong advantages.
