Top Benefits of Using High Speed PCB Material Rogers in Designs

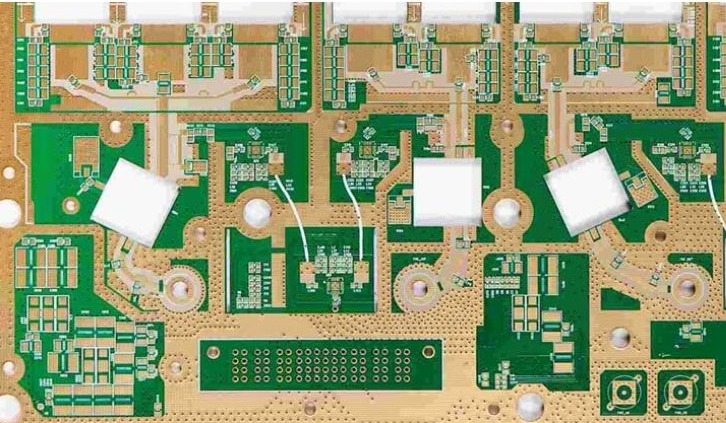

Key Properties of High-Speed Rogers PCB Materials: High Speed PCB Material Rogers

Dielectric Constant (Dk) and Signal Integrity

The dielectric constant (Dk) is one of the most critical properties of high-speed PCB materials as it affects the speed at which signals propagate through the substrate. For high-speed applications, maintaining a low and stable Dk is essential to preserve signal integrity, minimize distortion, and ensure controlled impedance. High speed PCB material Rogers provides a range of laminates with low and consistent Dk values, such as RO4003C (Dk = 3.38), RO4350B (Dk = 3.48), and RT/duroid 5880 LZ (Dk = 1.96), ensuring minimal signal delay and improved signal performance.

Another important consideration is the consistency of the dielectric constant with temperature changes, commonly referred to as the thermal coefficient of dielectric constant (TCDk). High speed PCB material Rogers maintains stable Dk values across a wide temperature range, minimizing signal drift in high-frequency environments. For instance, RO3003 and RO3006 exhibit exceptional TCDk stability, making them ideal for applications where temperature fluctuations can impact signal integrity. Consistent Dk values enable reliable impedance control and predictable performance across varying operating conditions.

Dissipation Factor (Df) and Loss Tangent

Dissipation factor (Df), also known as the loss tangent, determines how much signal energy is lost as heat as signals propagate through the PCB material. A low Df is crucial in high-speed designs because it reduces signal attenuation and maintains signal strength over longer distances. High speed PCB material Rogers offers laminates with exceptionally low Df values, ensuring minimal energy loss and optimal signal integrity.

For example:

• RO4003C has a Df of 0.0027 at 10 GHz, making it ideal for RF and microwave applications.

• RO4350B features a slightly higher Df of 0.0037, while still maintaining excellent performance in high-frequency environments.

• RT/duroid 5880 LZ offers an ultra-low Df of 0.0019, ensuring negligible signal loss even in high-frequency microwave and millimeter-wave applications.

The importance of low Df cannot be overstated in high-speed PCBs, as it ensures signal strength is preserved across various layers and minimizes the risk of performance degradation. By leveraging high speed PCB material Rogers, designers can achieve consistent signal performance with minimal losses, making these materials the preferred choice for high-frequency applications.

Thermal Stability and High Tg Properties

Thermal stability is a critical factor in maintaining the performance and reliability of high-speed PCBs, especially when exposed to elevated temperatures. The glass transition temperature (Tg) indicates the point at which the substrate transitions from a rigid state to a softened state. High speed PCB material Rogers provides high Tg laminates that maintain mechanical and electrical stability under high thermal stress, ensuring consistent performance in demanding applications.

High Tg materials such as RO4350B and RO3006 offer improved thermal stability, allowing high-speed PCBs to withstand harsh operating conditions without compromising signal integrity. A comparison of high Tg materials highlights their ability to:

• Reduce thermal expansion, preventing delamination and mechanical failure.

• Maintain signal stability by minimizing changes in the dielectric constant at elevated temperatures.

• Enhance the reliability of high-frequency designs by improving thermal management.

By utilizing high speed PCB material Rogers with high Tg properties, designers can ensure that the PCBs remain thermally and mechanically stable, even when subjected to high-power and high-frequency environments.

Moisture Absorption and Dimensional Stability

Moisture absorption and dimensional stability are essential for ensuring consistent mechanical and electrical performance in high-speed PCBs, especially in high-frequency environments where signal integrity can be compromised by moisture ingress. High speed PCB material Rogers offers materials with low moisture absorption rates, preventing changes in Dk and minimizing signal distortion due to humidity and environmental conditions.

Materials such as RO4003C and RO4350B exhibit moisture absorption rates below 0.1%, ensuring that their electrical properties remain unaffected even in high-humidity environments. Low moisture absorption contributes to maintaining consistent Dk and Df values, reducing the risk of signal degradation over time.

Dimensional stability is another critical property that ensures the mechanical integrity of the PCB substrate under varying environmental conditions. High speed PCB material Rogers maintains excellent dimensional stability, preventing warping, shrinking, or expansion that could lead to misalignment of high-frequency circuits. Stable dimensions allow for predictable impedance and consistent electrical performance, ensuring long-term reliability in high-speed applications.

Summary of Key Properties

High speed PCB material Rogers delivers exceptional performance by offering low and stable Dk, low Df for minimal signal loss, high Tg for improved thermal stability, and excellent moisture and dimensional stability. These key properties make Rogers materials the preferred choice for high-frequency and high-speed PCB applications across industries such as telecommunications, aerospace, automotive, and defense. By leveraging the superior electrical and mechanical characteristics of Rogers laminates, designers can achieve enhanced signal integrity, reduced losses, and long-term reliability in high-speed electronic systems.

Why Rogers is Better Than FR4 for High-Speed PCBs: High Speed PCB Material Rogers

Differences in Electrical Properties

When comparing the electrical properties of high speed PCB material Rogers to traditional FR4 materials, the differences become evident in terms of dielectric constant (Dk), dissipation factor (Df), and signal integrity.

Dielectric Constant (Dk) and Dissipation Factor (Df) Comparison

• Rogers Materials: Rogers laminates, such as RO4003C (Dk = 3.38, Df = 0.0027) and RO4350B (Dk = 3.48, Df = 0.0037), provide low and stable Dk values across a wide frequency range. This stability ensures consistent impedance control and minimal signal distortion, making them ideal for high-frequency applications.

• FR4 Materials: In contrast, standard FR4 materials have a higher and less consistent Dk (typically 4.2 to 4.7) and a significantly higher Df (around 0.02), leading to greater signal loss and reduced performance at high frequencies.

Signal Loss and Impedance Control Advantages

The lower Df of high speed PCB material Rogers results in minimal signal loss, ensuring that high-frequency signals maintain their strength over longer distances. Additionally, Rogers laminates provide superior impedance control, which is essential for maintaining signal integrity in high-speed applications such as 5G, RF, and microwave circuits. Compared to FR4, Rogers materials enable higher data rates and reduced signal attenuation, making them the preferred choice for high-frequency applications.

Thermal Performance and High Tg Properties

Thermal performance is another critical factor where high speed PCB material Rogers outperforms FR4, especially in high-frequency and high-power applications.

Rogers’ Superior Thermal Conductivity and Heat Dissipation

Rogers laminates offer better thermal conductivity and heat dissipation compared to FR4. For example, RO4350B provides improved thermal management, reducing the risk of overheating in high-speed circuits. This superior thermal conductivity ensures that heat generated during operation is efficiently dissipated, preventing performance degradation.

Importance of Higher Tg in Maintaining Signal Integrity Under Thermal Stress

High glass transition temperature (Tg) is essential for maintaining signal integrity in high-speed applications that operate under thermal stress. High speed PCB material Rogers offers materials with higher Tg values than standard FR4, reducing the likelihood of mechanical deformation and ensuring consistent electrical performance.

• RO4003C and RO4350B exhibit high Tg properties, making them suitable for applications with elevated operating temperatures.

• In comparison, FR4 materials, with a typical Tg range of 130°C to 140°C, are more prone to thermal degradation, leading to signal integrity issues and increased failure rates.

The superior thermal stability of Rogers materials makes them an ideal choice for applications that require reliable performance under thermal stress, such as radar systems, 5G infrastructure, and automotive electronics.

Consistency Across Frequency Ranges

High-frequency applications demand materials that maintain consistent performance across a wide range of frequencies. High speed PCB material Rogers excels in providing stable Dk and low loss even at microwave and millimeter-wave (mmWave) frequencies.

Stable Dk and Low Loss at Microwave and mmWave Frequencies

• Rogers laminates such as RT/duroid 5880 LZ (Dk = 1.96, Df = 0.0019) and RO3003 (Dk = 3.0, Df = 0.0013) provide exceptionally low Dk and Df values that remain stable across different frequencies.

• These properties ensure minimal signal loss, low insertion loss, and consistent impedance control, even at frequencies exceeding 30 GHz.

Comparison of Frequency Performance in RF and Microwave Applications

• Rogers Materials: Rogers laminates outperform FR4 in RF and microwave applications by maintaining consistent electrical properties at higher frequencies. This makes them ideal for applications such as 5G antennas, radar systems, and satellite communication.

• FR4 Materials: Standard FR4 materials exhibit higher loss and inconsistent Dk values at higher frequencies, making them unsuitable for demanding high-speed applications.

By using high speed PCB material Rogers, designers can ensure that their high-frequency circuits deliver stable and reliable performance across a broad frequency spectrum, even in challenging environments.

Cost Versus Performance Considerations

While Rogers materials generally have a higher initial cost compared to FR4, the long-term benefits and performance advantages often outweigh the cost difference, making them a more cost-effective solution for high-speed applications.

Cost-Benefit Analysis for High-Frequency Applications

• Initial Investment: The upfront cost of high speed PCB material Rogers is higher than that of FR4, primarily due to the advanced material properties and specialized manufacturing processes.

• Performance Gains: Rogers laminates offer superior signal integrity, reduced signal loss, better thermal management, and higher frequency stability, all of which contribute to enhanced system performance and reduced failure rates.

• Lower Maintenance and Reduced Rework Costs: By using Rogers materials, designers can minimize signal degradation, reduce the need for rework, and extend the lifespan of their high-frequency PCBs, resulting in lower overall operating costs.

Long-Term Reliability and Reduced Rework Costs with Rogers Materials

Rogers materials ensure long-term reliability by maintaining stable electrical properties under varying environmental conditions. The enhanced durability and reduced need for repairs or replacements make high speed PCB material Rogers a cost-effective choice for applications that require consistent performance over extended periods.

In high-frequency applications, where reliability and performance are critical, the benefits of using Rogers materials far outweigh the higher initial investment, making them the preferred choice for high-speed PCB designs.

Summary: Why Rogers is Better Than FR4 for High-Speed PCBs

High speed PCB material Rogers offers significant advantages over traditional FR4 in terms of electrical properties, thermal stability, frequency consistency, and long-term cost-effectiveness. With superior Dk and Df values, enhanced thermal performance, and stable frequency characteristics, Rogers materials provide a reliable solution for high-speed applications in telecommunications, aerospace, automotive, and other industries. By choosing Rogers laminates, designers can achieve improved signal integrity, reduced signal loss, and enhanced reliability in their high-speed PCB designs.

Applications of High-Speed Rogers PCBs: High Speed PCB Material Rogers

High-Speed PCB Material Rogers in 5G Communication Systems

The rapid evolution of 5G communication systems has significantly increased the demand for high speed PCB material Rogers to ensure reliable performance in high-frequency environments. 5G technology operates in both sub-6 GHz and millimeter-wave (mmWave) frequency ranges, where maintaining signal integrity and minimizing loss is critical.

Antenna Modules and Base Stations

In 5G infrastructure, antenna modules and base stations require high-frequency PCBs that can handle increased data rates and ensure minimal signal attenuation. High speed PCB material Rogers provides low-loss laminates, such as RO4350B and RO4003C, which deliver excellent electrical performance at high frequencies. These materials maintain controlled impedance and low insertion loss, ensuring that 5G antenna modules and base stations operate efficiently even in high-density network environments.

Millimeter-Wave (mmWave) Applications

Millimeter-wave (mmWave) frequencies, typically ranging from 24 GHz to 100 GHz, present unique challenges for maintaining signal stability and minimizing loss. High speed PCB material Rogers offers laminates such as RT/duroid 5880 LZ and RO3003, which provide ultra-low Dk and Df values, enabling superior signal propagation in mmWave applications. These materials are widely used in 5G mmWave small cells, beamforming antennas, and high-frequency transceivers, where maintaining consistent signal performance is essential.

Automotive Radar and Advanced Driver Assistance Systems (ADAS) Using High-Speed PCB Material Rogers

Automotive radar and Advanced Driver Assistance Systems (ADAS) rely on high-frequency radar modules that operate in the 77 GHz and 24 GHz frequency bands to detect objects and assist with autonomous driving. High speed PCB material Rogers plays a critical role in ensuring reliable signal processing and maintaining signal integrity in these applications.

High-Frequency Signal Processing in Radar Modules

Automotive radar systems require materials with low-loss characteristics to transmit and receive high-frequency signals with minimal distortion. High speed PCB material Rogers, such as RO3003 and RT/duroid 5880 LZ, provides excellent Dk and Df stability, ensuring that radar modules maintain consistent performance across temperature and environmental changes. These materials facilitate accurate object detection, collision avoidance, and lane departure warning in ADAS systems.

Impact of Low-Loss Materials in ADAS

Low-loss materials are essential in ADAS applications to minimize signal degradation and ensure real-time processing of sensor data. High speed PCB material Rogers offers superior moisture resistance, dimensional stability, and high Tg properties, preventing performance degradation under extreme automotive conditions. The use of Rogers materials enhances the reliability and safety of ADAS systems by ensuring consistent signal quality and accurate data processing.

High-Speed PCB Material Rogers in Aerospace and Satellite Communication Systems

In aerospace and satellite communication systems, maintaining signal integrity in extreme environments is paramount. High speed PCB material Rogers provides specialized laminates designed to meet the demanding requirements of high-frequency aerospace and satellite communication applications.

Stability and Reliability in Harsh Environments

Aerospace and satellite systems operate in environments with extreme temperature fluctuations, high radiation levels, and harsh mechanical conditions. High speed PCB material Rogers offers superior thermal stability, low moisture absorption, and high dimensional stability, ensuring consistent performance in challenging environments. Laminates such as RO3006 and RO4350B exhibit excellent thermal conductivity and low signal loss, making them ideal for aerospace applications.

Role of Rogers Laminates in High-Frequency Radar and Communication Systems

Rogers laminates are extensively used in radar and communication systems that require high-frequency performance and long-term reliability. High speed PCB material Rogers ensures stable Dk and Df properties, minimizing signal loss in radar modules and satellite communication systems. By utilizing Rogers materials, aerospace systems can maintain consistent signal performance even in extreme operating conditions, ensuring reliable data transmission for navigation, surveillance, and communication.

High-Speed PCB Material Rogers in RF and Microwave Applications

RF and microwave applications require high-performance PCB materials that maintain signal integrity across a wide range of frequencies. High speed PCB material Rogers provides a range of laminates specifically designed to meet the stringent requirements of RF and microwave circuits.

Usage of High-Speed PCBs in RF Modules

RF modules used in wireless communication, radar, and IoT devices rely on high-speed PCBs to ensure minimal signal distortion and loss. High speed PCB material Rogers, such as RO4003C and RO4350B, offers low-loss properties that enable consistent signal propagation in RF modules. These materials provide superior impedance control, ensuring that RF circuits operate with minimal signal reflection and insertion loss.

Low-Loss Material Requirements for Optimal Signal Transmission

In RF and microwave applications, minimizing signal loss is crucial to maintaining system performance and efficiency. High speed PCB material Rogers provides laminates with ultra-low Df values, ensuring optimal signal transmission across RF and microwave frequencies. Materials such as RT/duroid 5880 LZ and RO3003 offer industry-leading low-loss properties, making them ideal for applications where signal integrity and stability are critical.

Summary of High-Speed Rogers PCB Applications

High speed PCB material Rogers plays a pivotal role in ensuring reliable performance in a variety of high-frequency applications, including 5G communication systems, automotive radar, aerospace, and RF/microwave modules. With its low-loss properties, stable dielectric constants, and superior thermal management, Rogers materials provide designers with the flexibility and performance needed to develop high-speed PCBs that meet the demanding requirements of modern electronic systems. By leveraging the advanced capabilities of Rogers laminates, engineers can achieve optimal signal integrity, reduced signal loss, and long-term reliability in high-frequency and high-speed applications.

Comparison of Rogers Materials for High-Speed Designs: High Speed PCB Material Rogers

RO4003C vs. RO4350B

When comparing RO4003C and RO4350B, two widely used laminates in high speed PCB material Rogers, notable differences in dielectric properties, thermal performance, and application suitability become apparent.

Performance Differences in Dk, Df, and Thermal Properties

• Dielectric Constant (Dk):

  • RO4003C: Offers a stable Dk of 3.38 ± 0.05 at 10 GHz, making it ideal for controlled impedance and high-frequency applications.

  • RO4350B: Features a slightly higher Dk of 3.48 ± 0.05 at 10 GHz, providing enhanced impedance control and signal integrity for RF and microwave circuits.

• Dissipation Factor (Df):

  • RO4003C: Low Df of 0.0027 at 10 GHz ensures minimal signal loss, maintaining strong signal strength over extended distances.

  • RO4350B: Slightly higher Df of 0.0037 at 10 GHz offers comparable low-loss characteristics but with slightly increased insertion loss.

• Thermal Properties:

  • RO4003C: Offers moderate thermal performance with a Tg (glass transition temperature) of 280°C, making it suitable for applications that experience moderate thermal stress.

  • RO4350B: Exhibits better thermal performance with a Tg of 280°C and improved thermal conductivity (0.69 W/m·K), allowing for enhanced heat dissipation in high-power circuits.

Suitability for Different High-Frequency Applications

• RO4003C: Ideal for applications requiring low-loss performance and consistent impedance control, such as RF antennas, automotive radar, and point-to-point microwave links.

• RO4350B: Preferred for applications demanding higher thermal stability and slightly improved impedance control, making it suitable for high-power RF modules, 5G communication systems, and high-density wireless circuits.

While both materials offer excellent electrical performance, RO4350B is better suited for environments with elevated thermal loads, whereas RO4003C excels in maintaining low-loss characteristics and consistent signal integrity in high-frequency applications.

RT/duroid 5880 LZ vs. RO3003 and RO3006

When comparing RT/duroid 5880 LZ with RO3003 and RO3006, trade-offs emerge between ultra-low Dk, high-frequency stability, and thermal performance, influencing their application-specific advantages and limitations.

Trade-Offs in Ultra-Low Dk and High-Frequency Stability

• RT/duroid 5880 LZ:

  • Ultra-low Dk of 1.96 ± 0.04 at 10 GHz ensures minimal signal distortion, making it ideal for mmWave, radar, and microwave applications.

  • Exceptionally low Df of 0.0019 results in negligible signal loss, ensuring superior high-frequency performance.

  • However, due to its low mechanical robustness and moisture sensitivity, it is best suited for applications where ultra-low loss is prioritized over thermal stability.

• RO3003:

  • Dk of 3.00 ± 0.04 at 10 GHz provides a balance between low signal loss and controlled impedance.

  • Very low Df of 0.0013 at 10 GHz ensures superior signal propagation, especially in high-frequency circuits.

  • RO3003 offers better mechanical stability and thermal properties compared to RT/duroid 5880 LZ, making it suitable for RF modules, antennas, and high-frequency power amplifiers.

• RO3006:

  • Higher Dk of 6.15 ± 0.15 at 10 GHz provides improved miniaturization of high-frequency circuits while maintaining consistent impedance.

  • Low Df of 0.0025 ensures minimal signal loss, making it a suitable choice for high-frequency applications where compact design and signal integrity are required.

  • RO3006 offers superior thermal stability and mechanical performance, making it ideal for satellite communication systems, phased-array radar, and high-density RF designs.

Application-Specific Advantages and Limitations

• RT/duroid 5880 LZ: Best suited for ultra-high-frequency applications such as millimeter-wave antennas, aerospace radar systems, and low-loss microwave circuits where minimizing signal loss is paramount. However, its lower mechanical durability may limit its use in applications requiring high thermal stability.

• RO3003: A versatile choice for a broad range of high-frequency applications, including RF and microwave circuits, 5G communication systems, and high-precision radar modules. It offers a balance between low-loss performance and thermal stability, making it a reliable material for long-term applications.

• RO3006: Preferred for applications requiring higher Dk values to support miniaturized high-frequency designs, such as phased-array antennas, satellite communication modules, and advanced radar systems. However, the higher Dk may introduce higher dispersion, which should be carefully managed in high-speed applications.

Summary of Rogers Material Comparisons for High-Speed Designs

High speed PCB material Rogers offers a range of high-performance laminates, each optimized for specific high-frequency and high-speed applications. RO4003C and RO4350B excel in providing low-loss performance and impedance control for RF and microwave applications, while RT/duroid 5880 LZ and the RO3000 series offer ultra-low loss and superior signal integrity at millimeter-wave and microwave frequencies. By carefully selecting the appropriate Rogers material, designers can optimize performance, minimize signal degradation, and ensure long-term reliability in high-speed PCB applications.

Design Considerations and Best Practices for High-Speed Rogers PCBs: High Speed PCB Material Rogers

Impedance Control and Signal Integrity

In high speed PCB material Rogers, maintaining precise impedance control is critical to ensuring high signal integrity and reducing unwanted reflections or distortions. Impedance mismatches can lead to signal degradation, excessive loss, and data transmission errors in high-frequency applications.

Importance of Controlled Impedance in High-Speed Designs

• Consistent impedance matching is essential for RF, microwave, and high-speed digital applications to prevent signal distortion and minimize losses.

• Rogers materials, such as RO4003C and RO4350B, provide excellent dielectric stability, ensuring minimal impedance variation across frequencies.

• Maintaining tight impedance tolerances (e.g., 50Ω or 75Ω transmission lines) helps optimize signal integrity and power efficiency.

Layer Stackup Optimization for Minimizing Losses

• Dielectric thickness selection: The correct dielectric thickness impacts impedance control and signal propagation delay.

• Ground plane placement: Placing a solid ground plane adjacent to signal layers improves return path continuity, minimizing electromagnetic interference (EMI).

• Differential pair routing: For high-speed differential signals, such as in 5G and RF communication systems, maintaining consistent spacing between traces ensures minimal skew and controlled impedance.

• Use of microstrip and stripline configurations: Microstrip transmission lines (external layers) and striplines (internal layers) should be designed carefully to balance signal speed, loss, and interference.

Thermal Management and High Tg Material Utilization

As signal frequencies increase, thermal management becomes a key challenge in high-speed PCB design. Using high Tg (glass transition temperature) materials ensures reliability under thermal stress.

Strategies for Heat Dissipation in High-Speed Designs

• Using high thermal conductivity laminates: Materials such as RO4350B and RO3006 have enhanced thermal properties to efficiently dissipate heat generated in power amplifiers, RF modules, and phased-array radar systems.

• Incorporating thermal vias: Placing thermal vias under high-power components helps dissipate heat into ground and power planes, reducing localized temperature spikes.

• Metal-backed PCB designs: Using copper-clad or metal-core PCBs enhances heat dissipation in microwave and mmWave applications.

• Even heat distribution: Ensuring even power distribution across layers helps prevent thermal hotspots that could impact signal performance.

Choosing High Tg Materials for Extended Thermal Reliability

• RO4350B and RO3006: These materials provide a Tg above 280°C, making them ideal for environments with high power densities and extreme temperature fluctuations.

• RO4003C: While having a slightly lower Tg, it still offers excellent thermal stability for RF circuits that do not experience excessive heat generation.

• RT/duroid 5880 LZ: Despite its ultra-low Dk and Df, it may require additional thermal dissipation strategies due to its slightly lower mechanical robustness under high temperatures.

Mitigating Signal Loss and Crosstalk

In high speed PCB material Rogers, mitigating signal loss and crosstalk is essential for ensuring reliable signal transmission and minimizing noise interference in RF, microwave, and mmWave designs.

Design Techniques to Minimize Crosstalk and EMI

• Proper trace spacing: Maintaining adequate spacing between signal traces reduces capacitive and inductive coupling, minimizing crosstalk in high-speed designs.

• Shielding techniques: Using grounded copper pours, via fences, and shielding layers helps confine EMI and protect sensitive signal paths.

• Shorter trace lengths: Minimizing trace lengths reduces signal attenuation and reflection, preserving signal quality at high GHz frequencies.

• Optimized power distribution networks (PDNs): Ensuring low impedance return paths and proper decoupling capacitor placement reduces noise and enhances signal stability.

Role of Low-Loss Rogers Materials in Improving Signal Quality

• Low Df advantages: Materials like RO3003 (Df = 0.0013) and RT/duroid 5880 LZ (Df = 0.0019) significantly reduce dielectric losses, ensuring minimal signal degradation in high-speed applications.

• Stable Dk across frequency ranges: Rogers laminates offer consistent dielectric properties, reducing phase distortion and maintaining signal integrity across wide bandwidths.

• Moisture resistance for reliability: Low moisture absorption in high speed PCB material Rogers ensures dimensional stability in humidity-sensitive environments such as aerospace, military, and satellite communication systems.

In high speed PCB material Rogers, effective design considerations such as impedance control, thermal management, and crosstalk mitigation are crucial for optimizing PCB performance in 5G networks, RF modules, radar systems, and high-speed digital circuits. By selecting the right Rogers materials and implementing best design practices, engineers can achieve superior signal integrity, reduced losses, and long-term reliability in high-frequency and high-speed electronic systems.

Future Trends in High-Speed PCB Materials: High Speed PCB Material Rogers

Advancements in Ultra-Low Loss Laminates

As the demand for higher frequencies and faster data transmission continues to rise, high speed PCB material Rogers is leading the development of ultra-low loss laminates to meet the needs of next-generation electronic systems. Emerging technologies are improving dielectric properties, enabling better performance, reduced signal degradation, and increased reliability in high-speed applications.

Emerging Technologies Improving Dielectric Properties

• Enhanced Polymer Composites: Advanced polymer blends with optimized dielectric properties are being integrated into high-speed PCB materials. These composites offer lower Df values while maintaining stability over a wide range of frequencies, making them ideal for high-frequency and RF applications.

• Nanostructured Dielectric Materials: Incorporating nanotechnology into PCB laminates improves dielectric constant (Dk) consistency and minimizes signal distortion at higher frequencies. Nanostructured materials enhance thermal stability and reduce moisture absorption, ensuring improved durability and signal integrity.

• Hybrid Material Systems: Combining hydrocarbon resins, ceramic fillers, and PTFE (polytetrafluoroethylene) results in materials with superior high-frequency performance and low-loss characteristics. These hybrid systems are optimized for 5G mmWave, satellite communications, and high-speed radar systems.

Impact of Material Innovation on High-Speed PCB Applications

• Reduced Signal Loss and Improved Performance: Innovations in high speed PCB material Rogers are leading to materials with lower dissipation factors (Df), which translates into minimal signal attenuation and improved data integrity in 5G networks, radar, and RF systems.

• Enhanced Miniaturization Capabilities: Advanced materials allow for the design of smaller, denser circuits with improved impedance control, making them ideal for applications where size constraints and high-frequency performance are critical.

• Greater Thermal and Mechanical Stability: New laminate technologies provide higher Tg (glass transition temperature) and improved dimensional stability, ensuring consistent performance under extreme thermal and environmental conditions.

Integration of High-Frequency Materials with 5G and Beyond

As 5G technology continues to expand and pave the way for 6G and beyond, high speed PCB material Rogers is playing a pivotal role in meeting the requirements for mmWave and terahertz (THz) frequencies. These next-generation communication technologies demand materials that can maintain signal integrity and low loss at extremely high frequencies.

Requirements for mmWave and Terahertz Frequencies

• Low-Loss Performance: Millimeter-wave (mmWave) and terahertz (THz) communication systems operate in frequency ranges exceeding 30 GHz to 300 GHz. These frequencies require ultra-low loss laminates that can minimize signal degradation and ensure consistent transmission. High speed PCB material Rogers materials such as RT/duroid 5880 LZ and RO3003 excel in maintaining signal strength at these high-frequency ranges.

• Stable Dielectric Constant (Dk): Consistency in Dk is essential for maintaining impedance control and minimizing phase distortion at higher frequencies. Rogers laminates, such as RO4003C and RO4350B, provide a stable Dk across a wide frequency spectrum, ensuring optimal performance in high-frequency designs.

• Enhanced Moisture Resistance and Environmental Stability: As 5G and 6G technologies expand to harsh outdoor environments and satellite communication systems, high speed PCB material Rogers offers superior moisture absorption resistance and dimensional stability, ensuring long-term reliability in challenging conditions.

Rogers’ Role in Enabling Next-Generation Communication Technologies

• Development of High-Performance Laminates: Rogers Corporation is continually investing in research and development to create laminates optimized for 5G, 6G, and future wireless networks. These materials are designed to handle high-frequency signal propagation while minimizing loss and distortion.

• Support for mmWave Antenna Design: Rogers materials such as RO4003C, RO4350B, and RT/duroid 5880 LZ are widely used in the design of mmWave antennas, phased-array systems, and small cells for 5G applications. Their superior dielectric properties and low-loss characteristics enable the reliable transmission of high-frequency signals.

• Enabling Terahertz Applications: With the future introduction of terahertz (THz) communication systems, Rogers is developing laminates that can support higher bandwidths and data rates, ensuring compatibility with emerging technologies that will power autonomous vehicles, IoT devices, and augmented reality systems.

Summary of Future Trends in High-Speed Rogers PCB Materials

High speed PCB material Rogers continues to drive advancements in high-frequency PCB technology by introducing ultra-low loss laminates and integrating high-frequency materials with next-generation communication technologies. As 5G networks evolve and terahertz frequencies become a reality, Rogers’ innovative materials will play a critical role in ensuring high signal integrity, reduced loss, and superior performance in high-speed PCB applications. By staying at the forefront of material innovation, Rogers is enabling the future of high-speed, high-frequency communication systems across industries.

FQAs Abut High Speed PCB Material Rogers

What materials are used in Rogers printed circuit board?

Rogers printed circuit boards (PCBs) are made from advanced high-frequency laminate materials designed for high-speed, high-frequency applications. Some of the most common materials include:

• RO4000 Series (e.g., RO4003C, RO4350B): Known for low-loss and excellent electrical performance at high frequencies.

• RT/duroid Series (e.g., RT/duroid 5880 LZ): Ultra-low dielectric constant (Dk) and low loss material for microwave and RF applications.

• RO3000 Series (e.g., RO3003, RO3006): High-frequency laminates providing superior electrical stability and thermal performance.

• RO3200 Series: High-performance materials designed for high-speed, high-frequency applications.

Why is Rogers better than FR4?

Rogers PCBs are often preferred over FR4 (a standard, lower-cost material) due to their superior electrical properties, especially in high-frequency applications. Key differences include:

• Lower Signal Loss: Rogers materials, such as RO4003C, have a much lower dissipation factor (Df) than FR4, meaning less signal degradation over long distances.

• Stable Dielectric Constant (Dk): Rogers materials maintain a stable Dk even at higher frequencies, while FR4’s Dk can vary, leading to signal distortion.

• Thermal Stability: Rogers materials offer higher Tg (Glass Transition Temperature), making them more reliable in high-temperature environments.

• Better Impedance Control: Rogers laminates allow for precise impedance control, which is essential for high-speed and high-frequency designs.

What is high TG PCB material?

High TG PCB material refers to a PCB material with a high glass transition temperature (Tg). The Tg is the temperature at which a material transitions from a rigid, glassy state to a more flexible, rubbery state. High-TG materials are designed to withstand higher temperatures without deforming, making them ideal for high-performance applications where thermal stability is crucial. High-TG materials are commonly used in high-frequency, high-speed, or high-power circuits. For example, Rogers’ RO4003C and RO4350B laminates have high Tg values, offering better thermal stability and performance in demanding environments.

What is considered high speed PCB?

A high-speed PCB is a printed circuit board that is designed to handle high-frequency signals with minimal signal degradation and interference. These PCBs are used in applications where data must be transmitted quickly, typically in the range of several gigahertz (GHz) or higher. Characteristics of high-speed PCBs include:

• Low Signal Loss: Materials with low dissipation factors (Df) like Rogers laminates are used to reduce signal attenuation.

• Precise Impedance Control: To avoid signal reflection and loss, high-speed PCBs require precise impedance matching.

• Stable Electrical Performance: Materials with stable dielectric constants (Dk) are essential for maintaining consistent signal propagation at high frequencies.

• Thermal Management: High-speed PCBs must be able to dissipate heat effectively to avoid performance degradation at high operating speeds. Examples include applications in 5G communications, aerospace, and automotive radar systems.
