Understanding the Key Properties of FR4 Epoxy Substrate in PCBs

FR4 material is widely used in the electronics industry for its cost-effectiveness, mechanical strength, and excellent electrical insulating properties. It is a composite of epoxy resin and woven glass fiber, offering durability and thermal stability, making it ideal for a wide range of electronic applications. An FR4 epoxy substrate is a specific type of FR4 material commonly used in PCB (Printed Circuit Board) manufacturing, providing a stable foundation for electronic circuits. It ensures reliable performance across various temperatures and electrical conditions, making it essential in high-demand applications such as consumer electronics, telecommunications, and automotive industries. The unique properties of FR4 epoxy substrates, including thermal resistance, electrical insulation, and mechanical strength, enable them to meet the rigorous demands of these industries, ensuring both reliability and performance in complex electronic systems.

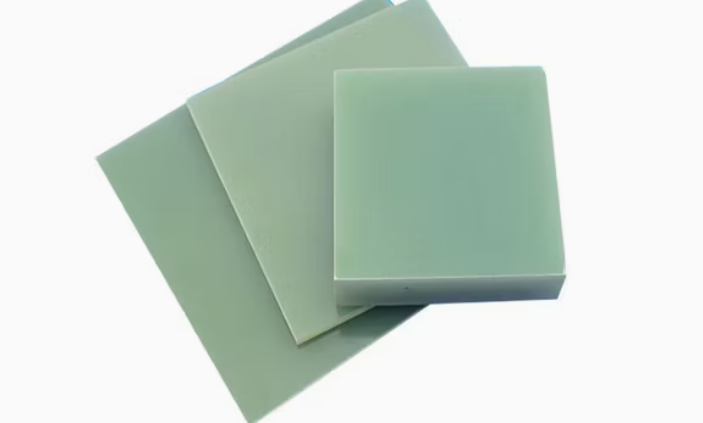

Overview of FR4 Epoxy Substrate

An FR4 epoxy substrate is a composite material primarily composed of epoxy resin and woven glass fiber cloth. The epoxy resin acts as the bonding agent, providing both strength and thermal resistance, while the glass fiber reinforcement ensures structural integrity and durability. This combination results in a material that offers excellent mechanical properties, electrical insulation, and resistance to heat, making it ideal for use in various electronic applications.

The key properties of FR4 epoxy substrate include its high mechanical strength, which allows it to withstand physical stresses and mechanical forces without deforming or breaking. Additionally, its thermal stability makes it suitable for high-temperature environments, a crucial characteristic for maintaining the reliability of electronic circuits. FR4 substrates also provide excellent electrical insulation, preventing unwanted electrical leakage and ensuring safe operation of the circuit.

There are different types and standards of FR4 epoxy substrate, tailored to meet the specific needs of various applications. For instance, high-frequency FR4 is designed to handle the higher electrical frequencies typically encountered in radio frequency (RF) and microwave circuits. In contrast, low-frequency FR4 is used in standard applications where signal integrity and high-speed performance are less critical. Depending on the application, FR4 materials can be customized for specific performance requirements, including low-loss properties, improved thermal conductivity, and enhanced dielectric stability.

Key Characteristics of FR4 Epoxy Substrate

The FR4 epoxy substrate is renowned for its combination of electrical, thermal, and mechanical properties, making it a preferred material in PCB manufacturing. Understanding the key characteristics of FR4 is essential for selecting the right material for specific applications.

Dielectric Constant of FR4

The dielectric constant of FR4 epoxy substrate is a crucial parameter that defines its electrical insulating properties. It represents how much the material can store electrical energy in the presence of an electric field. For FR4, the typical dielectric constant ranges from 4.2 to 4.5 at room temperature, which is suitable for most standard PCB applications.

The dielectric constant of FR4 significantly affects circuit performance, particularly in high-speed and high-frequency designs. A lower dielectric constant typically results in faster signal transmission, while a higher dielectric constant can lead to signal delays and reduced signal integrity. At higher frequencies, FR4 experiences more signal loss due to its relatively high dielectric constant compared to advanced materials like Rogers’ products. This makes it less suitable for applications requiring ultra-high-speed signals, such as RF (Radio Frequency) or microwave circuits, where materials with lower dielectric constants are often preferred.

Thickness of FR4

The thickness of FR4 epoxy substrate varies depending on the specific needs of the circuit design. Typical thicknesses for FR4 range from 0.2mm to 3.2mm, but custom thicknesses can be manufactured to suit particular requirements. The thickness of the substrate plays a critical role in the overall performance of the PCB, affecting factors such as impedance, mechanical strength, and thermal management.

Choosing the right thickness for an FR4 epoxy substrate depends on the intended use and design specifications of the PCB. For example, thicker substrates provide greater mechanical stability and support for larger or more complex components, while thinner substrates are often used for compact and high-density designs. The thickness also impacts the impedance of the PCB traces, which is particularly important in high-speed signal applications, where precise impedance matching is required for optimal signal transmission.

Specific Heat Capacity of FR4

The specific heat capacity of FR4 epoxy substrate is an important thermal property that defines the material’s ability to absorb and retain heat. This property is especially significant in designs that involve high power dissipation or operate in environments with fluctuating temperatures. FR4 has a relatively moderate specific heat capacity, making it suitable for most electronic applications where temperature stability is required but extreme thermal management is not critical.

In high-temperature environments, the FR4 epoxy substrate helps maintain thermal stability by dispersing heat evenly across the board. However, for applications that require superior thermal conductivity, such as in power electronics, specialized materials with higher specific heat capacities or better thermal properties may be considered. Nonetheless, FR4 remains a reliable choice for most general-purpose PCBs, as it provides adequate thermal management and ensures that components do not overheat under typical operating conditions.

Mechanical Strength of FR4

The mechanical strength of FR4 epoxy substrate is another defining characteristic that makes it a durable material for PCB fabrication. FR4 has excellent tensile strength, which means it can resist breaking or deformation when subjected to mechanical stress. It also has good impact resistance, enabling it to withstand shocks and vibrations during transportation and use. These qualities make FR4 epoxy substrate a versatile and reliable material for both consumer and industrial electronics.

When compared to other materials, such as ceramic substrates, FR4 is less rigid and can be more easily damaged under extreme conditions. Ceramic substrates, for example, have higher tensile strength and are often used in applications requiring high mechanical stability. FR4 is also less thermally conductive than materials like aluminum substrates, which are often used in power applications for better heat dissipation. However, FR4 offers a good balance between cost, strength, and electrical performance, making it a preferred choice for a wide range of electronic devices and applications.

This section detailed the key characteristics of FR4 epoxy substrate, including its dielectric constant, thickness, specific heat capacity, and mechanical strength, all crucial for its performance in diverse electronic applications, from consumer electronics to industrial systems.

Advantages and Challenges of FR4 Epoxy Substrate

The FR4 epoxy substrate is a popular choice in PCB manufacturing due to its combination of affordability, ease of processing, and robust performance. However, like any material, it also has its limitations. In this section, we will explore the advantages and challenges of FR4 epoxy substrate in more detail.

Advantages of FR4 Epoxy Substrate

1. Cost-effectiveness, Ease of Processing, and High Mechanical Strength One of the most significant advantages of the FR4 epoxy substrate is its cost-effectiveness. Compared to other materials such as ceramics or metal-based substrates, FR4 is relatively inexpensive, making it an ideal choice for high-volume production of PCBs. This affordability does not come at the cost of performance. FR4 substrates have good mechanical strength, meaning they can endure physical stresses without cracking or warping. They also offer good resistance to bending, which is crucial in applications that require long-term durability.

   The FR4 epoxy substrate is also easy to process and fabricate. It can be readily drilled, etched, and laminated to form PCBs with fine trace patterns and dense component layouts. This ease of manufacturing makes FR4 a go-to material for a wide range of PCB designs, from simple consumer electronics to more complex industrial circuits.

2. Wide Application in Various Electronic Devices FR4 epoxy substrate is used extensively in various industries, from consumer electronics to telecommunications and automotive sectors. In consumer electronics, it’s found in devices like smartphones, laptops, and televisions, where durability and cost-effectiveness are essential. In automotive applications, FR4 is used in critical systems such as sensors and control units, where reliable performance in harsh environments is required.

   The versatility of FR4 allows it to be customized for different applications, whether in high-density interconnects (HDI), multilayer PCBs, or single-sided designs. This wide application range further contributes to its popularity as the material of choice for standard PCBs.

3. Cost-Benefit Comparison with Other PCB Materials (e.g., Rogers PCB) When compared to other PCB materials, such as Rogers PCB, FR4 epoxy substrate offers a significant cost advantage. Rogers materials, known for their superior performance in high-frequency applications, come at a higher price point. While FR4 may not offer the same level of performance in extreme high-frequency scenarios, it provides an excellent balance of performance and cost for the majority of applications, especially those in low to mid-frequency ranges. This cost-benefit advantage allows manufacturers to keep production costs low while still meeting the performance requirements of most standard applications.

Challenges and Limitations of FR4 Epoxy Substrate

1. Performance Limitations in High-Frequency Applications Despite its many advantages, FR4 epoxy substrate has its limitations when it comes to high-frequency applications. The dielectric constant of FR4 (typically ranging from 4.2 to 4.5) is higher than that of specialized materials like Rogers’ high-frequency laminates, which offer lower dielectric constants and better performance at higher frequencies. As a result, FR4 may not be suitable for very high-speed or RF (Radio Frequency) circuits, where signal integrity and minimized signal loss are critical. In such applications, alternative materials with lower loss and more stable dielectric properties are often preferred.
2. Environmental Impacts, Such as Temperature and Humidity Effects on FR4 Another challenge of FR4 epoxy substrate is its sensitivity to environmental factors, particularly temperature and humidity. FR4 can degrade over time when exposed to high temperatures, leading to potential warping, delamination, or a decrease in its mechanical strength. Its performance may also be compromised in high-humidity environments, as moisture can be absorbed into the material, affecting its dielectric properties and causing swelling or surface corrosion.

   Manufacturers must take extra care in selecting the right type of FR4 material for applications in harsh environments. For example, higher-grade FR4 variants with better moisture resistance or enhanced thermal stability can be used to mitigate some of these environmental concerns. However, for extreme conditions, materials such as ceramic substrates or metal-based PCBs are often preferred due to their superior thermal management and moisture resistance.

This section highlights both the significant advantages and the challenges associated with using FR4 epoxy substrate. While it remains a cost-effective and versatile material suitable for a broad range of applications, its limitations in high-frequency performance and sensitivity to environmental factors should be considered when choosing the right material for specific PCB designs.

Application of FR4 Epoxy Substrate in High-Speed PCB Design

The FR4 epoxy substrate is a popular choice for PCB fabrication, but when it comes to high-speed and high-frequency applications, there are several factors to consider. In this section, we will explore the limitations of FR4 in high-speed designs, how to select suitable FR4 materials for such applications, and offer tips for optimizing high-speed PCB designs using FR4 epoxy substrate.

FR4 and High-Speed Design

While FR4 epoxy substrate is versatile and commonly used in general-purpose PCBs, it does have some limitations in high-speed and high-frequency applications. The primary concern is its relatively high dielectric constant (ranging from 4.2 to 4.5), which can cause signal loss, impedance mismatches, and delays in signal transmission, particularly at higher frequencies. These factors are critical in high-speed circuits where maintaining signal integrity is paramount.

In high-frequency applications, FR4 epoxy substrate can lead to significant signal distortion due to its relatively high loss tangent, which results in higher signal attenuation and reduced performance. Therefore, when designing high-speed PCBs, it is important to consider alternative materials that offer lower dielectric constants and less signal loss, such as Rogers’ high-frequency laminates. However, for many standard applications, FR4 remains a viable option if specific design strategies are employed to minimize these performance challenges.

How to Select Suitable FR4 Materials for High-Frequency Applications

To ensure reliable performance in high-speed applications using FR4 epoxy substrate, it is important to select the right type of FR4 material. One solution is to choose low-loss FR4 variants that are designed to minimize signal loss and attenuation. These specialized FR4 epoxy substrates are engineered to have improved electrical properties that are better suited for higher frequencies.

Low-loss FR4 materials typically have a lower dissipation factor (DF), which directly affects how much signal loss occurs in the PCB during high-speed signal transmission. These materials are specifically manufactured for applications where high-speed data transfer and signal clarity are important. Additionally, FR4 epoxy substrates with controlled dielectric constants and improved thermal stability are also available, offering better performance in high-frequency environments.

Another approach for improving FR4’s performance in high-speed designs is to carefully control the PCB’s trace geometry, including trace width, spacing, and overall layout, to help mitigate signal loss and maintain signal integrity.

High-Speed PCB Design Guide

When designing high-speed PCBs using FR4 epoxy substrate, it is essential to follow specific design guidelines to ensure stable performance and optimal signal transmission. Below are some key tips to consider when working with FR4 in high-speed designs:

1. Layout Optimization: The layout of the PCB plays a crucial role in minimizing signal interference and reducing noise. In high-speed designs, it is important to keep the traces as short and direct as possible to minimize the distance the signal has to travel. Minimizing the use of vias can also help reduce signal loss and delay, as vias can add inductance and resistance to high-speed signals.
2. Trace Width Selection: Trace width is another important factor in high-speed PCB design. The width of the traces affects the impedance of the PCB, and selecting the correct trace width is essential to ensuring impedance matching throughout the circuit. For high-speed circuits, maintaining consistent impedance is critical to minimizing reflections and signal loss. Using FR4 epoxy substrate with controlled impedance layers can help achieve more stable signal transmission.
3. Ground and Power Planes: For high-speed designs, the use of dedicated ground and power planes is essential for minimizing noise and ensuring stable performance. A solid and continuous ground plane helps reduce the impact of electromagnetic interference (EMI) and provides a low-resistance path for the return currents. This is particularly important in high-frequency circuits, where small variations in the ground path can result in significant signal degradation.
4. Ensuring Stable Performance in High-Frequency Environments: In high-frequency environments, FR4 epoxy substrate can still offer reliable performance when designed correctly. One important consideration is the use of proper decoupling capacitors to stabilize the power supply and minimize noise. Also, ensuring that the PCB has adequate thermal management to prevent overheating and signal distortion due to temperature fluctuations is critical in high-speed designs.

By following these design guidelines and choosing the right FR4 epoxy substrate, engineers can optimize high-speed PCB performance. Despite its limitations in high-frequency applications, FR4 remains a practical choice with proper design and material selection.

While the FR4 epoxy substrate may not be the optimal material for the highest-frequency applications, it can still be effectively used in high-speed PCB designs with the right strategies. By understanding its limitations and selecting the appropriate FR4 material and design techniques, engineers can achieve reliable, high-performance PCBs suitable for a variety of applications.

The Manufacturing Process of FR4 Epoxy Substrate

The FR4 epoxy substrate is popular in PCB manufacturing for its balance of mechanical, electrical, and cost-effective properties. Its production involves key steps from raw material preparation to final substrate formation. This section provides an overview of the FR4 epoxy substrate manufacturing process and key production techniques.

Overview of the Manufacturing Process of FR4 Epoxy Substrate

The production of FR4 epoxy substrate begins with the mixing of the base materials: epoxy resin and glass fiber cloth. The process is carefully controlled to ensure that the resin fully impregnates the glass fibers, creating a composite material that has the desired balance of strength, electrical insulation, and thermal stability.

1. Epoxy Resin and Glass Fiber Mixing: The first step involves mixing epoxy resin, which is the primary binder, with a hardener or curing agent. Once combined, the mixture is applied to glass fiber cloths, which serve as the reinforcement for the resin. The glass fibers are woven into a fabric structure, which gives the FR4 epoxy substrate its strength and rigidity. The resin is carefully impregnated into the glass cloth, ensuring that the resin fully wets the fibers, creating a uniform composite material.
2. Curing (Polymerization): After the resin is applied to the glass fibers, the material is cured in an oven at high temperatures. During the curing process, the epoxy resin undergoes a chemical reaction with the hardener, transforming the resin from a liquid state into a solid, thermoset plastic. This process ensures that the material has the required structural integrity, chemical resistance, and thermal stability.
3. Lamination: Once the resin is cured, the resulting FR4 epoxy substrate material is laminated into sheets of the desired thickness. The lamination process involves pressing the resin-soaked glass fabric between two heated plates, applying both pressure and heat to bond the layers together. The lamination process is critical for ensuring uniform thickness, density, and strength in the final FR4 laminate. In most cases, multiple layers of glass-fiber cloth and resin are stacked together to create multi-layered FR4 epoxy substrates used in complex PCB designs.

Key Production Techniques in FR4 Epoxy Substrate Manufacturing

Several key production techniques are employed to produce FR4 epoxy substrate sheets and ensure they meet the specifications required for PCB manufacturing. These include lamination, sintering, drilling, and surface finishing.

1. Lamination Process: Lamination is the process where the individual layers of FR4 epoxy substrate are bonded together under heat and pressure to form the laminate sheets. The process typically involves using a press machine that applies consistent pressure to the layered materials to ensure proper bonding. For multi-layer PCBs, this lamination process is repeated multiple times to ensure each layer of the FR4 is firmly bonded.
2. Sintering: In the sintering process, the FR4 epoxy substrate is heated to temperatures that help the resin fully cure and bond the glass fibers to each other. Sintering ensures that the material maintains the required mechanical properties, such as strength, stiffness, and resistance to thermal expansion, while also improving the uniformity of the material.
3. Drilling: Once the FR4 epoxy substrate has been formed into sheets, the next step is drilling holes for the PCB components, such as vias or through-holes for mounting electronic parts. Drilling is typically done using precision equipment like laser drills or mechanical drills to ensure that the holes are accurately positioned and clean. The FR4 material is hard and requires high-speed drills or laser cutting techniques to achieve precise hole sizes and minimize damage to the surrounding laminate.
4. Etching: After drilling, the next key process in the FR4 epoxy substrate manufacturing is etching. Etching is used to remove unwanted copper traces from the surface of the FR4 to create the desired circuit patterns. This process is typically done using a chemical bath or a laser to selectively remove excess copper from the board, leaving behind the conductive pathways necessary for the PCB’s electrical connections.
5. Surface Finishing: Once the FR4 epoxy substrate has been drilled, etched, and cleaned, it undergoes a surface finishing process. This process can include the application of solder mask layers, surface finishes such as gold plating, or the application of a protective coating to improve the board’s longevity and electrical performance. The solder mask prevents solder from flowing onto the wrong areas during component placement, while surface finishes ensure the board’s solderability and prevent oxidation.
6. Final Testing: The last step in the production process involves a thorough inspection and testing of the FR4 epoxy substrate to ensure that it meets all the required specifications. This includes checking for defects in the lamination, such as delamination or air bubbles, testing for precise drilling holes, verifying the integrity of the copper traces, and checking for overall performance against design parameters. Electrical tests are performed to verify signal integrity, impedance, and continuity.

The manufacturing process of FR4 epoxy substrate involves material preparation, lamination, drilling, etching, and surface finishing. Each step ensures the final substrate meets high standards for quality PCBs. Understanding these stages helps manufacturers produce FR4 epoxy substrates with excellent performance, durability, and reliability for various electronic applications.

Applications of FR4 Epoxy Substrate

The FR4 epoxy substrate is widely used in PCB production across various industries due to its strength, thermal stability, and electrical insulation. It is ideal for applications ranging from consumer electronics to automotive systems. This section will cover common uses of FR4 epoxy substrate in different sectors and how to select the right type based on application needs.

Common Uses of FR4 Epoxy Substrate

1. Consumer Electronics: FR4 epoxy substrate is a staple in the consumer electronics industry, used in devices such as smartphones, tablets, laptops, and home appliances. These devices require compact and durable circuit boards that can withstand daily wear and tear while providing reliable electrical performance. The strength and excellent insulation properties of FR4 make it ideal for these applications. It is used in the mainboards, power supply boards, and other critical components of consumer electronics.
2. Automotive: The automotive industry has increasingly relied on FR4 epoxy substrate for various electronic components within vehicles. Modern cars and electric vehicles (EVs) are packed with complex electronic systems that require durable and reliable PCBs, such as control units for infotainment, navigation, battery management, and sensor systems. FR4 epoxy substrate provides the mechanical strength, thermal resistance, and electrical insulation needed to perform in the high-temperature and demanding environment of the automotive sector.
3. Telecommunications: FR4 epoxy substrate is also extensively used in telecommunications equipment, such as routers, antennas, and base stations. These systems require circuit boards that can handle high-frequency signals and maintain stable electrical performance. While FR4 is not ideal for ultra-high-frequency applications, it performs well for general telecommunications uses, offering a balance of affordability and reliable functionality. Additionally, its good thermal stability ensures that the boards continue to function effectively under high power and continuous operation.
4. Industrial Equipment: In industrial equipment, FR4 epoxy substrate plays a crucial role in various control systems, sensors, and other electronic devices. Industrial applications often require PCBs that can withstand extreme environmental conditions, including exposure to heat, vibration, and moisture. The strength and durability of FR4 make it well-suited for these harsh conditions. It is used in machinery control boards, automated systems, and industrial robots, ensuring consistent performance in demanding environments.

How to Choose Different Types of FR4 Based on Specific Application Needs

Choosing the right FR4 epoxy substrate depends on the specific requirements of the application. Different types of FR4 are available, each tailored to meet particular needs based on factors such as electrical performance, mechanical strength, temperature resistance, and cost. Below are some factors to consider when selecting the right FR4 epoxy substrate for different applications:

1. Frequency and Signal Integrity: If the PCB will operate in high-frequency environments, selecting a low-loss FR4 epoxy substrate is essential. These materials have improved dielectric properties and reduced signal loss, ensuring better signal integrity and reduced attenuation at higher frequencies. In applications such as telecommunications and high-speed consumer electronics, low-loss FR4 variants can help achieve the necessary performance.
2. Thermal Management: For applications where the PCB will be exposed to high temperatures, such as automotive systems or power supplies, choosing FR4 epoxy substrate with higher thermal resistance is crucial. High-temperature FR4 materials are designed to withstand extreme heat without degrading, maintaining their mechanical and electrical properties under harsh conditions. FR4 with better thermal conductivity or reinforced glass fibers is particularly beneficial for high-power applications.
3. Mechanical Strength and Durability: FR4 epoxy substrate is renowned for its mechanical strength, but some applications may require even greater durability. For instance, industrial equipment that is subjected to heavy vibrations or stress may benefit from FR4 variants with enhanced toughness and impact resistance. Reinforced FR4 materials, which include additional layers of glass fiber or other reinforcing agents, can improve the board’s ability to resist physical stress.
4. Moisture and Environmental Resistance: In applications exposed to moisture or other environmental stressors, such as outdoor telecom equipment or automotive electronics, choosing FR4 epoxy substrate with improved moisture resistance is critical. Specialized FR4 materials with enhanced resistance to water absorption and environmental degradation ensure the PCB will continue to perform reliably over time, even in harsh environments.
5. Cost Considerations: Cost is often a determining factor when selecting materials for large-scale production. For consumer electronics, where cost-effectiveness is a priority, standard FR4 epoxy substrate is commonly used due to its affordability and adequate performance for most general-purpose applications. However, for high-end or specialized applications, more expensive FR4 variants may be necessary to meet performance requirements.

The FR4 epoxy substrate is widely used in consumer electronics, automotive, telecommunications, and industrial equipment. Choosing the right material depends on factors like frequency, temperature, mechanical strength, and environmental resistance. By considering these needs, manufacturers can ensure optimal performance, reliability, and cost-efficiency in various electronic applications.

How to Choose FR4 Epoxy Substrate

Selecting the right FR4 epoxy substrate for a specific application requires careful consideration of several key factors. The properties of FR4 epoxy substrate significantly impact PCB performance, reliability, and cost-effectiveness. This section covers key factors to consider when choosing FR4 epoxy substrate and offers recommendations based on application needs.

Key Factors to Consider When Selecting FR4 Epoxy Substrate

1. Dielectric Constant: The dielectric constant (Dk) is a crucial property of FR4 epoxy substrate that affects signal integrity and the performance of high-speed and high-frequency circuits. A higher dielectric constant can result in increased signal loss and slower signal propagation, which can lead to performance degradation in high-frequency applications. For general-purpose applications, standard FR4 epoxy substrate materials with moderate dielectric constants are suitable. However, for high-speed circuits and RF (radio frequency) applications, FR4 with a lower dielectric constant (low-loss FR4) should be selected to minimize signal loss and ensure reliable performance at high frequencies.
2. Thickness: The thickness of the FR4 epoxy substrate plays a significant role in the final PCB’s electrical, mechanical, and thermal performance. The typical thickness range for FR4 substrates is from 0.2mm to 3.0mm, depending on the specific application and the number of layers in the PCB. When choosing the thickness, consider the following:
   • Thicker FR4 substrates are ideal for applications that require additional mechanical strength, higher component mounting capacity, or thermal dissipation, such as in power supply circuits or automotive applications.
   • Thinner FR4 substrates are often preferred for compact designs or applications where space is limited, such as in consumer electronics or portable devices.

   Choosing the correct thickness ensures that the FR4 epoxy substrate can handle the electrical, thermal, and mechanical stresses required for the application.

3. Thermal Stability: Thermal stability is another key consideration when selecting FR4 epoxy substrate, especially for applications that generate significant heat or are exposed to high-temperature environments. FR4 epoxy substrate materials are generally known for their good thermal stability, but certain applications may require enhanced thermal resistance. For instance:
   • High-temperature FR4 materials are necessary for automotive, power electronics, and industrial applications, where the PCB may be exposed to sustained heat levels.
   • Standard FR4 can be used for most consumer electronics and telecommunications applications where moderate thermal resistance is sufficient.

   It is important to choose an FR4 epoxy substrate with the right thermal rating to ensure the reliability and longevity of the PCB under varying temperature conditions.

4. Mechanical Strength and Durability: The mechanical properties of FR4 epoxy substrate, such as tensile strength and impact resistance, determine how well the material can withstand physical stress during manufacturing and in the final application. Applications that involve high mechanical loads, such as automotive or industrial control systems, require FR4 with superior mechanical strength. Conversely, consumer electronics that are less exposed to physical stress can make use of standard FR4 materials.
5. Moisture and Chemical Resistance: Depending on the environment in which the PCB will be used, the FR4 epoxy substrate may need to be resistant to moisture, chemicals, or environmental degradation. For outdoor or harsh environments, choosing an FR4 material with enhanced moisture resistance and chemical stability is essential. Additionally, some applications may require FR4 with specific coatings or surface treatments to protect the PCB from environmental stressors.

Recommendations for Different FR4 Materials Based on Specific Applications

1. High-Frequency Circuits (e.g., RF, telecommunications):
   • For high-frequency and RF applications, choosing low-loss FR4 epoxy substrate with a lower dielectric constant minimizes signal attenuation and distortion, making it ideal for telecommunications, wireless devices, and high-speed circuits.
   • For high-frequency circuits, selecting the right thickness and trace width is crucial for impedance matching and signal integrity. Optimized materials ensure consistent PCB performance at higher signal speeds and frequencies.
2. General-Purpose Designs (e.g., Consumer Electronics):
   • For general-purpose designs, such as consumer electronics, standard FR4 epoxy substrate is usually sufficient. The dielectric constant and thermal properties of standard FR4 materials are well-suited for most applications in this field.
   • When selecting FR4 for general-purpose PCBs, the focus should be on cost-effectiveness, ease of fabrication, and sufficient mechanical strength. Thickness selection will depend on the size and form factor of the device being designed.
3. Power Electronics and Automotive Applications:
   • In power electronics and automotive systems, the FR4 epoxy substrate should be chosen based on the application’s thermal and mechanical requirements. Power supply circuits and automotive electronics typically generate significant heat, so a FR4 with higher thermal stability and greater mechanical strength is necessary.
   • Thicker FR4 epoxy substrates may be required for better heat dissipation and higher component mounting capacity. Additionally, materials with enhanced chemical resistance may be beneficial for automotive PCBs exposed to oils, fuels, and other harsh substances.
4. Industrial and Harsh Environments:
   • For industrial control systems or equipment that operates in harsh environments, the FR4 epoxy substrate must be resistant to mechanical stresses, moisture, and environmental contaminants. In these cases, FR4 with enhanced durability, moisture resistance, and higher thermal stability is preferred.
   • If the application involves high temperatures or vibrations, FR4 epoxy substrate materials with reinforced glass fibers or additional coatings can be selected for increased mechanical robustness.

Selecting the right FR4 material involves considering factors like dielectric constant, thickness, thermal stability, and mechanical strength to ensure reliable, cost-effective performance. Whether for high-frequency, general-purpose, or specialized designs, the right FR4 substrate is key to achieving optimal performance and reliability.

FQAs Abut FR4 Epoxy Substrate

What epoxy is used in FR4?

The epoxy used in FR4 is typically a bisphenol A (BPA) epoxy resin, which is combined with glass fiber cloth to form a composite material. This combination provides excellent mechanical strength, thermal stability, and electrical insulation properties, making it ideal for PCB applications.

What is FR4 substrate?

FR4 substrate refers to a type of fiberglass-reinforced epoxy laminate material used in the manufacturing of printed circuit boards (PCBs). It consists of an epoxy resin combined with woven glass fiber, which provides high strength, durability, and electrical insulation properties. It is commonly used in a wide range of electronic applications due to its excellent thermal stability and versatility.

How thick is FR4 epoxy substrate?

The thickness of FR4 epoxy substrate can vary depending on the application and the design requirements of the PCB. Typically, the thickness ranges from 0.2 mm to 3.0 mm, with the most common thickness being around 1.6 mm for standard PCBs. Thicker substrates are used in power electronics or applications requiring enhanced mechanical strength, while thinner substrates are used in compact, low-power devices.

What does the FR4 stand for?

FR4 stands for Flame Retardant 4, which is a designation for a specific grade of epoxy resin-based fiberglass laminate material. The “FR” indicates that the material is flame-retardant, and the “4” refers to the grade of the material as per the standards set by the National Electrical Manufacturers Association (NEMA). FR4 is commonly used in the production of printed circuit boards (PCBs) due to its excellent electrical and thermal properties.
